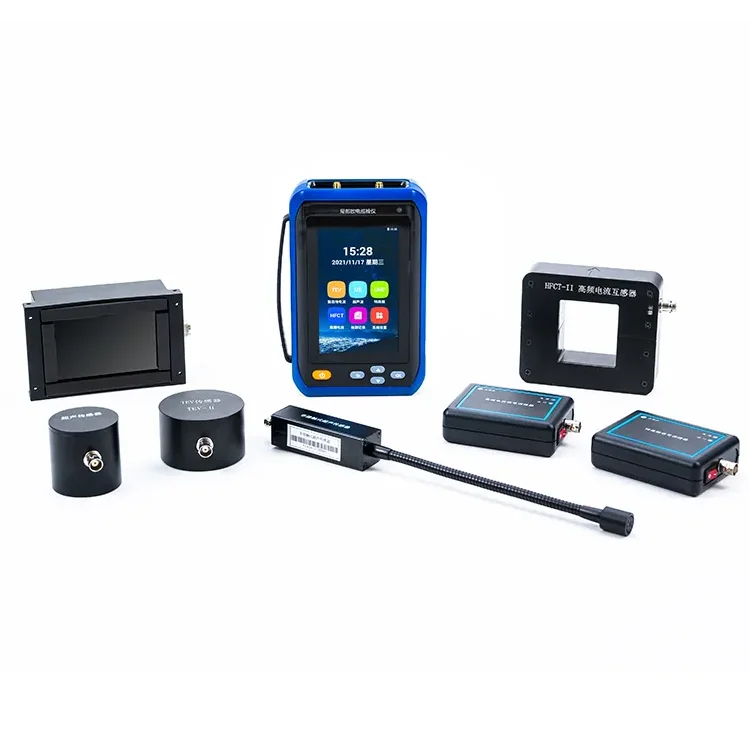

high accuracy transformer switchgear partial discharge pd tester partial discharge measurement
- Category: >>>
- Supplier: Rui Du Mechanical and electrical (Shanghai) Co. Ltd.
Share on (1600733130501):
Product Overview
Description
Product Description
Product features
1.\tSmall size, light weight, portability and easy operation.
2.\tBackground light LCD screen
3.\tBuilt-in lithium battery.
4.\tIt can provide the functions of storing and reading two-dimensional and three-dimensional maps.
5.\tAutomatic gain control adjustment is adopted, with strong anti-interference ability.
6.\tThrough a variety of anti-interference means to suppress various external interference, improve the signal-to-noise ratio, and effectively improve the detection accuracy.
7.\tThe instrument has RFID / WiFi / Bluetooth functions, which is conducive to expanding the application of the Internet of things.
8.\tThe internal integrated discharge type library facilitates the comparison and verification of discharge conditions.

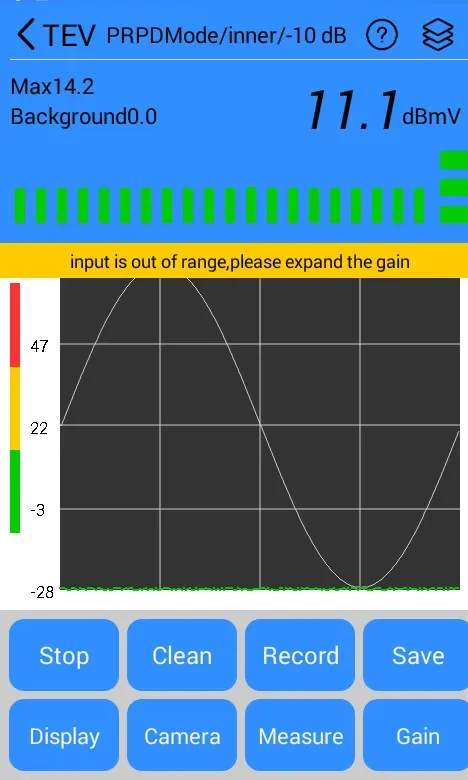

9.\tTime domain waveform multi cycle display mode, accurately judge interference and discharge.
10.\tPatrol inspection data can be exported to PC through SD card or U disk to complete the creation of user report.
Product technical parameters
Host parameter | ||
Number of detectable channels | 2 channels: 1 US, 1 UHF (wireless) | |
Sampling accuracy | 12bit | |
Synchronization mode | Internal synchronization, external synchronization, optical synchronization | |
Contact US | ||
Frequency range | 20kHz～300kHz | |
Output impedance | 50Ω | |
Detection sensitivity | 0.1mV | |
Measuring range | 0.1mV～1V | |
Output interface | Standard SMA connection host | |
UHF | ||
Measurement frequency range | 300MHz -1.5GHz | |
Detection sensitivity | < -60dBm | |
Receiving method: | The antenna | |
Transfer method | coaxial cable | |
Output interface | BNC interface-signal conditioning unit, wirelessly connected to the host | |
Hardware | ||
Display screen | 5.0 inch TFT true color LCD screen | |
Resolution | 800×480 | |
Operate | Touch/key | |
Data storage | TF card | |
Interface | 3.5mm stereo headphone jack | |
Power Supply | DC-12V/2A DC Power Supply | |
Extended function | Us-type C/5 million cameras /RFID/WIFI/ Bluetooth | |
Power supply | ||

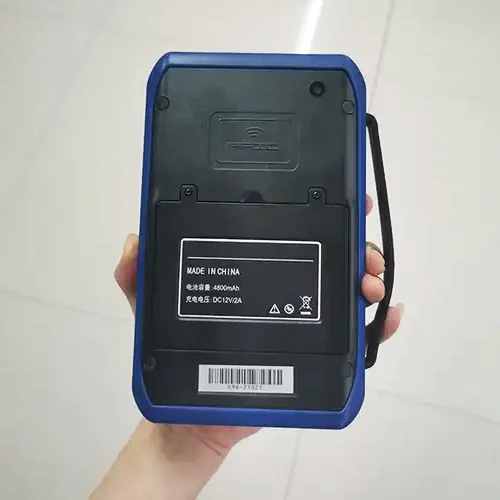

Internal power supply | Battery powered (4800mAH 7.4V) | |
Normal working hours | About 7 hours, and the full charge time of the battery is about 3 hours. | |
Measure | ||
Length× Width× Height | 235mm×133mm×48mm | |
Weight | 0.85kg | |
Environment | ||
Operating temperature | -20℃～50℃ | |
Storage temperature | -40℃～70℃ | |
Humidity | 10%-90% (non-condensing) | |
Altitude | ≤3000m | |
