High Torque 380V 400V EtherCAT AC XINYuHai Servo Motor 3KW 19Nm 1800RPM 20KG Three Phase Closed Loop for Printing Machines
High Torque 380V-400V EtherCAT AC XINYuHai Servo Motor 3KW 19Nm 1800RPM 20KG Three-Phase Closed Loop for Printing Machines

High Torque 380V 400V EtherCAT AC XINYuHai Servo Motor 3KW 19Nm 1800RPM 20KG Three Phase Closed Loop for Printing Machines

Share on (1600733157880):


Price:

Quantity:


Product Overview

Description

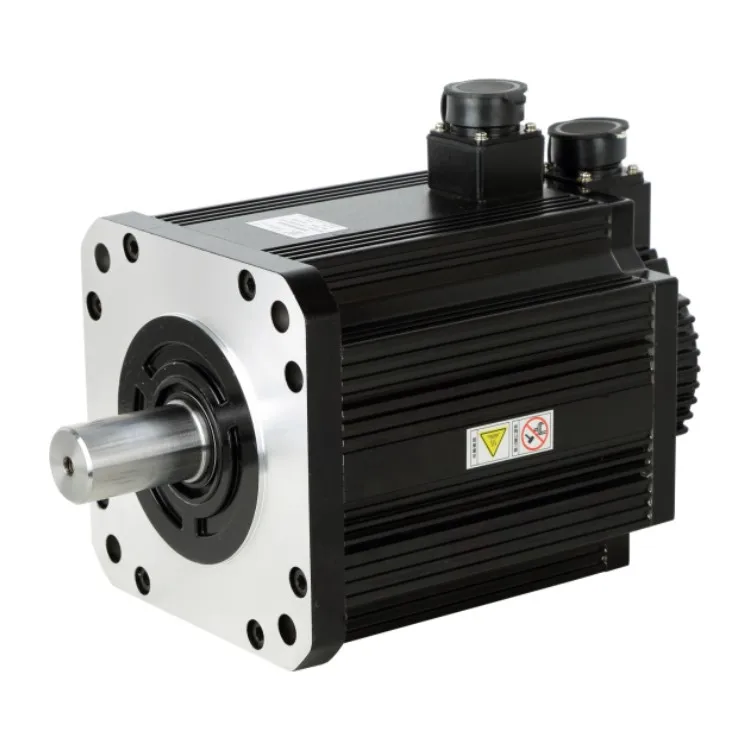

High Torque 380V-400V EtherCAT AC XINYuHai Servo Motor 3KW 19Nm 1800RPM Three-Phase Closed Loop for Printing Machines




Motor Model
180SY-M17015-H
180SY-M19015-H
180SY-M27015-H
180SY-M35015-H
Rated Power(Kw)
2.7
3.0
4.3
5.5
Rated Torque(N.m)
17
19
27
35
Max Torque(N.m)
34
47
54
70
Rated Speed(Rpm)
1500
1500
1500
1500
Max Speed(Rpm)
1800
1800
1800
1800
Rated Current(A)
10.5
12
16
19
Inertia (Kg.㎡)
3.4*10-3
3.8*10-3
6.1*10-3
8.6*10-3
Motor Weight(Kg)
19.5
20.5
25.5
30.5


Due to the limited size of the table, not all model parameters are listed, we supply different type and size, for more information, please contact us, also we can customized as your requirement.










1) Are you a manufacturer or trade company?
We are factory , we have engineers for researching & designing and workers for produce and operate etc, we could support you one-stop products and service,we produce stepper motor,servo motor,motor drive and couplings, etc..

2)Where is your factory located? How can I visit there?
Our factory is located in Wenling Taizhou Zhejiang province，it is easy to visit us through plane or railway. All our clients, from home or abroad, are warmly welcome to visit us!

3) Do you have a CE certificate?
Yes, for the products we exported, we could offer the CE for your Customs.

4) How long about the delivery?
It depends on the order details, and usually, we could support the delivery within 15 working days.

5) About warranty?
All our products provided 24months warranty!

6)How does your factory do regarding quality control?
"Quality is priority.'' Our inspector QC will check the goods in every procedure and modify the parts once they find any problems from them. And our salesman will also check our goods and take photos for every procedure for our client to confirm.

7)Do you provide after-sale service?
Yes, of course. For the problem when using our products, we will guide you how to apply it in the machine and how to set the parameters, etc.
