Shuttering Magnet, 1000 KG Precast Concrete Formwork Magnet for Vibration Platform
- Category: >>>
- Supplier: Ningbo Saixin Magnetic Technology Co. Ltd.
Share on (1600733170669):
Product Overview
Description
Product Description
Specification
item | value |
Place of Origin | China |
Zhejiang | |
Brand Name | SAIXIN |
Model Number | SX-1000 |
Type | Permanent |
Composite | Rare Earth Magnet |
Shape | Block |
Application | Industrial Magnet |
Tolerance | ±1% |
Processing Service | Bending, Welding, Decoiling, Cutting, Punching, Moulding |
Grade | steel+magnet |
Delivery Time | within 7 days |
Material | Steel+NdFeB |
Size | 200x95x43 |
Color | Custom Colors |
MOQ | 10pcs |
Feature | Durable |
Max Working Temperature | 80deg.c |

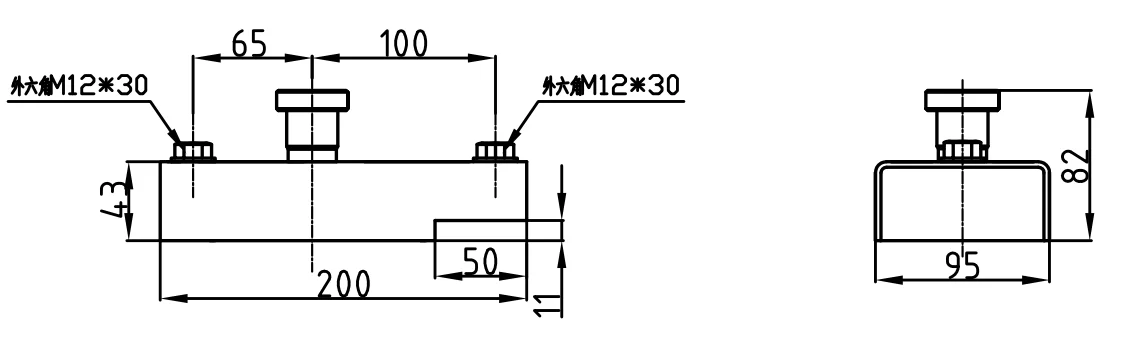

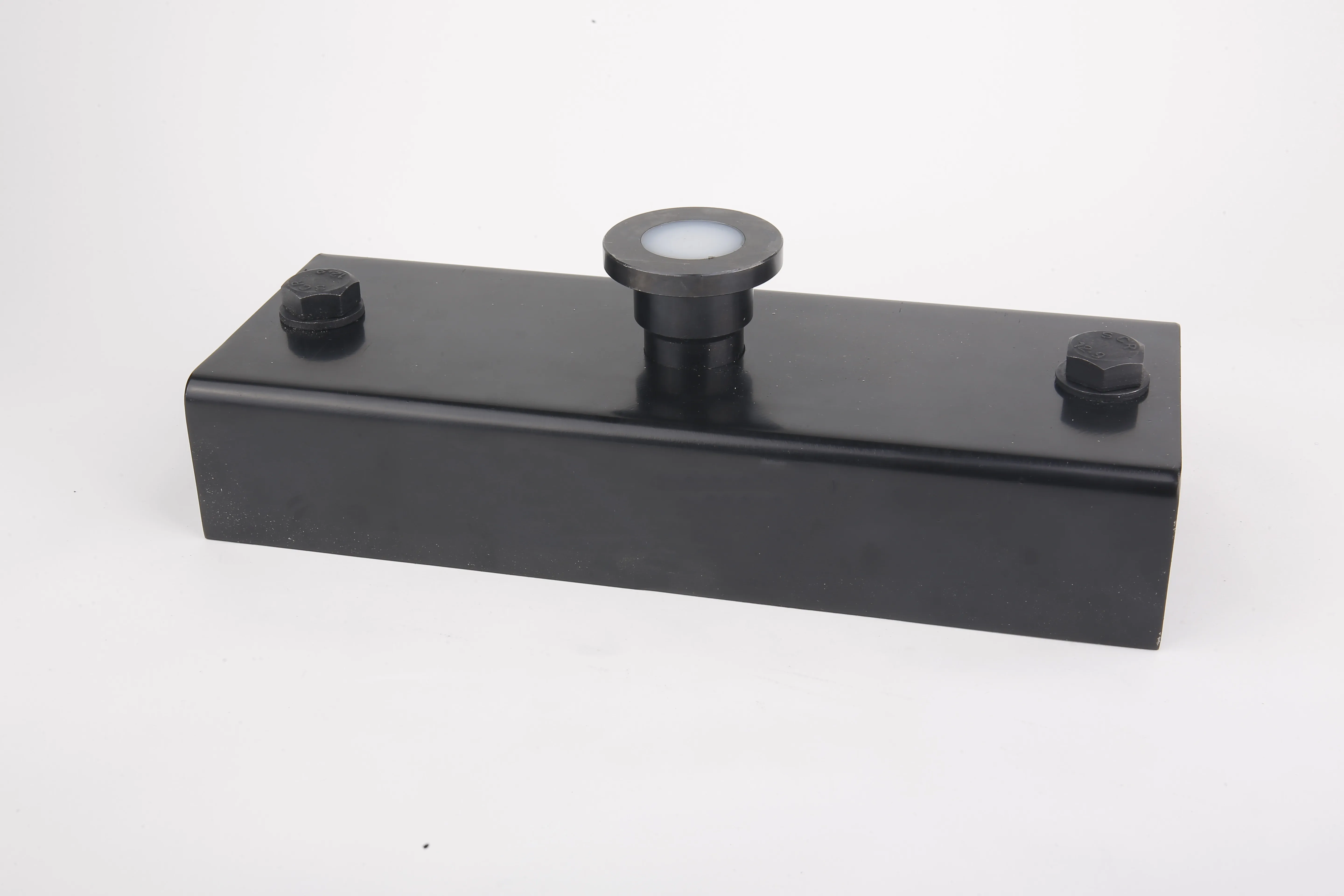

SX-1000B SHUTTERING MAGNETIC BOX
X-1000B SHUTTERING MAGNET
Vertical suction: ≥1000kgs
Size: 200x95x43mm
Material: neodymium magnets + stainless steel
N.W.: 3KGS
Surface treatment:natural
Lead time: 7-20days
Service life:1-3 years
Be suitable for most of vibration platform
suitable mold height recommended: 60-100mm
Vertical suction: ≥1000kgs
Size: 200x95x43mm
Material: neodymium magnets + stainless steel
N.W.: 3KGS
Surface treatment:natural
Lead time: 7-20days
Service life:1-3 years
Be suitable for most of vibration platform
suitable mold height recommended: 60-100mm
KEY BENEFITS OF SHUTTERING MAGNETS:
1. Reducing the complexity and time of the installation of formwork (up to 70%).
2. Universal use for mass production of concrete products, and piece products of all forms on the same steel table.
3. Eliminates the need for welding, shuttering magnets does not damage the steel table.
4. Makes it possible to produce radial products.
5. A small cost of a set of magnets. The average payback of about 3 months.
6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products,
you need to have a set of magnets, adapters for different height boards and steel table.

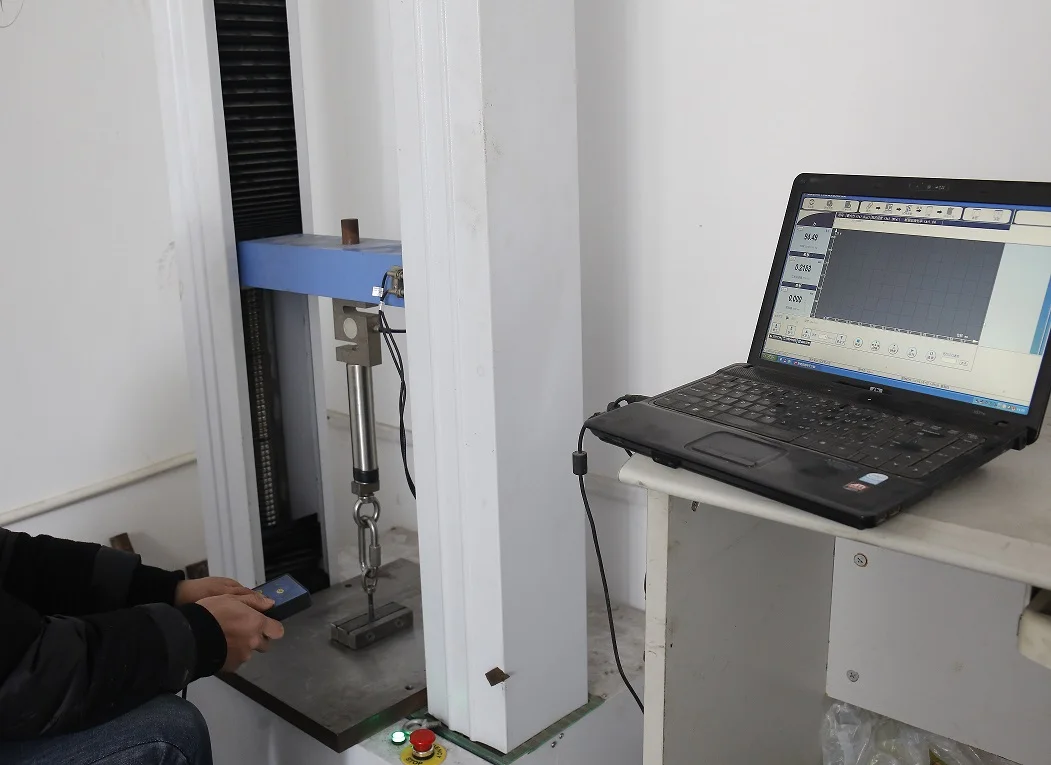

Test Report
We only produce high quality shuttering magnet , the testing reports will be attached for each shuttering magnet , and will show
the testing time , appearance , size , suction power and functionality .
Patent Certificate
We have R&D department to develop new design , and already got related certificate from specialized third party organization .
1. Reducing the complexity and time of the installation of formwork (up to 70%).
2. Universal use for mass production of concrete products, and piece products of all forms on the same steel table.
3. Eliminates the need for welding, shuttering magnets does not damage the steel table.
4. Makes it possible to produce radial products.
5. A small cost of a set of magnets. The average payback of about 3 months.
6. The main advantage of the shuttering magnets is that you do not need to have a lot of different forms for different products,
you need to have a set of magnets, adapters for different height boards and steel table.
Test Report
We only produce high quality shuttering magnet , the testing reports will be attached for each shuttering magnet , and will show
the testing time , appearance , size , suction power and functionality .
Patent Certificate
We have R&D department to develop new design , and already got related certificate from specialized third party organization .
Product Line
There are more than 30 people work on product line in Saixin factory . We can produce shuttering magnet 1000pcs each day .
There are more than 30 people work on product line in Saixin factory . We can produce shuttering magnet 1000pcs each day .
Quality Control
We also will inspect almost magnet block to ensure each product can reach standard suction
We also will inspect almost magnet block to ensure each product can reach standard suction

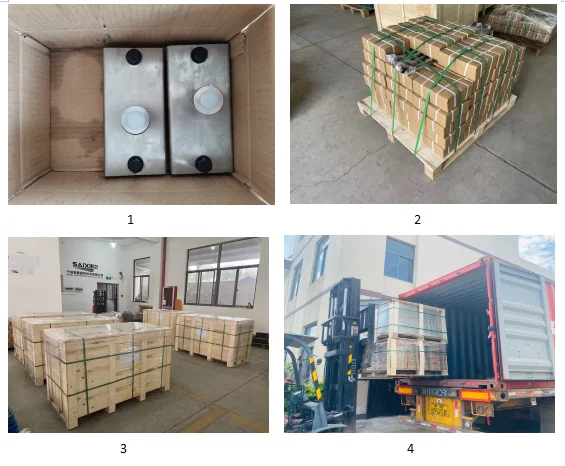

Package & Loading
1. Usually put 2 or 3 pcs product in one carton
2. Each box is fixed with packing belt
3. Usually use pallet and plastic film for wrap-up to secure the cargo inside safe and sound
4. The outer frame is fixed with wooden case and ship out .
1. Usually put 2 or 3 pcs product in one carton
2. Each box is fixed with packing belt
3. Usually use pallet and plastic film for wrap-up to secure the cargo inside safe and sound
4. The outer frame is fixed with wooden case and ship out .
Exhibition & Customer Visiting
Application

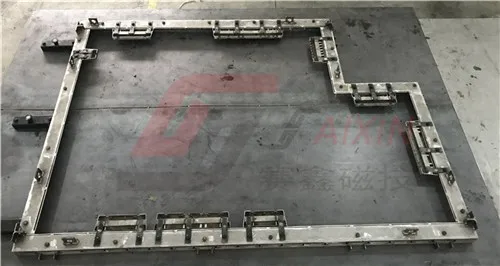

Precast concrete magnet box is designed for fixing precast concrete shuttering .
Precast concrete magnet box is designed for fixing precast concrete shuttering .
