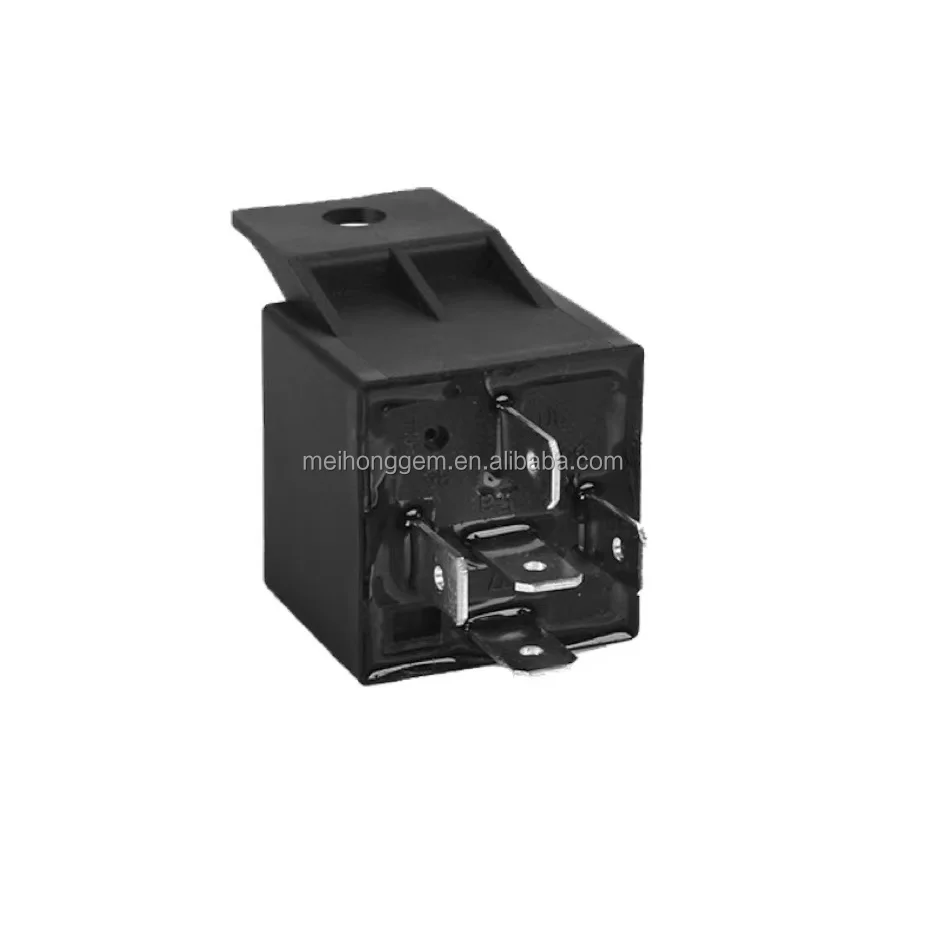

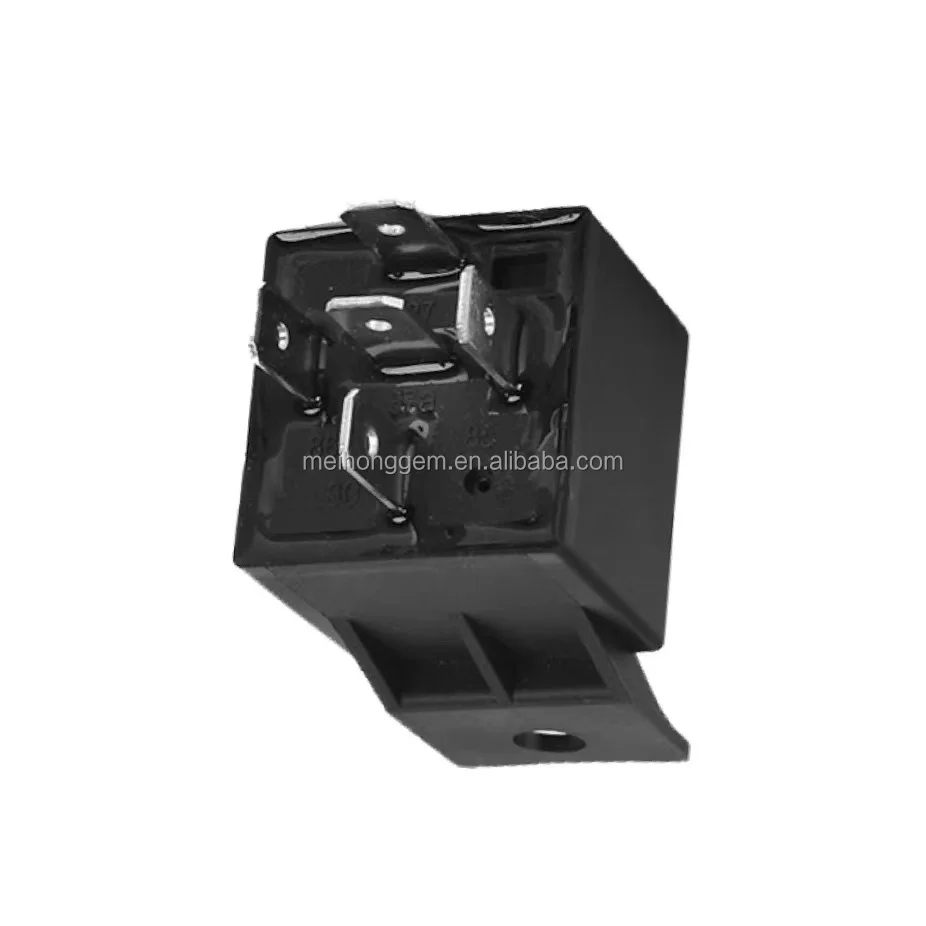

12v 40A / 30A 60A car auto mini 5pin relay
- Category: >>>
- Supplier: Haining Meihong Auto Parts Co. Ltd.
Share on (1600733174676):
Product Overview
Description
Product Description
Electrical Characteristics
Rated Voltage | 12VDC |
Operating Voltage | 9-16VDC |
Pull-in voltage | 8.4VDC |
Release voltage | 1.2VDC |
Coil Power Consumption | 1.6W |
Coil resistance(Ω+/- 10) | 90Ω |
Electrical life | 100,000 cycles |
Mechanical life | 1,000,000 cycles |
Rated Switching Current | 40A @12VDC |
Insulation resistance | 100MΩ (500VDC) |
Mechanical Data
| Contact material | AgSnO2 |
| Fixed contact | AgSnO2 |
| Moving contact | AgSnO2 |
| Contact arrangement | 1C |
| Ambient temperature | -40°C~+85°C |
| Operate time Max | 10ms |
Release time Max | 10ms |
| Vibration resistance | 10Hz-40Hz, 1.5mm |
| Shock resistance | 147m/s2, 11ms |
| Cover retention | 245N |
| Terminal retention | 100N |
| Terminal retention to bending | 10N |
| Terminals | Brass, 6.3x0.8mm |
| Coil | Oxygen Free Copper |
| Base plate | Nylon PA66 |
| Cap | Nylon PA66 |

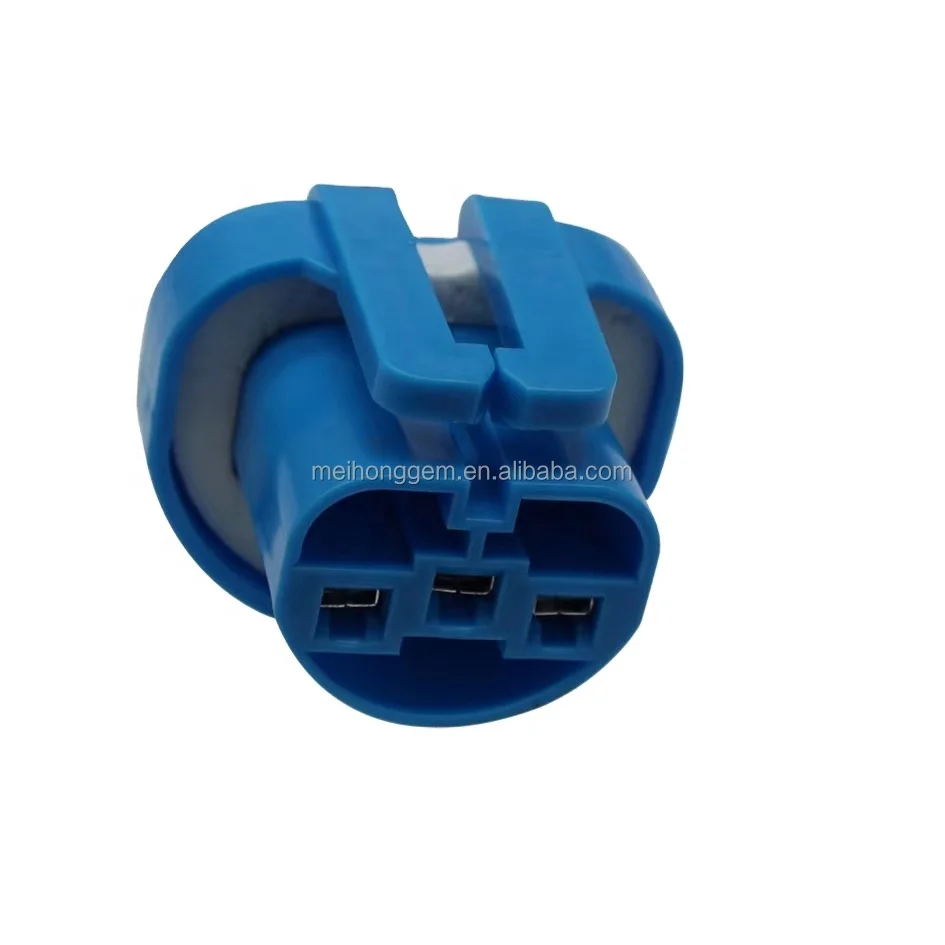

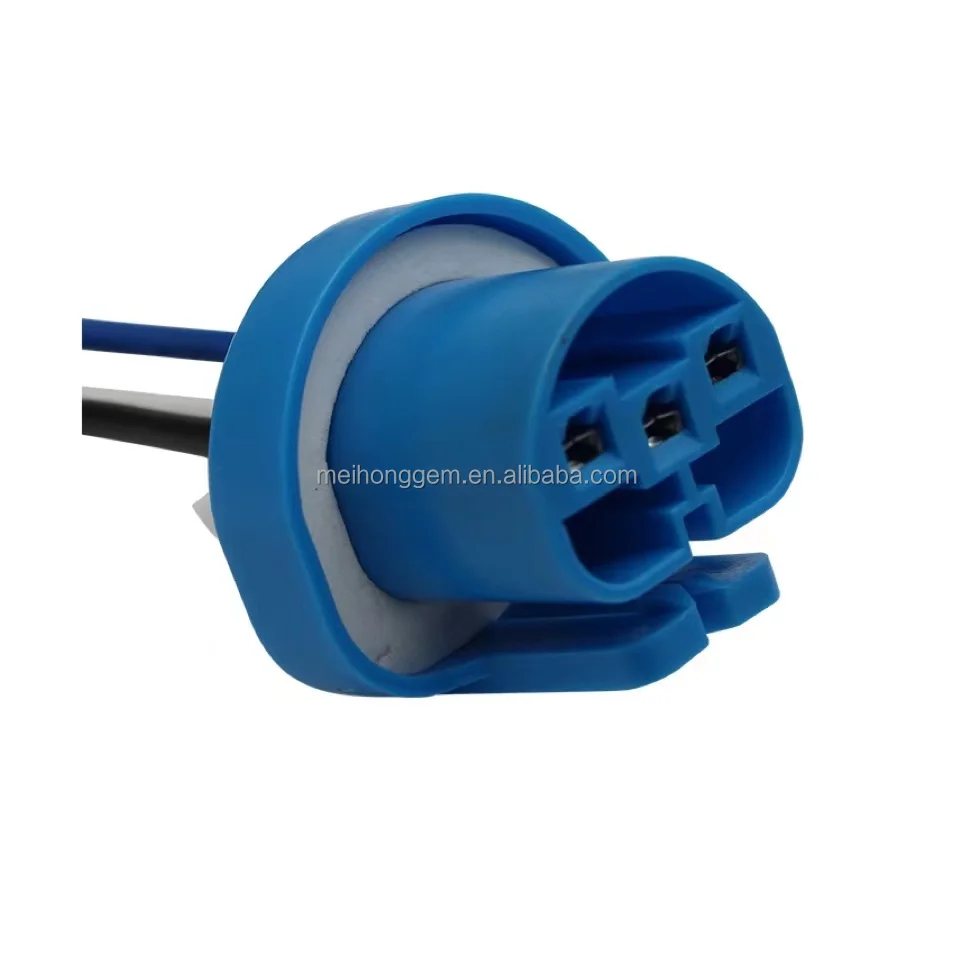

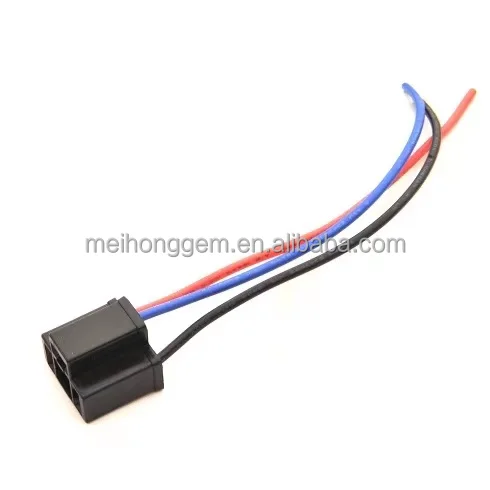

1156 1157 7440 7443 T20 3156 3157 T10 T15 T5 BA9S H1 H4 H7 H8 H10 H11 H13 9004 9006 9007 Lighting Bulbs Sockets Instrument Panel Light Bulbs Base

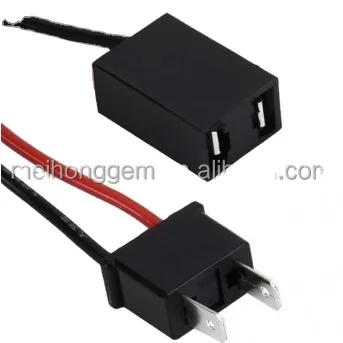

| Type | H7 Lighting Bulbs Sockets |

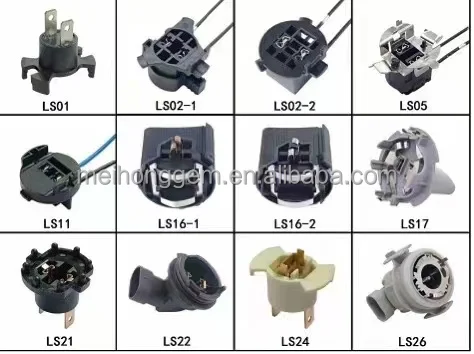

| socket type | Lamp Bulb Extension Connector car bulb connector bulb socket harness plug connector Wiring Socket for LED Signal Light lamp holder T25 3156 3157 P27W |
| Voltage | 12V |
| Car model | universal cars |
| Material | plastic/rubber |
| use for | Speedo Dashboard Instrument Panel Light Lamp Bulb |
Packaging & Shipping
automotive wire harness 100PCS PER 1PP BAG 1000PCS PER ONE BOX Connector 100/1000/2000 Per Bag with Label
