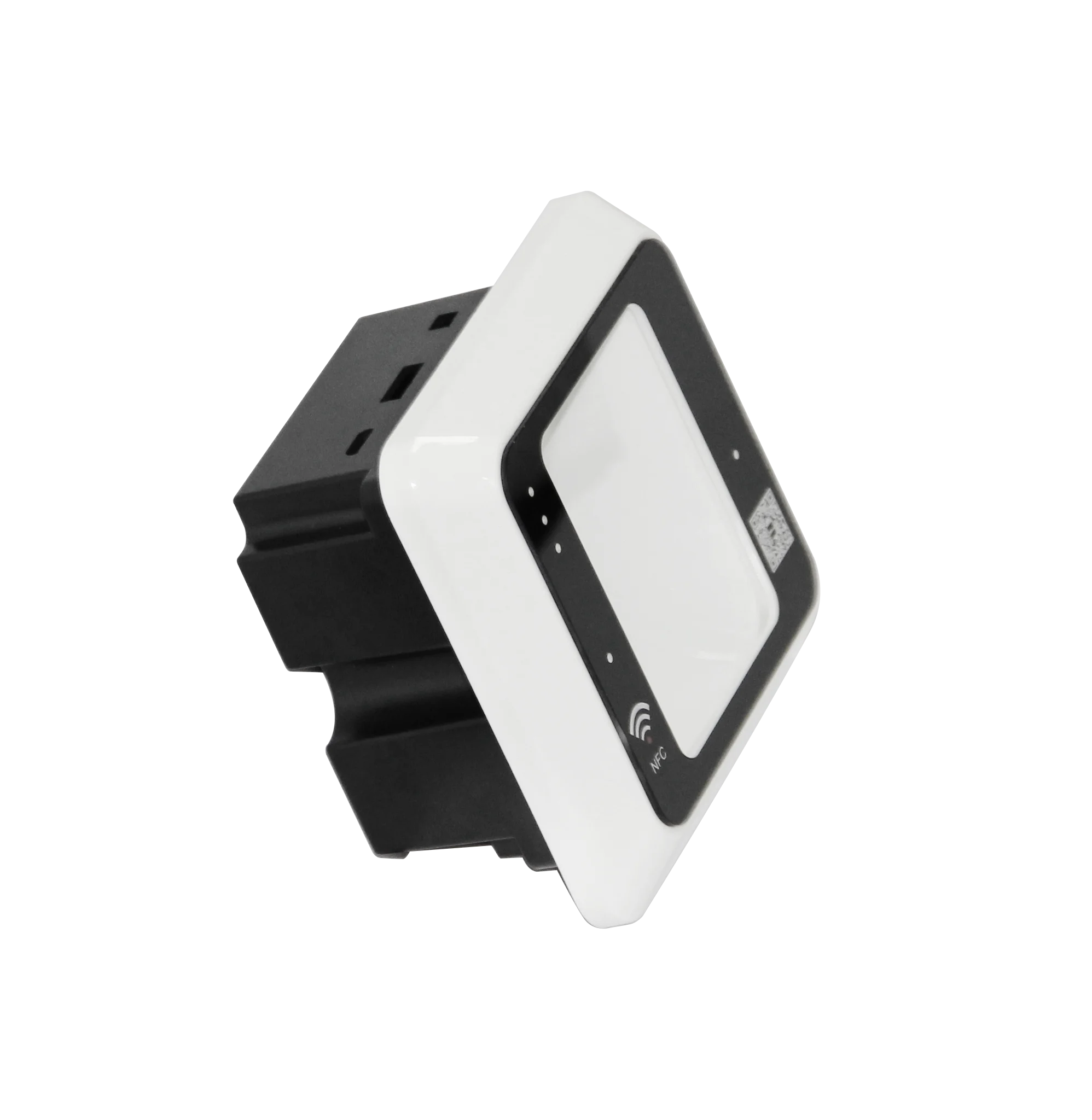

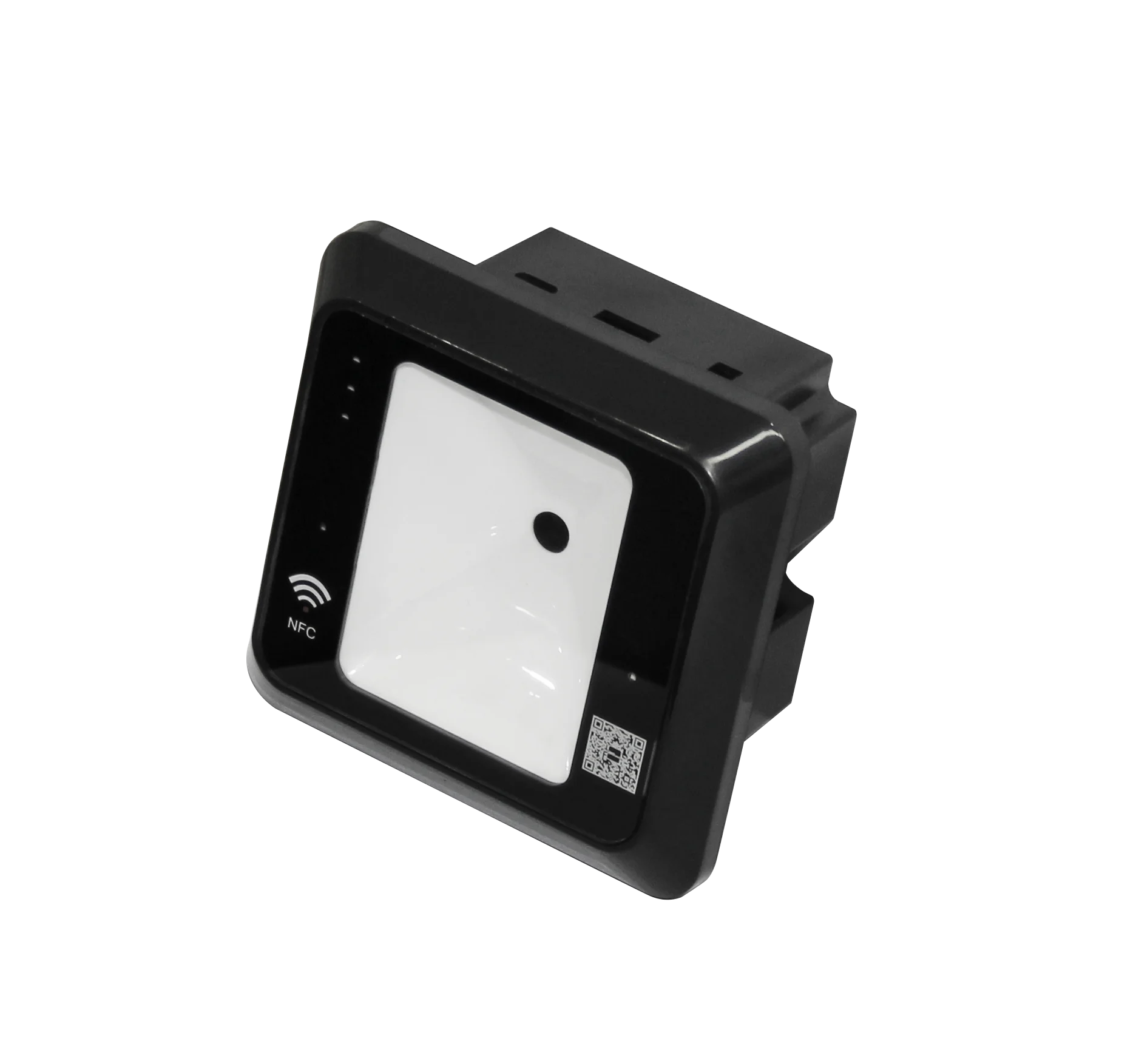

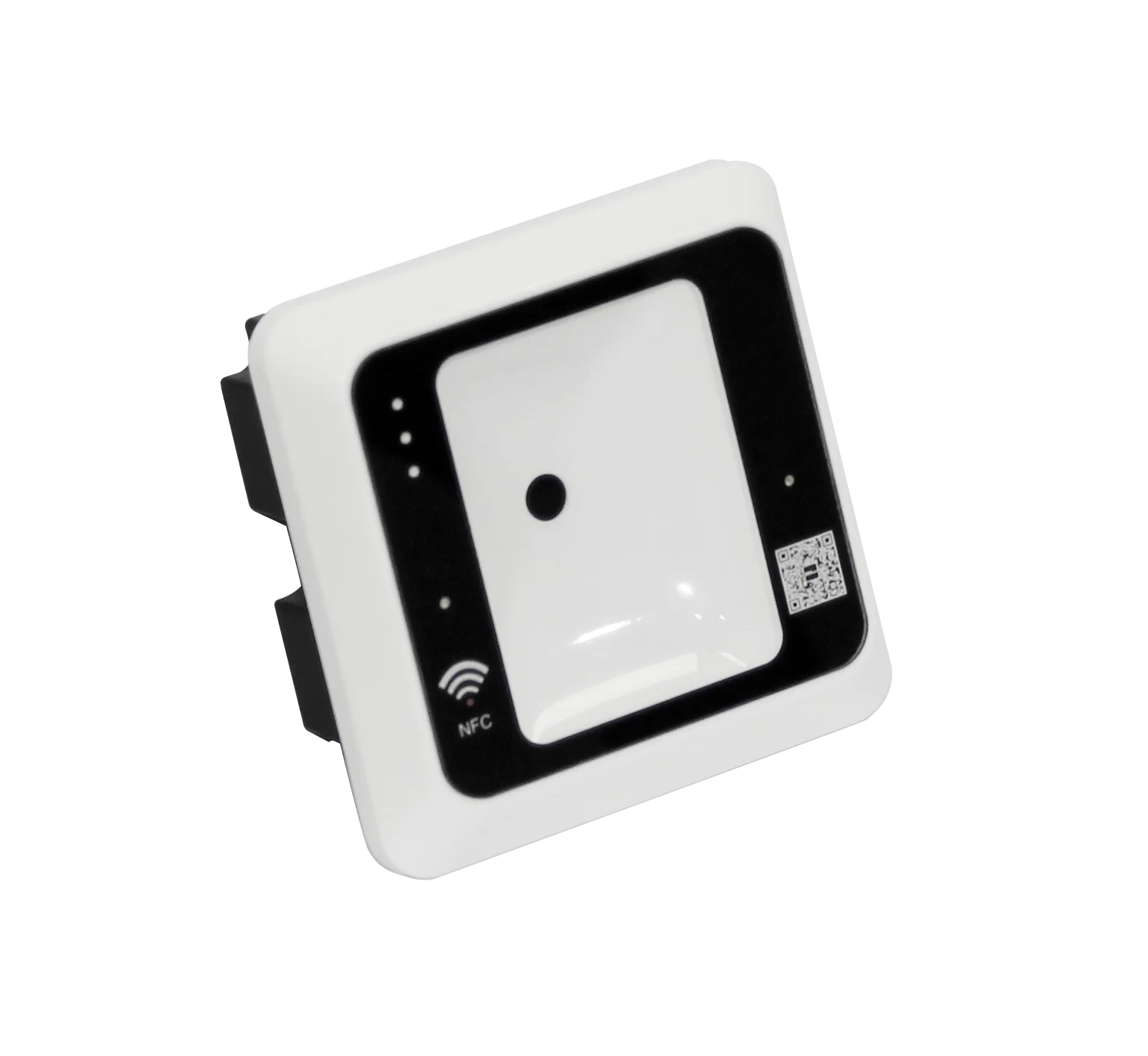

ZR411B/S/N QR NFC RFID 13.56MHz Card Reader With Network For Access Control, Retail, IoT Management Application
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen radio Technology Co. Ltd
Share on (1600733184571):
Product Overview
Description
OVERVIEW
ZR411 series is a new generation of smart access control card readers developed by our company, with high-end appearance, fast scanning speed, high recognition rate, strong compatibility, and can be connected to any access control controller that supports Wiegand input.
This series is suitable for various application scenarios, and supports the identification of RFID radio frequency cards and QR codes, which can be used in community management, visitor management, hotel management, unmanned supermarkets and other fields.
This series is suitable for various application scenarios, and supports the identification of RFID radio frequency cards and QR codes, which can be used in community management, visitor management, hotel management, unmanned supermarkets and other fields.
FEATURES
●Development of a advanced QR code access control technology;
●With antenna inside, and the working frequency is 13.56MHz;
●Support get UID of MF, CPU, NFC(Simulation card), Desfire EV1, second generation Chinese ID cards and QR code;
●Support output by Wiegand, RS485, USB, TCP/IP
●With antenna inside, and the working frequency is 13.56MHz;
●Support get UID of MF, CPU, NFC(Simulation card), Desfire EV1, second generation Chinese ID cards and QR code;
●Support output by Wiegand, RS485, USB, TCP/IP
Specification
item | value |
Model | ZR411B/S |
Place of Origin | China |
Guangdong | |
Brand Name | OEM |
Frequency | 13.56Mhz |
Protocol | ISO 14443A/B |
Product Name | QR+NFC Reader |

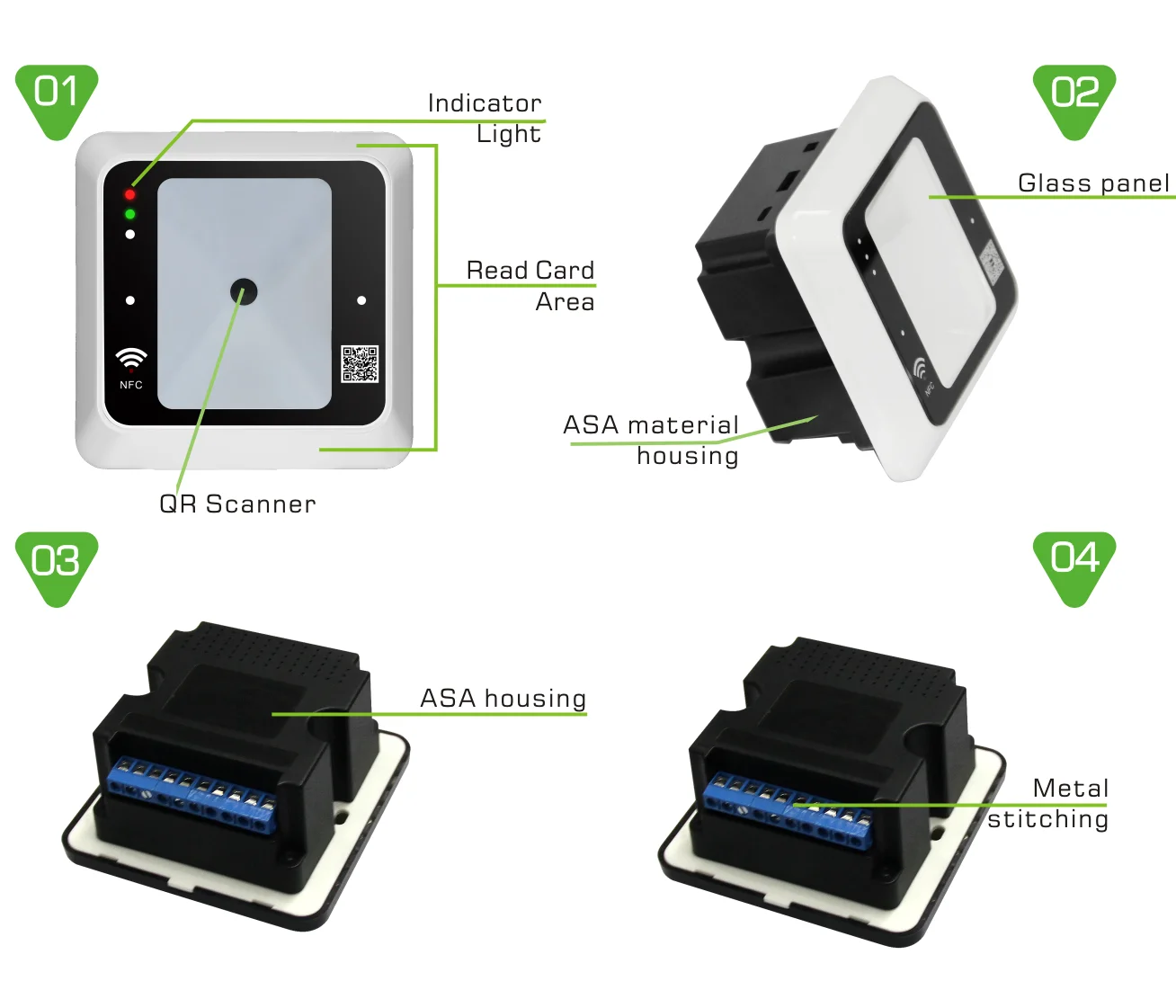

Material | Glass panel + ASA housing |
Barcode support | QR, Data Matrix, PDF417, GS1 Databar, Code 128/EAN128, UPC/EAN...... |
RFID work frequency/Protocol | 13.56MHz/ ISO14443A/B |
RFID Card support | CPU, MF Card, Ultralight, Ntag, Desfire, SFZ Card etc. |

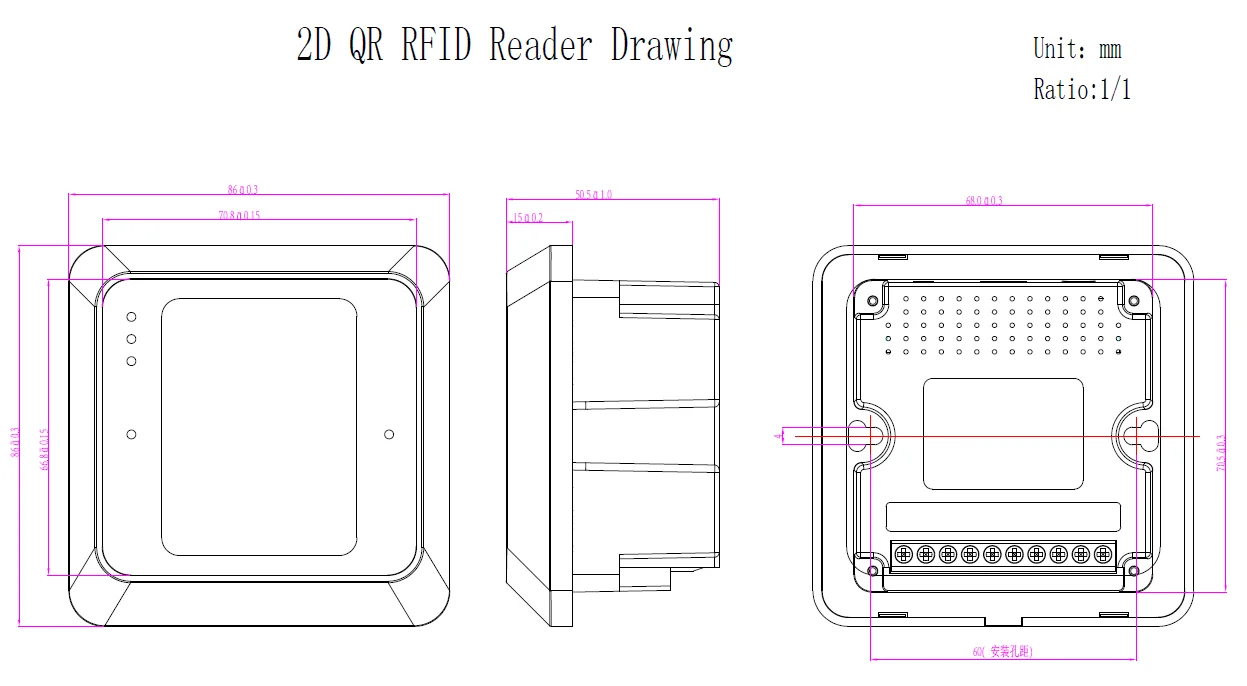

Size | 86*86*50mm |
Interface | WG26/34, RS485, USB |
Work current | DC 12V(Wiegand, RS485) / 5V(USB) |

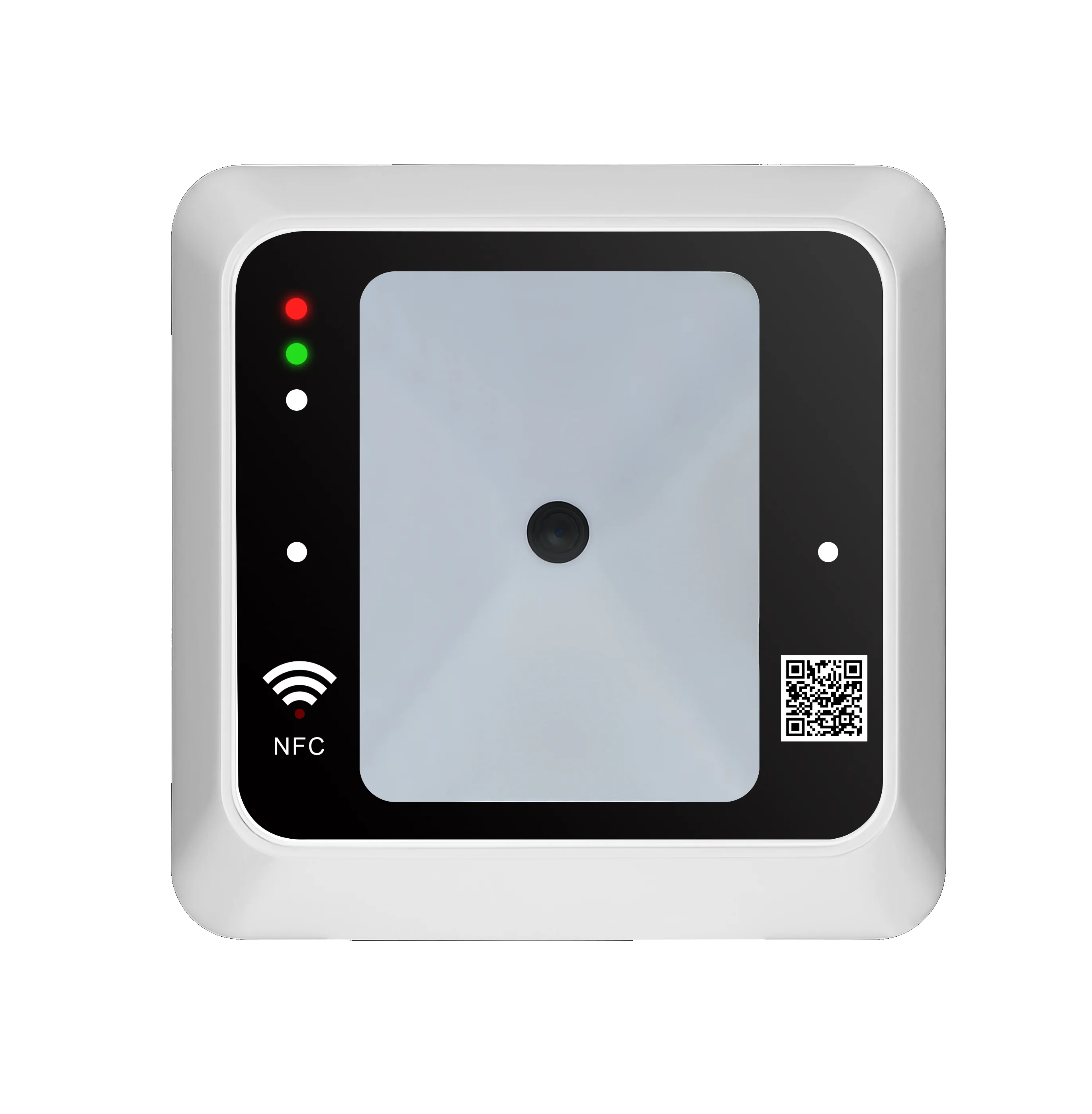

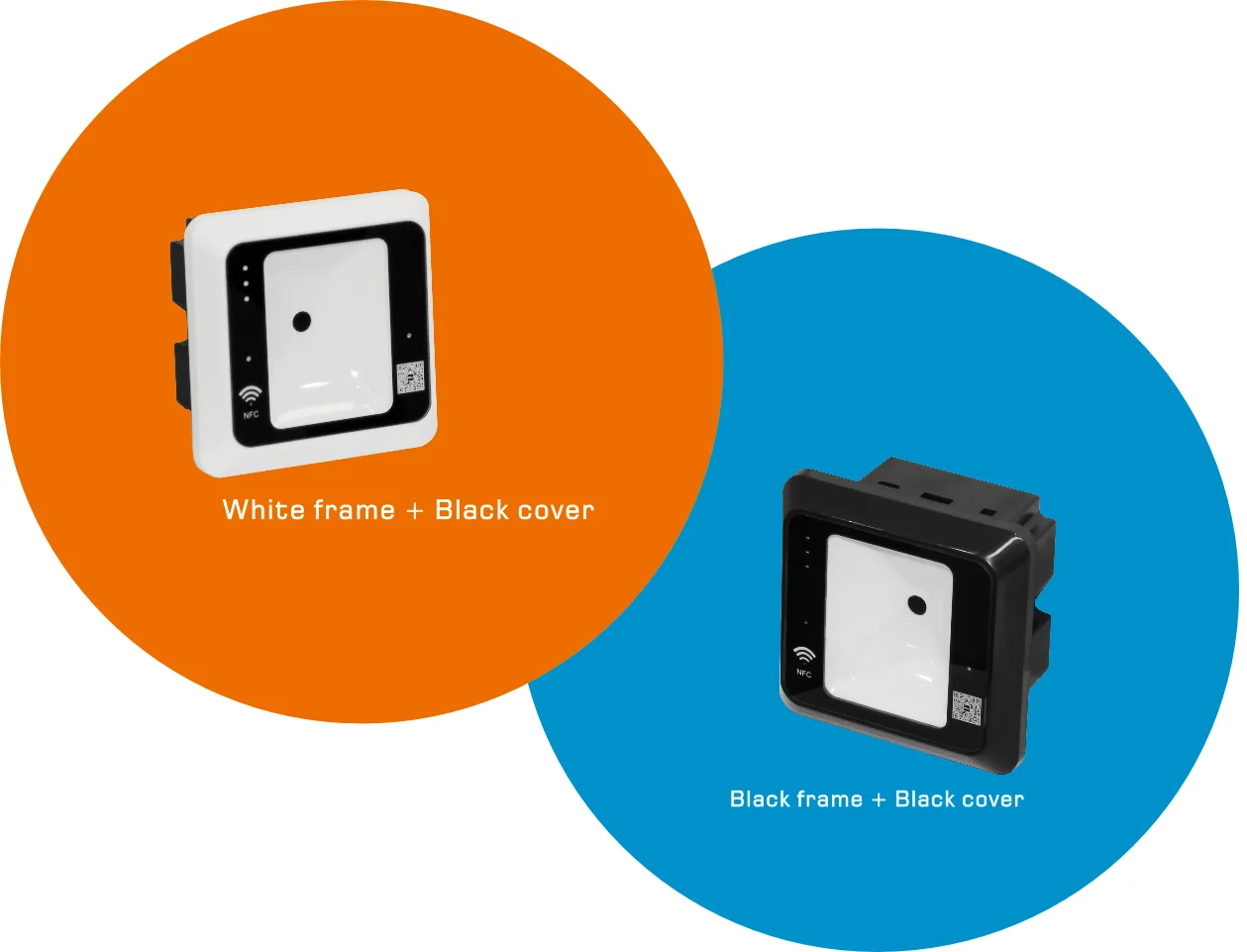

Color | White + Black / Black+ Black |
Model | Description |
ZR411/B/S | Support QR code, barcode, NFC card reading, support get UID of Chinese ID card |
ZR411/B/S/N | Support QR code, barcode, NFC card reading, support get UID of Chinese ID card, Support TCP/IP network function |

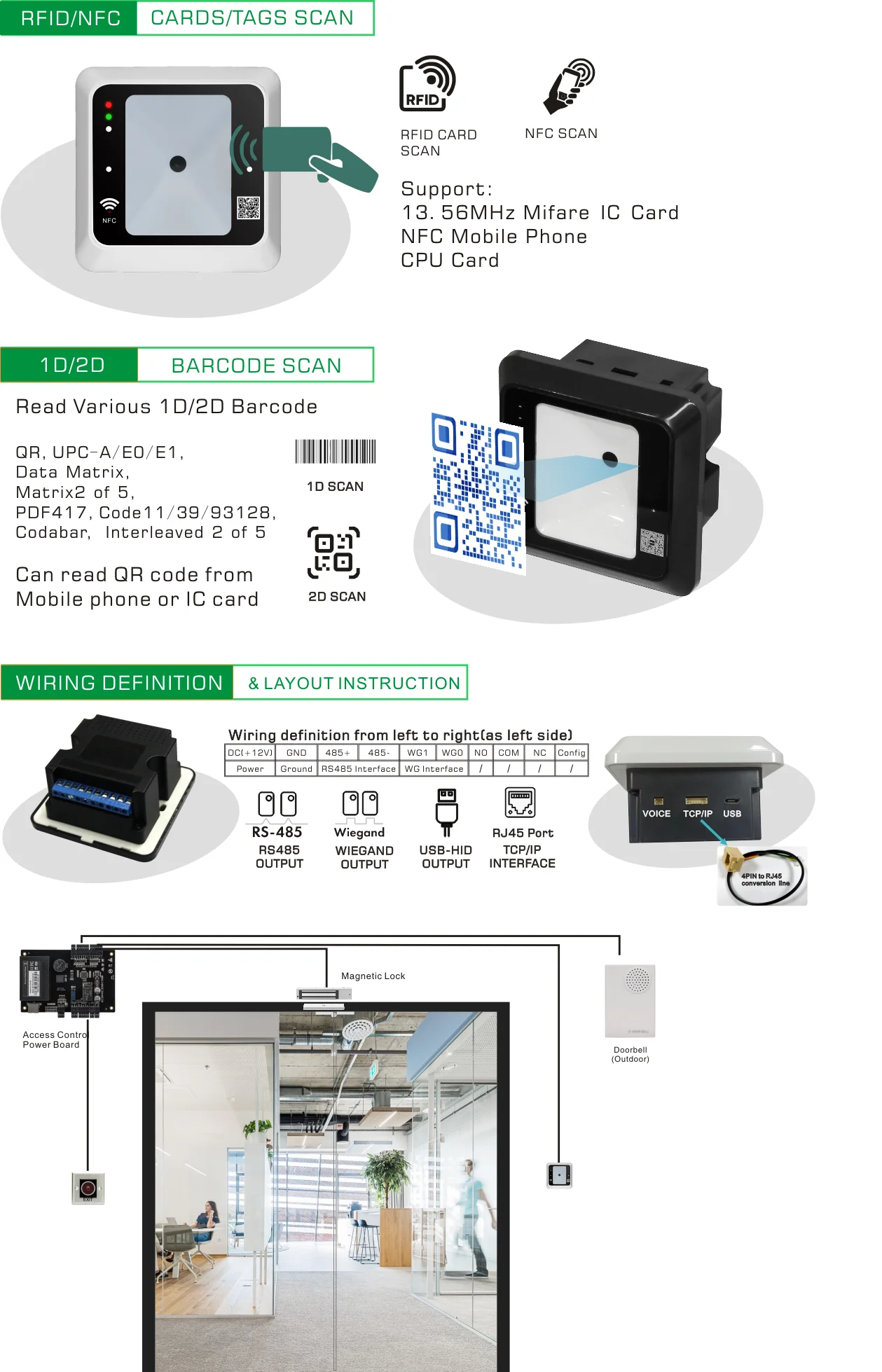

USB CABLE
Reader can support USB interface and USB-HID output
4PIN To RJ45 LINE
Reader can be connected to host via TCP/IP
