Low price factory direct sales DK7763 wire cutting machine/cutting edm fast cut cnc wire cutting machine edm/wedm
- Category: >>>
- Supplier: Suzhou Ming Xin Chen Cnc Technology Co. Ltd.
Share on (1600733199637):
Product Overview
Description
Products Description
Suzhou Ming Xin Chen Cnc Technology Co., Ltd. produces whole series of DK77 CNC edm wire cutting machines,which adopts high precision

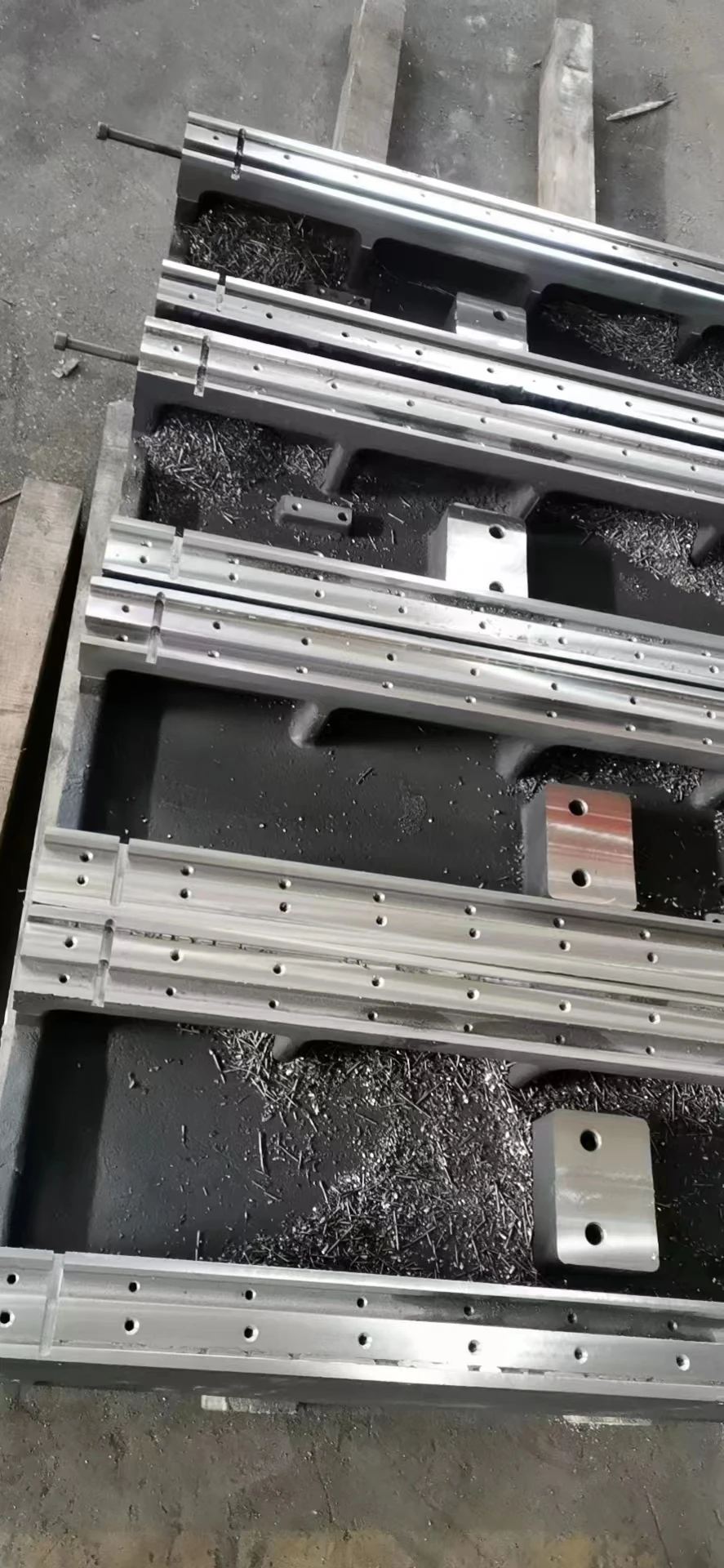

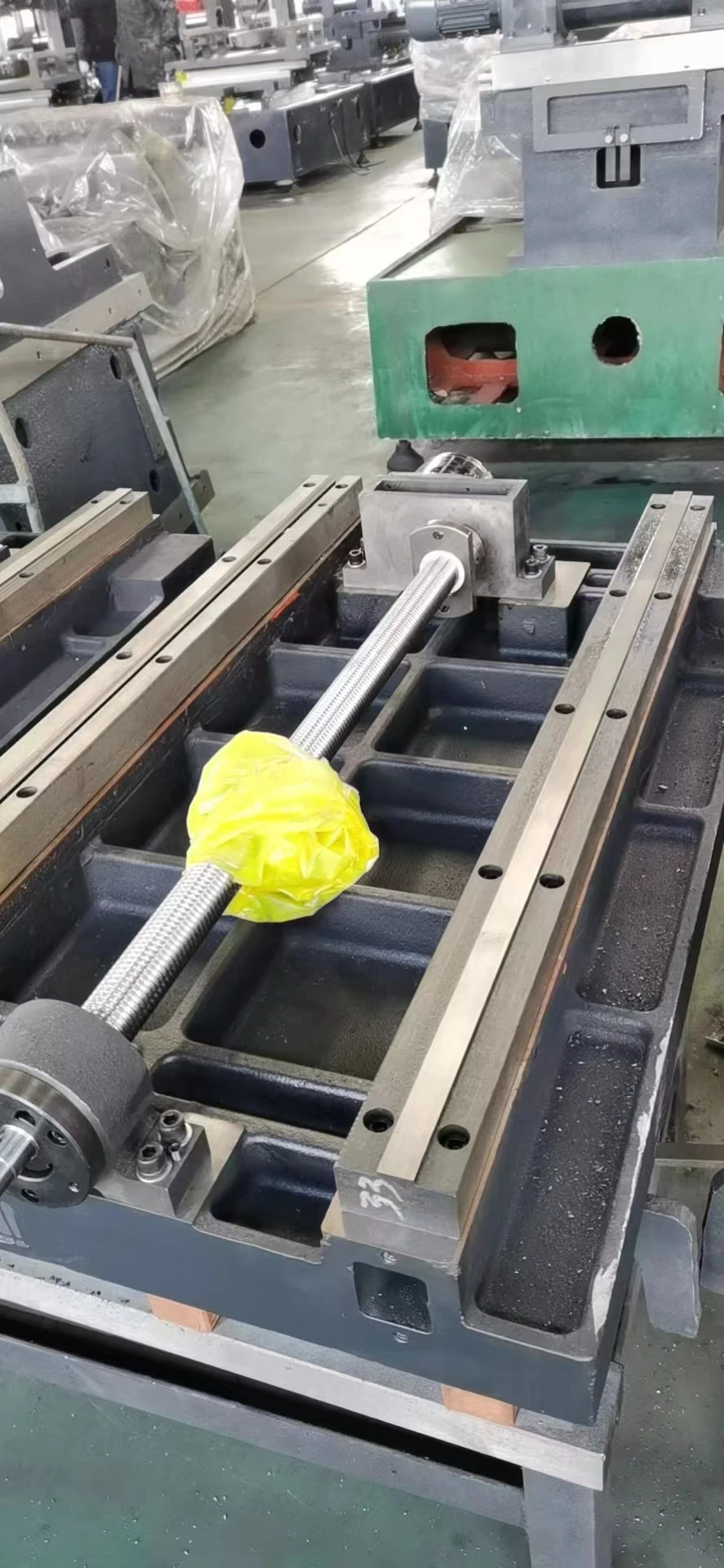

v-shaped quide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality complete
models, long service life and high precision. Machine specifications can be customized according to
customer needs,like non-standard models DK7740(45)EDK7750(55)FDK7763FDK7780FDK77100FDK77120F or ever larger models The comnany
also produces +30°+45°swina larae taper machines and CNC hiah-precision middle speed edm wire cutting
machines(Precision≤±0.005mmroughness≤1.0um).The following are the main parameters of DK77 series machines
1.Standard maximum cutting taper+6°/80mm;(±15°+30°+45°are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(lf linear quide equipped, the precision can reach 0.01mm
3.Best surface roughness ≤Ra2.5um(single-cut).Ra1.5um(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max.cutting speed>120mm^2/min
6.Voltage:3 phase 380V(single phase 220V3 phase 220V or other voltage can be customized),Power1.5KW;
7.Working fluid:Water-based emulsion.
v-shaped quide rail(Linear guide rail optional) and P3-grade high precison ball screw. The products have high quality complete
models, long service life and high precision. Machine specifications can be customized according to
customer needs,like non-standard models DK7740(45)EDK7750(55)FDK7763FDK7780FDK77100FDK77120F or ever larger models The comnany
also produces +30°+45°swina larae taper machines and CNC hiah-precision middle speed edm wire cutting
machines(Precision≤±0.005mmroughness≤1.0um).The following are the main parameters of DK77 series machines
1.Standard maximum cutting taper+6°/80mm;(±15°+30°+45°are optional)
2.Precision ≤ 0.02mm,according to GB7926-2005 standard;(lf linear quide equipped, the precision can reach 0.01mm
3.Best surface roughness ≤Ra2.5um(single-cut).Ra1.5um(multi-cut);
4.Molybdenum wire diameter:0.1-0.2mm;
5.Max.cutting speed>120mm^2/min
6.Voltage:3 phase 380V(single phase 220V3 phase 220V or other voltage can be customized),Power1.5KW;
7.Working fluid:Water-based emulsion.
Model | Worktable travel(mm) | Worktable size(mm) | Max. cutting thickness(mm) | Max. load(kg) | Dimensions(mm) | Weight(kg) |
DK7720 | 200*250 | 490*380 | 200 | 100 | 1200*900*1300 | 800 |
DK7725 | 250*320 | 520*390 | 300 | 200 | 1450*900*1500 | 1000 |
DK7735(32) | 350(320)*450(400) | 730*490 | 500 | 300 | 1400*1100*1600 | 1100 |
DK7745(40) | 450(400)*550(500) | 810*570 | 400 | 500 | 1600*1200*1600 | 1400 |
DK7745F(40F) | 450(400)*630 | 950*600 | 400/600 | 600 | 1600*1580*1600 | 1600 |
DK7755(50) | 550(500)*650(630) | 950*650 | 700 | 700 | 2000*1500*1900 | 1800 |
DK7755F(50F) | 550(500)*800 | 1140*650 | 700 | 700 | 2000*1650*1900 | 2000 |
DK7763 | 630*800 | 1140*750 | 700 | 1000 | 2100*1700*2050 | 2400 |
DK7763F | 630*1000 | 1350*750 | 700 | 1200 | 2250*1850*2050 | 2800 |
DK7780 | 800*1000 | 1350*980 | 900 | 2000 | 2400*1900*2350 | 4000 |
DK7780F | 800*1200 | 1600*1050 | 900 | 2400 | 2550*1950*2400 | 4500 |
DK77100 | 1000*1200 | 1600*1100 | 1000 | 2600 | 2850*2500*2500 | 5200 |
DK77100F | 1000*1400 | 1800*1250 | 1000 | 2800 | 2950*2050*2500 | 5800 |
DK77120 | 1200*1400 | 1800*1350 | 1000 | 3000 | 3050*2750*2500 | 7500 |
DK77120F | 1200*1600 | 2000*1500 | 1000 | 3500 | 3100*2850*2500 | 8400 |
DK77160 | 1600*1800 | 2000*1700 | 1000 | 4000 | 3250*3000*2500 | 10000 |
About us
Our Certificate
FAQ
Q1:Could I visit your factory?
A:Of course,yes!Warmly welcome all customer from all over the world to visit our factory.
Q2:What payment terms do you accept?
A:We are flexible on payment terms,please contact us for details!
Q3:What about the price?
A:We promise the price we offer is lowest if same application,only to enlarge the market share.And given you cost price for
consumable parts.
consumable parts.
Q4:Why choose you?What is the difference between you and other Chinese supplier?
A:We Specializing in the search and development, testing, manufacturing and sales of CNC numerical control system for wire-cutting
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
electric discharge machine tools, wire-cutting wire cutting machine tools and electrical processing equipment.
Q5:I`m worried about after-sales service!
A:Warranty is one year.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
Take a photo or video of the problem and send it to us. After we check and confirm the problem, we will provide you with a
satisfactory solution within 24 hours.
