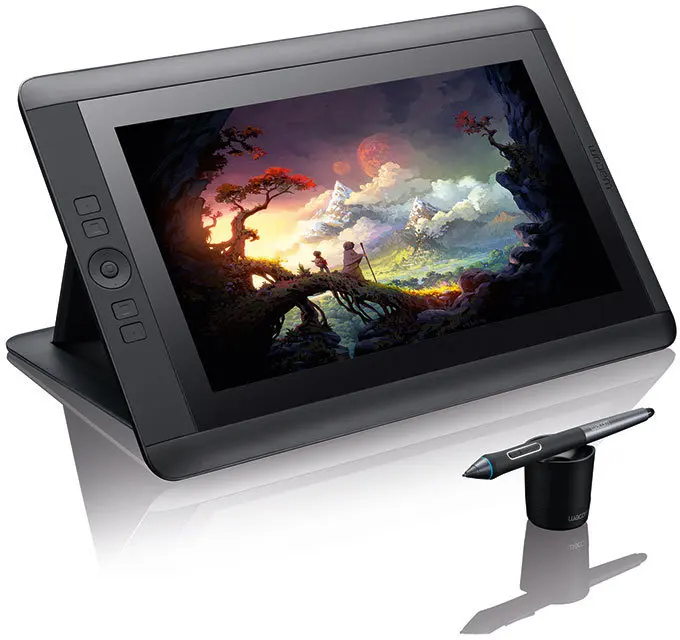

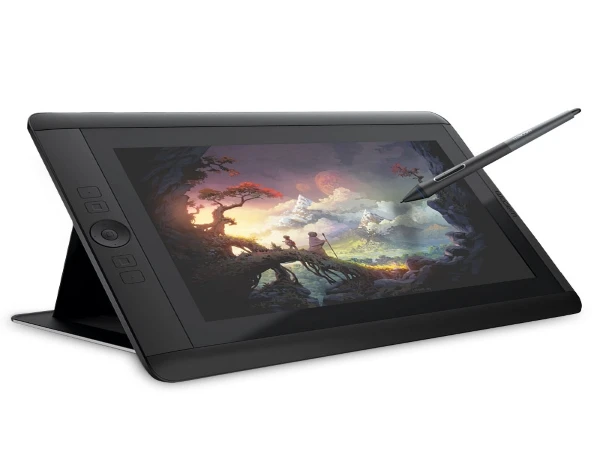

Wacom Cintiq 16 HD Intreactive Pen display Drawing Digital screen DTK 1661 (equals DTK 1660)
- Category: >>>
- Supplier: SUNTECH ENTERPRISES INTERNATIONAL LIMITED
Share on (1600733209379):
Product Overview
Description

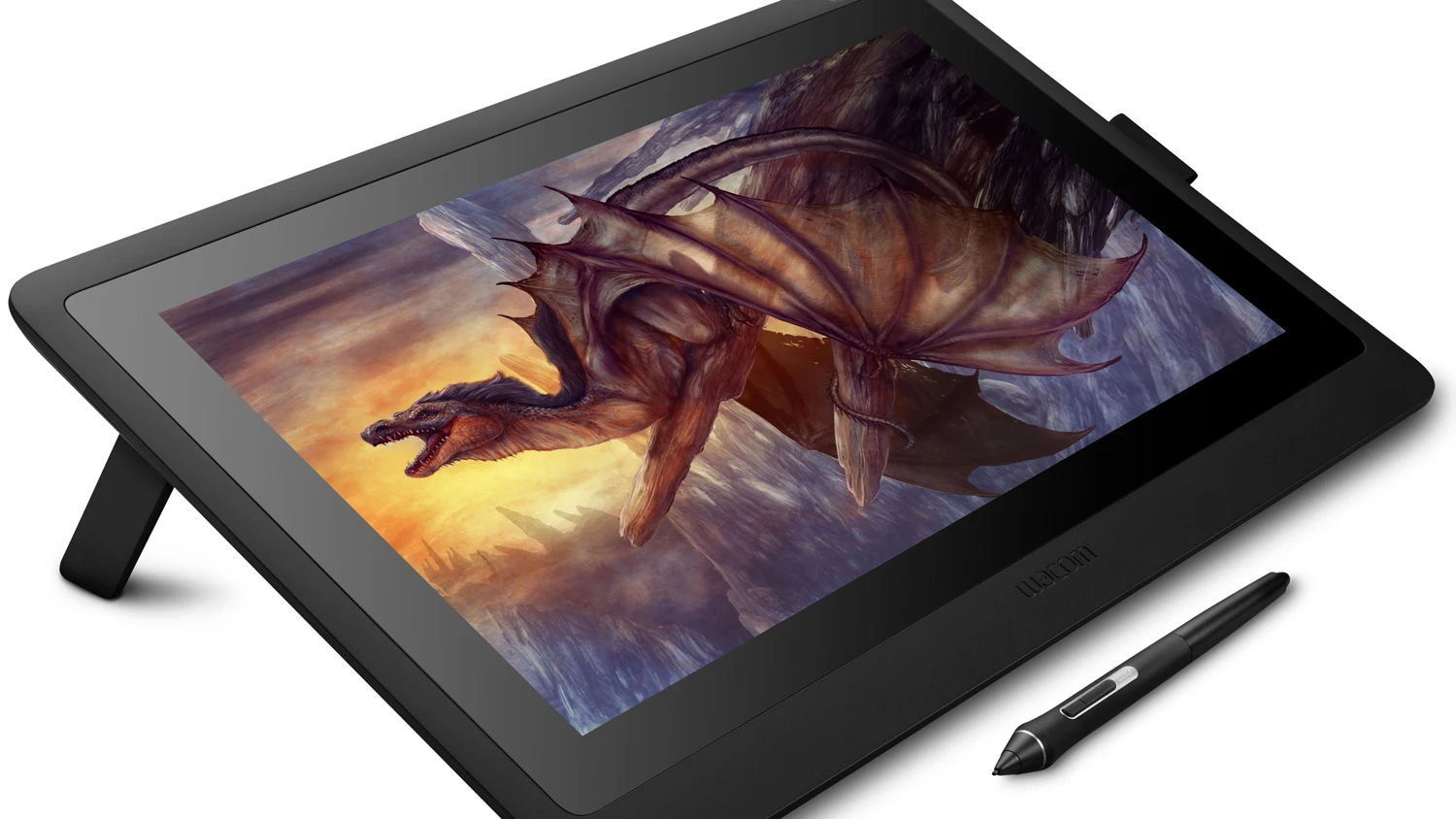

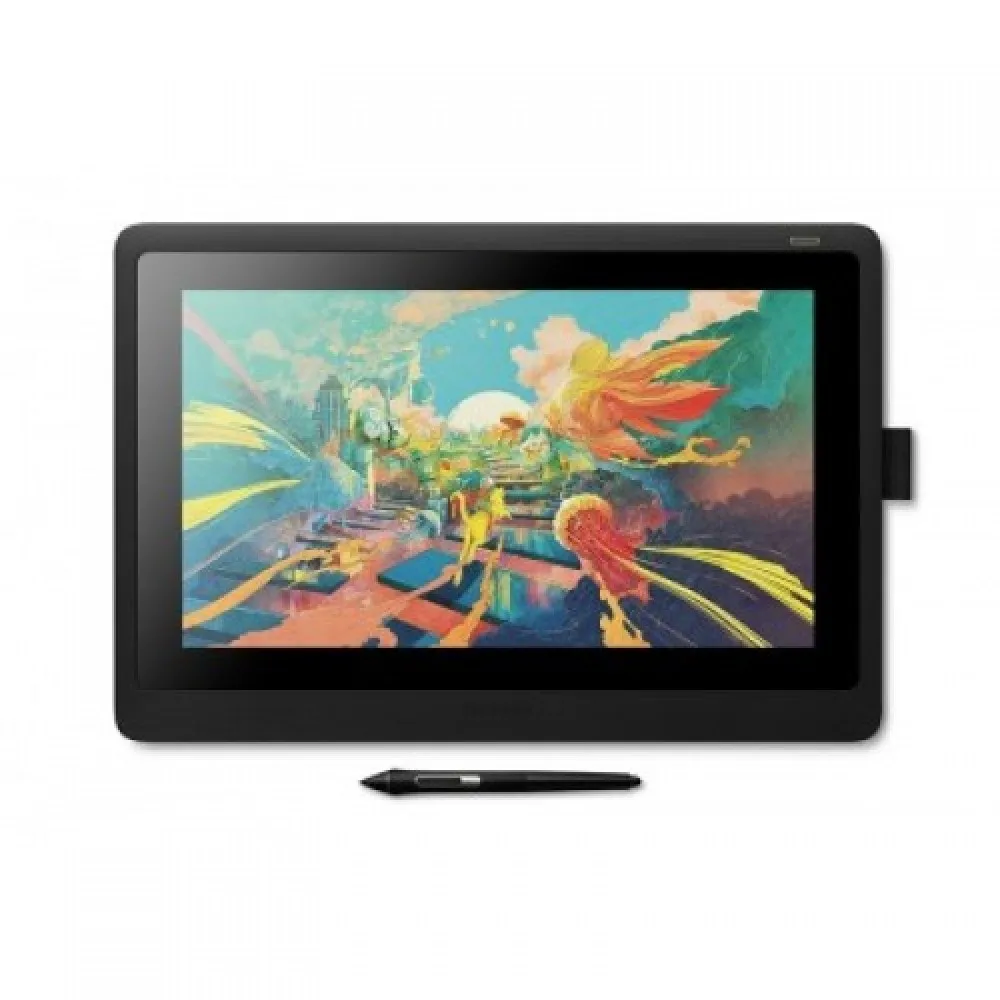

Wacom Cintiq 16HD Pen display Drawing Digital screen DTK-1661 (equals DTK-1660)
In China it model no. is DTK-1661 ,in other country is DTK-1660 ,these two models is the same pen display
\tProduct TypeCreative Pen Display
\t
\tModel Number:DTK-1661/K0
\t
\tResolution1920 x 1080 (Full HD)
\t
\tDisplay Size422 x 285 x 24.5mm
\t16.6 x 11.2 x 1.0 in
\t
\tDisplay Weight1.9 kg without optional stand
\t
\tScreen Size (Measured Diagonally)39.6 cm / 15.6 in
\t
\tTechnologya-Si Active Matrix TFT LCD (IPS)
\t
\tDisplayable Colors (maximum)16.7 million
\t
\tAspect Ratio16:9
\t
\tViewing Angle176/176 degree (typ) / 140/140 degree (min)
\t
\tContrast Ratio1000:1 (typ) / 600:1 (min)
\t
\tLuminance210 cd/m2 (typ) (including glass)
\tWhite luminance (center) 180 cd/m2 (min)
\t
\tResponse time25 ms
\t
\tActive Area345 x 194 mm
\t(13.6 x 7.6 in)
\t
\tColor Gamut72% NTSC (CIE1931) typical
\t
\tColor Temperature / Custom Color9300K
\t6500K
\t5000K
\tCustom RGB
\t
\tGraphics InputNone
\t
\tMulti-TouchNo
\t
\tPenWacom Pro Pen 2
\t
\tPressure Levels8192, both pen tip and eraser
\t
\tTilt Range60 degrees
\t
\tTilt Recognition±60 levels
\t
\tPen TypePressure-sensitive, cordless, battery-free
\t
\tPen Switches2 side switches
\t
\tPen HolderDetachable Pen holder with 3 replacement nibs (standard) and nib removal tool
\t
\tPen StandNo
\t
\tGripLatex-free silicone rubber
\t
\tTechnologyPatented electromagnetic resonance technology
\t
\tResolution5080 lpi
\t
\tExpressKeys™On optional ExpressKey Remote
\t
\tTouch RingOn optional ExpressKey Remote
\t
\tTouch StripsNo
\t
\tRadial MenuYes
\t
\tPrecision ModeYes
\t
\tDisplay ToggleYes
\t
\tDedicated Pan, Scroll, Zoom, Brush SizeYes
\t
\tStand Adjustability19 degrees using built-in, fold-out legs
\t
\tCables Included3 in 1 cable (with HDMI 1.4, USB 2.0 and AC adaptor) Power Cable (1.8m)
\t
\tPC And Mac ConnectionHDMI port and standard USB-A port
\t
\tPorts included3-in-1 cable port only
\t
\tAudioNo
\t
\tPower Supply Input100 to 240 VAC, 50/60Hz
\t
\tPower Supply Output12 VDC, 3A (max)
\t
\tPower ConsumptionPower ON mode (MAX): 27 W
\tPower sleep mode: 0.5 W or less (non-connection USB cable)
\tPower OFF mode: 0.5 W or lower
\t
\tBatteryNo
\t
\tSecurityKensington® Lock Port (lock purchased separately)
\t
\tSystem RequirementsPC: Windows® 7 or later (latest service pack/build), OS X 10.12 or later (latest update), Internet access for driver download.
\t
\tWhat's IncludedWacom Cintiq 16 pen display
\tWacom Pro Pen 2
\tDetachable pen holder with 3 replacement nibs (standard) and nib removal tool
\t3-in-1 cable (1.8m)
\tAC adaptor (12V, 3A, 36W)
\tPower cable (1.8m)
\tQuick Start Guide
\tWarranty card (Japan, Asia Pacific, China only)
\tRegulation sheet
\t
\tCertificationsVCCI Class B, FCC Part 15 Subpart B (class B) and C, CE, IC ICES-003 and 210, RCM, KCC, BSMI, C-tick, CB, CCC, GOST-R, China RoHS, Korean RoHS, EU RoHS
\t
\tAdditional AccessoriesWacom Adjustable Stand
\tWacom Pro Pen 2
\tWacom Pro Pen 3D
\tExpressKeyTm Remote
\tWacom Keyboard
\tWacom Softcase Large
\tReplacement Wacom nibs (standard) for Wacom Pro Pen 2
\tAdditional previous generation pens (Classic, Airbrush, Art, Pro Pen)
