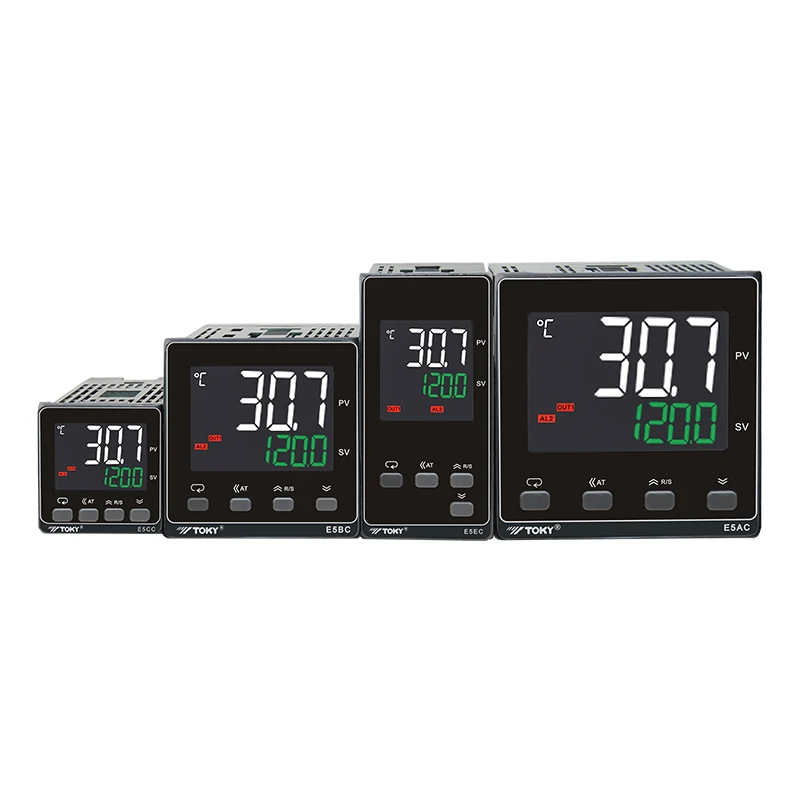

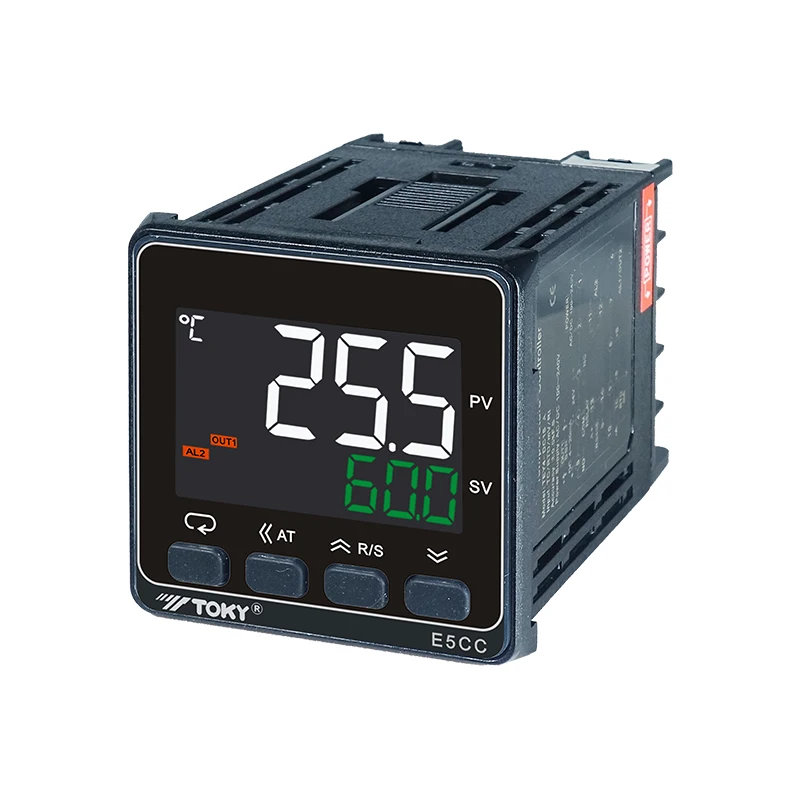

Digital Display Intelligent Temperature Controller E5CC Multi Channel High Precision Digital Temperature Thermostat
- Category: >>>
- Supplier: Toky Electrical Co. Ltd.
Share on (1600733211519):
Product Overview
Description
Products Description
Sampling Speed | 100ms |
Display method | LCD Display |
Power supply | 100-240VAC/DC or 24VAC/DC |
Panel Size (mm) | 48H*48W, 72H*72W, 48H*96W, 96H*96W, 96H*48W |
Accuracy | 0.3% F.S |
Control mode | ON-OFF, PID heating, PID cooling, PID heating and cooling |
Input signal | Tc/Rtd/0-50mV/0-400Ω/0-10V DC /4-20mA DC |
Safty Standard | IEC61010-1 Overvoltage category Ⅱ，pollution level 2， levelⅡ（Enhanced insulation） |
ESD | IEC/EN61000-4-2 Contact ±4KV /Air ±8KV perf.Criteria B |
Pulse traip anti-interference | IEC/EN61000-4-4 ±2KV perf.Criteria B |
Surge immunity | IEC/EN61000-4-5 ±2KV perf.Criteria B |
Voltage drop & short interruption immunity | IEC/EN61000-4-29 0% ～ 70% perf.Criteria B |
Isolation voltage | Signal input, output, power: 1500VAC 1min <60V low voltage circuit: DC500V，1min |
Total weight | About 400g |
E5CC-XX2XSX-XXX | ||
Product Type | E5：temperature controller | |
1. Panel Size (mm) | C：48H*48W*73L | |
Product Series | C：C Series temperature controller | |
2.Main control output 1 | R：Relay / voltage output | |
Q：Voltage output | ||
C：Current output | ||
R：Relay output (occupied auxiliary output 1 interface) | ||
X：Without main control output 2 | ||
Auxiliary output | 2: two relay auxiliary output (alarm output) | |
A：AC 100--240V power supply | ||
D： DC 24V power supply | ||
Connecting terminal | S：Screw terminal connecting with power supply | |
5.Input signal | M：Temperature signal input | |
X：analog signal input | ||
6.Communication function | 800：Without communication function | |
802：Non current main control output with RS485 communication interface（Ror 48*48 size） | ||
804：current main control output, with RS485 communication port | ||
808：Non current main control output with RS485 communication interface（Non 48*48 size） | ||
