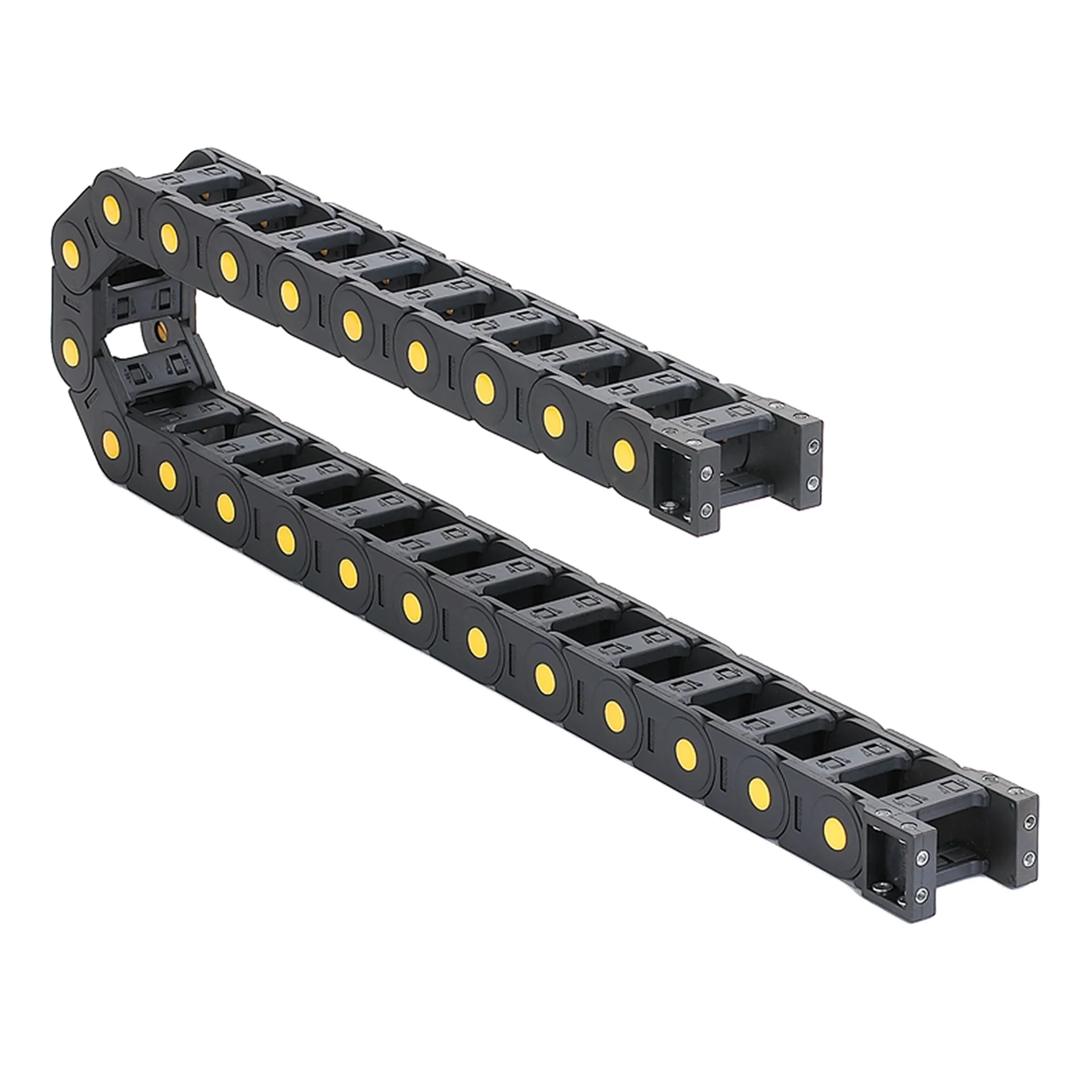

H20Q.1 Bridge type open Cable Stacker, Drag chain, cable carrier for 20X38 20X57 20X50 125
H20Q.1 Bridge type open Cable Stacker, Drag chain, cable carrier for 20X38 20X57 20X50-125

H20Q.1 Bridge type open Cable Stacker, Drag chain, cable carrier for 20X38 20X57 20X50 125

Share on (1600733216756):


Price:

Quantity:


Product Overview

Description









P/N#
Hi
Bi
Ha
Ba
Bending Radius
Bracket P/N #
H20Q.1.38S
20
38
35
57
R55   R75   R100  R125  R150
H20Q.1.38S-FJT
H20Q.1.50S
20
50
35
69

H20Q.1.50S-FJT
H20Q.1.57S
20
57
35
76

H20Q.1.57S-FJT
H20Q.1.60S
20
60
35
79

H20Q.1.60S-FJT
H20Q.1.75S
20
75
35
94

H20Q.1.75S-FJT
H20Q.1.77S
20
77
35
96

H20Q.1.77S-FJT
H20Q.1.100S
20
100
35
119

H20Q.1.100S-FJT
H20Q.1.103S
20
103
35
122

H20Q.1.103S-FJT
H20Q.1.125S
20
125
35
144

H20Q.1.125S-FJT
Spare parts
Horizaontal shim or Vertical shim for selection





BASIC TECHNICAL DATA
PITCH=46MM, PER METER=22 LINKS, LENGTH OF CHAIN=S/2+K, S=Stroke
Main Body details and Separate Shim( Vertical Shim) Pictures are as below.
The unit price shown are not including bracket or any shims.
If you need further more information about Horizon Shim or others, please feel free to contact with us by mail.








Company Profile












Packing & Warehouse




Recommend Products




FAQ




1. How to select the size of the products?
For the cable drag chain, please inform us the Hi(inner height)*Bi(inner width) and bending radius, and also length is required. Also if possible, please inform us the objects(machines) you are used for, so that we will suggest the most suitable for you.

2. What is the main material of the products?
Our cable drag chain is made by PA66,coolant hose is made by POM( Dupont), and for bellows cover can be made by many different material functionally.

3. How long is your delivery?
Our mainly products are on stock, we can provide 3-7days fast delivery.
