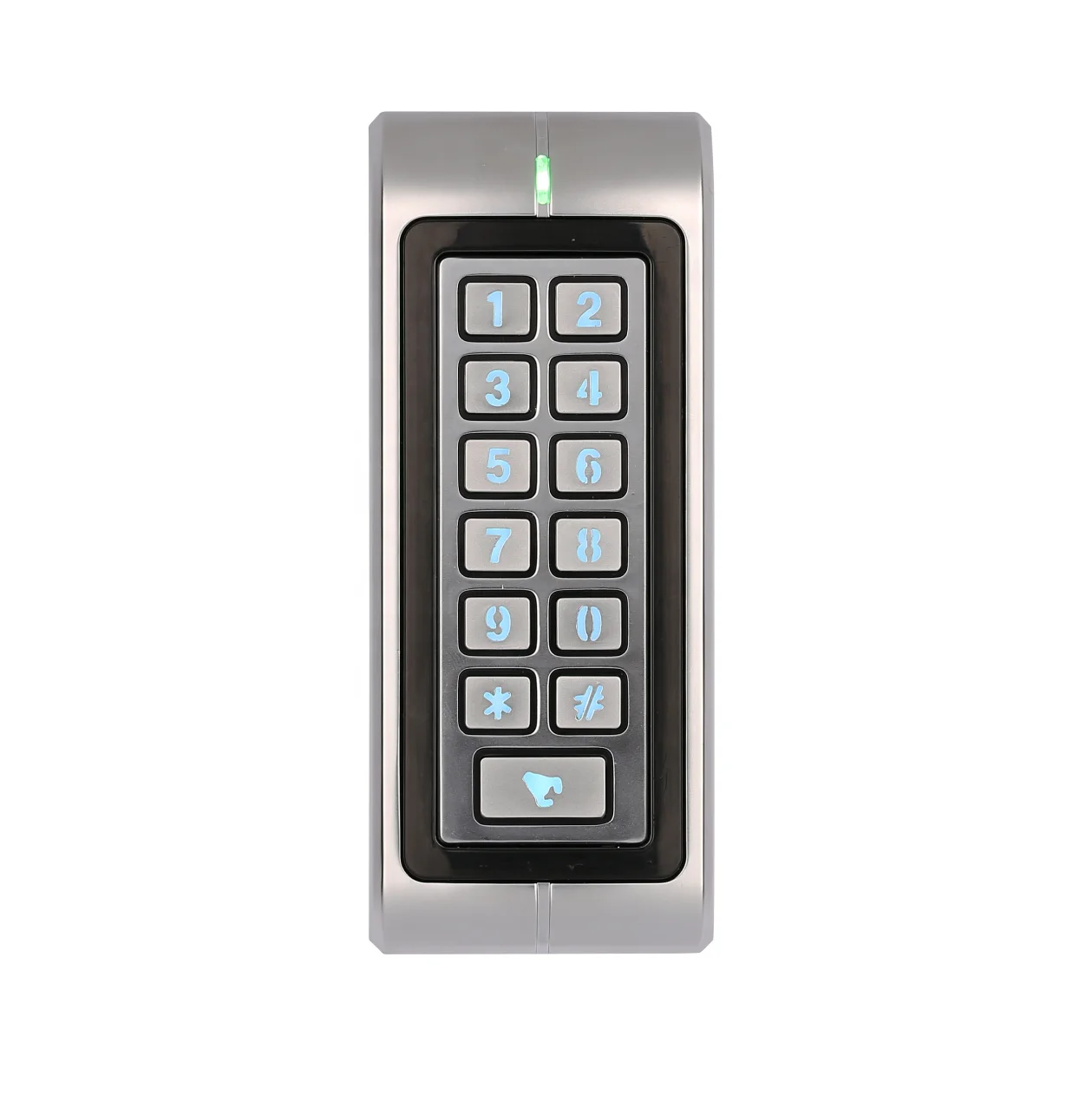

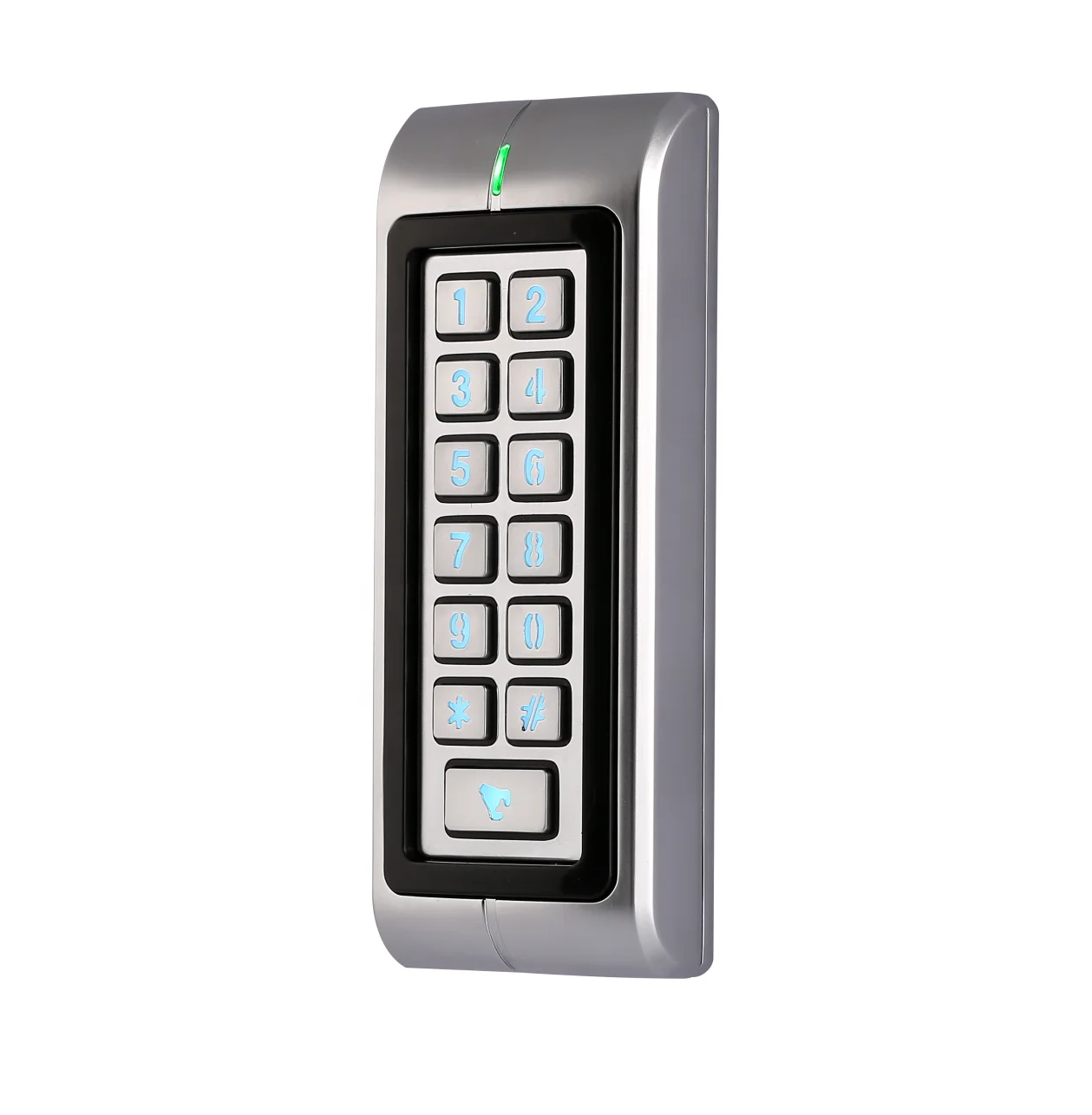

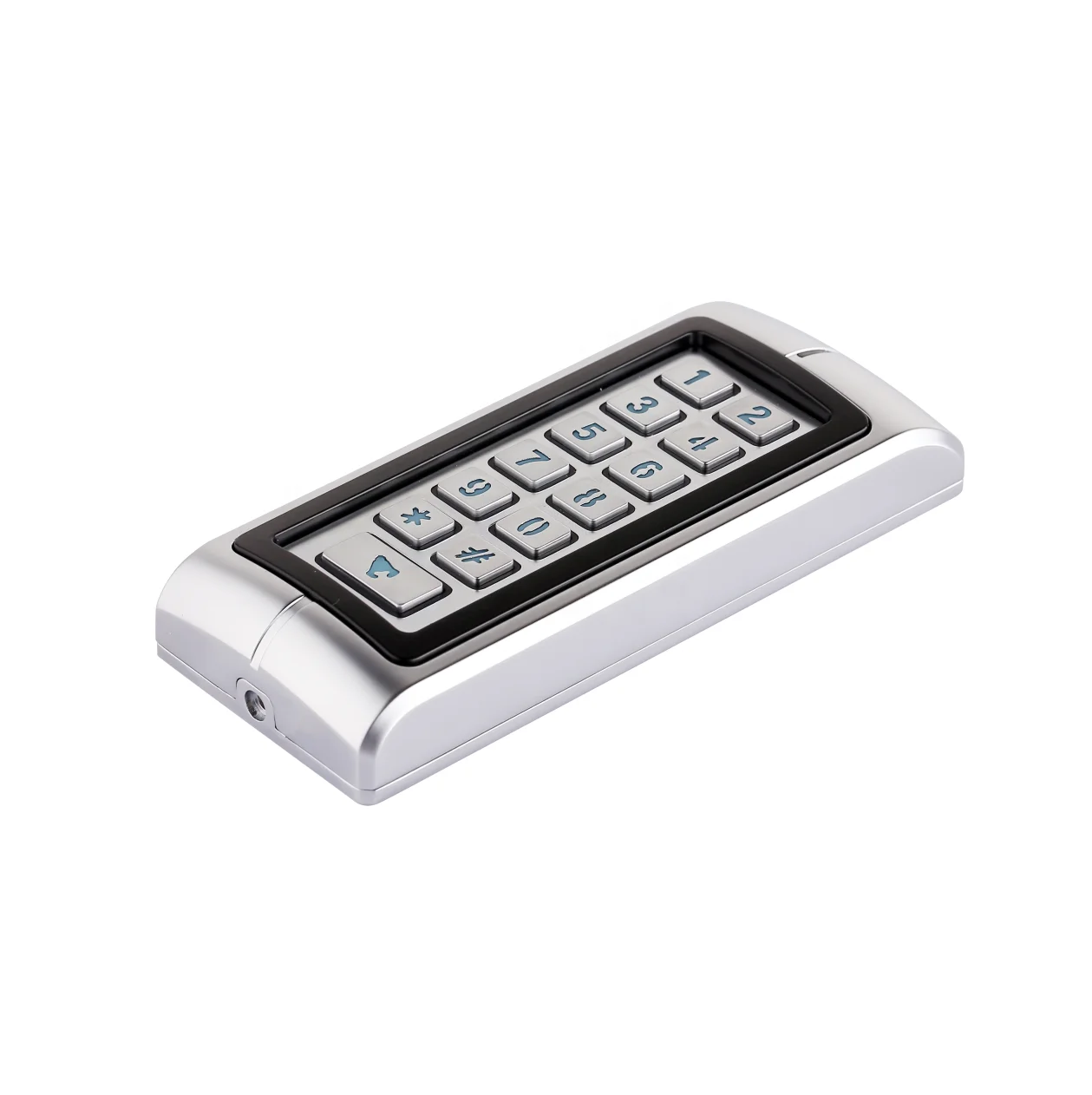

Metal Keypad RFID 13.56MHZ IC Card Reader Standalone Access Controller ZRT370M/B With Wiegand Output Support MF/NFC Card
- Category: Access Control Card Readers >>>
- Supplier: Shenzhen radio Technology Co. Ltd
Share on (1600733224834):
Product Overview
Description
ZKRadio
Overview
ZRT370 series integrated machine with physical keyboard is independently developed by our company. It adopts plastic shell and panel, beautiful and lightweight. Built-in high-end microprocessor, strong anti-interference ability, high safety and reliability.
It supports using the management card, adding card, and deleting card to enter setting mode, which is easy to learn and convenient for users to quickly set up the machine.
It adopts non-contact card and password for access control, and can set three door opening methods: swipe cards,input password and swipe cards plus input password. It supports conventional non-contact ID cards or IC cards. It supports adding users, deleting a single user, deleting all users, etc. It is very convenient to use and can be widely used in access control, attendance management, security alarm, parking lot management, building automation, elevator control and other fields.
Features
- Support Wiegand output, ultra-low power consumption;
- Support to store 5000 users,high capacity;
- Support switch reader mode and integrate mode, support three ways to open doors:swipe cards,input password and swipe cards plus input password;
- Anti-static, anti-misconnection and other multiple protection design;
- Support operate by manage cards,add cards,delete cards,support copy users, PC computer management
Specifications
Params | Description |
Card type | IC Card |
Frequency / Protocol | 13.56MHZ / ISO14443A/B |
Working voltage | DC 12V(±5%) |
Working current | Less than 200mA |
Standby current | Less than 150mA |
Sensing distance | 0-5cm(effect by cards and work environment) |
Working temperature | -20℃~+65℃ |
Storage temperature | -20℃~+80℃ |
Working humidity | 20% ~ 80% |
Output short circuit protection time | Less than 100µs |
Opening time | 0-99s(adjustable) |
Storage | 5000 users |
Size | 135.8*55.6*22.3mm(tolerance±0.3) |

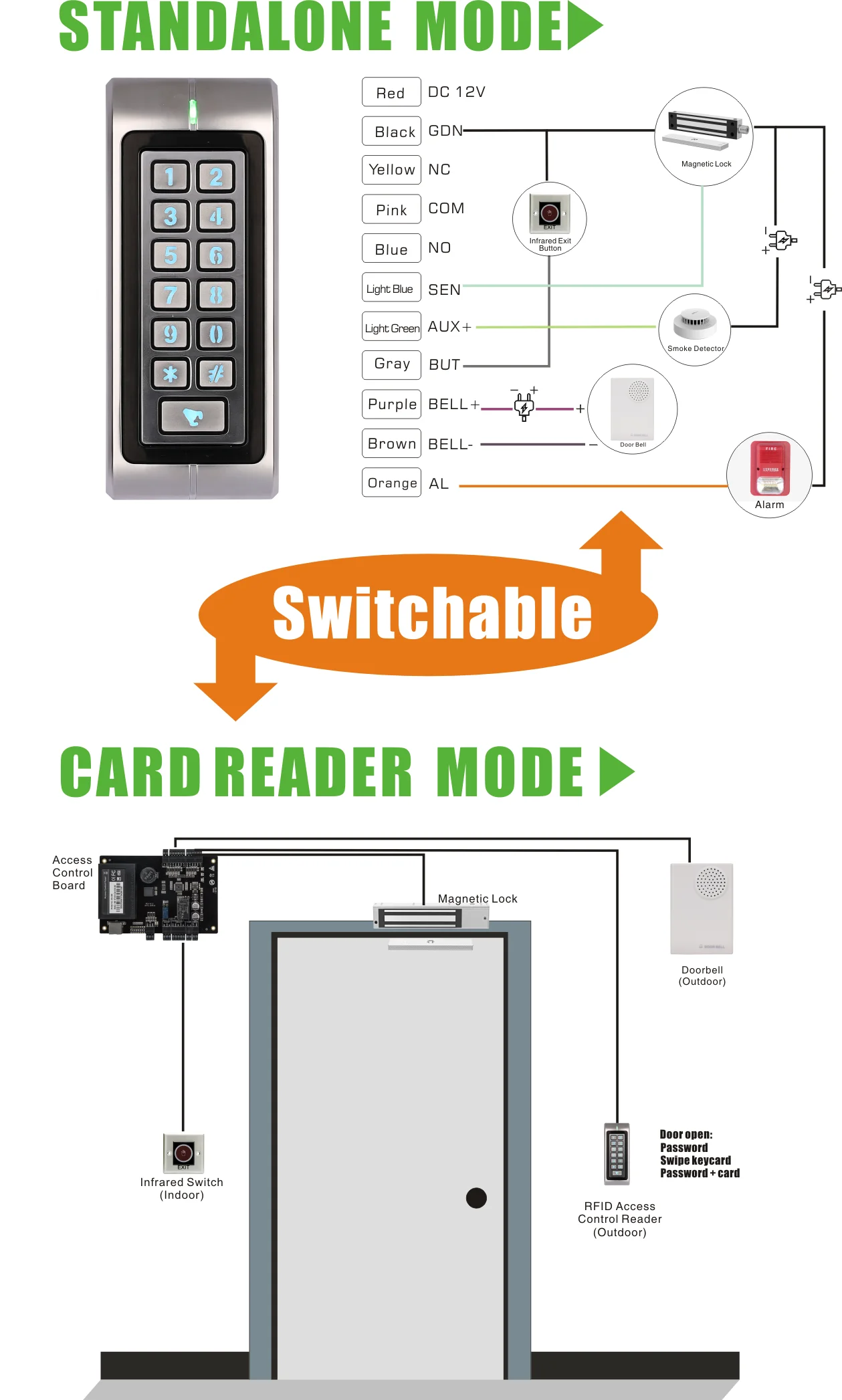

Wiring definition | Red: DC 12V, Light blue: SEN (door sensor)/LED, Orange: AL (alarm), Black: GND, Gray: BUT (exit switch)/BEEP, Purple: BELL+ (doorbell), Brown: BELL- (doorbell ), Light green: AUX+, Yellow: NC (normally closed), Pink: COM (common), Green: WD0/RXD (switched by 5,6 dial), White: WD1/TXD (switched by 5,6 dial) ), Blue: NO (normally open) |
Models
Models | Description |
ZRT370E | Integrated machine for ID cards,support EM4100,EM4102,EM4200 compatible card; support ID thick card, ID thin card, ID key-chain card; |
ZRT370M/B | Metal integrated machine for IC cards 1. Support MIFARE Classic Mini/EV1, MIFARE DESFire EV1/Light/EV1/EV2/EV3, MIFARE Plus S/X , MIFARE Ultralight/Ultralight C/Ultralight EV1, NTAG2xx; 2. Support physical card number of Chinese second-generation ID card; |

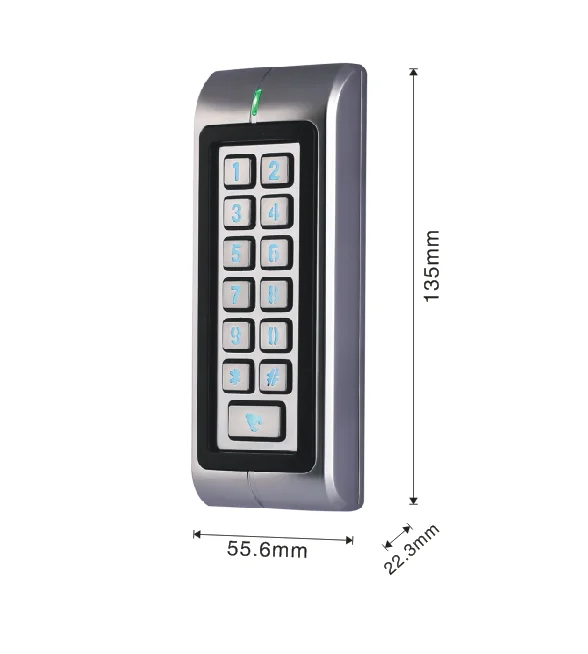

Dimension
