Skyline Voip Product Gsm Terminator 8 Port Gsm Goip 8 Gateway
- Category: >>>
- Supplier: Skyline (Shenzhen) Technology Co. Ltd.
Share on (1600733258265):
Product Overview
Description
Product Description

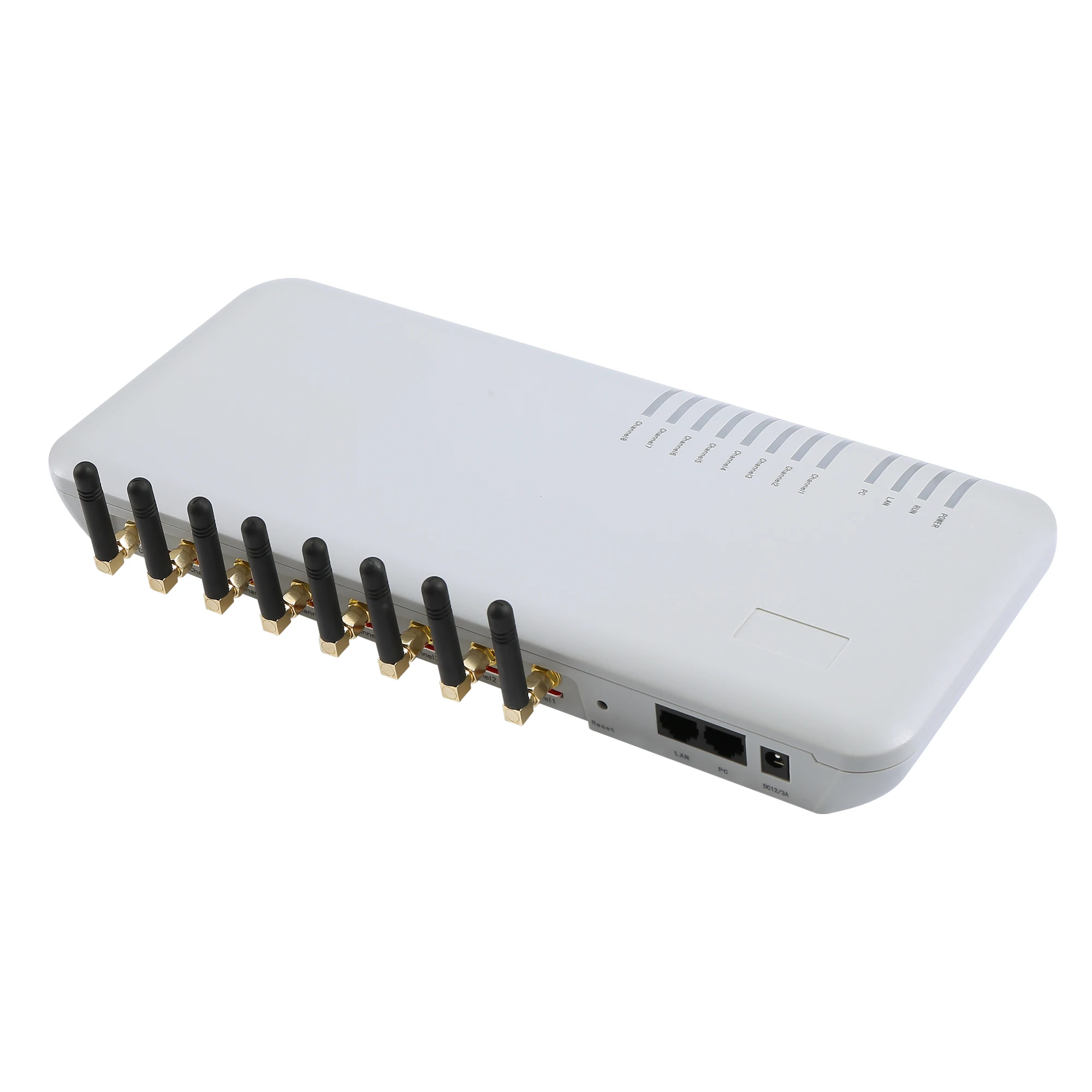

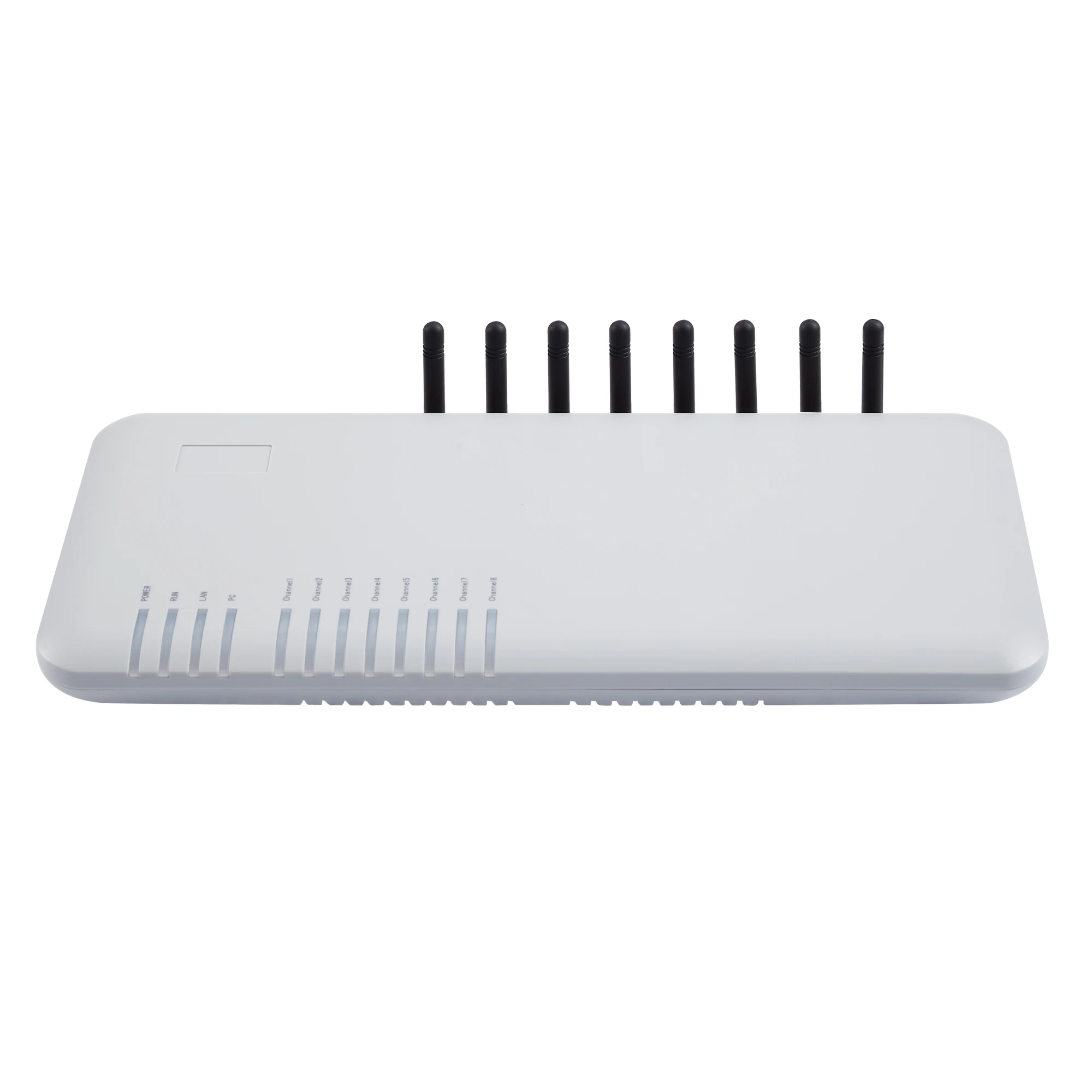

GSM GoIP8 VoIP Gateway
VoIP GSM Gateway GoIP bridges the GSM and the IP networks by enabling voice communications. It is installed on the Mobile SIM Card, you can register the GSM telephone on the VoIP Softswitch.it can be easily combined into arbitrary number of channels of Large Gateway Group. Low price, perfect sound quality and powerful function make GoIP GSM inevitable choice of system Integrators, traffic Business and soft switch Manufacturers.Product Name: 8 Channels 8 SIMs GSM Gateway
Model Name: GoIP-8
Specification:
1. 8 GSM channels,up to 8 sim cards
2. Quad band, IMEI changeable
3. Support of SMB32 SIM Bank, SIB128 SIM Band
4. VoIP SIP,H323,Remote Access
5. Optional SMS termination
6. Easy to install and administrate
7. Auto Balance and Recharge(USSD)
8. Auto BTS changeable
9. Inter-calling, Inter-sending
Series Model:GoIP-1,GoIP-4,GoIP-8,GoIP-16,GoIP-32, Simbank32, Simbank128
Our GoIPs come with all the common network, VoIP, and GSM features and they have been widely tested for compatibility, stability, and reliability. In addition, we’ve developed our proprietary Remote SIM technology for SIM card management without inserting SIM cards to GoIPs. Together with the SMS Server and SIM Sever, you can now build your own system for voice traffics between VoIP and GSM or a SMS Messaging system based on your application requirements.
Model Name: GoIP-8
Specification:
1. 8 GSM channels,up to 8 sim cards
2. Quad band, IMEI changeable
3. Support of SMB32 SIM Bank, SIB128 SIM Band
4. VoIP SIP,H323,Remote Access
5. Optional SMS termination
6. Easy to install and administrate
7. Auto Balance and Recharge(USSD)
8. Auto BTS changeable
9. Inter-calling, Inter-sending
Series Model:GoIP-1,GoIP-4,GoIP-8,GoIP-16,GoIP-32, Simbank32, Simbank128
Our GoIPs come with all the common network, VoIP, and GSM features and they have been widely tested for compatibility, stability, and reliability. In addition, we’ve developed our proprietary Remote SIM technology for SIM card management without inserting SIM cards to GoIPs. Together with the SMS Server and SIM Sever, you can now build your own system for voice traffics between VoIP and GSM or a SMS Messaging system based on your application requirements.
In addition, each GoIP is equipped with a Remote Control client which enables a secure remote access method for technical support and GoIP management. All of the above features are available at no additional charges.
Specification:
VoIP GSM Gateway GoIP-8is a VoIP GSM Gateway for call termination (VoIP to GSM) and origination (GSM to VoIP). It is SIP&H.323 based and compatible with Asterisk, Trixbox, 3CX, SIP Proxy Server, VoipBuster. It can enable to make 8 calls simultaneously from IP phones to GSM networks and GSM networks to IP phone. | ||
Key Features | Call from VoIP to GSM or GSM to VoIP | |
Bulk SMS | ||
Auto check balance and recharge | ||
Remote SIM Control | ||
Outbound call from voip | ||
Inbound call from gsm | ||
Remote management | ||
VoIP Protocols: SIP2.0 | ||
Audio Codecs: g711(alaw/ulaw), g729, g723.1 | ||
DTMF format: SIP INFO, RFC2833, Inband | ||
Packet Loss Concealment | ||
Programmable Jitter Buffer: Fixed, Dynamic, Adaptive | ||
Network Connection: DHCP, PPPOE, Static IP | ||
STUN Server | ||
Support English, Chinese | ||
Support Signaling encryption | ||
Support media encryption | ||
Support Media NAT Traversal | ||
Support Remote control | ||
GSM Channel: 8 | ||
Power Adapter: DC 12V/4A | ||
CPU: ARM11/700MHz | ||
RAM: 128MB | ||
Flash: 8M | ||
GSM Frequency: 850/900/1800/1900MHz | ||
SIM Module (2G): M26: Support work in all countries which still support 2G Signal | ||
Max power consumption: 30W | ||
Weight: 2KG (Including AC/DC Adapter) | ||
Size: 290mm (L) x 145mm (W) x 55mm (H) | ||
Operating Temperature: 0 - 45℃ | ||
Working Humidity: 10% - 90% non condensation | ||
Warranty: One year | ||
Free Software | SMS Server | |
SIM Server ( Sim Bank Scheduler Server ) | ||
Relay Server | ||
Remote Access | ||
Connections:

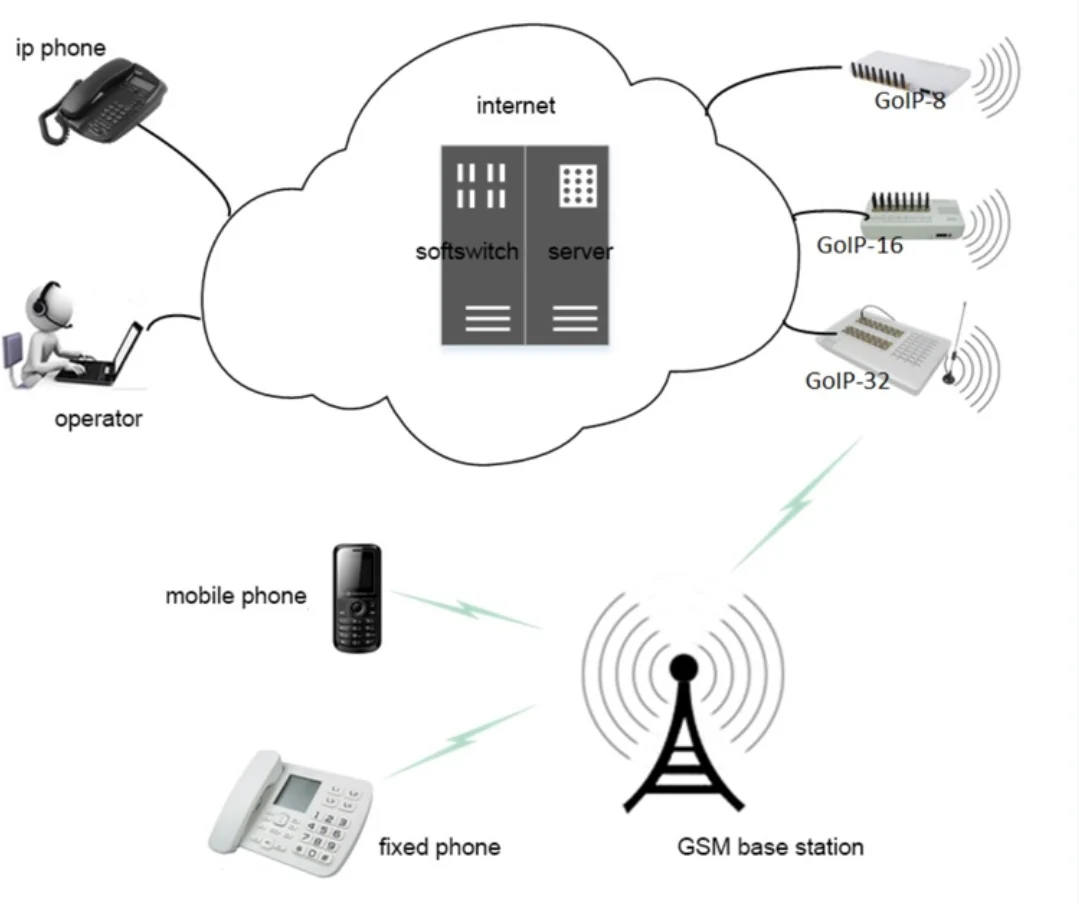

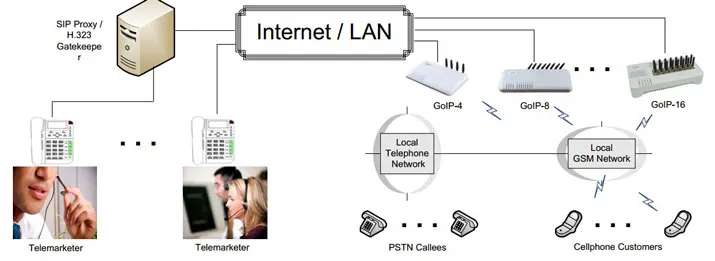

The concept diagram below shows a simple VoIP network for call center application. It consists of a softswitch/IP PBX and VoIP clients such as an IP phone, a call center operator, and GoIPs. All VoIP clients are configured to register to the softswitch/IPPBX. For the GoIPs, each GSM channel is inserted with a valid SIM card in order to access the GSM network. Both incoming and outgoing calls between the VoIP and GSM/PSTN networks can now be realized.
Applications

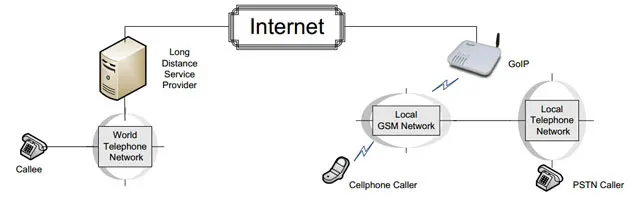

1: Call Origination and Termination for VoIP Traffic
1) Call Origination refers to a call initiated from the PSTN or cell phone network is terminated using VoIP.
2) Call Termination refers to a call initiated as a VoIP call is terminated using PSTN or cell phone network.

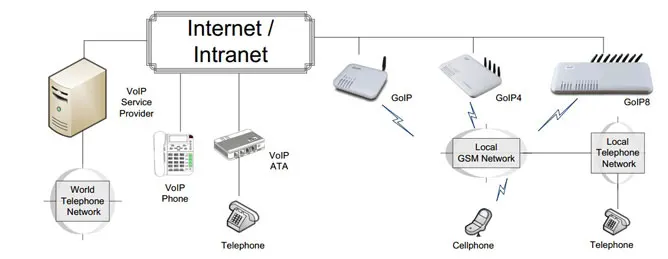

3) As shown in the network topology diagram, a VoIP Service Provider is using GoIPs as call origination and termination devices.
- A call dialed to a GoIP (right hand side) via GSM is first routed via VoIP and then terminated via a VoIP end point or VoIP Service Provider.
- A VoIP call originated from the left hand side is routed to a GoIP on the right hand side and then is dialed out as a GSM call.
2) Call Termination refers to a call initiated as a VoIP call is terminated using PSTN or cell phone network.
3) As shown in the network topology diagram, a VoIP Service Provider is using GoIPs as call origination and termination devices.
- A call dialed to a GoIP (right hand side) via GSM is first routed via VoIP and then terminated via a VoIP end point or VoIP Service Provider.
- A VoIP call originated from the left hand side is routed to a GoIP on the right hand side and then is dialed out as a GSM call.

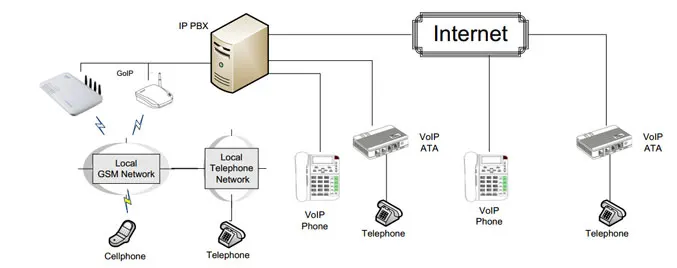

2: IP PBX Call Origination and Termination
1) Instead of FXO gateways, GoIPs are as a call termination and origination device for the IP PBX as shown in the diagram above.
2) VoIP endpoints connected to the IP PBX can make calls to cellular/traditional telephone network via the GoIP GSM ports.
3) Outside callers can then call in via the GoIP GSM ports to reach any of the VoIP endpoints that are registered to the IP PBX.
4) GoIPs can be configured in a group mode such that all GSM ports can be used by just dialing only one GSM number.
Please refer to the Call Center Application for more information.
2) VoIP endpoints connected to the IP PBX can make calls to cellular/traditional telephone network via the GoIP GSM ports.
3) Outside callers can then call in via the GoIP GSM ports to reach any of the VoIP endpoints that are registered to the IP PBX.
4) GoIPs can be configured in a group mode such that all GSM ports can be used by just dialing only one GSM number.
Please refer to the Call Center Application for more information.

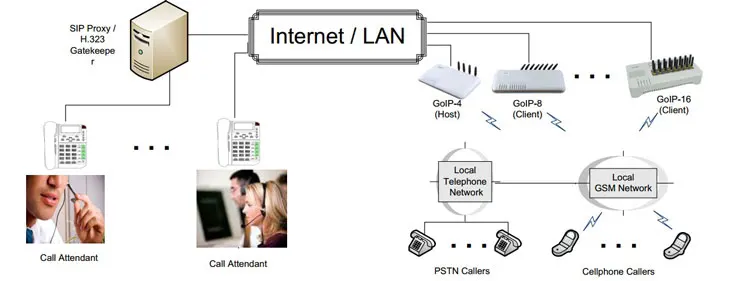

3: Inbound Call Centre for Customer Service
1) Inbound call centre is operated by a company to administer incoming product support or information inquiries from consumers.
2) This application requires customers to call in via a single phone number. Each GSM channel in a GoIP has its own phone number.
In order to achieve calling in via a single number, GoIPs must be configured in a phone group mode with one GoIP as a host and the others as clients.
3) An incoming call to the host GoIP is automatically forwarded to an idle GSM channel in the phone group. The call is then routed to a call attendant via a VoIP connection.
4) Key advantages: quick setup, scalable, portable, low system cost, low operating cost especially used in cellular network no charge on incoming.
2) This application requires customers to call in via a single phone number. Each GSM channel in a GoIP has its own phone number.
In order to achieve calling in via a single number, GoIPs must be configured in a phone group mode with one GoIP as a host and the others as clients.
3) An incoming call to the host GoIP is automatically forwarded to an idle GSM channel in the phone group. The call is then routed to a call attendant via a VoIP connection.
4) Key advantages: quick setup, scalable, portable, low system cost, low operating cost especially used in cellular network no charge on incoming.
4: Outbound Call Centre for Telemarketing/Solicitation
1) Outbound call centers are normally operated for telemarketing, solicitation of charitable or political donations, and debt collection etc.
2) In this application, only outgoing calls are made. GoIPs could be configured as SIP clients to registering to the SIP server/IPPBX or as a SIP Trunk to accept calls routed from the SIP Server/IP PBX.
3) Key advantages: quick setup, portable, scalable, low system cost, low operating cost.
2) In this application, only outgoing calls are made. GoIPs could be configured as SIP clients to registering to the SIP server/IPPBX or as a SIP Trunk to accept calls routed from the SIP Server/IP PBX.
3) Key advantages: quick setup, portable, scalable, low system cost, low operating cost.
5: Call Back Service
1. Call Back is referring to the telecommunications event that occurs when the originator of a call is immediately called back in a second call as a response.
2. GoIP could be used to achieve this function alone or as an terminal that is integrated in an existing call back server/platform.
3. For standalone operation,GoIP receives a call with caller ID information and then rejects the call immediately without answering the call.GoIP then calls back the caller so that he can dial a phone number to make a call.In this case,GoIP must register to a VoIP Service Provider who can offer terminate the call.
4. In a call back system,GoIP acts as a device to initiate the call back function.Typically, this is done in two ways. The first method is to send an SMS with the callee’s phone number to the GoIP.The GoIP then sends both the caller's and callee's phone numbers to the call back server to complete the call back function.The second method is to call the GoIP and the hang up (with the call being answered).GoIP sends the caller’s phone number to the call back server and the call back server calls the caller directly so that the caller can then dial a phone number to make a call.
2. GoIP could be used to achieve this function alone or as an terminal that is integrated in an existing call back server/platform.
3. For standalone operation,GoIP receives a call with caller ID information and then rejects the call immediately without answering the call.GoIP then calls back the caller so that he can dial a phone number to make a call.In this case,GoIP must register to a VoIP Service Provider who can offer terminate the call.
4. In a call back system,GoIP acts as a device to initiate the call back function.Typically, this is done in two ways. The first method is to send an SMS with the callee’s phone number to the GoIP.The GoIP then sends both the caller's and callee's phone numbers to the call back server to complete the call back function.The second method is to call the GoIP and the hang up (with the call being answered).GoIP sends the caller’s phone number to the call back server and the call back server calls the caller directly so that the caller can then dial a phone number to make a call.

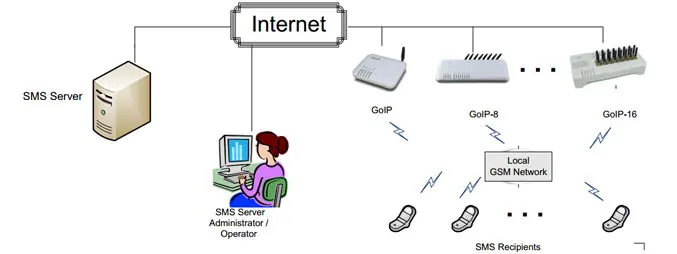

6: Sending Bulk SMS Service
1. Sending bulk sms text messages is a common technique for telemarketing to reach the target customers.
2. A bulk SMS system can be implemented quickly and easily using GoIPs and our proprietary SMS server. Telemarketers are now have full control on how and when they want to send text messages.
3. In addition, SMS text messages are now used widely in many companies, organizations, schools,
clubs as a mean for broadcasting information. They can now build their own SMS system without paying expensive charges to their GSM server provider.
4. This system can also take the advantage of using the same GSM service provider to send sms to the phone subscribers in the same service provider.
2. A bulk SMS system can be implemented quickly and easily using GoIPs and our proprietary SMS server. Telemarketers are now have full control on how and when they want to send text messages.
3. In addition, SMS text messages are now used widely in many companies, organizations, schools,
clubs as a mean for broadcasting information. They can now build their own SMS system without paying expensive charges to their GSM server provider.
4. This system can also take the advantage of using the same GSM service provider to send sms to the phone subscribers in the same service provider.
Gateway Web Management
How to log in Web Management?
Open the web browser and type the IP address. If it is the first time you login the gateway, please use the default settings below:
IP Address: 192.168.8.1
Account: admin
Password: admin
IP Address: 192.168.8.1
Account: admin
Password: admin

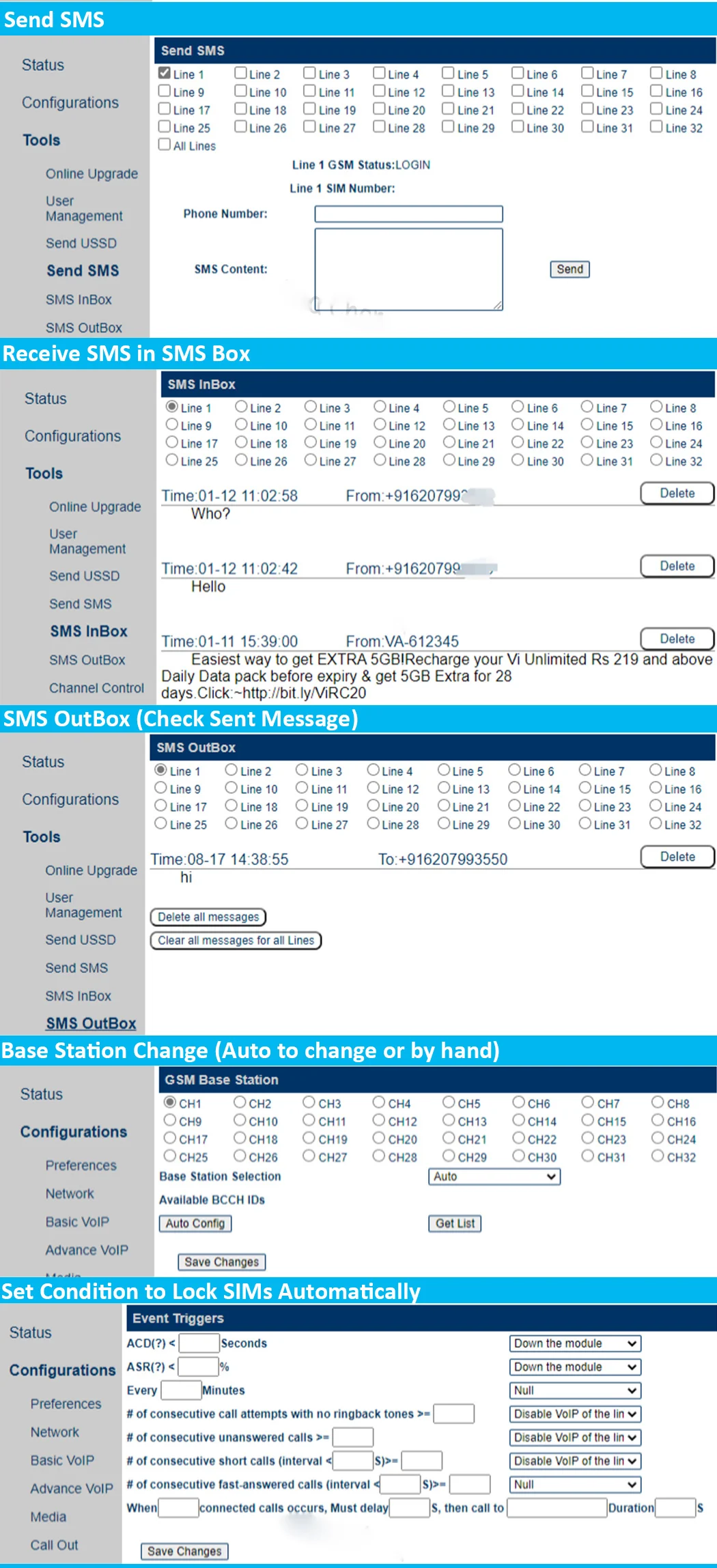

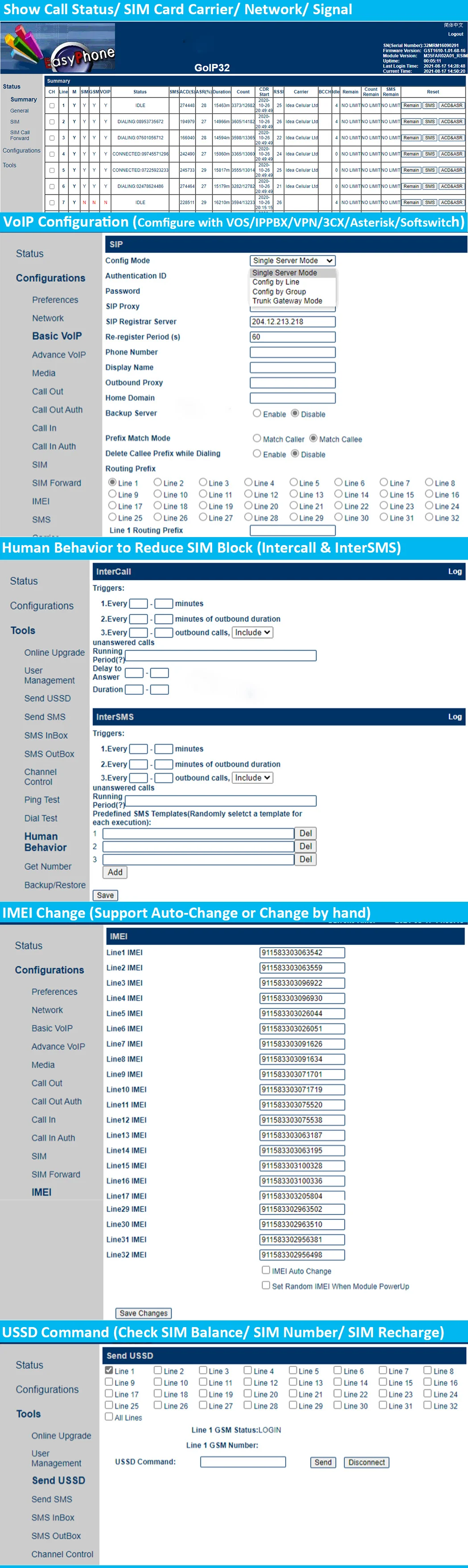

Following are the pages of GoIP web management:

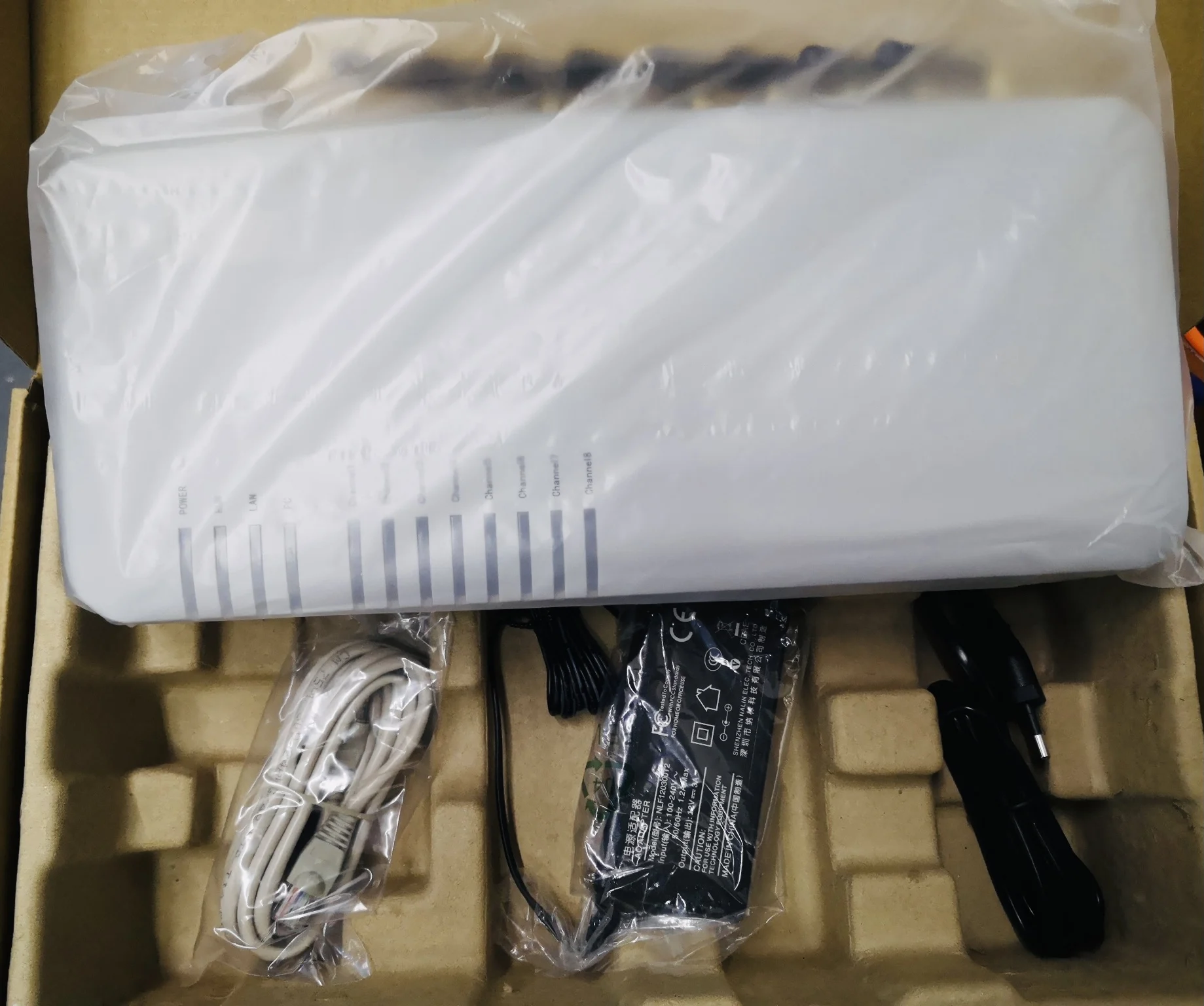

Packing&Shipping

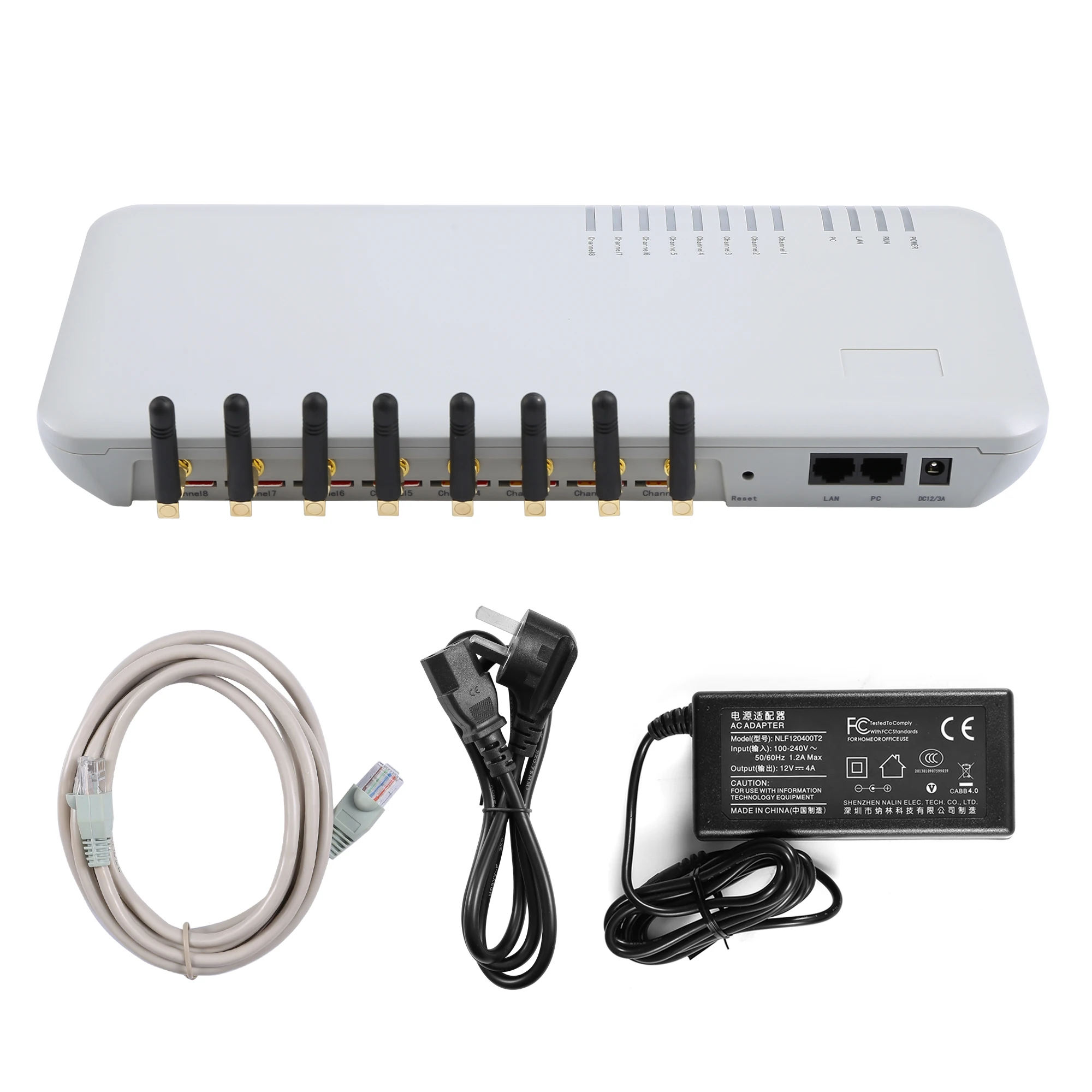

Packing List:
(1) GoIP Gateway x 1
(2)Network Cable x 1
(1) GoIP Gateway x 1
(2)Network Cable x 1
(3) Power Supply Adapter x 1
(4) Antennas x 8
(4) Antennas x 8
Trade Terms | FOB, CFR, EXW |
Payment Terms | Alibaba via Credit Card/Paypal, Bank Wire, T/T, Webmoney, Skrill, Western Union, Cash, USDT |
Payment Condition | 100% deposit in adavance |
Delivery Time | 1-3 days after full payment |
Packing | Strong Carton Box with Water Proof |
Shipping | DHL, UPS, EMS, FEDEX, ARAMEX, TNT or Other Way As You Require |
FAQ
Q: 1 . What is main funtion of the GOIP8 ports gateway?
A: For call terminal and bulk sms.
A: For call terminal and bulk sms.
And we have Live SMS Traffic to Vietnam, India, USA, Indonesia, Nigeria, Spain, Germany, France, Phillipines, Australia, New Zealand, Canada, UK, UAE, Bangladesh, Thailand, and European regions. If you have sim cards and interested in sms business for huge profit, please contact me!!
Q :2. How about our service?
A: We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q: 3.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q: 4.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4/8/16/32 ports and 4G SK gateway for you to expand your business.
Q: 5.How long we're warranty ?
1 year
Q: 6.During warranty time,if have problem, how to do?
we'll test by teamview or send back, we'll exchange new in free.
Q: 8. Quickly contact way?
A: Skype: live:demi_1045
Q :2. How about our service?
A: We have professional engineer to help you about all your tech problems anytime,the satisfaction of our customers is our greatest desire.
Q: 3.If my routes face the issue for quality not good , any solution?
A: Firstly, you can check your internet, gsm signal, sim cards balance, sim blocking. Secondly, if everything is good, we will guide our engineer to help you check your configurations.
Q: 4.I need more ports , any device?
A: If your ports are less than traffic, you should increase more ports to accpet more traffic. We have 4/8/16/32 ports and 4G SK gateway for you to expand your business.
Q: 5.How long we're warranty ?
1 year
Q: 6.During warranty time,if have problem, how to do?
we'll test by teamview or send back, we'll exchange new in free.
Q: 7.How long about our techinical support?
in free,forever.
in free,forever.
Q: 8. Quickly contact way?
A: Skype: live:demi_1045
Whatsapp: 008613686892147
Telegram: @skylindemi
