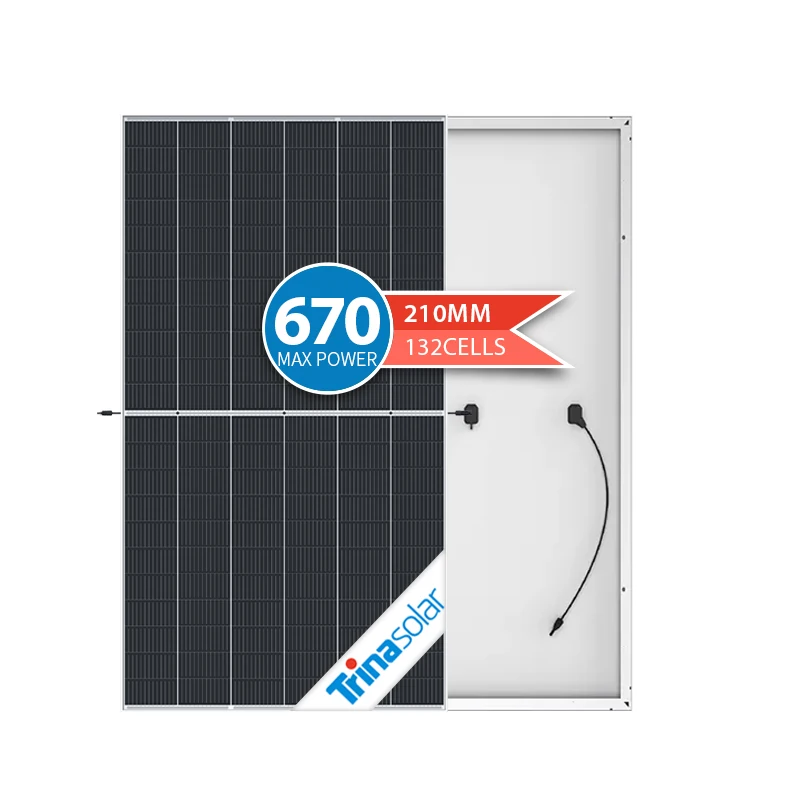

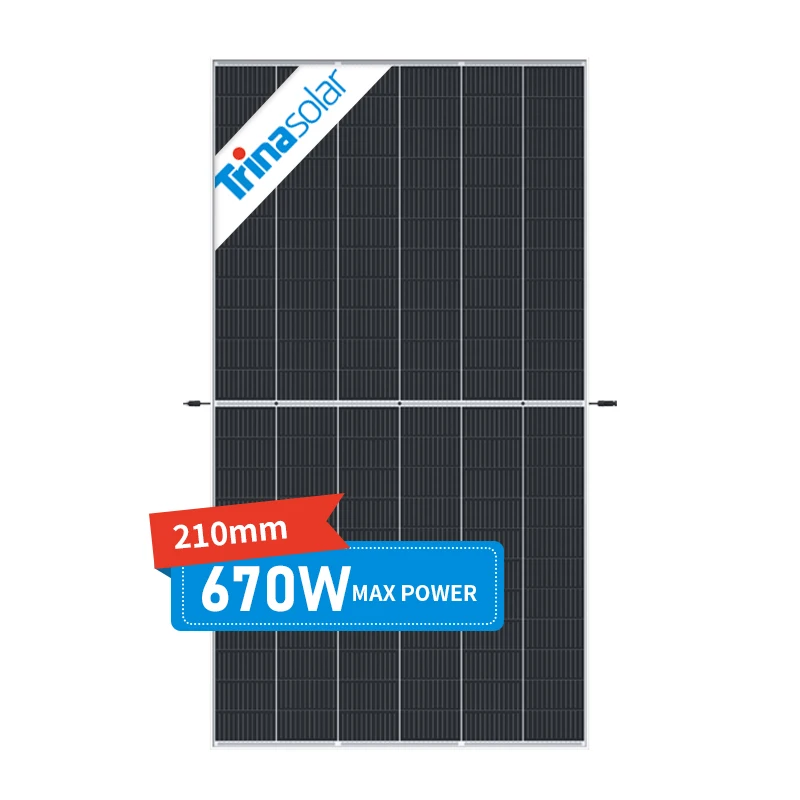

Factory price Trina solar panel 550w 650w 660w 670w half sale all black in stock
- Category: >>>
- Supplier: SUNWAY SOLAR CO. LTD
Share on (1600733269535):
Product Overview
Description

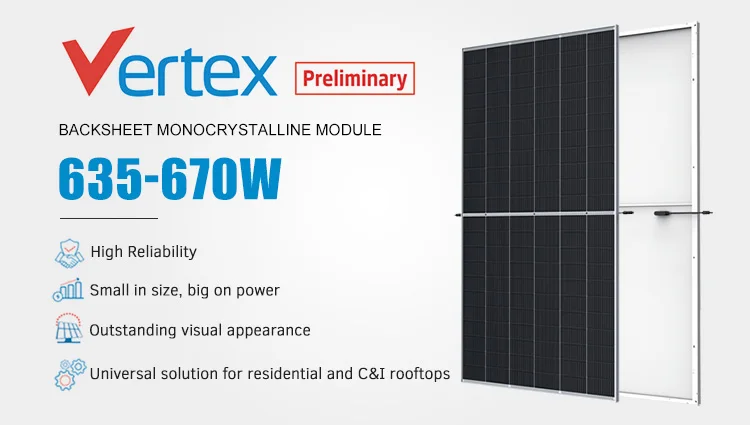

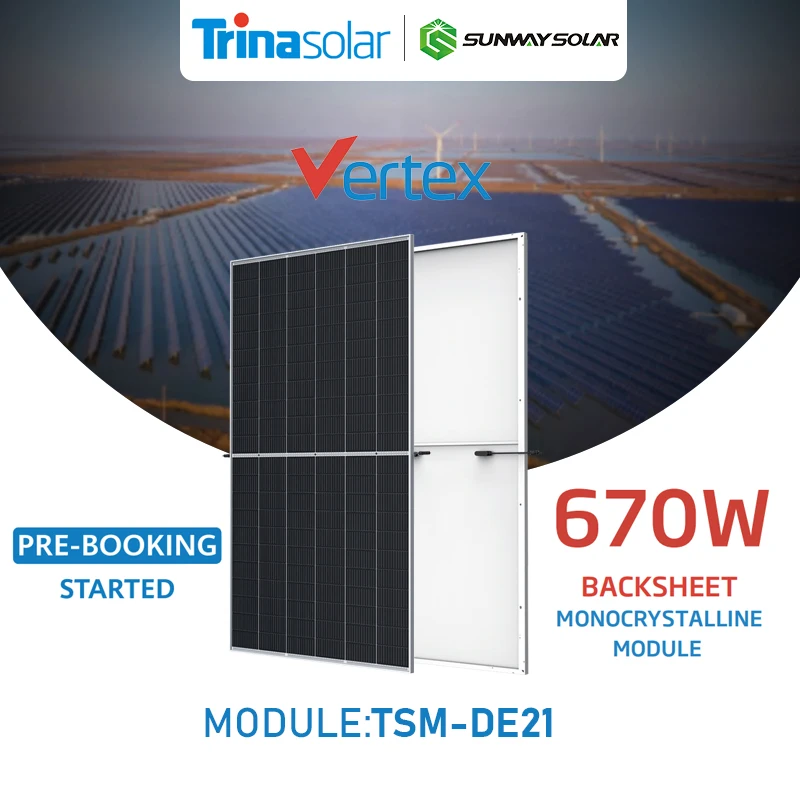

Products Description Miêu tả

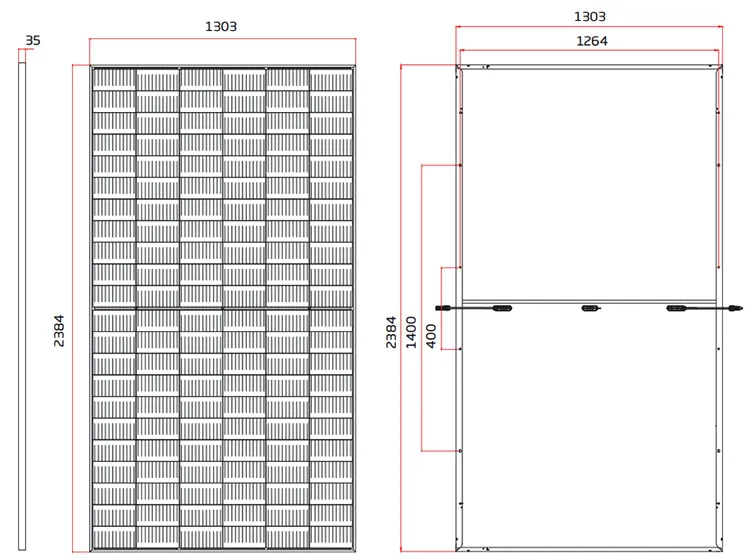

Specifications Chi tiết kỹ thuật
ELECTRICAL DATA (STC) | ||||||||||||||||
Peak Power Watts-Pmax(Wp)* | 635 | 640 | 645 | 650 | 655 | 660 | 665 | 670 | ||||||||
Power Tolerance-Pmax(W) | 0~+5 | |||||||||||||||
Maximum Power Voltage-Vmpp(V) | 36.8 | 37.0 | 37.2 | 37.4 | 37.6 | 37.8 | 38.0 | 38.2 | ||||||||
Maximum Power Current-Impp(A) | 17.26 | 17.30 | 17.35 | 17.39 | 17.43 | 17.47 | 17.51 | 17.55 | ||||||||
Open Circuit Voltage-Voc(V) | 44.7 | 44.9 | 45.1 | 45.3 | 45.5 | 45.7 | 45.9 | 46.1 | ||||||||
Short Circuit Current-Isc(A) | 18.30 | 18.34 | 18.39 | 18.44 | 18.48 | 18.53 | 18.57 | 18.62 | ||||||||
Module Efficiency η m(%) | 20.4 | 20.6 | 20.8 | 20.9 | 21.1 | 21.2 | 21.4 | 21.6 | ||||||||
STC: Irrdiance 1000W/m2, Cell Temperature 25ºC, Air Mass AM1.5. *Measuring tolerance: ±3%. | ||||||||||||||||
ELECTRICAL DATA (NOCT) | ||||||||||||||||
Maximum Power-PMAX (Wp) | 481 | 485 | 488 | 492 | 496 | 500 | 504 | 508 | ||||||||
Maximum Power Voltage-VMPP (V) | 34.3 | 34.6 | 34.8 | 34.9 | 35.1 | 35.3 | 35.4 | 35.6 | ||||||||
Maximum Power Current-IMPP (A) | 13.97 | 14.01 | 14.05 | 14.09 | 14.13 | 14.17 | 14.22 | 14.26 | ||||||||
Open Circuit Voltage-VOC (V) | 42.1 | 42.3 | 42.5 | 42.7 | 42.9 | 43.0 | 43.2 | 43.4 | ||||||||
Short Circuit Current-ISC (A) | 14.75 | 14.78 | 14.82 | 14.86 | 14.89 | 14.93 | 14.96 | 15.01 | ||||||||
NOCT: Irradiance at 800W/m2, Ambient Temperature 20°C, Wind Speed 1m/s. | ||||||||||||||||

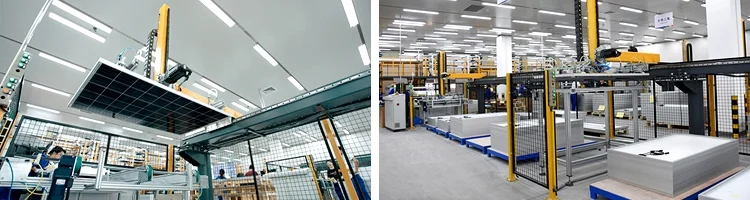

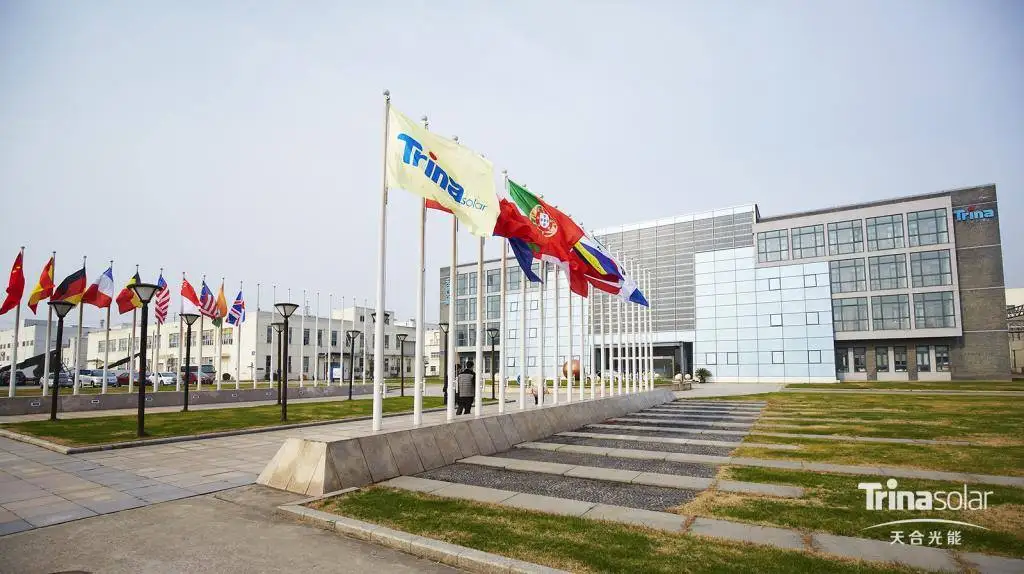

Our factory Giới thiệu nhà máy

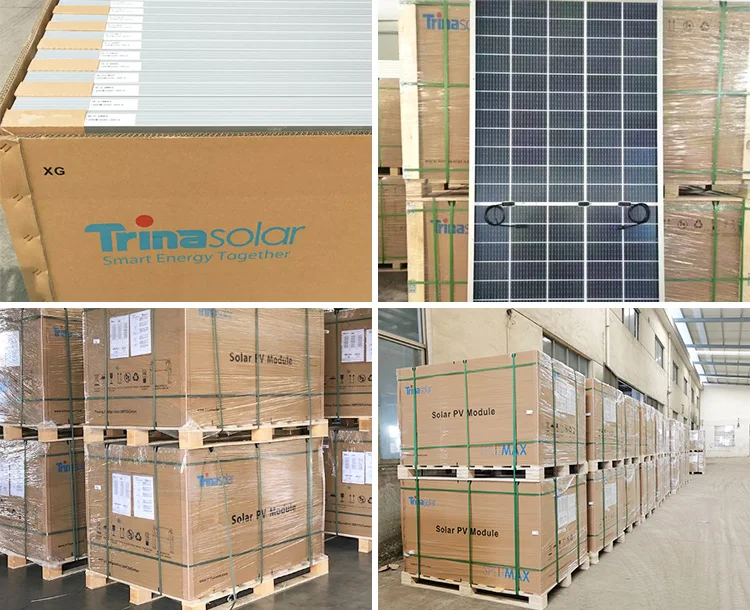

Product Packaging Đóng gói sản phẩm
Note: The Above packing information contained in this web is subject to change without notice. We will offer wooden box packing
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.
with extra material and labor costs if your order less than a pallet, we accept any customized packing as per your requests.

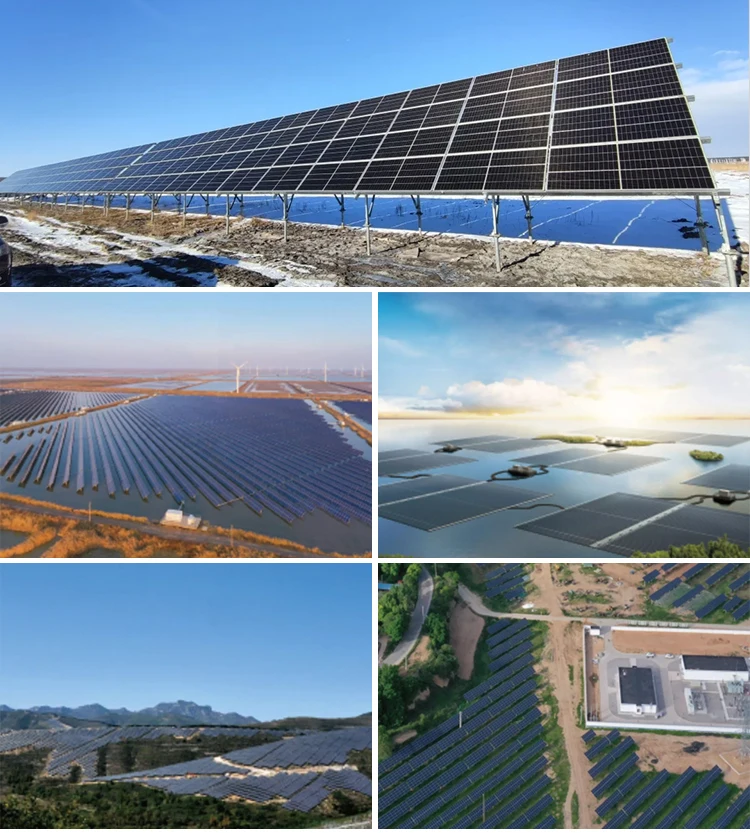

Project Case Dự án đã hoàn thành

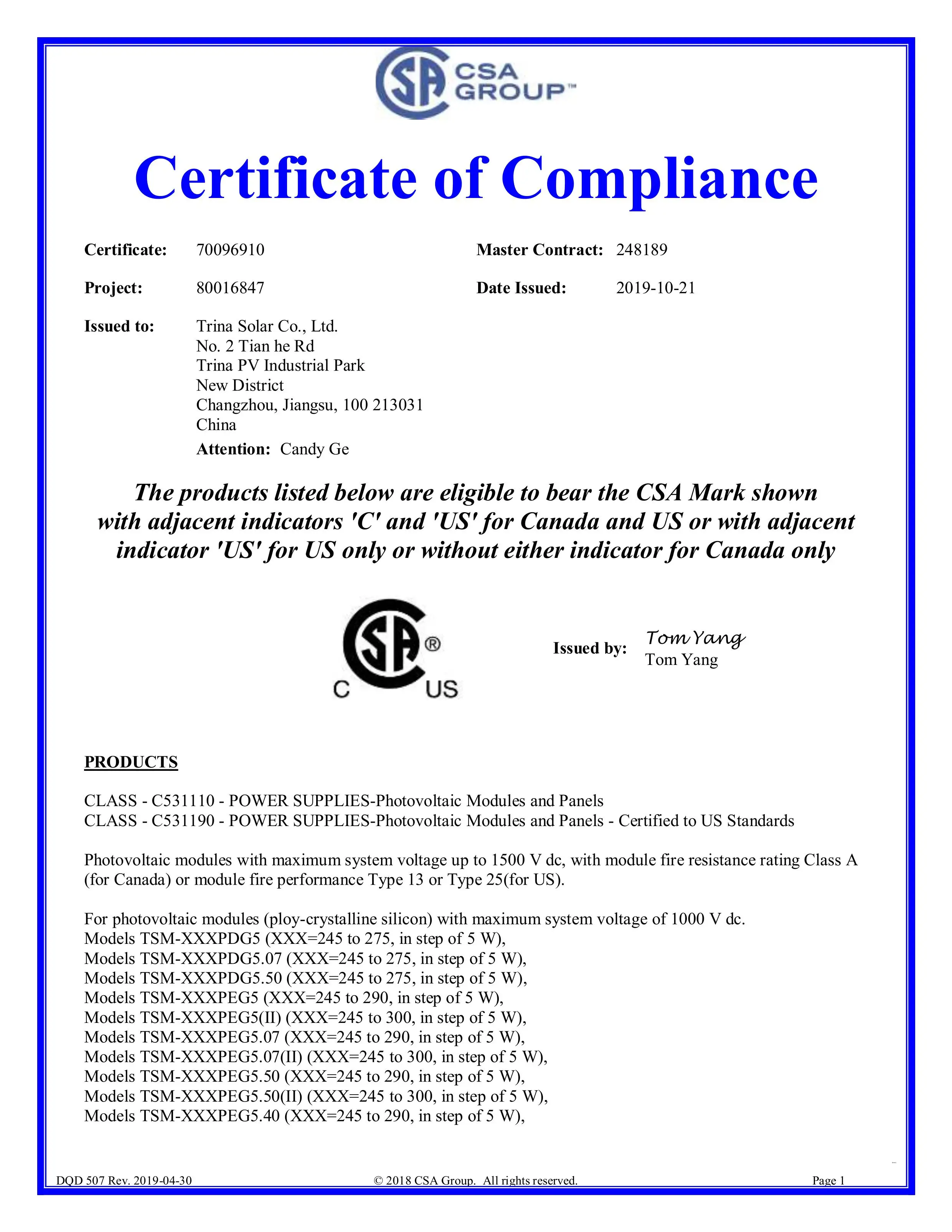

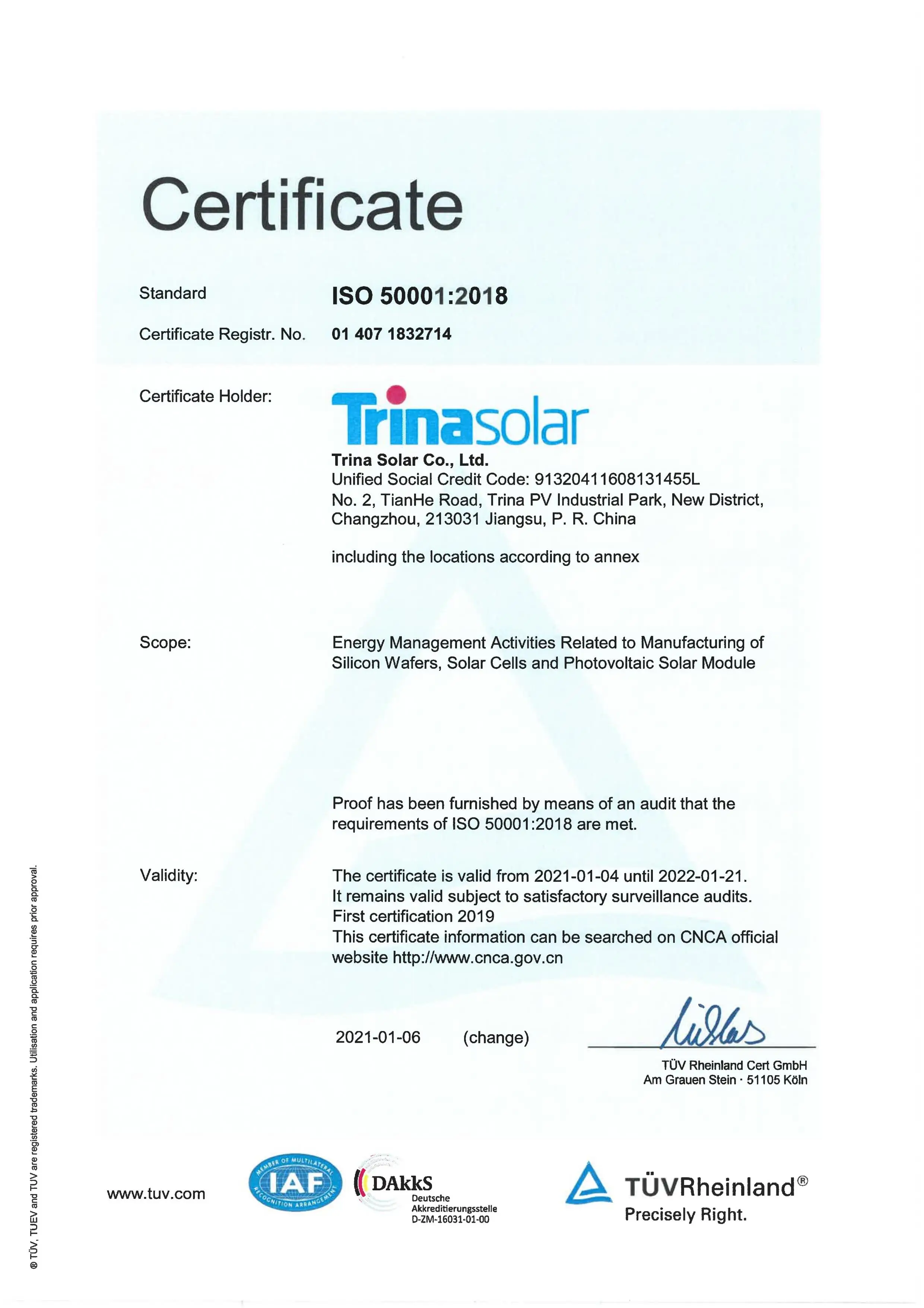

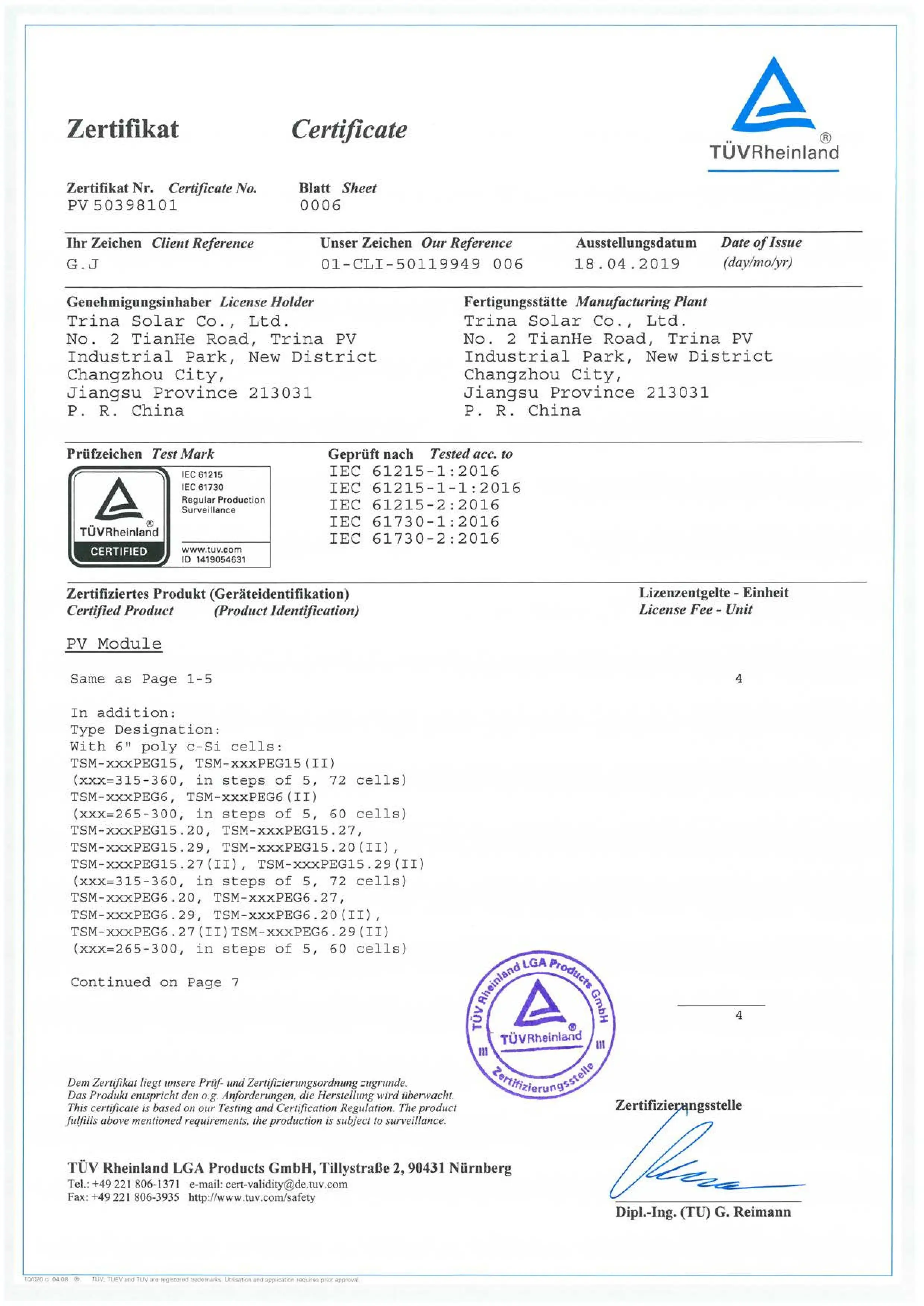

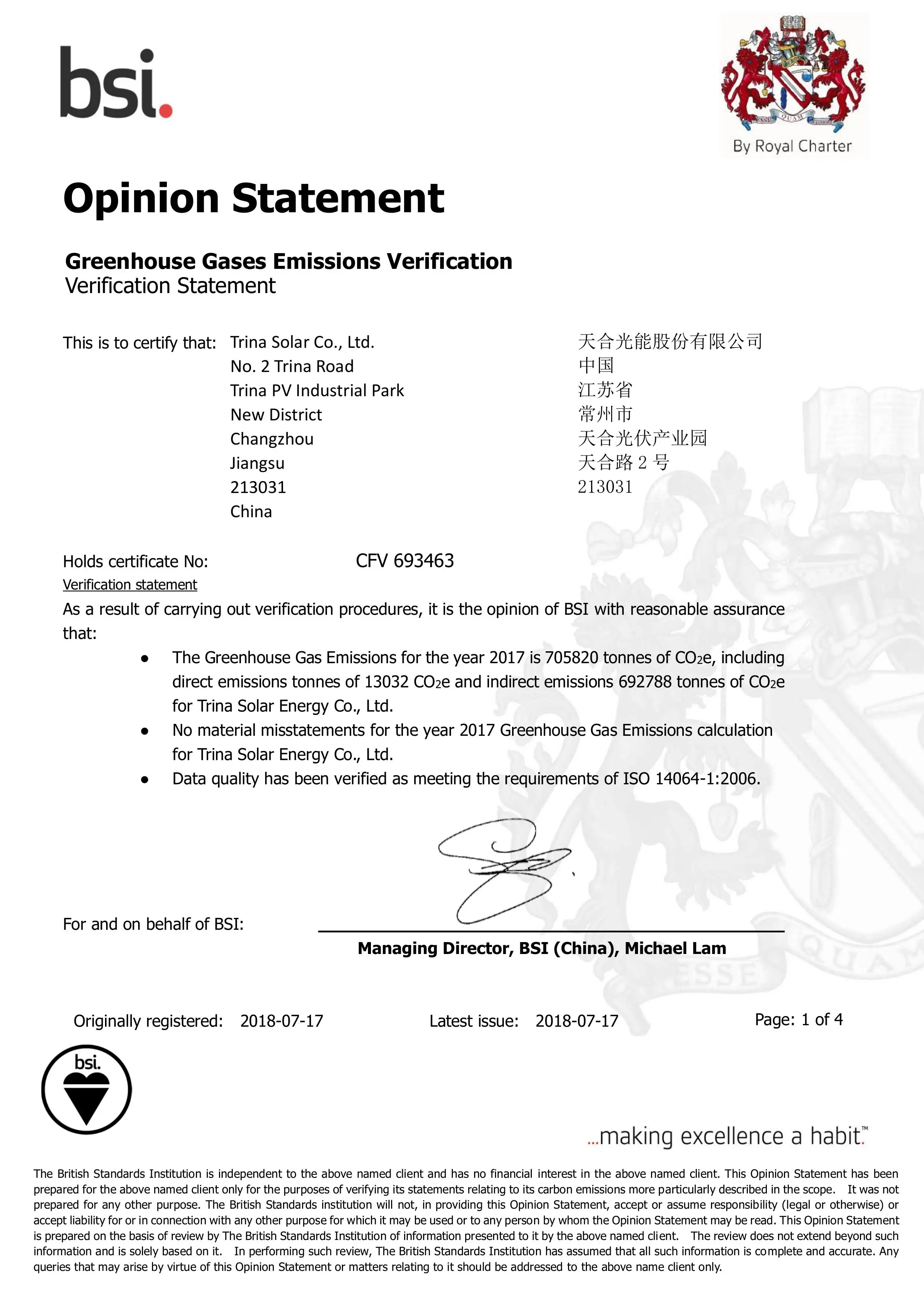

Certifications Chứng nhận chất lượng quốc tế

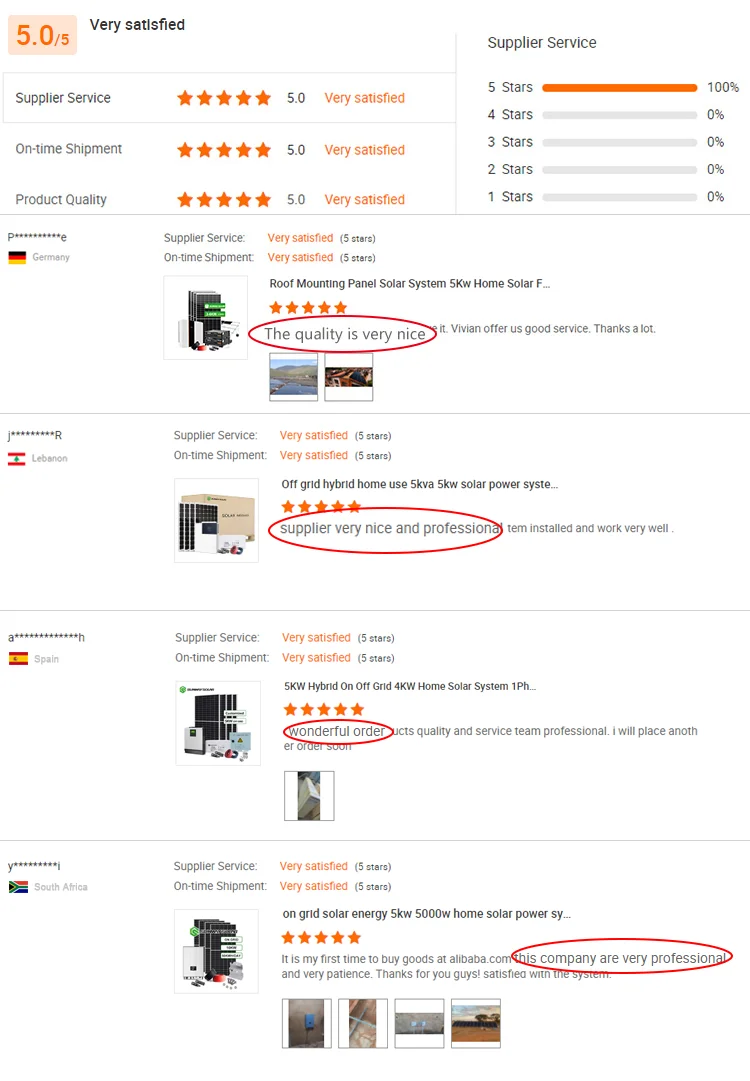

Feedback Phản hồi của khách hàng
