SMT Handling Equipment Automatic PCB Reject Conveyor For SMT Line
- Category: >>>
- Supplier: Shenzhen Censtar Technology Co. Ltd.
Share on (1600733280289):
Product Overview
Description
Product Description

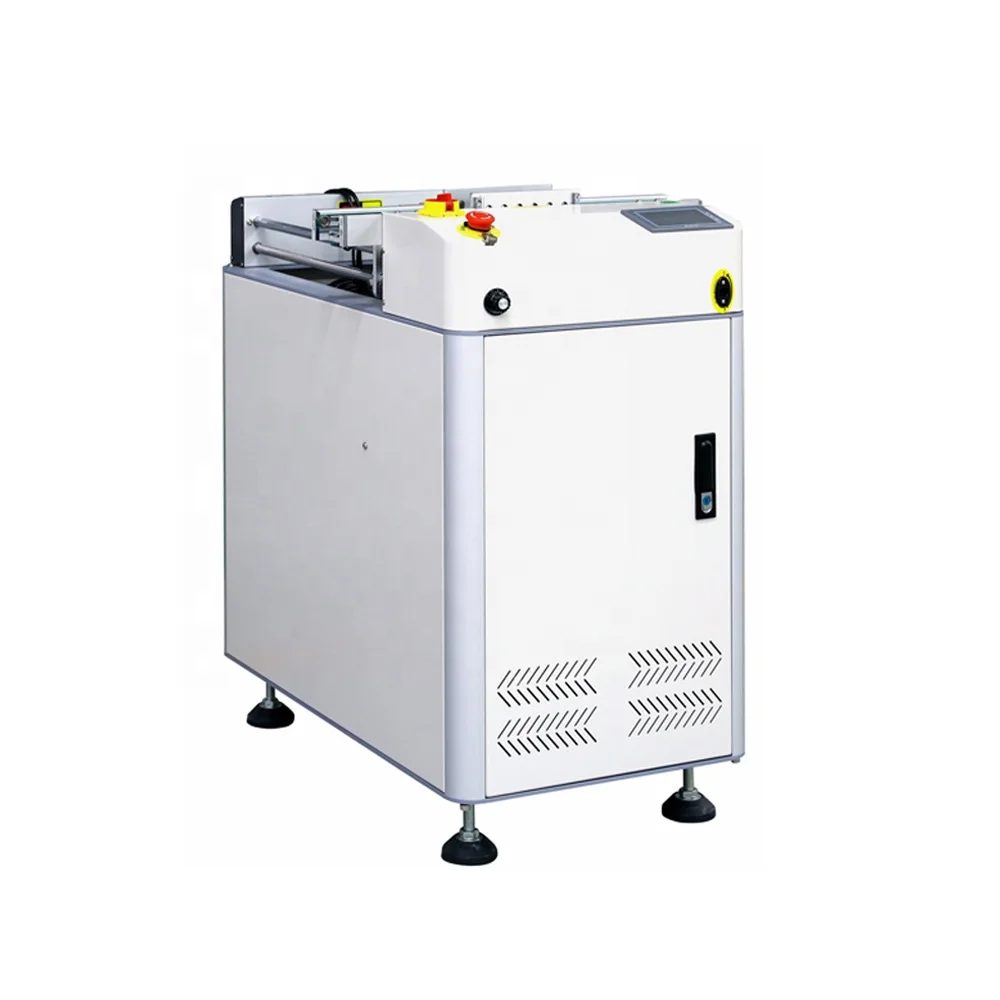

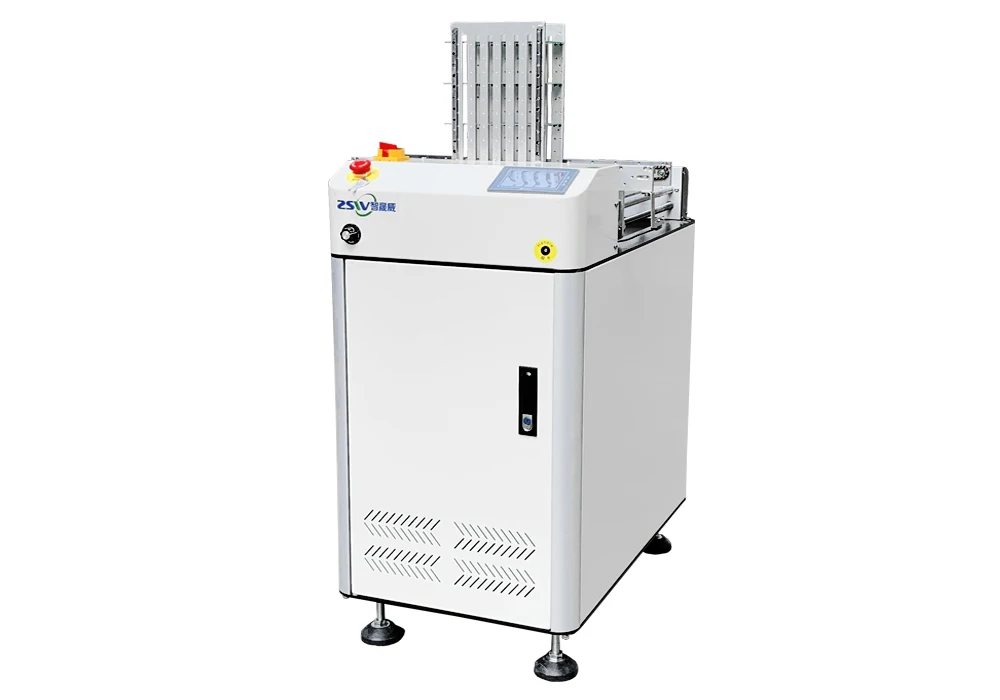

SMT Handling Equipment Automatic PCB Reject Conveyor For SMT Line
Description

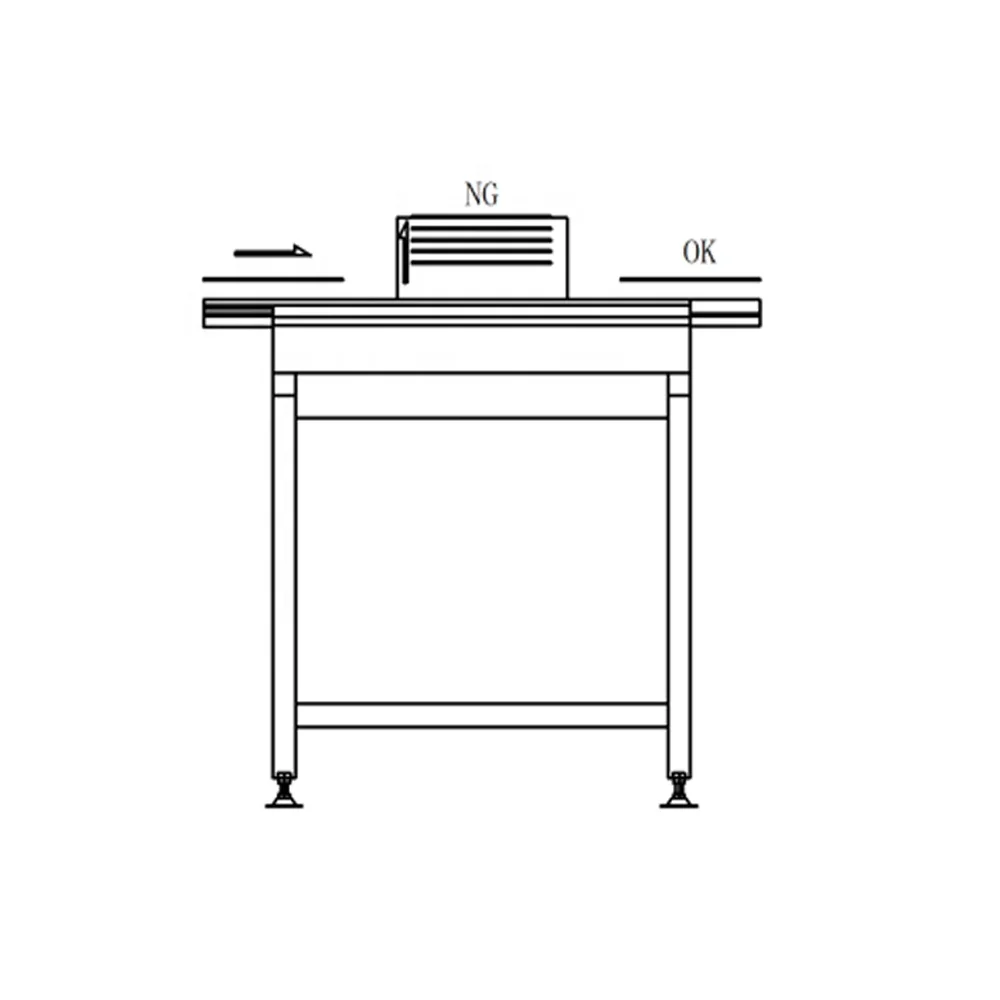

This equipment is used for AOI to separate the good board and the bad board. During the inspection, the good board can continue to run without hindrance
Features
1.Reject,inspect and pass through modes provided.
2.PLC controller.
3.Stability enhanced by robust design.
4.Smooth and parallel width adjustment.
5.Length can be customized.
6.Speed is adjustable.
7.SMEMA compatible.
Note: Single or dual rails are customized.
2.PLC controller.
3.Stability enhanced by robust design.
4.Smooth and parallel width adjustment.
5.Length can be customized.
6.Speed is adjustable.
7.SMEMA compatible.
Note: Single or dual rails are customized.
Technical Parameters | ||||||||
Model | RC-050L-N | RC-050L-N | RC-100L-N | RC-100XL-N | ||||

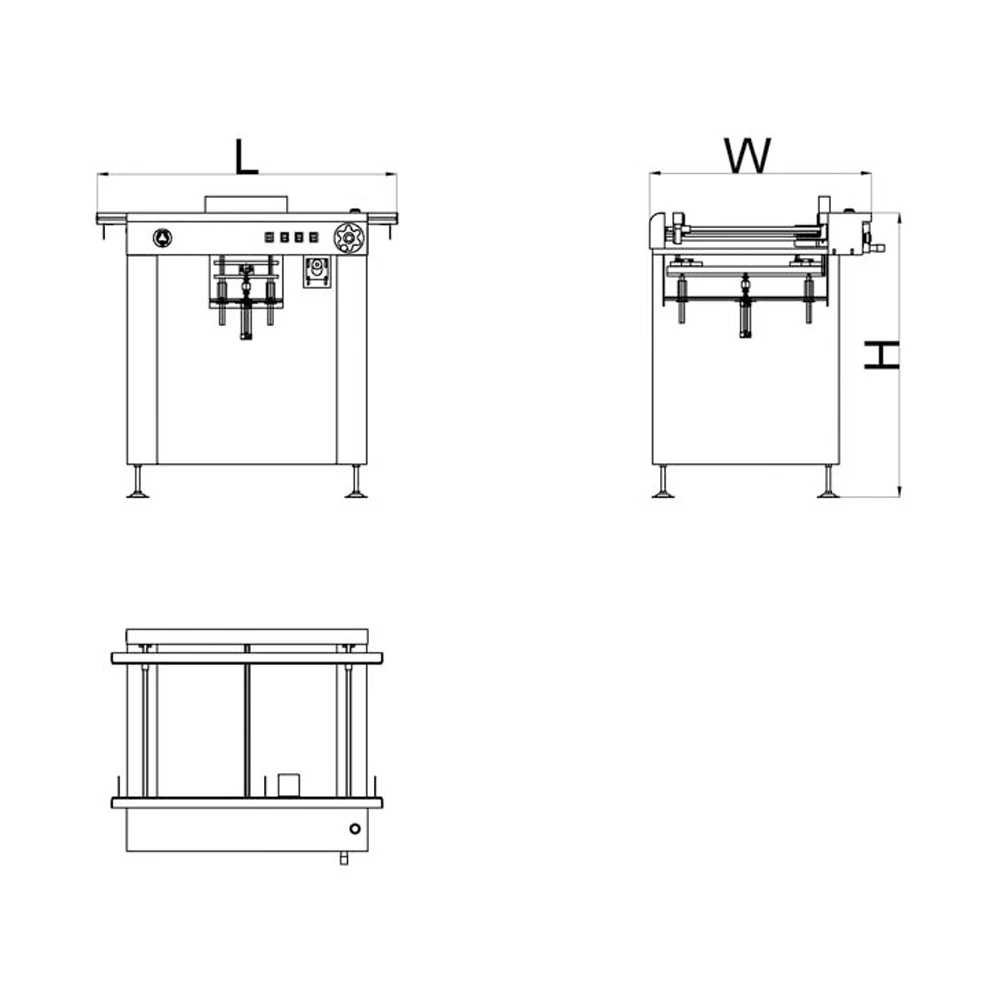

Dimension | 500*665*900mm | 500*795*900mm | 1000*665*900mm | 1000*795*900mm | ||||
PCB size | 50*50-445*330mm | 50*50-460*460mm | 50*50-445*330mm | 50*50-530*460mm | ||||
Maximum PCBs | 8pcs or specify | |||||||
Belt type | Antistaic oblate belt | |||||||
Convey speed | 0.5-20m/min or specify | |||||||
Power supply | AC 110V or 220V ; single phase | |||||||
Power consumption | Max 100VA | |||||||
Transport height | 900±20mm(or customer specified)) | |||||||
PCB direction | L-R or R-L (optional) | |||||||
PCB thickness | Min 0.6mm | |||||||
Weight | 50kg | 70kg | 75kg | 105kg | ||||
Related Product
Machine can be customized according to your pcb size.Such as length, width, with cooling fan, with touch screen, Auto width adjustment...
Packing & Delivery
Packing Details ：Plywood case, for export!
Port:：Shenzhen
Delivery Details :：10-15days
Port:：Shenzhen
Delivery Details :：10-15days
Our Company
Censtar

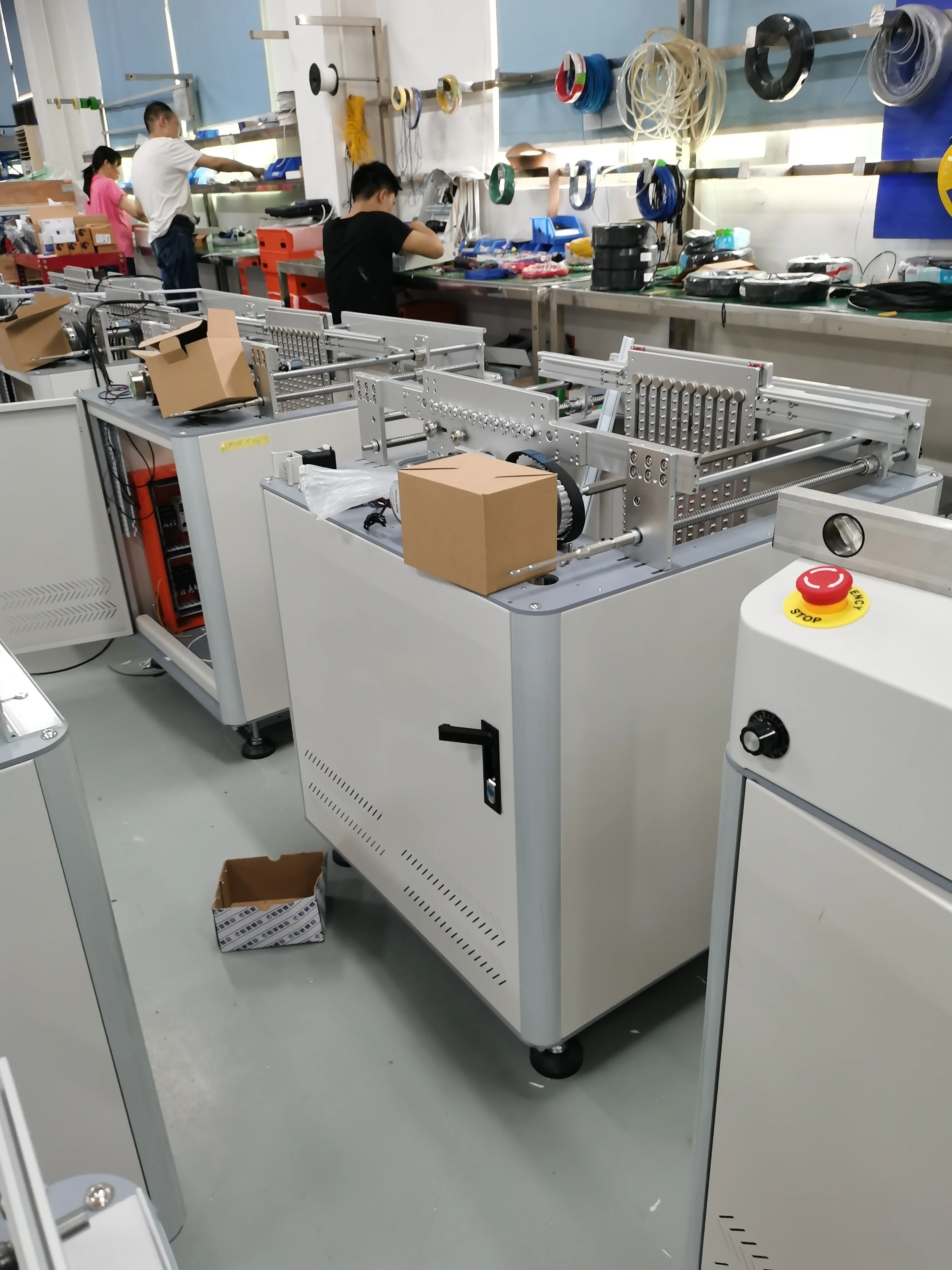

Shenzhen Censtar Technology Co., Ltd.Expert in making customized high quality PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor with more than 10 years experience! We help many customers to set up factories in led, tv, mobile phone, dvb, ems and other industries all over the world.
FAQ
Q: What can we do for you?
A: We can provide PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor , etc. Professional technical support and service.
Q:When is your delivery date?
A: The delivery date is about 5-7 working days after receipt of payment.
Q: What are your payment terms?
A: TT 100% advance payment.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, our machine is easy to use. Usually you need 1 day to learn how to operate. If you are a technician, learning will be faster.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide English user manual for free, and provide operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, you are warmly welcome to visit our factory and we will arrange free training for you.
Q：What services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the air
tickets and accommodation, and we can also provide remote guidance
Q: What is the payment method?
A: We accept payment methods: T/T, WesterUnion.
A: We can provide PCB inspection Conveyor，PCB Loader，PCB Unloader，PCB Buffer，Wave Solder Infeed ，Wave Solder Outfeed，PCB Surface Cleaning Machine，PCB Transform Track Conveyor , etc. Professional technical support and service.
Q:When is your delivery date?
A: The delivery date is about 5-7 working days after receipt of payment.
Q: What are your payment terms?
A: TT 100% advance payment.
Q: Is this machine easy to use? If I have no experience, can I operate it well?
A: Yes, our machine is easy to use. Usually you need 1 day to learn how to operate. If you are a technician, learning will be faster.
Q: Do you provide user manuals and operating videos to support us?
A: We will provide English user manual for free, and provide operation video. Our software is all in English.
Q: If we come to your factory, will you provide free training?
A: Yes, you are warmly welcome to visit our factory and we will arrange free training for you.
Q：What services can you provide?
A: We can invite our engineers to your company for guidance, but you are responsible for the air
tickets and accommodation, and we can also provide remote guidance
Q: What is the payment method?
A: We accept payment methods: T/T, WesterUnion.
