Product Overview
Description
Products Description

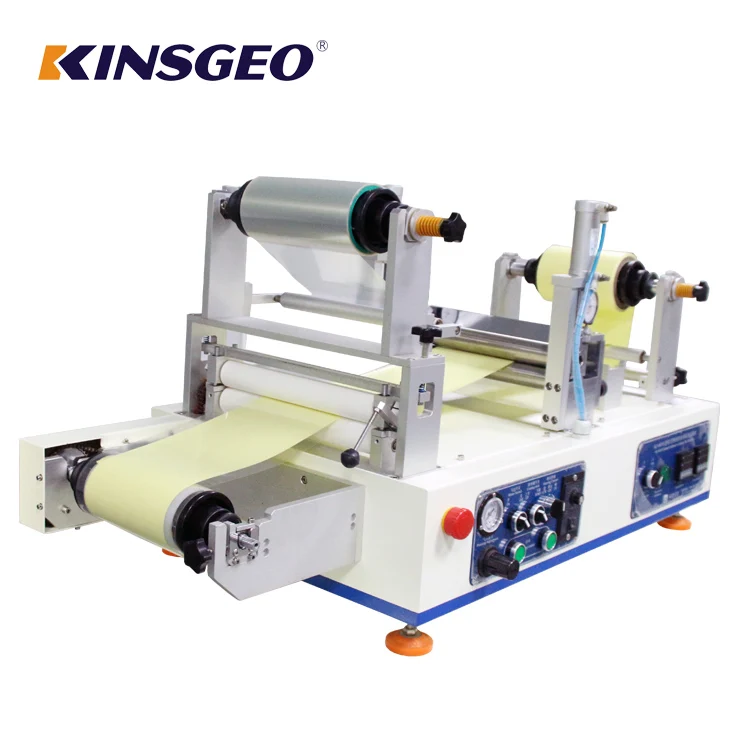

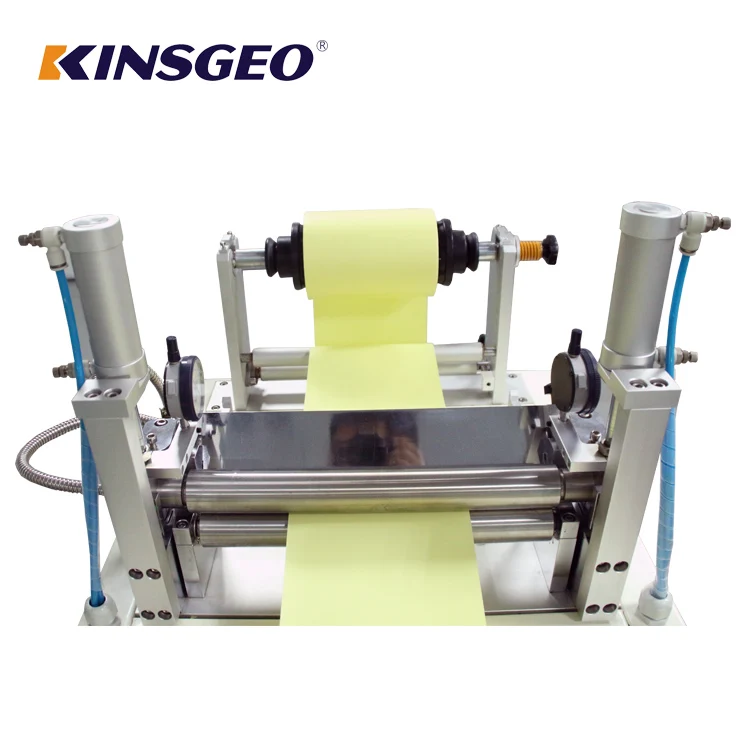

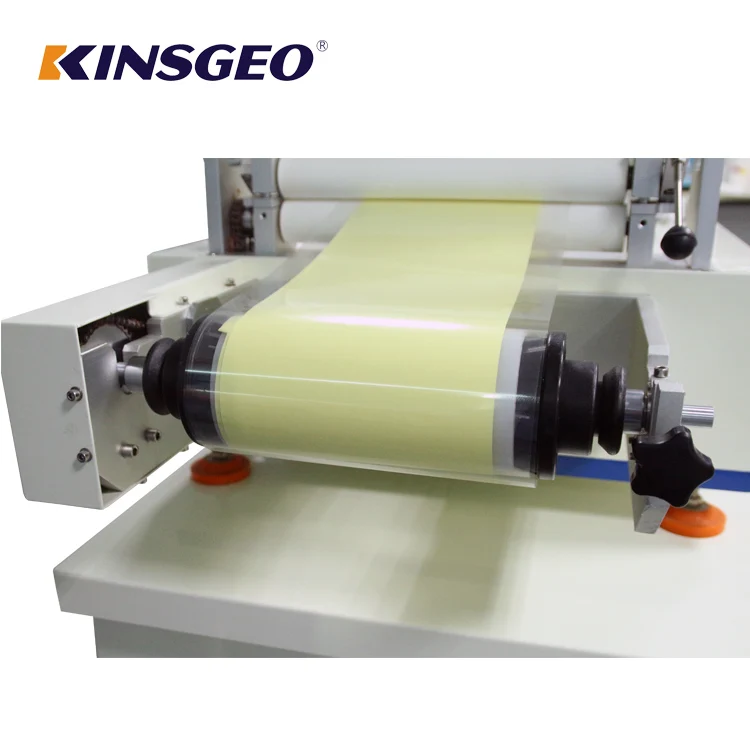

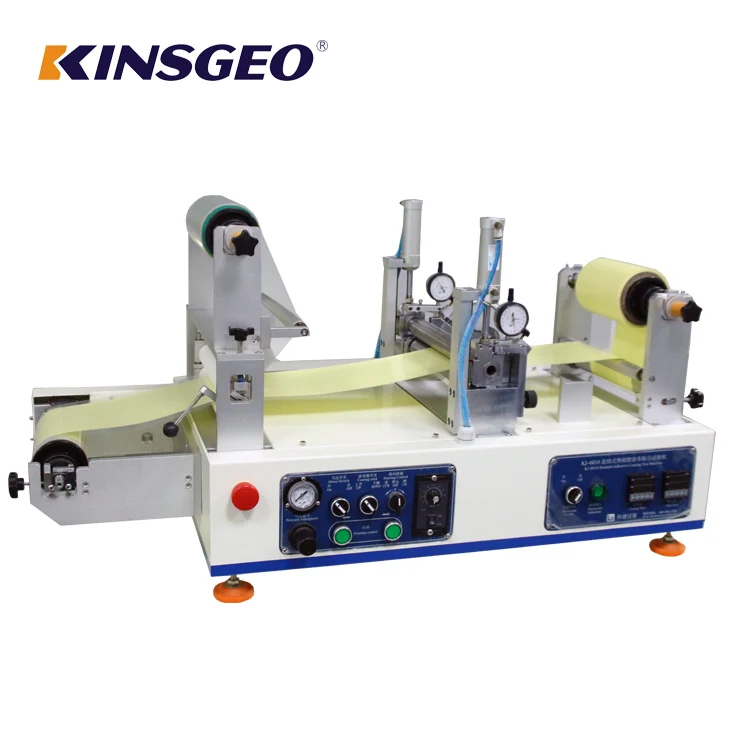

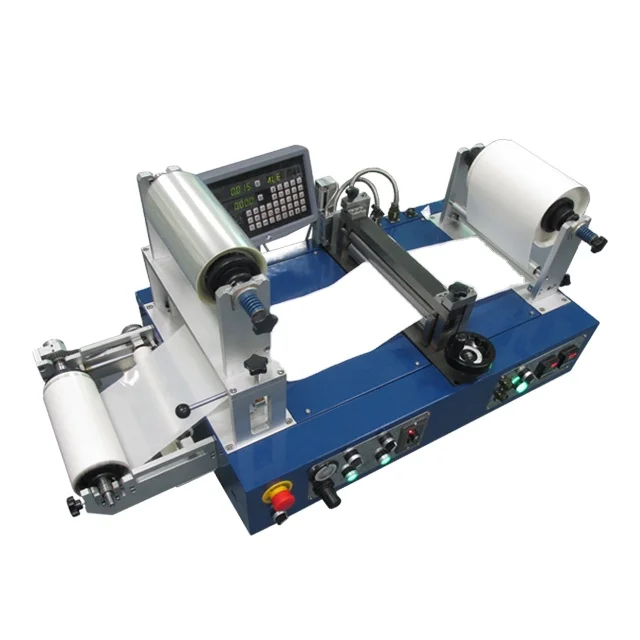

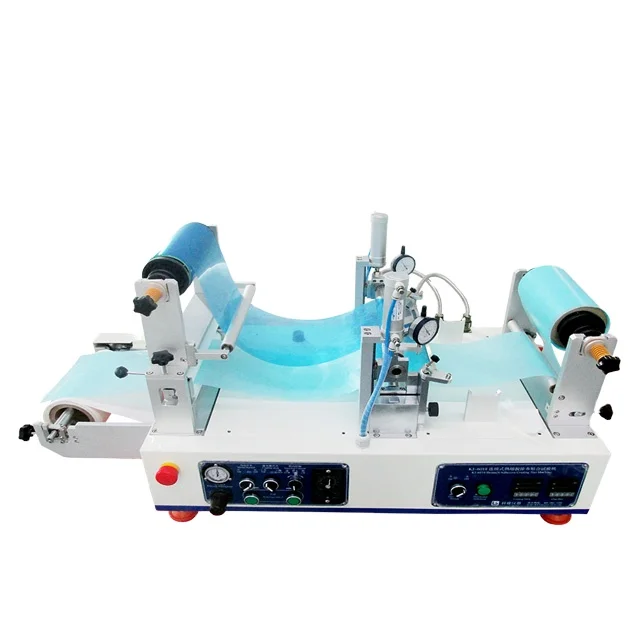

Lab Hot Melt Sampling Coater Used Adhesive Tape Making Machine
Uses
The precision laboratory benchtop Hot Melt Coater is capable of producing coated samples or small production of hot melt adhesives, and then laminating to a variety of foils, films, and papers. Lab scale simulations of production processes can be easily set up and studied. It can greatly reduce the cost of R&D sample preparation
Feature:
1. Self contained brake unwinds for adhesive carrier and facestock
2. Requires a 110V/20A circuit and compressed air source
3. Pivot control on adhesive carrier and facestock to control web alignment
4. Laminating speed and pressure are controllable
5. Maximum operating temperature 482℉(250℃)
6. Clean up is easily accomplished through quick, uncomplicated disassembly
7. Generates sample laminates as long as needed
8. Precision ground coating bars
9. Both coating bars and the back reservoir are heated independently
10. Width of coating can be controlled by teflon insert side dams
11. Durable aluminum and steel construction means a long machine life with consistent performance
12. Variable speed controller can be adjusted
13. Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode

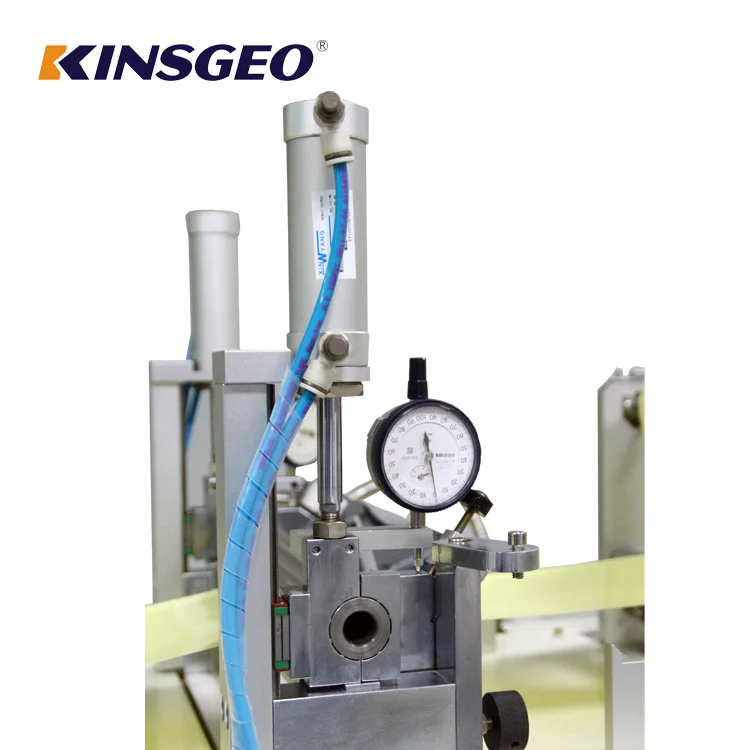

14.There is a large diameter High precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.005mm, that is the minimum coating thickness is 0.005mm.
15.The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt
coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.
16..Reversible speed controller can be adjusted , the best coating speed: 4.5m / min
17.The coated liner bar can be adjusted to control the roll tension
18..The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.
2. Requires a 110V/20A circuit and compressed air source
3. Pivot control on adhesive carrier and facestock to control web alignment
4. Laminating speed and pressure are controllable
5. Maximum operating temperature 482℉(250℃)
6. Clean up is easily accomplished through quick, uncomplicated disassembly
7. Generates sample laminates as long as needed
8. Precision ground coating bars
9. Both coating bars and the back reservoir are heated independently
10. Width of coating can be controlled by teflon insert side dams
11. Durable aluminum and steel construction means a long machine life with consistent performance
12. Variable speed controller can be adjusted
13. Non rotating bars is separated from the reservoir, with PT-100 high-precision PID temperature control mode
14.There is a large diameter High precise micrometer to adjust the coating gap to control coating thickness, and show the coating thickness through grating scale. The resolution is 0.005mm, that is the minimum coating thickness is 0.005mm.
15.The maximum coating width is 280mm. Width of coating can be controlled by teflon insert side dams. The precision hot melt
coator is capable of producing coated samples, and small production. it can coat for a unlimited length tape, and automatic winding.
16..Reversible speed controller can be adjusted , the best coating speed: 4.5m / min
17.The coated liner bar can be adjusted to control the roll tension
18..The heating bar, the rubber roller and reservoir can be quickly disassembled separated from the host, it is perfect to clean adhesive residue.
Specification
1. The maximum coating width is 280mm
2. The coating length: unlimited
3. Coating speed: adjustable, the best coating speed is 4.5m/min
4. Dimension:1200×620×550mm(L*W*H)
5. Weight: about 120kg
6. Power source: 1 phase, AC 220V
7. Rate of power:1050W
2. The coating length: unlimited
3. Coating speed: adjustable, the best coating speed is 4.5m/min
4. Dimension:1200×620×550mm(L*W*H)
5. Weight: about 120kg
6. Power source: 1 phase, AC 220V
7. Rate of power:1050W
