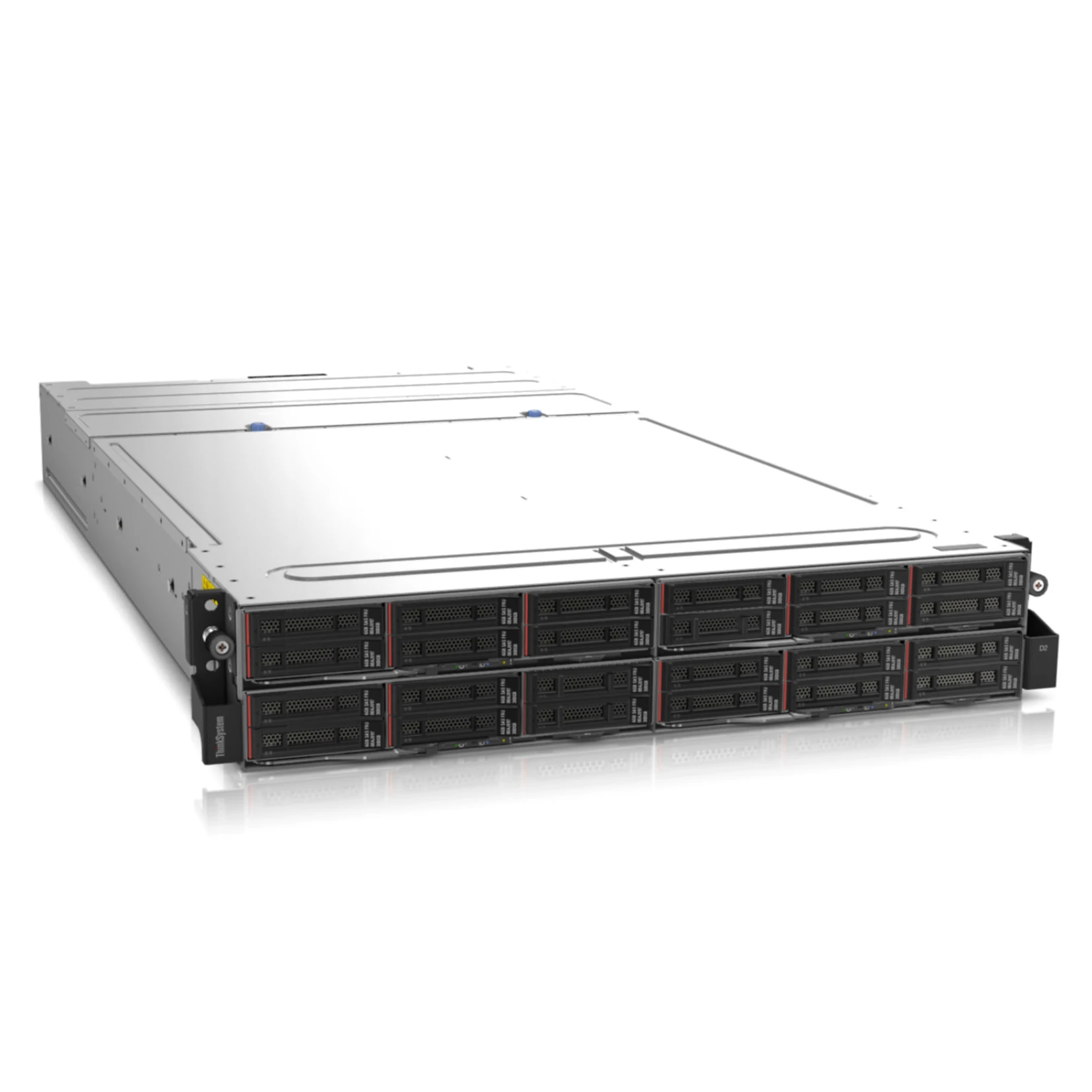

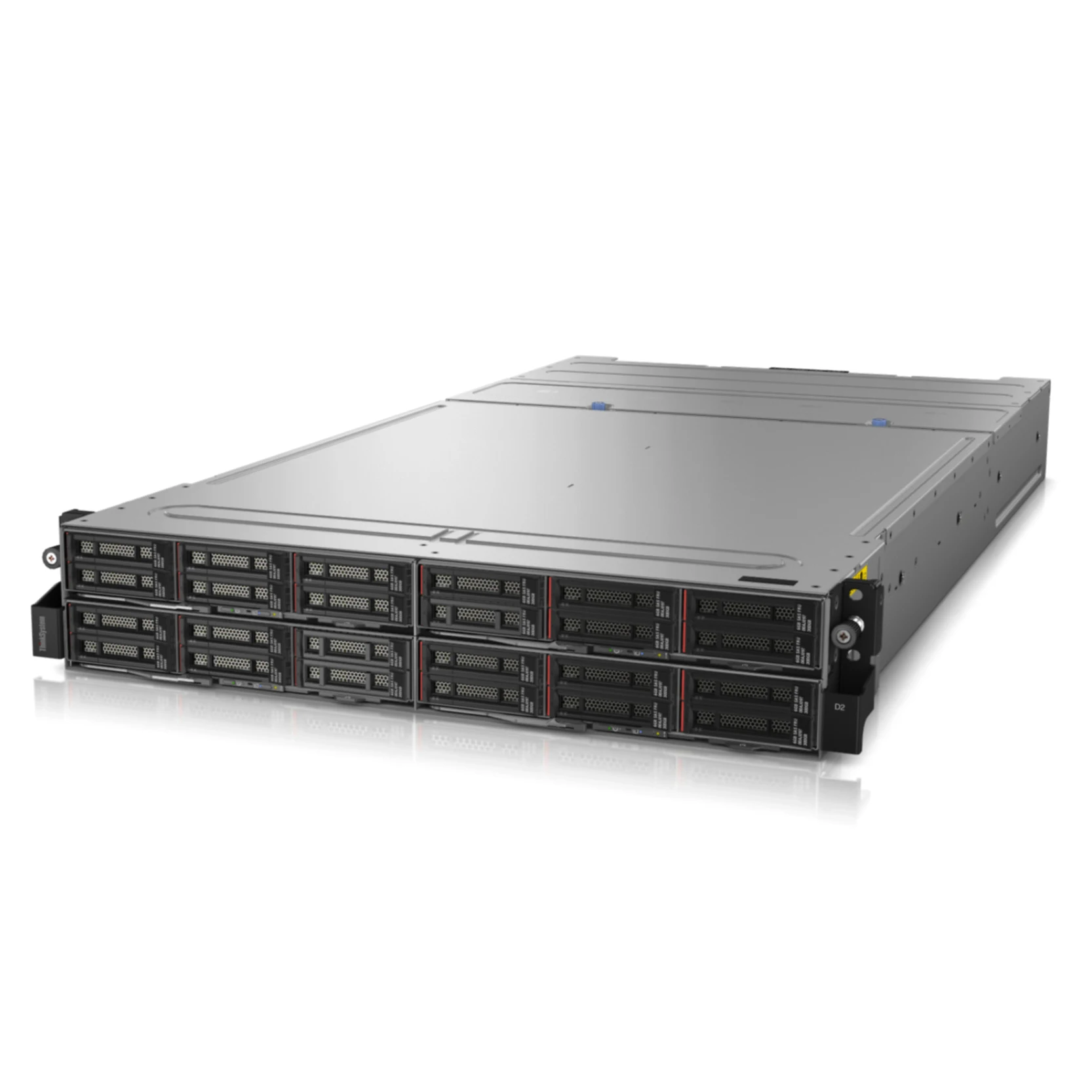

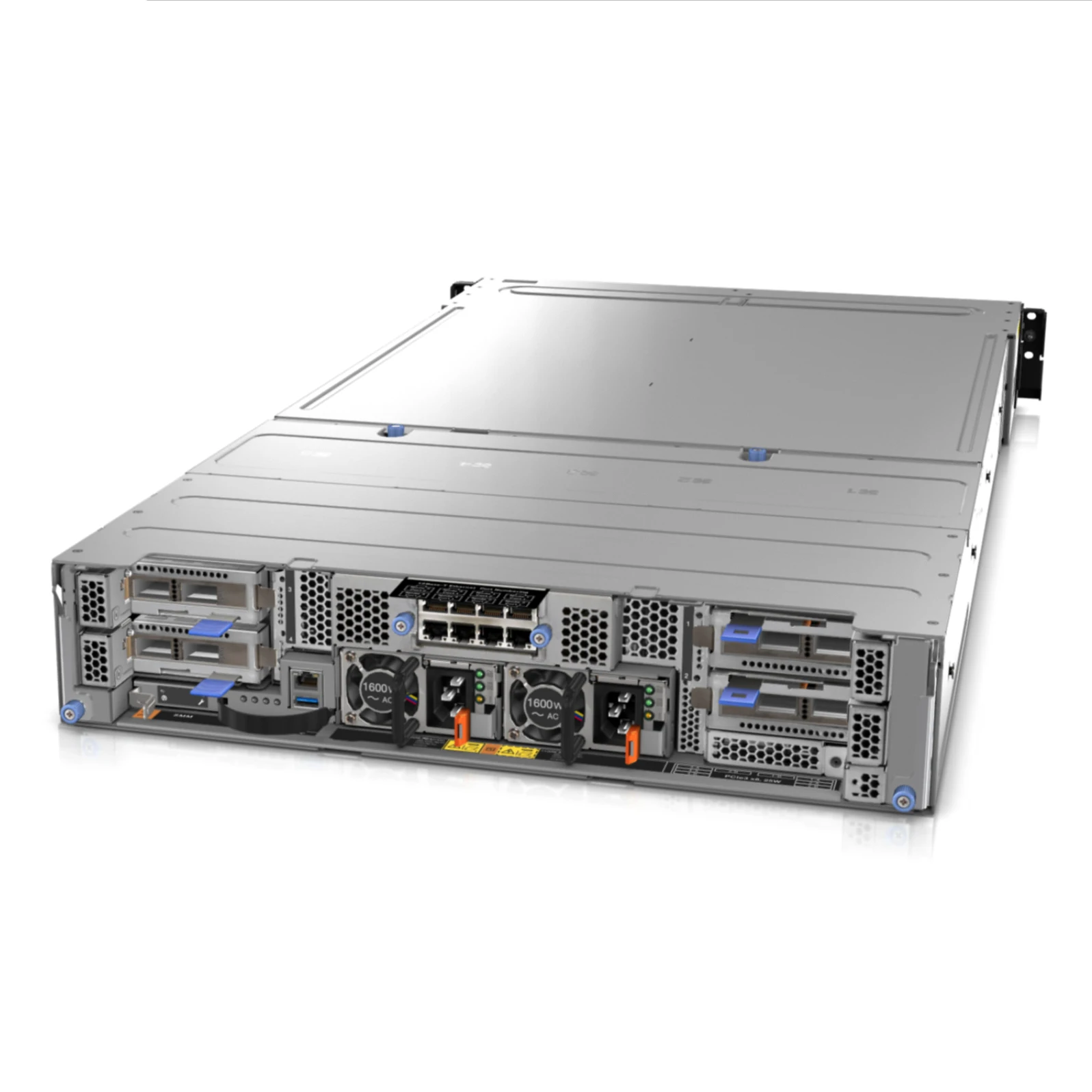

Best price data server lenovo ThinkSystem SD530 High Density Server lenovo server
- Category: >>>
- Supplier: Beijing Shengtang Jiaye Technology Co. Ltd.
Share on (1600733290096):
Product Overview
Description
Form Factor/Height | 2U rack enclosure; 4 independent compute nodes |
Processor | Up to 2 second-generation Intel® Xeon® Platinum processors, up to 205W |
Memory | Up to 2TB in 16x slots, using 128GB 3DS RDIMMs; 2933MHz TruDDR4 |
Expansion Slots | 1x shuttle per D2 enclosure: either x8 PCIe Shuttle with 8x PCIe 3.0 x8 slots (2 per node); or x16 PCIe Shuttle with 4x PCIe 3.0 x16 slots (1 per node). Up to 2x external 1U trays (with up to 2 GPUs per node each) |

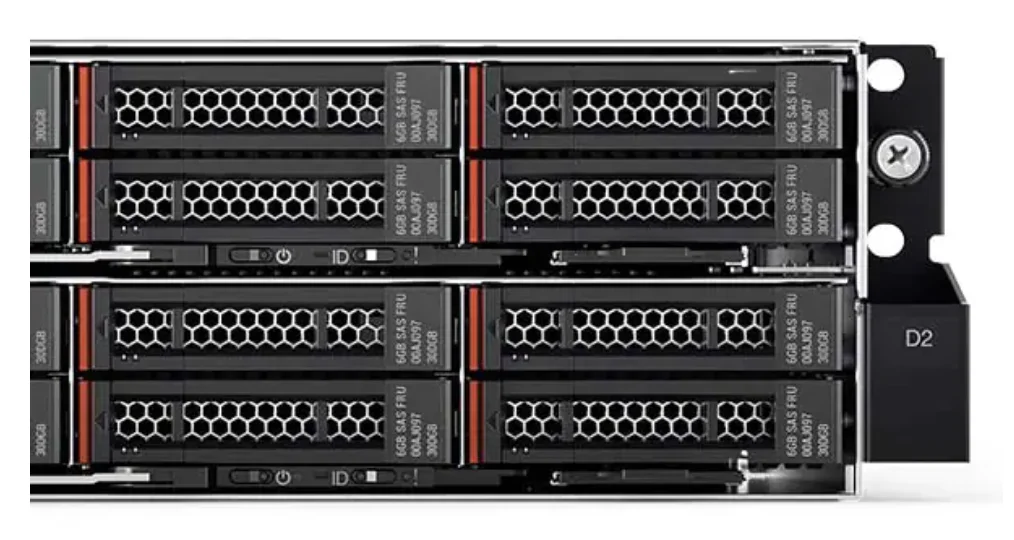

Drive Bays | Up to 24x (6x per node) hot-swap 2.5" SAS/SATA HDDs/SSDs; up to 16x (4x per node) hot-swap 2.5" NVMe SSDs |
Network Interface | Optional 8-port EIOM 10Gb SFP+ (2 ports per node); optional 8-port EIOM 10GbaseT RJ45 (2 ports per node) |
Power Supply | 2x hot-swap/redundant 1+1 1600W/2000W; or 2x non-redundant 1100W |
Hot-Swap Components | Power supplies, fans, SAS/SATA/NVMe storage devices; compute nodes are warm-swap |
RAID Support | SW RAID supports JBOD; Entry RAID; optional HW RAID 12Gb supports JBOD; plus M.2 boot support with optional RAID |
Systems Management | XClarity Controller embedded management, XClarity Administrator centralized infrastructure delivery, XClarity Integrator plugins, and XClarity Energy Manager centralized server power management |
GPU Tray Support | The GPU Tray supports one or two GPU cards; Maximum of two GPU trays per D2 Enclosure |
OSes Supported | Microsoft, Red Hat, SUSE, VMware. Visit |
The density of blades, the economics of rack systems
* Modular I/O shuttle design
* Up to 205W processors with Lenovo Neptune Thermal Transfer Module
* SharedIO for improved networking optimization
* Up to 205W processors with Lenovo Neptune Thermal Transfer Module
* SharedIO for improved networking optimization
* Accelerates HPC, AI, and enterprise workloads
* Optional GPU tray supports 2x GPUs per node
* Supported by XClarity Management and LiCO platform
* Optional GPU tray supports 2x GPUs per node
* Supported by XClarity Management and LiCO platform

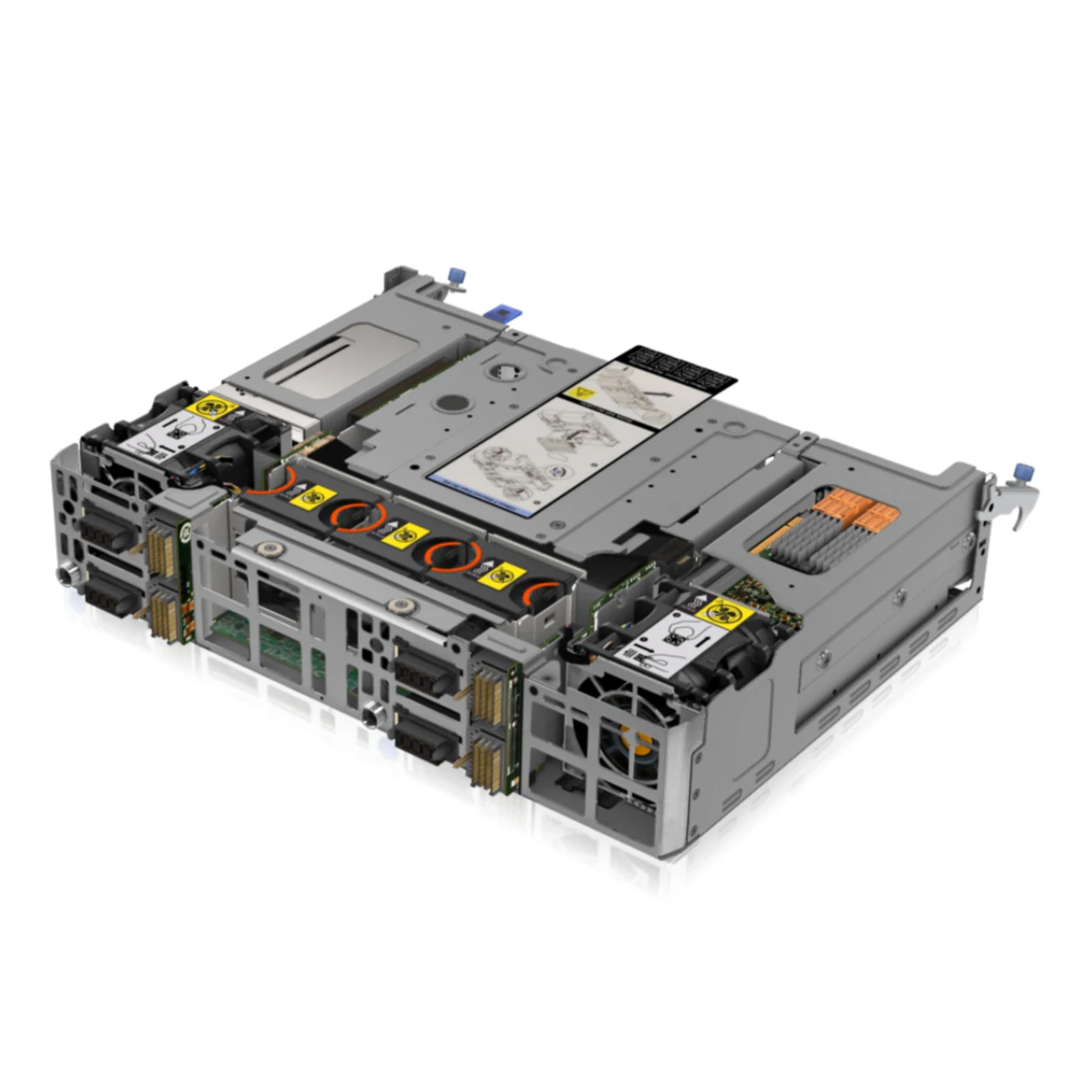

Modular design
The innovative design of the D2 enclosure provides the flexibility to meet varied needs in the modern data center. With multiple shuttle options, SharedIO, optional GPU tray, and support for Lenovo Neptune Thermal Transfer Module, the SD530 can be easily customized to your specific workload needs.
Dense optimized

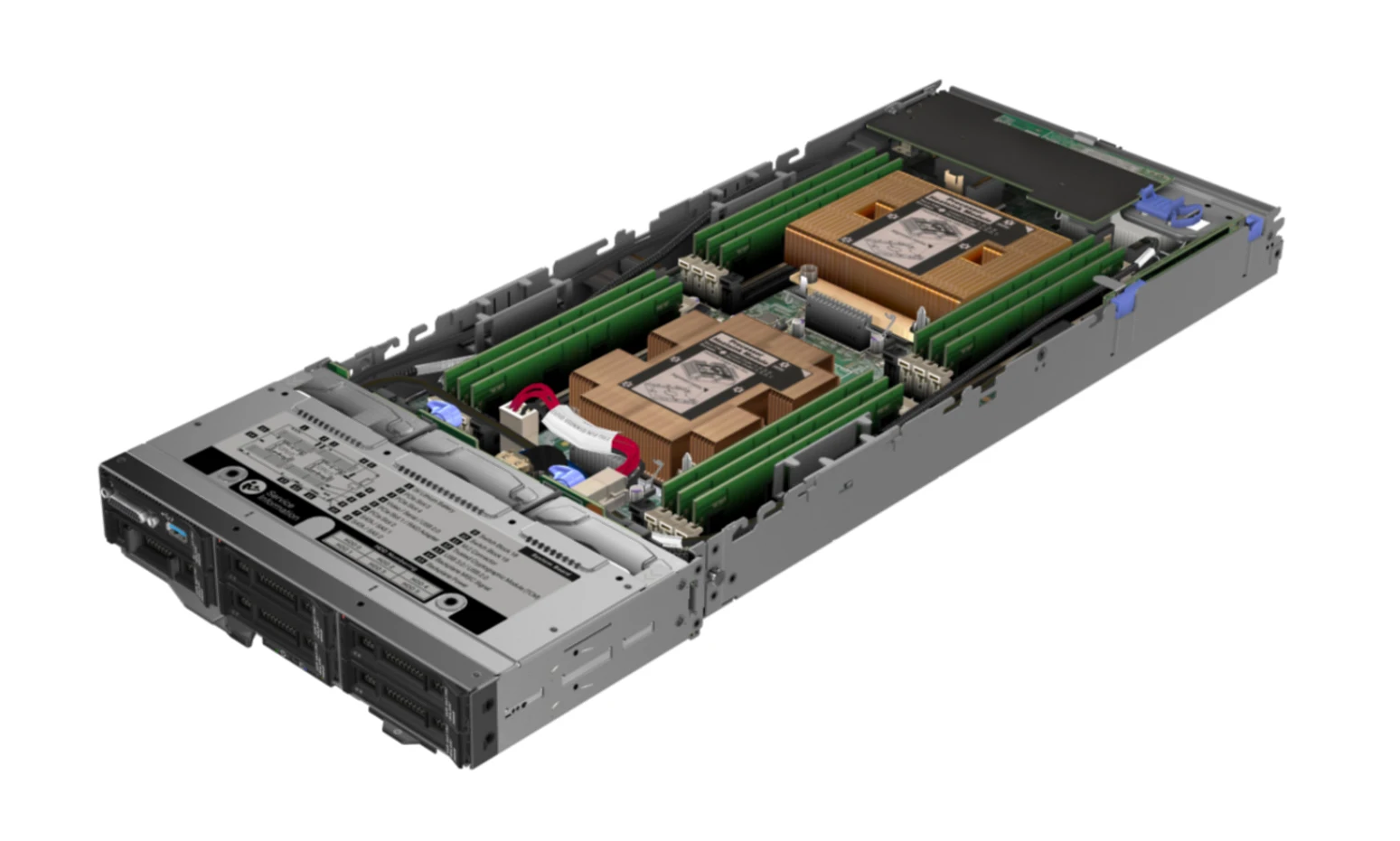

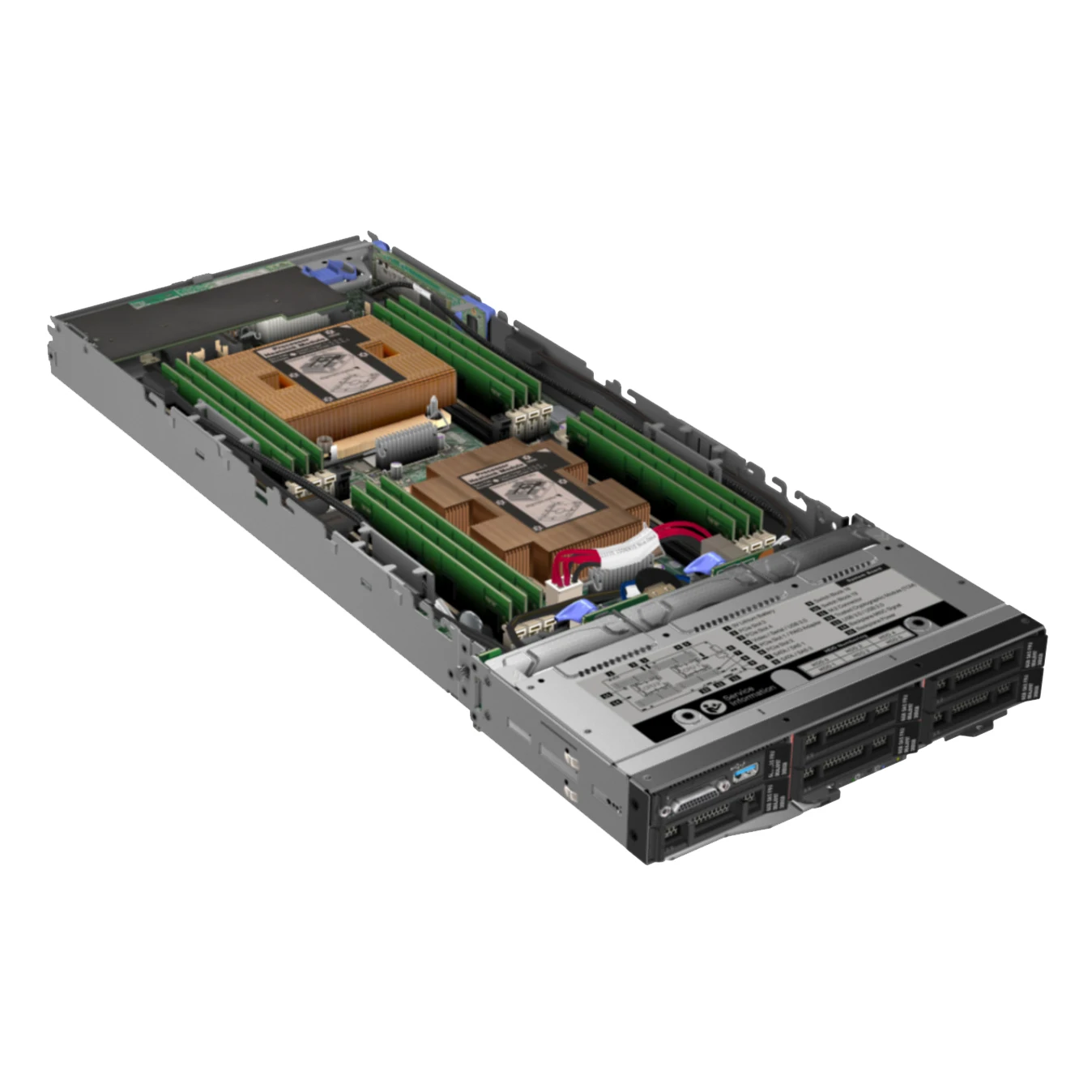

ThinkSystem SD530 consists of a modular 2U Lenovo D2 Enclosure containing up to four front-access SD530 servers (nodes). Each node, incorporating two powerful Intel® Xeon® Processor Scalable family CPUs, achieves up to 36% faster performance than the previous generation
