China Supplier Famous Brand Down Pipe Curving Pipe Forming Downspout Gutter Elbow Machine
- Category: >>>
- Supplier: Zhejiang Jinggong Integration Technology Co. Ltd
Share on (1600733334527):
Product Overview
Description
Product Description

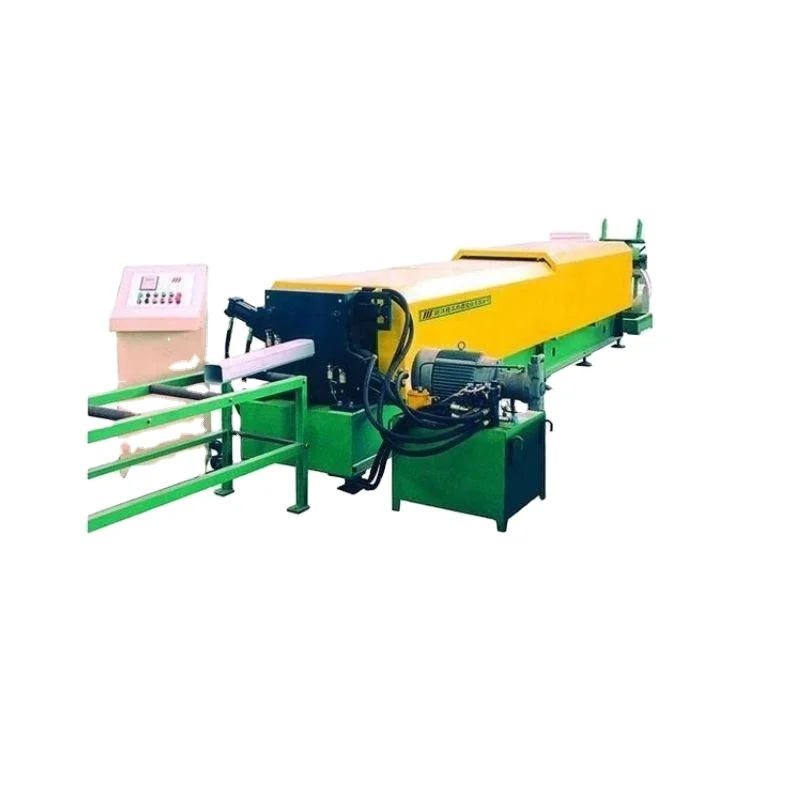

HSW SERIES CURVING PIPE FORMING MACHINE
It can produce the sealed color water pipes through forming the colored steel sheet and whipstitch it.It adopts PLC control system,AC frequency conversion speed-adjust technology,therefore it can automatically cut to length.This is the original color steel down pipe forming machine in China with various freedom intellectual property and national patent.
Curving pipe forming machine is the complementary equipment which can be used to curve and neck down the pipe.The whole machine adopts cam control to actualize automatic produce,the angle can be adjusted manually.
We can design and manufacture machines for forming different profiles according to customers'requirement.
Technics flow
Decoiling→guiding and feeding→roll forming→cut to length→run out table
Curving pipe forming machine is the complementary equipment which can be used to curve and neck down the pipe.The whole machine adopts cam control to actualize automatic produce,the angle can be adjusted manually.
We can design and manufacture machines for forming different profiles according to customers'requirement.
Technics flow
Decoiling→guiding and feeding→roll forming→cut to length→run out table
Product Paramenters
Item | Parameters | ||||||
Modle | HS-134 | HS-118 | |||||

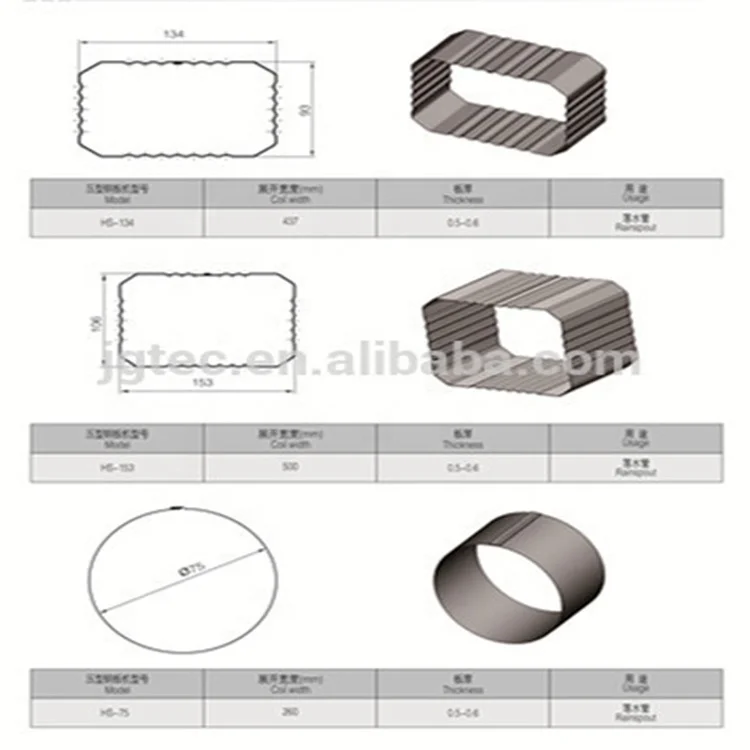

Down pipe section specification | 134×93 | 118×89 | |||||
Material | Type | Color steel sheet | |||||
Thickness(mm) | 0.45-0.55 | ||||||
Yield strength(MPa) | 230-300 | ||||||
Max.Forming speed(m/min) | 10 | ||||||
Roller material | 45#Steel with chrome plated | ||||||
Roller driven type | Chain transmission | ||||||
Controller | PLC | ||||||
Operation | Touch screen+button | ||||||
Hydraulic system pressure(MPa) | 12 | ||||||
Hydraulic station motor power(KW) | 7.5 | ||||||
Main motor power(kw) | 3 | ||||||
Total power(KW) | 10.5 | ||||||
Total weight(kg) | About 8000 | ||||||
Company Profile
Certificate
FAQ
1.Does one machine can only produce one size?
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4.What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6.You are trade company or factory?
We are Manufacturer.
7.Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8.Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9.Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
Not exactly, it depends on the machine.
2.Do you have after sales support?
Yes, we are happy to give advice and also have skilled technicians available to maintain the machine if needed.
3.How to visit your company?
We can pick you up from Shanghai or Hangzhou airport. Or railway station Shaoxing North.
4.What can you do if the machine broken?
Our machine's warranty period is 12months. if the broken parts can't repair, we can send the new parts replace the broken parts, but you need pay the express cost by yourself. if after warranty period, we can through negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
5.Can you be responsible for transport?
Yes, please tell us the destination port or address. we have rich experience in transport.
6.You are trade company or factory?
We are Manufacturer.
7.Why your price is higher than others?
As we persist on that each factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.
8.Do you have overseas engineers?
Yes, we not only provide overseas engineers, but also provide technical training.
9.Do you provide customized?
Sure, we can design the equipment according to the data of the structural section you provide. We are professional sheet metal forming machine designer and manufacturer.
