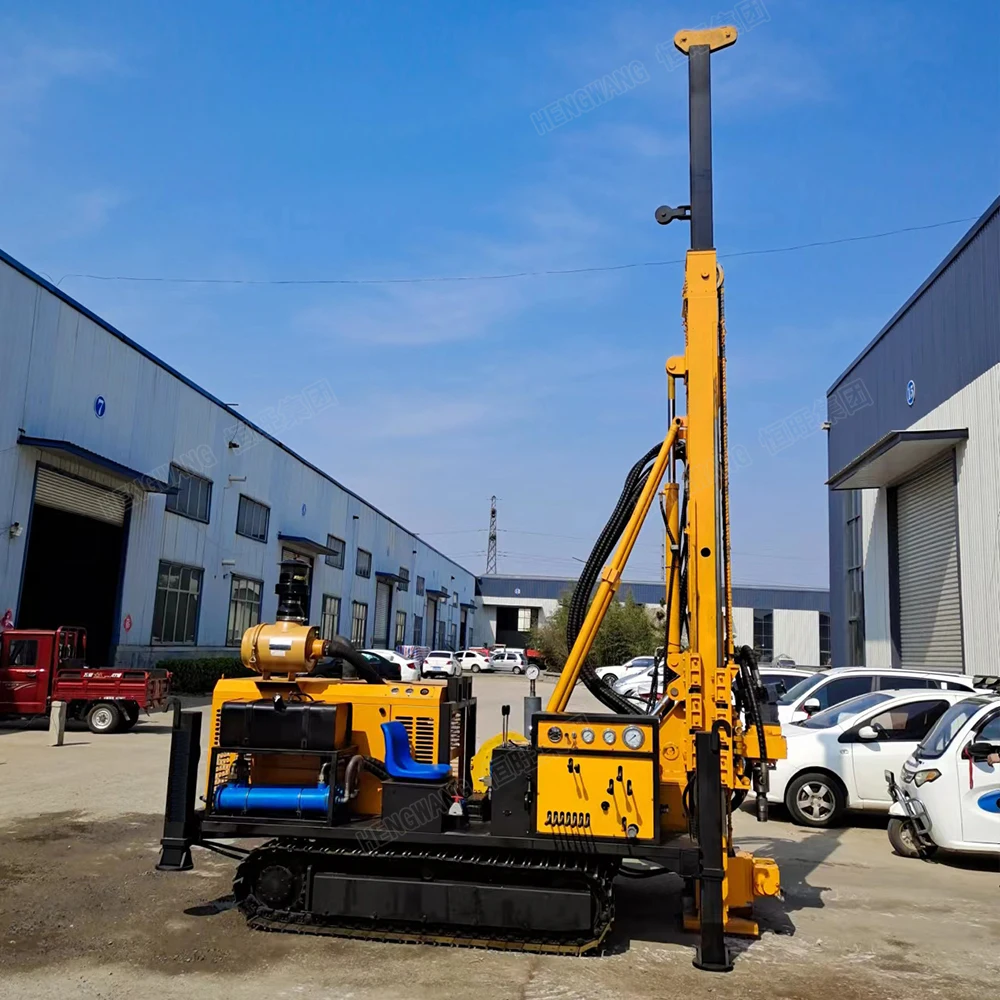

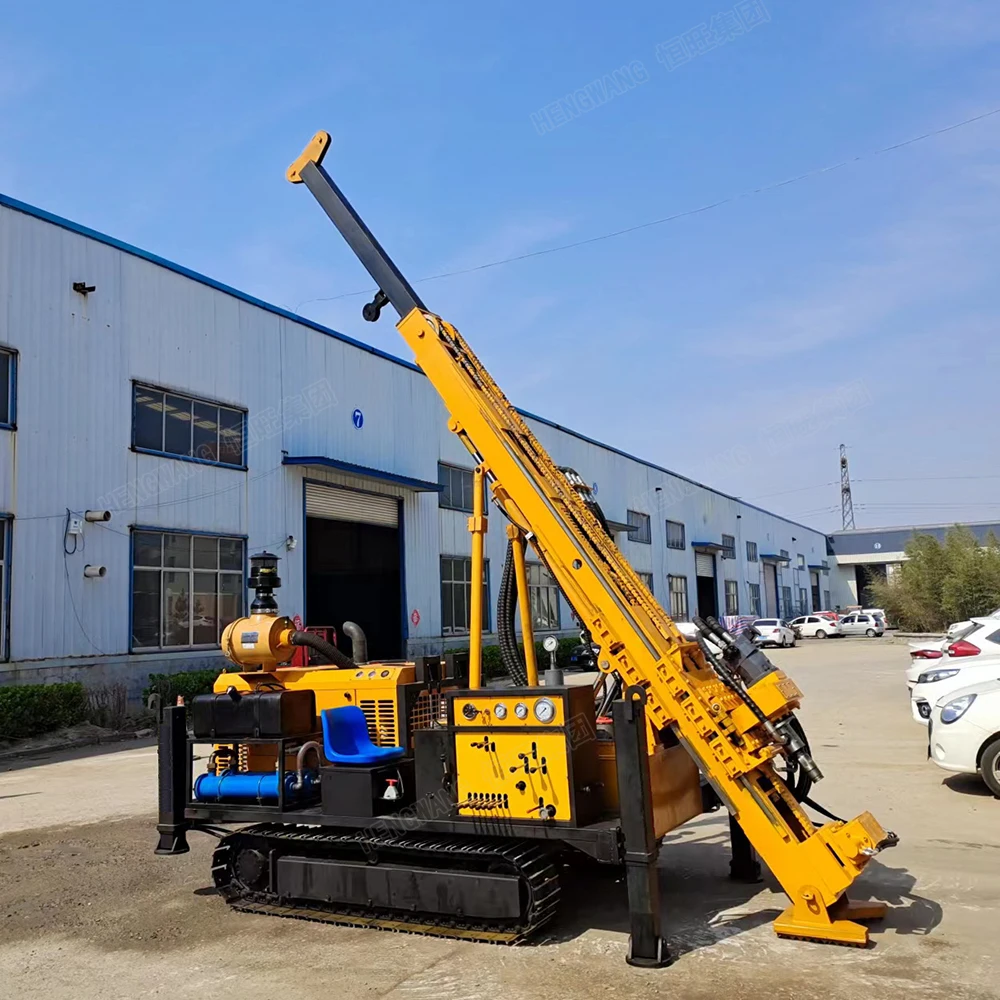

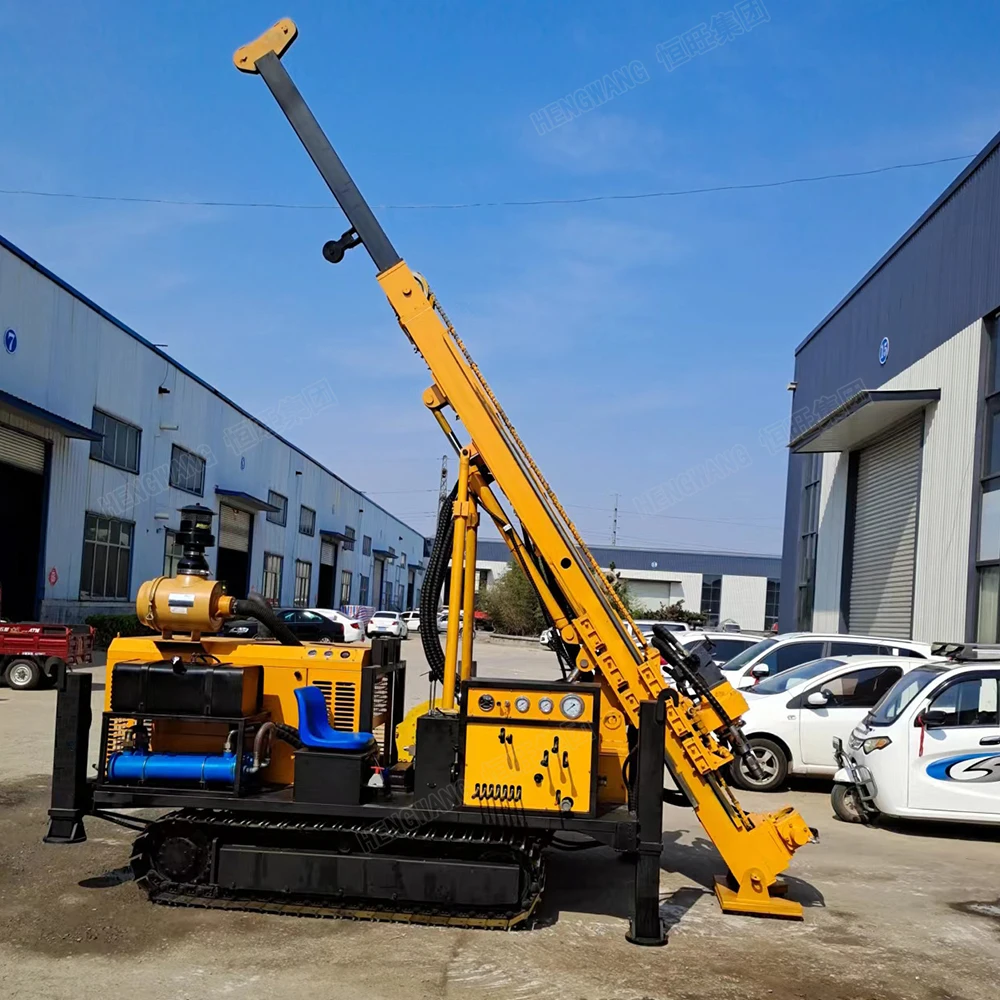

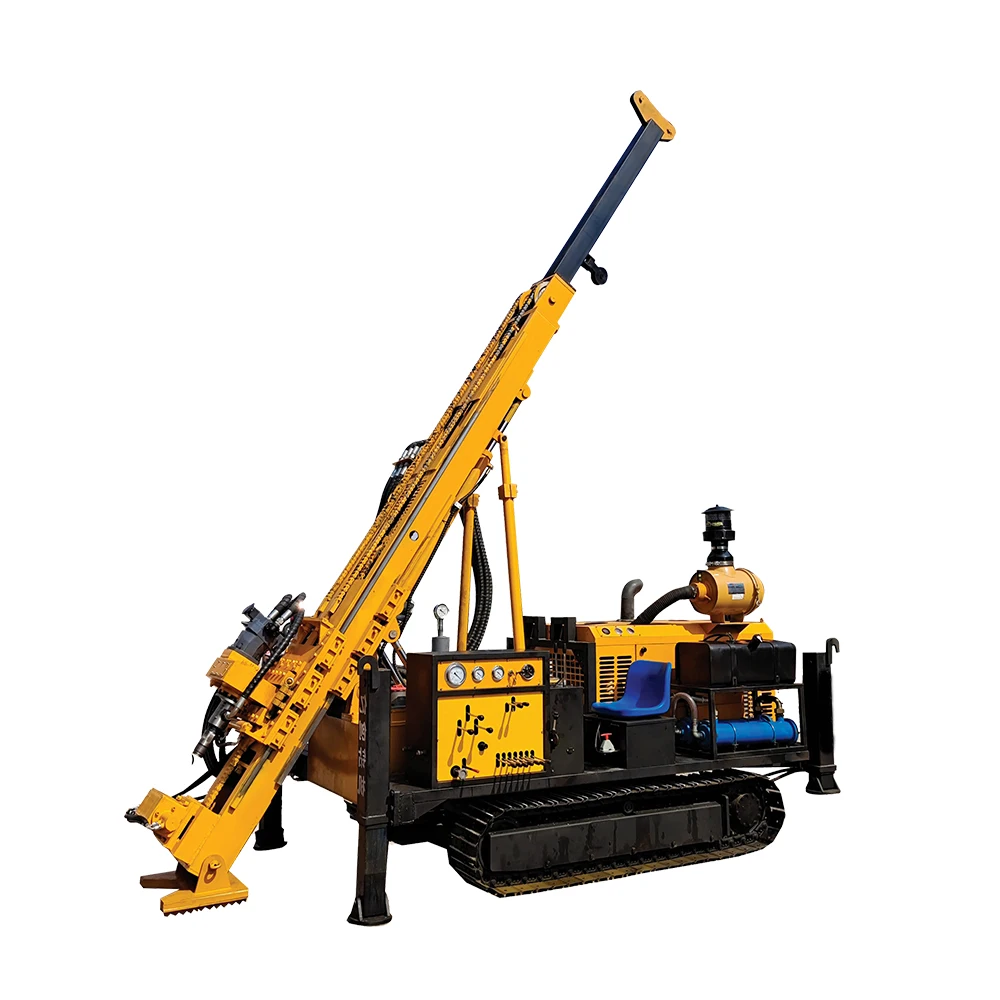

2024 Hengwang Core Drill Rig Concrete Pavement Drilling Diamond Coring Machine Price Air Core Drilling Rig
- Category: >>>
- Supplier: Jining Fangze Machinery Co. Ltd.
Share on (1600733342345):
Product Overview
Description
2023 Hengwang Core Drill Rig Concrete Pavement Drilling Diamond Coring Machine Price Air Core Drilling Rig
Product Description
Hengwang full hdyraulic drill rig adopts full hydraulic driving, travelling with crawlers itself. The drill head is driven by variable motor with function of two-speed mechanical gear shifts, stepless speed change with an advanced and simple structure. The rotator is fed and driven with a system connecting the spindle and oil cylinder with chain. The system has the function, if the piston rods of oil cylinder moving one certain distance, the drill head moving will double the distance. The mast could be adjusted within the range of angle 45 to 90 degree for its drilling hole with a low center of gravity and good stability of the overall unit. The rig provides operator with a nice field of vision and wide and comfortable working condition. The rig looks pretty in overall structure and embodies the design thought of people oriented.
Product Paramenters
Model | HW-400XL | HW-600XL/GL | HW-800S/GL | HW-1000GL |
Diameter | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW | HTW-NTW-BTW |
Depth(m) | 180-400-500 | 200-600-650 | 400-800-1000 | 500-1000-1100 |
Cooling type | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling | Air cooling + Water cooling |
Brand | Yuchai | Yuchai | Yuchai | Cummins |
Type | Turbocharge | Turbocharge | Turbocharge | Turbocharge |
Rated rotary speed(rpm) | 2400 | 2400 | 2400 | 2400 |
Rated power(KW) | 78 | 92 | 92 (6 cylinders) | 154 |
Drilling angle(°) | 45-90 | 45-90 | 45-90 | 45-90 |
Type | Manual + remote control | Manual + remote control | Manual + remote control | Manual + remote control |
Traveling speed(km/h) | 2.5 | 3.5 | 3.5 | 3.5 |
Climbing angle(°) | 45 | 45 | 45 | 45 |
Flow(L/min) | 30-90 | 30-90 | 90-180 | 90-180 |
Pressure(Mpa) | 4-7 | 4-7 | 4-7 | 4-7 |
Transport dimension(mm) | 4000*1900*1800 | 4000*2000*1800 | 5500*2100*2000 | 6000*2200*2400 |
Weight(T) | 4.3 | 4.5/5.5 | 6.5 | 7.5 |
Details Images
Wide range of use
