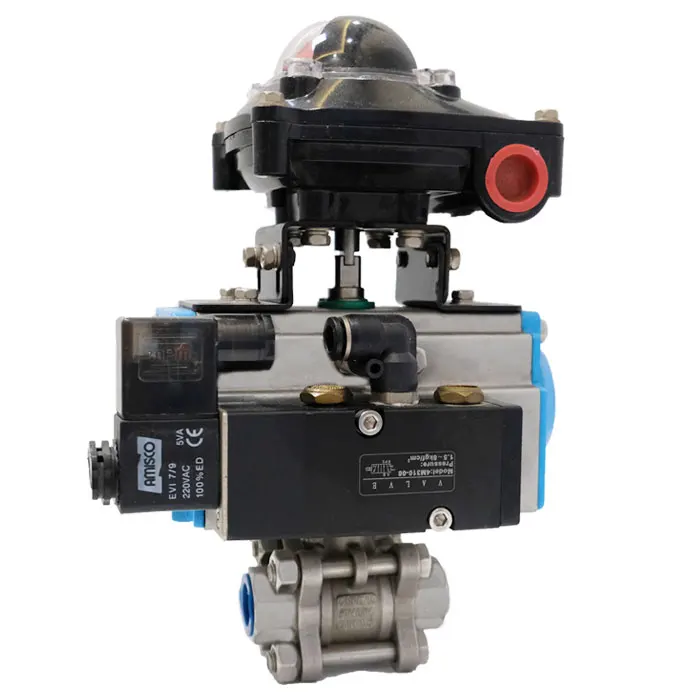

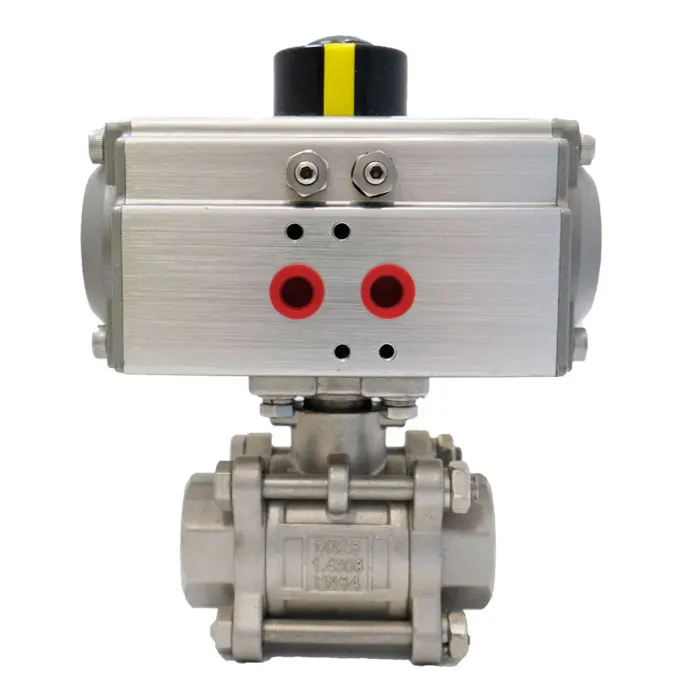

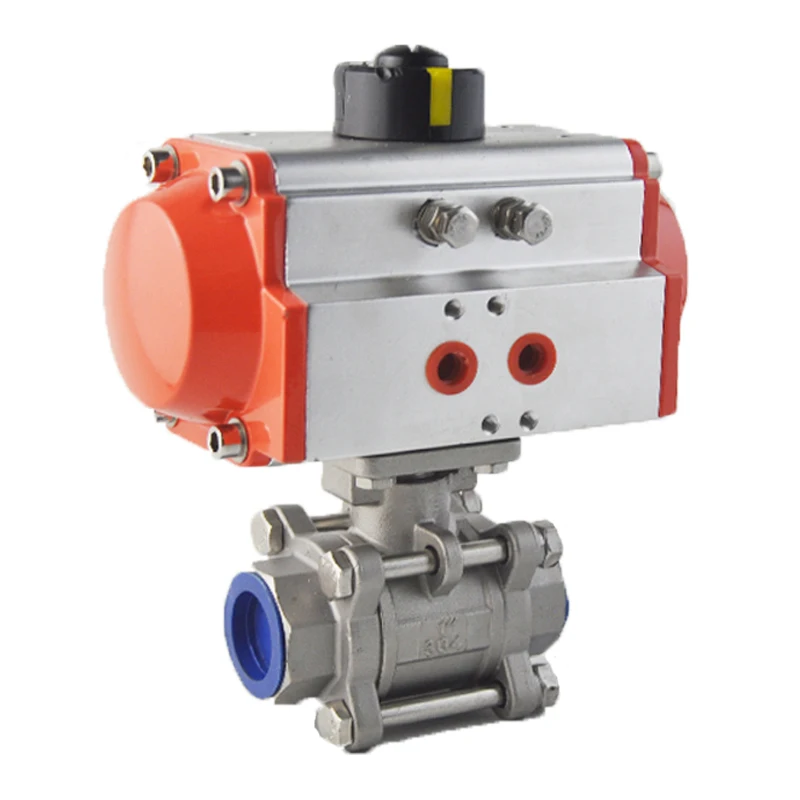

2 Way single double acting 3PCS Threaded Stainless Steel 316 Pneumatic Actuator Control Ball Valve
- Category: >>>
- Supplier: Hangzhou Darhor Technology Co. Limited
Share on (1600733389387):
Product Overview
Description
Product Description

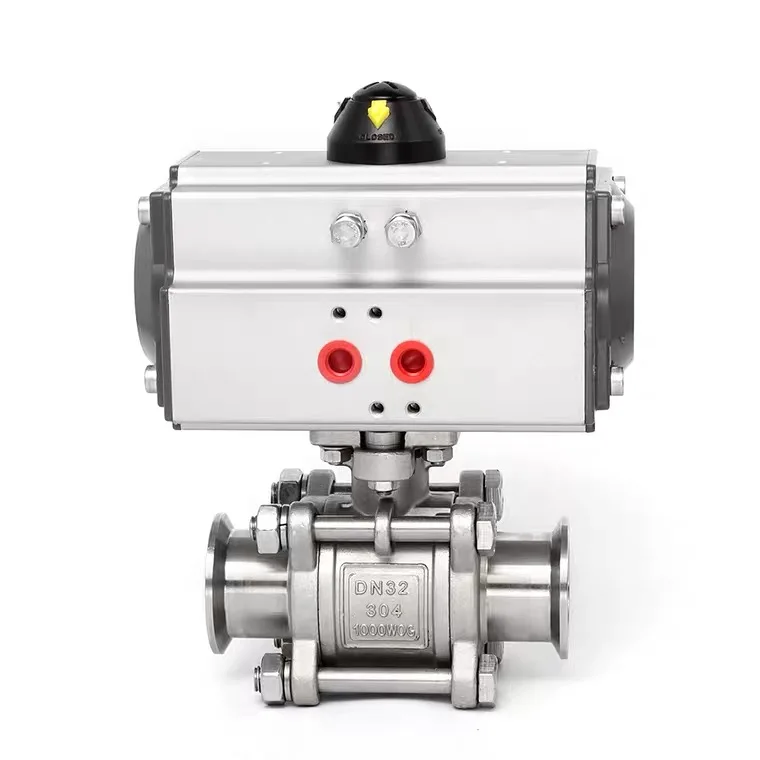

Three piece ball valve series is divided into three piece thread ball valve, three piece welded ball valve, three piece clamp ball valve. Precision casting body, high platform design, accord with ISO5211 standard, direct mounting pneumatic actuator, electric actuator to realize automatic control.
Nominal diameter | DN15-DN100 |
Body material | WCB, 304, 316, 316L |
Connection | thread |
Pressure class | PN1.6MPA-6.3MPA |
Structure | Float ball valve |
Seat sealing | PTFE: |
Stem material | 304 |
Applicable medium | water, liquid, gas, oil, acid, alkali |
Specification
Actuator | ||||
Type | Control type | Function | ||
Pneumatic actuator | Double acting | Failure to maintain | ||
Single acting normally closed | Failure to close | |||
Single acting normally open | Failure to open | |||
Optional accessories | solenoid valve, limit switch, air filter relief pressure valve, positioner, manual device | |||
Electric actuator | ON-OFF type | Feedback: the active signal, passive contact signal, resistance, 4-20mA | ||
Regulation type | Input and output signal: 4-20mA, 0-10v, 1-5v, switch, MODBUS, PROFIBUS field bus | |||
Field operation | the field, remote control switch regulation and MODBUS, PROFIBUS field bus | |||
EXd II BT4, EXd II CT6 | ||||

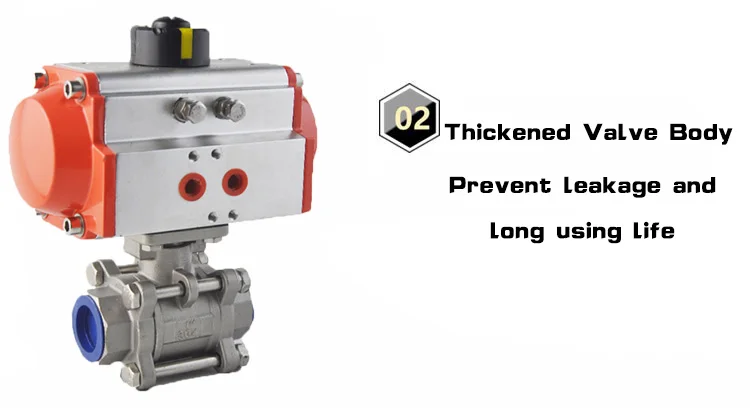

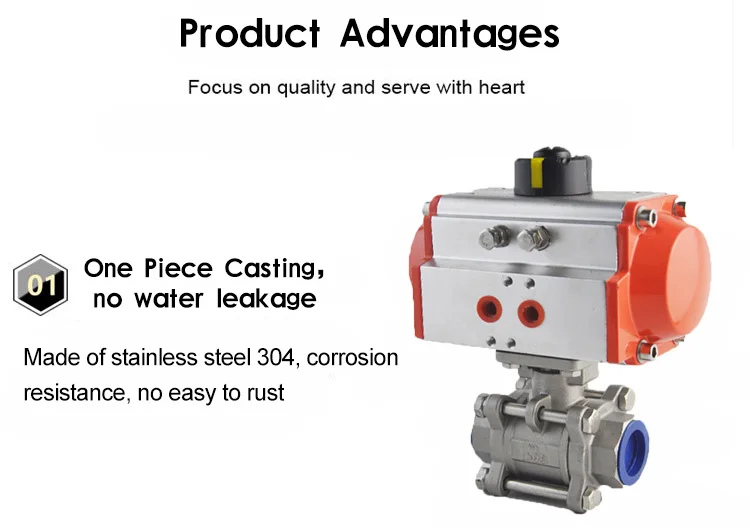

Advantages

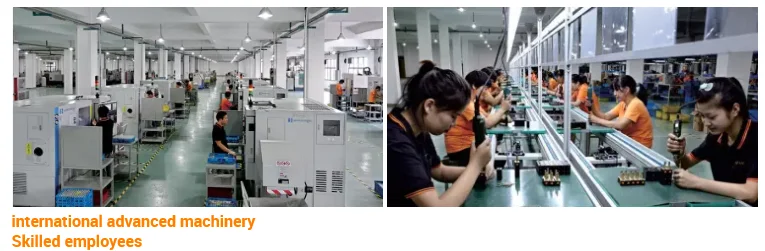

Company Profile
