Horizontal universal chinese swiss lathe PL400 brand new manual lathe machine for steel
- Category: >>>
- Supplier: Hangzhou Techmax Precision Machinery Co. Ltd.
Share on (1600733473353):
Product Overview
Description
BRIEF INTRODUCTION
▪ Inductive hardened, polished grey cast-iron machine bed
▪ Electro-mechanical foot brake reduces downtime significantly

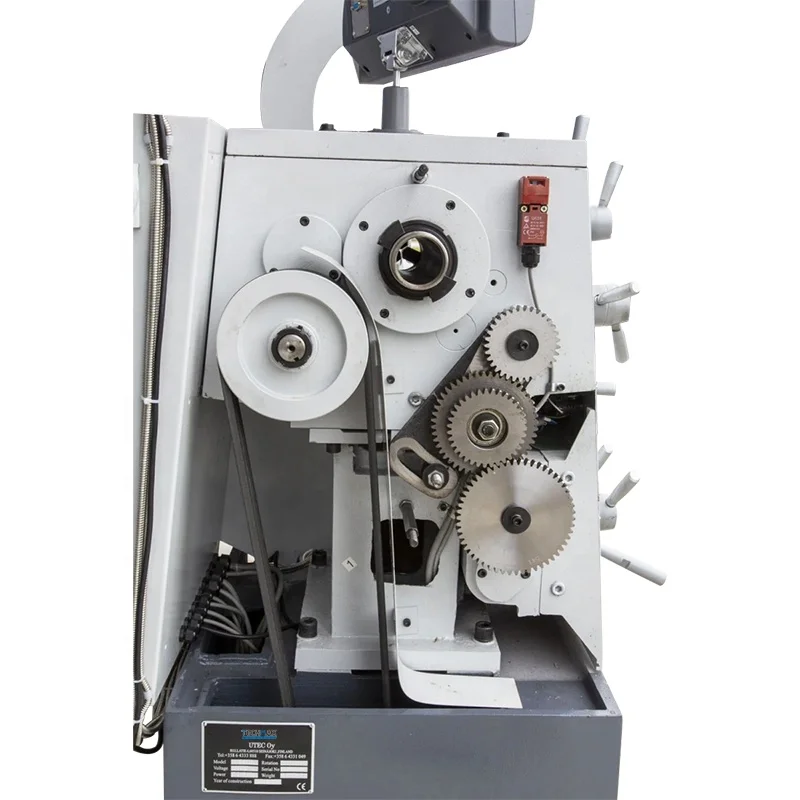

▪ State-of-the-art main spindle bearing with high-quality angular ball bearings
▪ Modern bearing of main spindle with angular ball bearing in precision construction
▪ Easy, smooth and precisely adjustable speed and feed settings
▪ Hardened, polished gears and shafts, also in feed gear unit

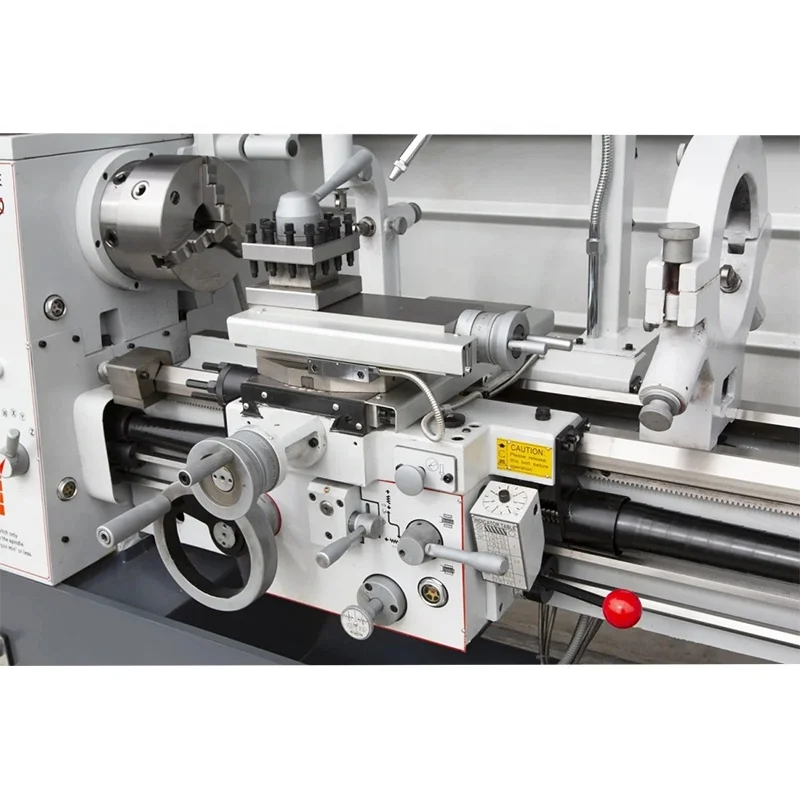

▪ Centrally located, logical switches for feeds and threads with leadscrew and feed rod
▪ Electro-mechanical foot brake reduces downtime significantly
▪ State-of-the-art main spindle bearing with high-quality angular ball bearings
▪ Modern bearing of main spindle with angular ball bearing in precision construction
▪ Easy, smooth and precisely adjustable speed and feed settings
▪ Hardened, polished gears and shafts, also in feed gear unit
▪ Centrally located, logical switches for feeds and threads with leadscrew and feed rod
▪ Adjustable tailstock for taper turning, handwheel feature adjustable scale (0,02 mm)
▪ The removeable bridge allows machining of workpieces with a big diameter

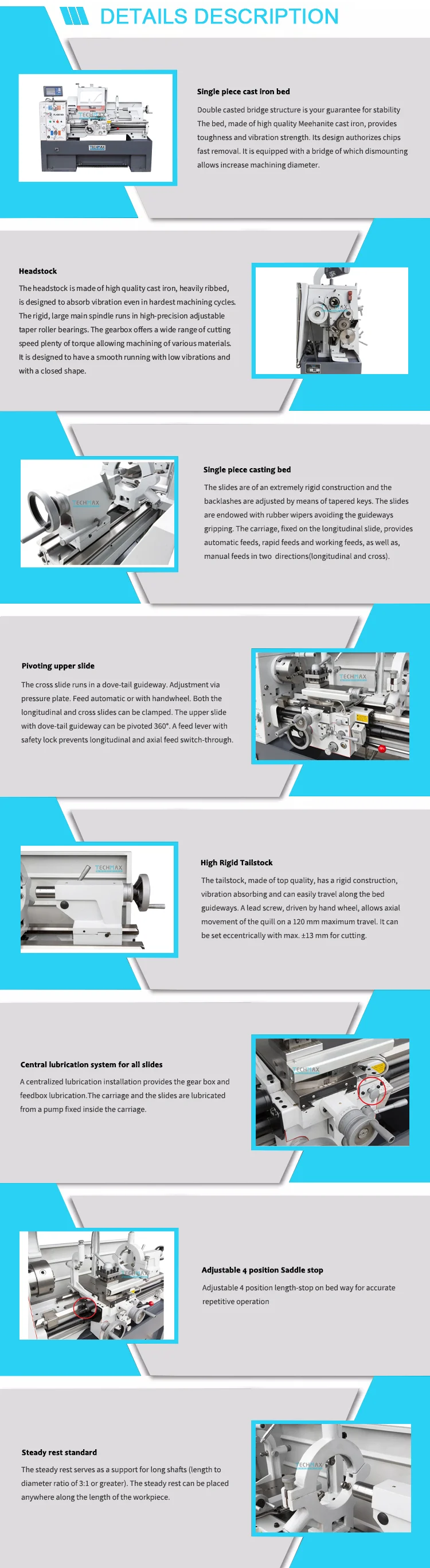

high quality cast iron Headstock

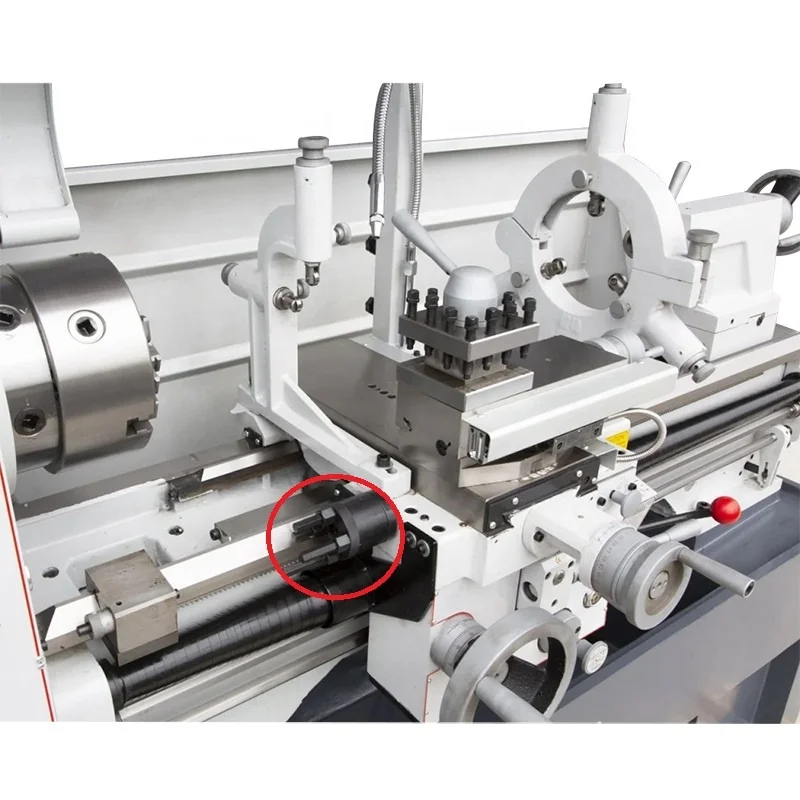

Adjustable 4 position Saddle stop

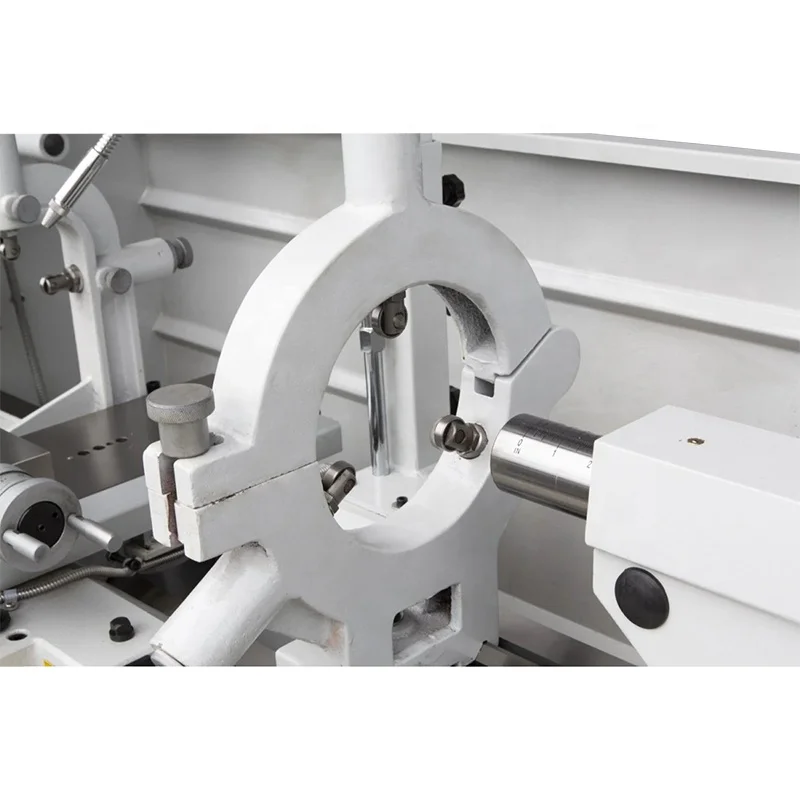

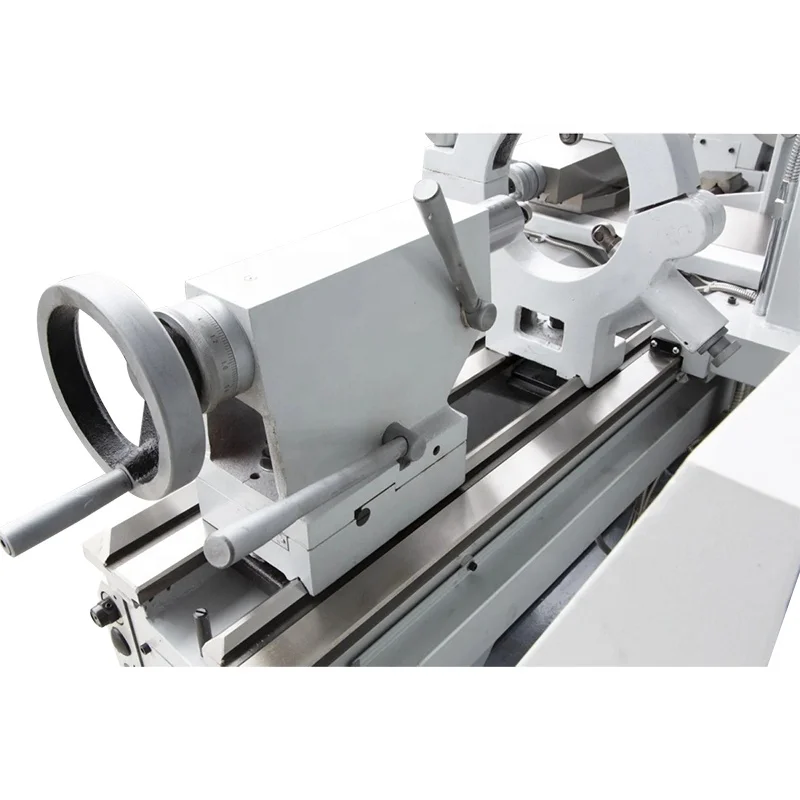

High Rigid Tailstock
TECHNICAL PARAMETERS
Specification | Unit | PL-400 | PL-400 Vario |
Distance between centers | mm | 1000/1500 | 1000/1500 |
Center height | mm | 205 | 205 |
Swing over bed | mm | Φ410 | Φ410 |
Swing over cross slide | mm | Φ255 | Φ255 |
Swing over gap | mm | Φ580 | Φ580 |
Bed width | mm | 250 | 250 |
Spindle bore | mm | Φ52 | Φ52 |
Spindle nose fixture | - | D1-6 | D1-6 |
Spindle speed | rpm | (16) 45-1800 | (stepless) 30-550 / 550-3000 |
Longitudinal feed | mm/rev | (17) 0.05-1.7 | (17) 0.05-1.7 |
Cross feed | mm/rev | (17) 0.025-0.85 | (17) 0.025-0.85 |
Inch thread | TPI | 2-72 (45) | 2-72 (45) |
Metric thread | mm | 0.1-14 (39) | 0.1-14 (39) |
Module thread | MP | 0.3-3.5 (18) | 0.3-3.5 (18) |
Diametral thread | DP | 8-44 (21) | 8-44 (21) |
Lead screw thread | TPI | 4 | 4 |
Top slide travel | mm | 140 | 140 |
Cross slide travel | mm | 210 | 210 |
Tool section size | mm | 20×20 | 20×20 |
Tailstock sleeve diameter | mm | Φ50 | Φ50 |
Tailstock sleeve travel | mm | 120 | 120 |
Tailstock sleeve taper | - | MT4 | MT4 |
Spindle drive motor | kw | 3.3/2.2 | 3.3/2.2 |
Coolant pump motor | kw | 0.09 | 0.09 |
Packing size (L×W×H) | cm | 206/256×90×164 | 206/256×90×164 |
Weight approx. | kg | 1500/ 1750 | 1555/1755 |
Packing size (L×W×H) | cm | 225/280/330×112×162 | 225/280/330×112×162 |
Weight approx. | kg | 1844/2049/2229 | 1910/2115/2295 |
