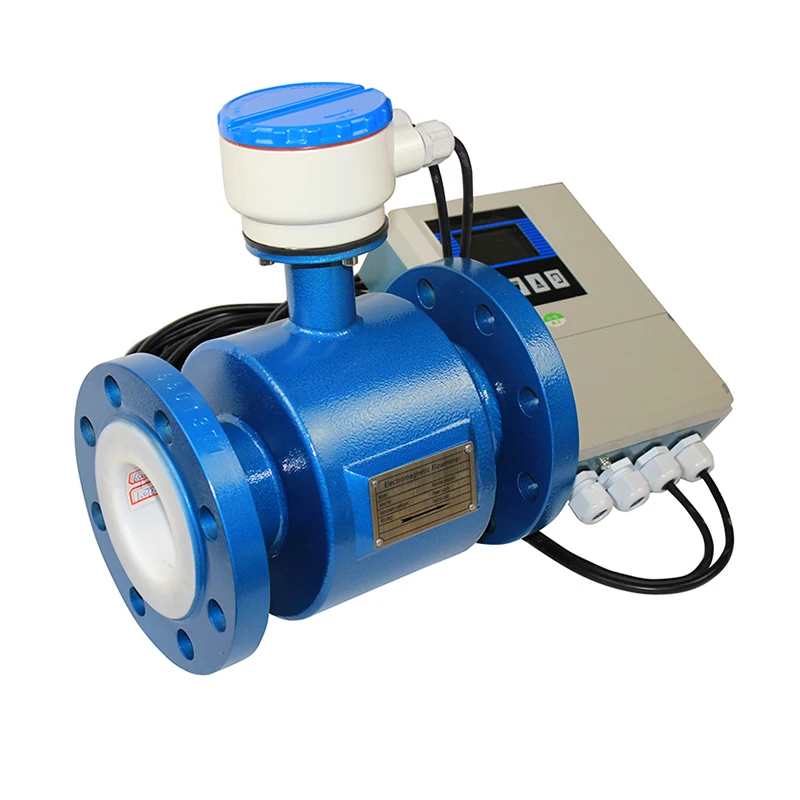

Hot Water Flow Meter Remote Electromagnetic Flowmeter Pulse Output Magnetic Flow Meters Manufacturer

Product Overview

Description

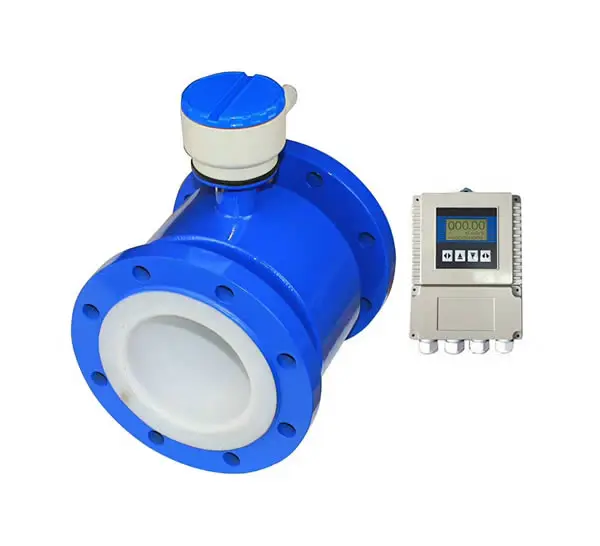

Hot Water Flow Meter Remote Electromagnetic Flowmeter Pulse Output Magnetic Flow Meters Manufacturer



Introduction

Electromagnetic flow meter  adopts Chinese and English display smart converter with 16-bit embedded

microprocessor. All digital processing, with two-way flow measurement function, instantaneous flow and

positive and negative direction of the cumulative amount and the cumulative amount. Used to measure

the volume flow of conductive media such as clear water, sewage, acid, alkali, slurry, food grade liquid,

salt solution  liquid.





Parameters



Order sheet

Name	Specification code	Explanation
Instrument type		Electromagnetic Flow Meter
Diameter code	AT-xxx	For example:100 represents DN100
Electrode form	1	Standard stationary type
Electrode material	0	Stainless steel(316L)
	1	Platinum Pt
	2	Hastelloy B(HB)
	3	Tantalum Ta
	4	Titanium Ti
	5	Hastelloy C(HC)
Lining material	3	Chloroprene rubber
	4	Polyurethane rubber
	5	F4(PTFE) polytetrafluoroethylene
	6	F46(FEP)polyperfluoroethylene-propylene
Rated pressure(MPa)	1.6	DN10-80
	1.6	DN100-150
	1.0	DN200-1000
	0.6	DN1100-2000
	0.25	DN2200
Operating temperature	E	<80ºC
	H	<120ºC
Grounding		Built-in grounding electrode
Grade of  protection	0	IP65
	1	IP68
Converter type	0	Integral type
	1	Split type
Case material	0	Carbon steel
	1	Stainless steel
Instrument flange	0	Carbon steel
	1	Stainless steel
Installing timing flange	0	Without
	1	With
Power supply source	0	220VAC
	1	24VDC



Typical Industries Where Magnetic Flow Meters are Used

• Water / Wastewater Industry


• Food and Beverage


• Metals


• Brewing, Distilling, and Wine makening

• HVAC


• Chemical


• Pulp and Paper


• Pharmaceutical


• Mining, Mineral Processing

Application area



1. Drinking water supply, water supply, reservoir and pumping station etc.

2. Chemical acid, lye, conductive solution, cooling fluid, additives etc.

3. Drink water, beer, wine, alcohol, milk, yogurt, fruit juice, syrup, blood etc.

4. Refrigeration / air conditioning and refrigeration thermal measurement, or heat energy.

5. Sewage, industrial sewage discharge, sewage etc.

6.Control of metal industrial pump,cooling water and the flow of water.

7. The textile industry of water, pigments, chemicals, bleaching chemicals etc.

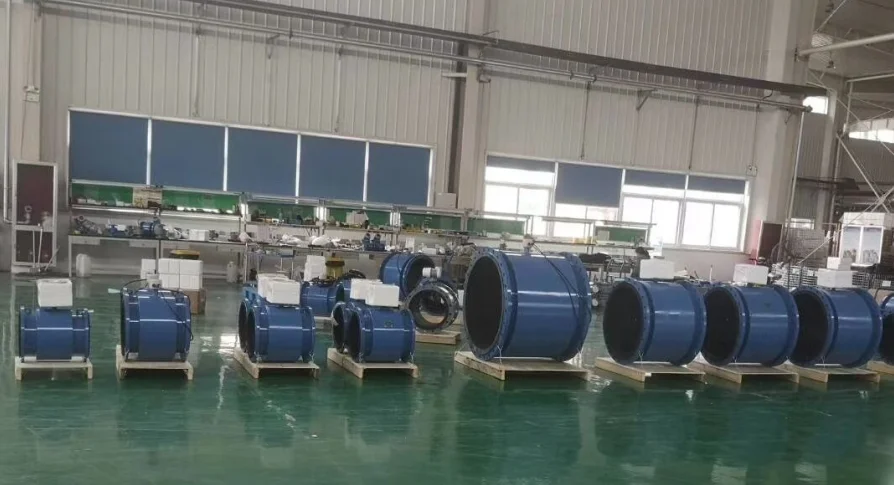

Our company

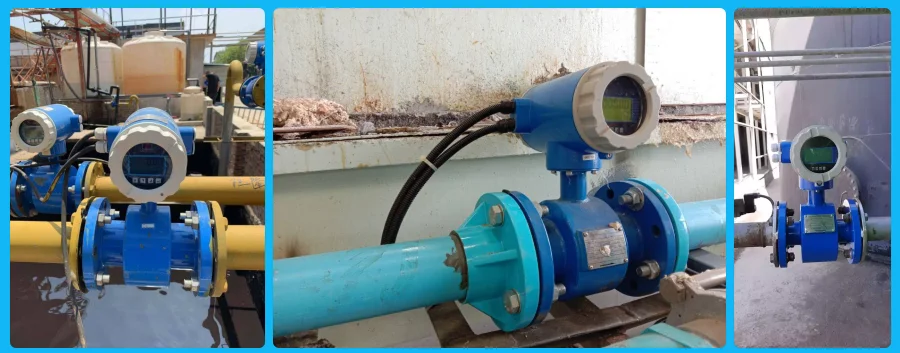

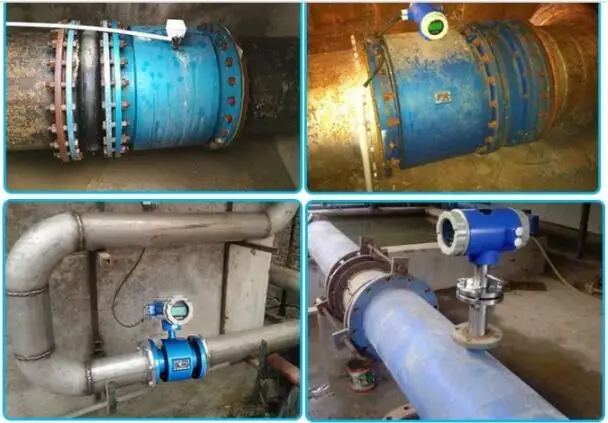

Application





Package and delivery

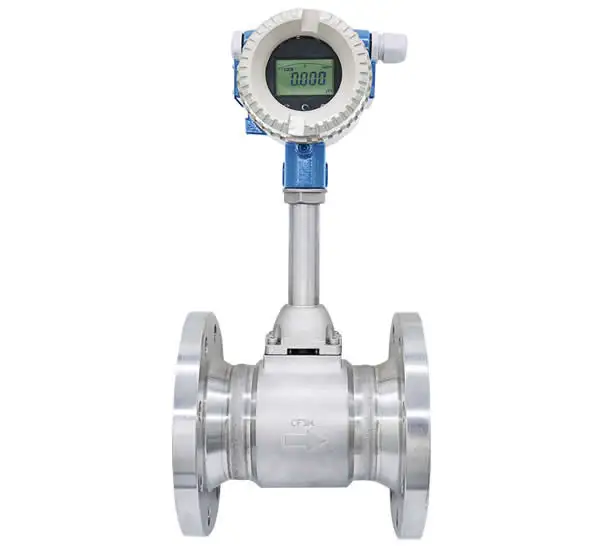

Other types of flow meter: ultrasonic water flow meter/ vortex flow meter, please click the following pictures!
