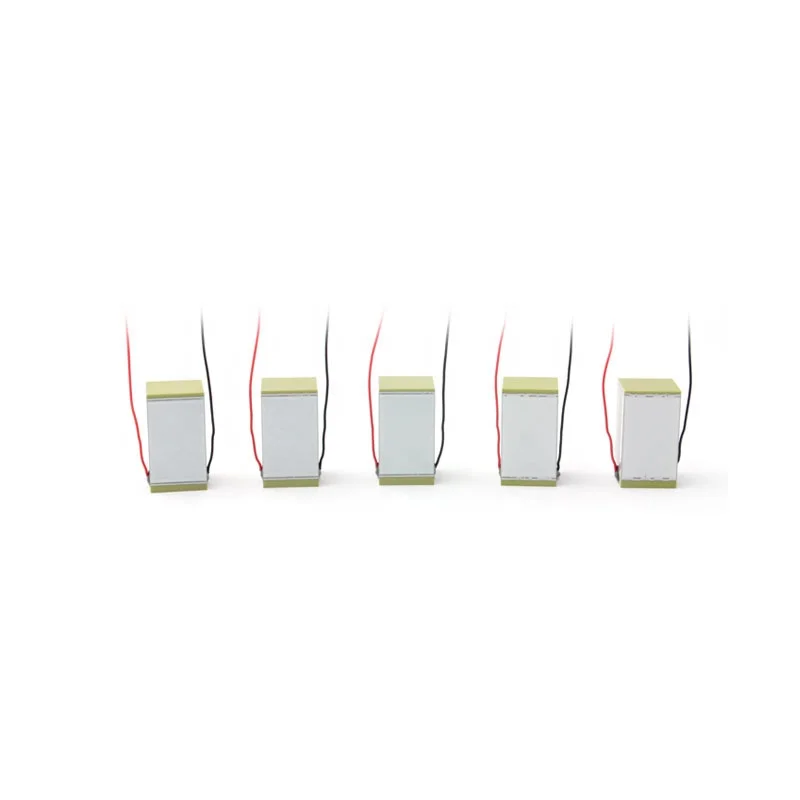

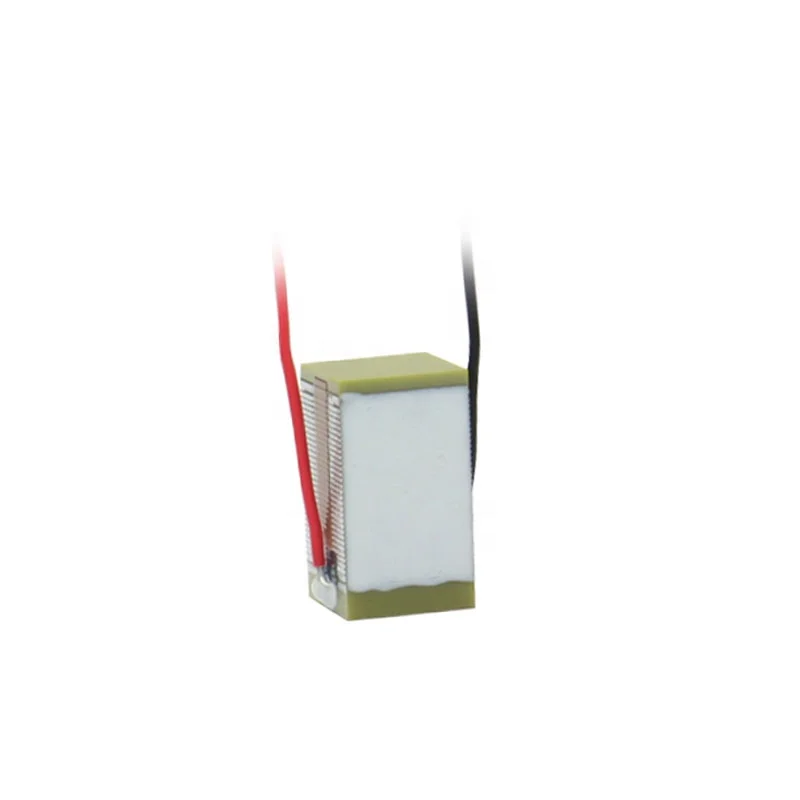

PSt150/5*5/7H Piezo Linear Positioner PZT Multilayer Stack

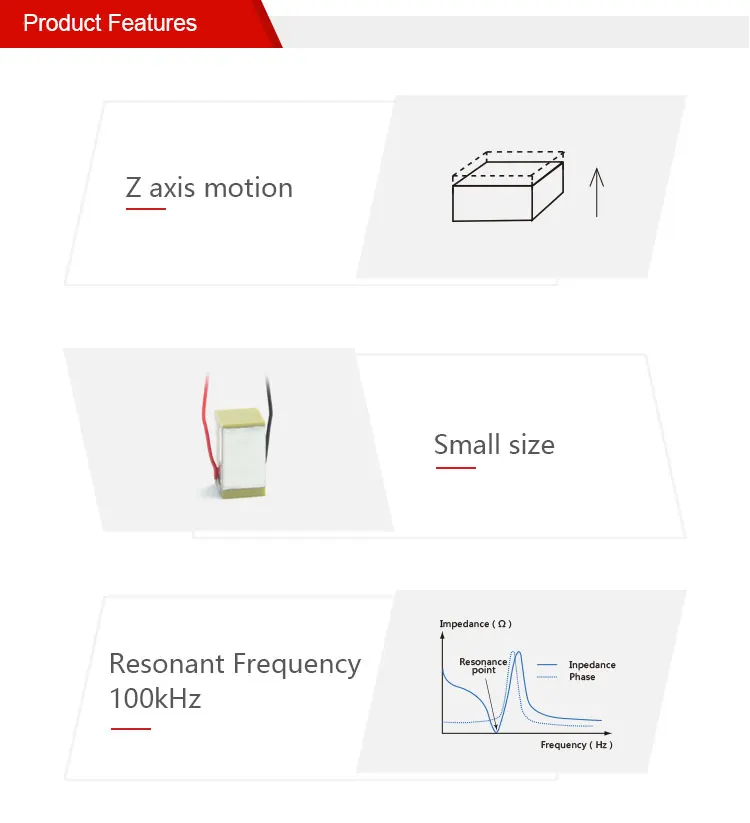

Product Overview

Description



Models	Coating color	Dimensions a×b×L[mm]	Max./Stroke [μm]±15%	El. capacitance [μF]±20%	Stiffness [N/μm]±10%	Resonant frequency [kHz]±20%	Blocking Force [N]	Mass [g]±5%

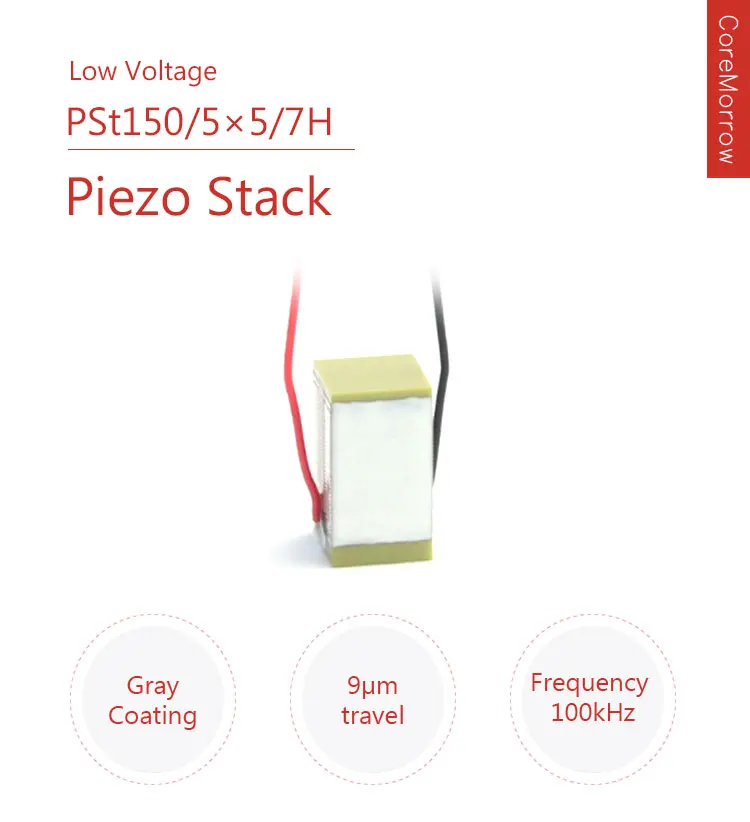

PSt150/5×5/7H	Gray	5.1×5.1×9	13/9	0.8	120	100	1600	2

* PSt150: stroke is under 0~150V, Max. stroke is under -30~150V. Recommended voltage 0-120V for long-time high reliability.

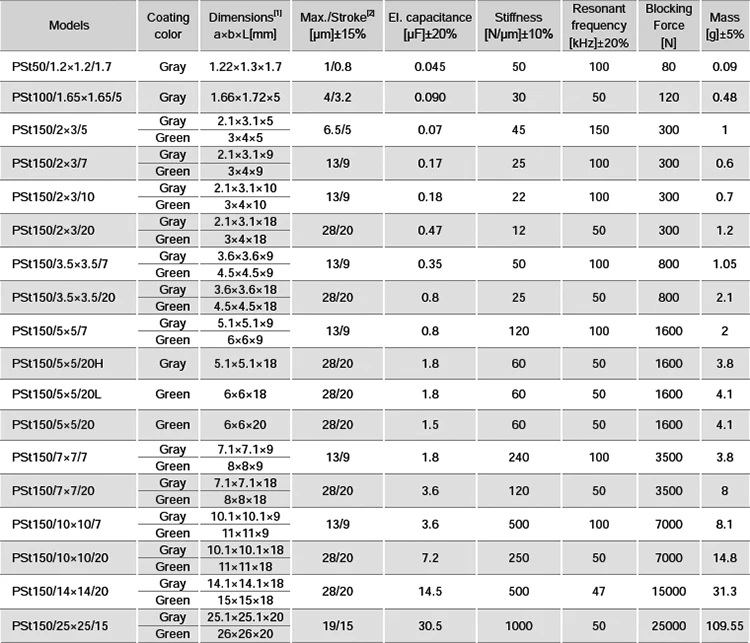

Other Piezo Stack Parameters References

Note: Red lead for "+" electrode. Red lead for "-" electrode in PSt50 and PSt100. Mounting preloaded force during 10%~25% of blocking
force. Stroke down to 5% in 2k temperature.
[1] Tolerance, L/W: ±0.1mm, Height: 0.05mm. Not include solder joint of 1mm±0.2mm height. Solder joint position varies with size.
[2] PSt150: Nominal stroke at 0~150V, max. stroke at -30~150V. Recommended 0~120V for long-term and high-reliable operation.
PSt50: max. stroke at 0~50V. PSt100: max.stroke at 0~100V.
