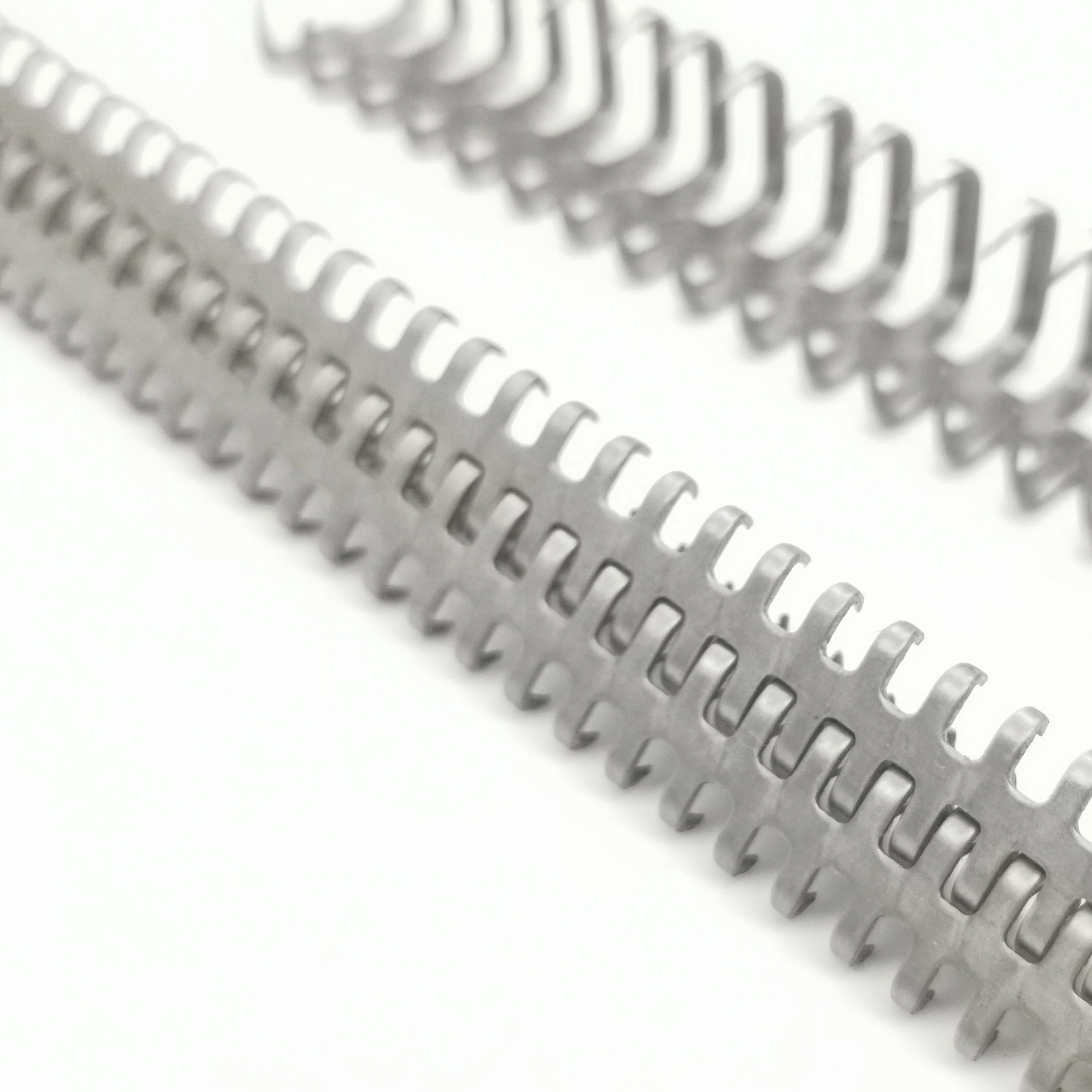

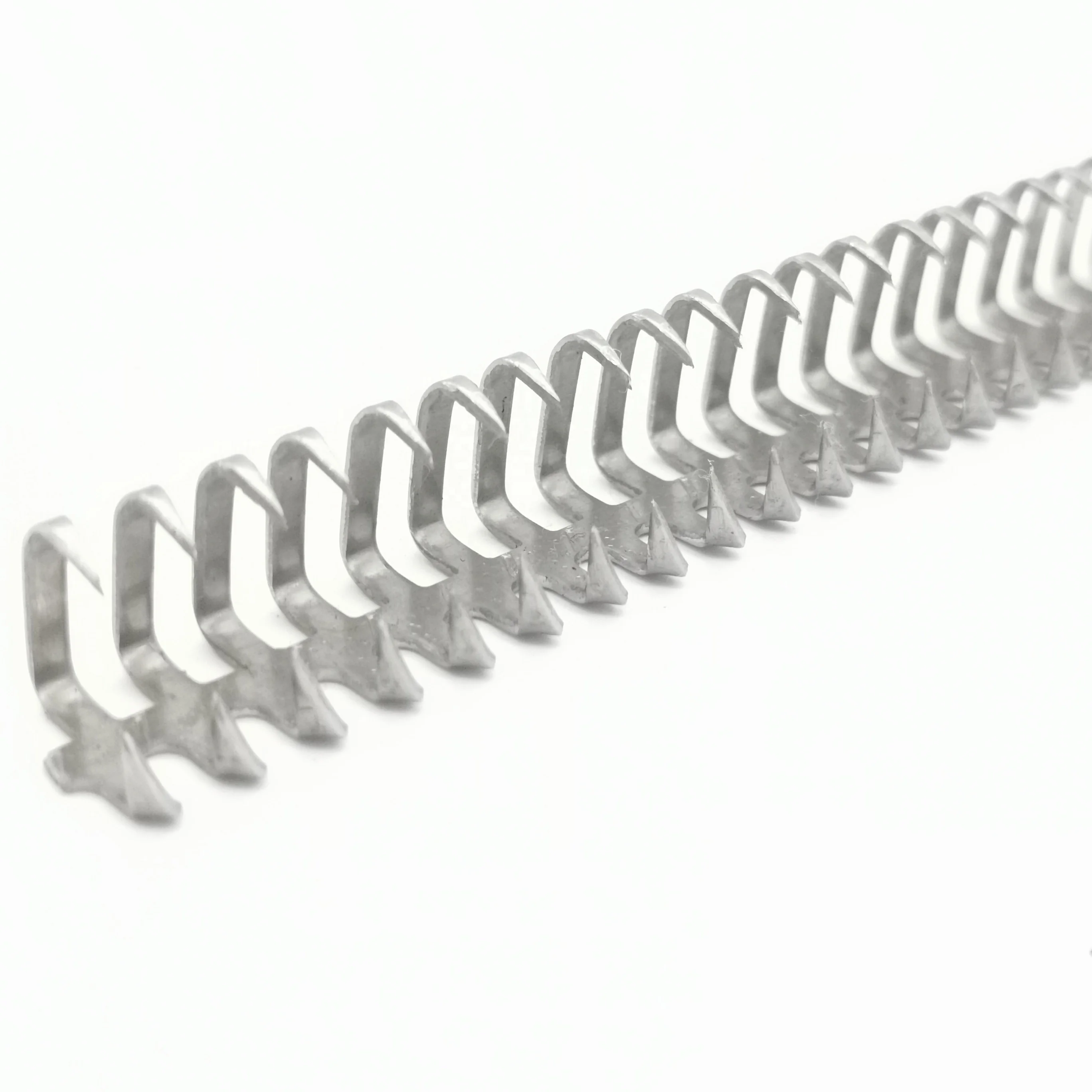

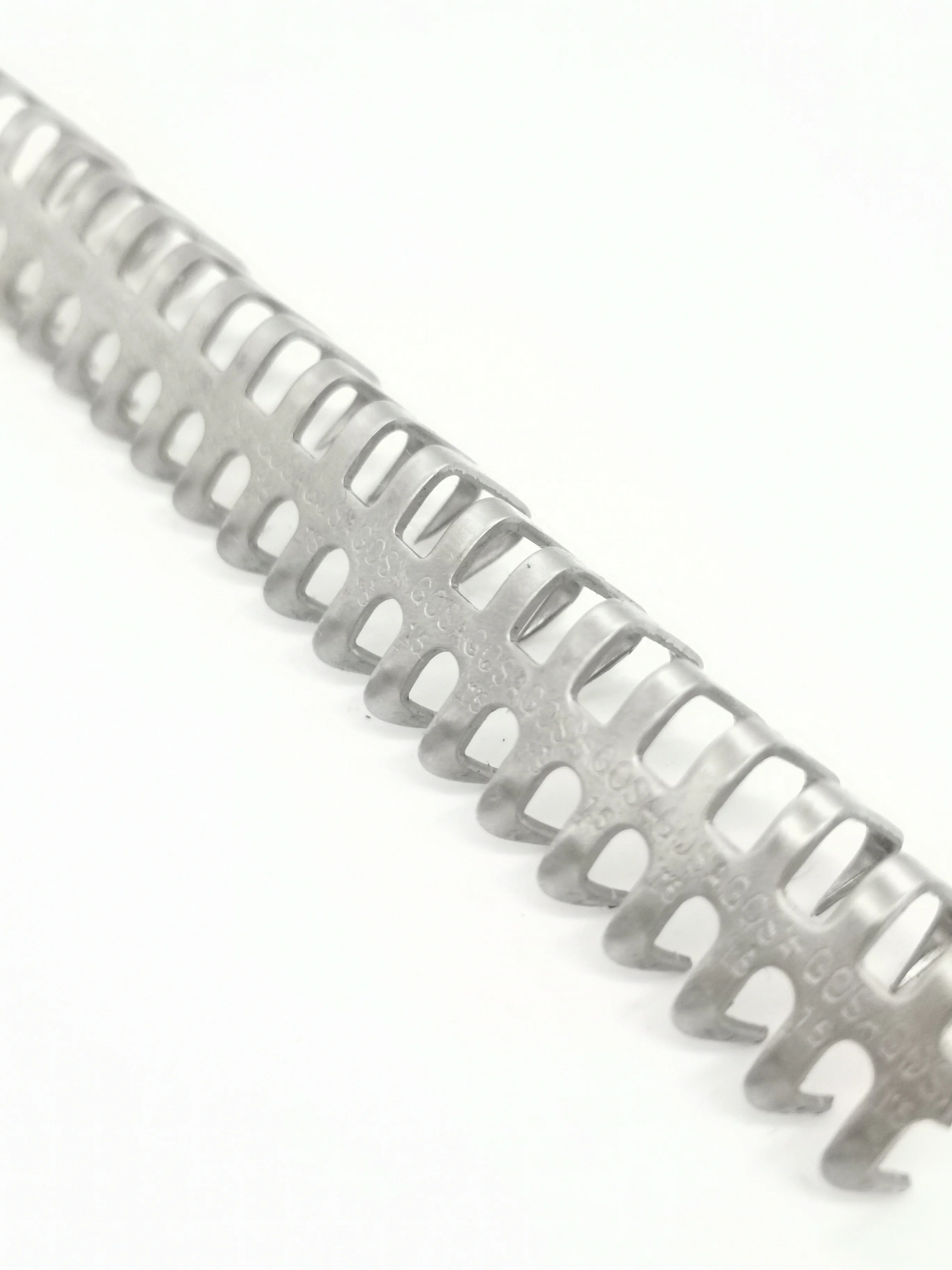

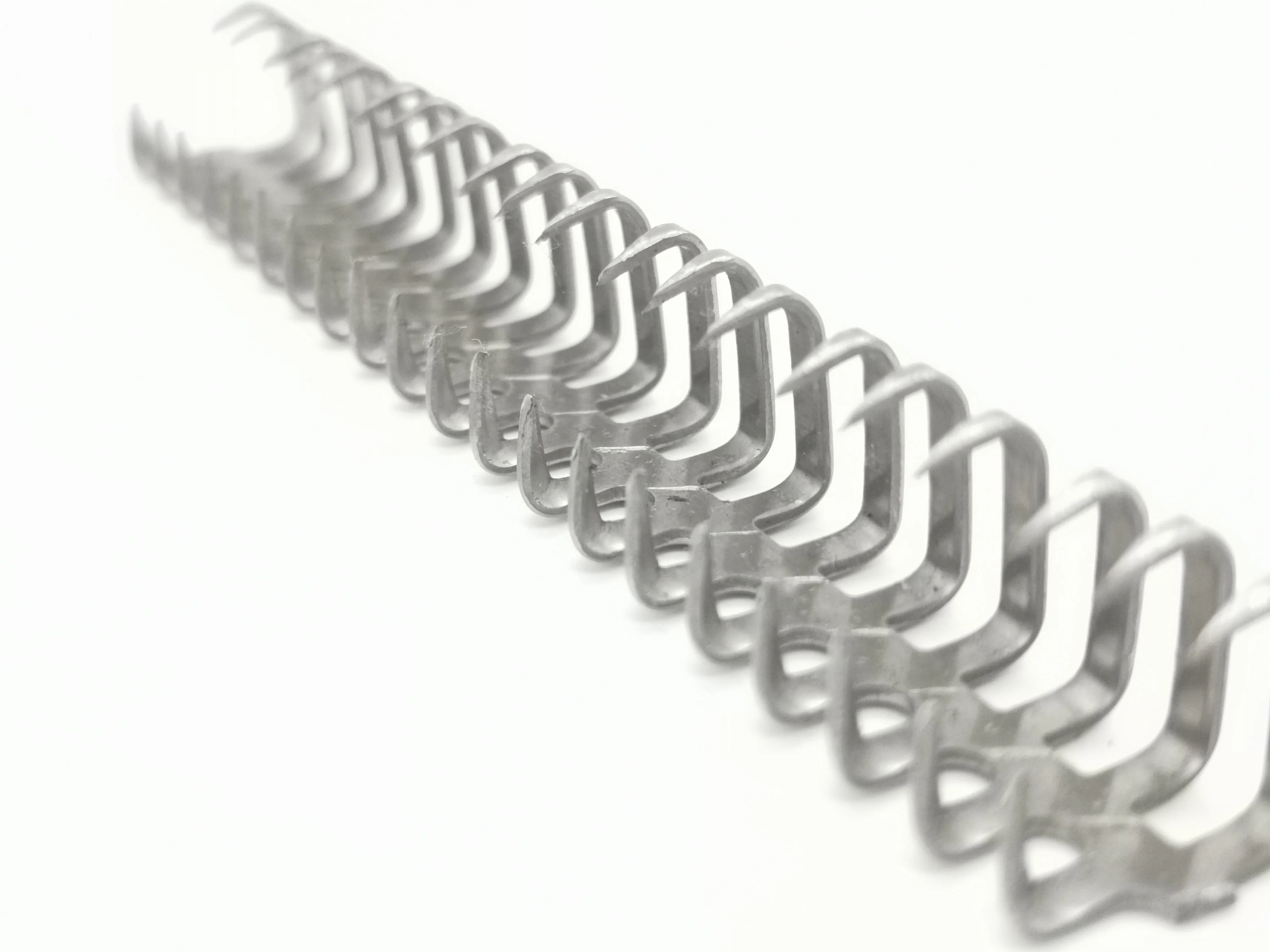

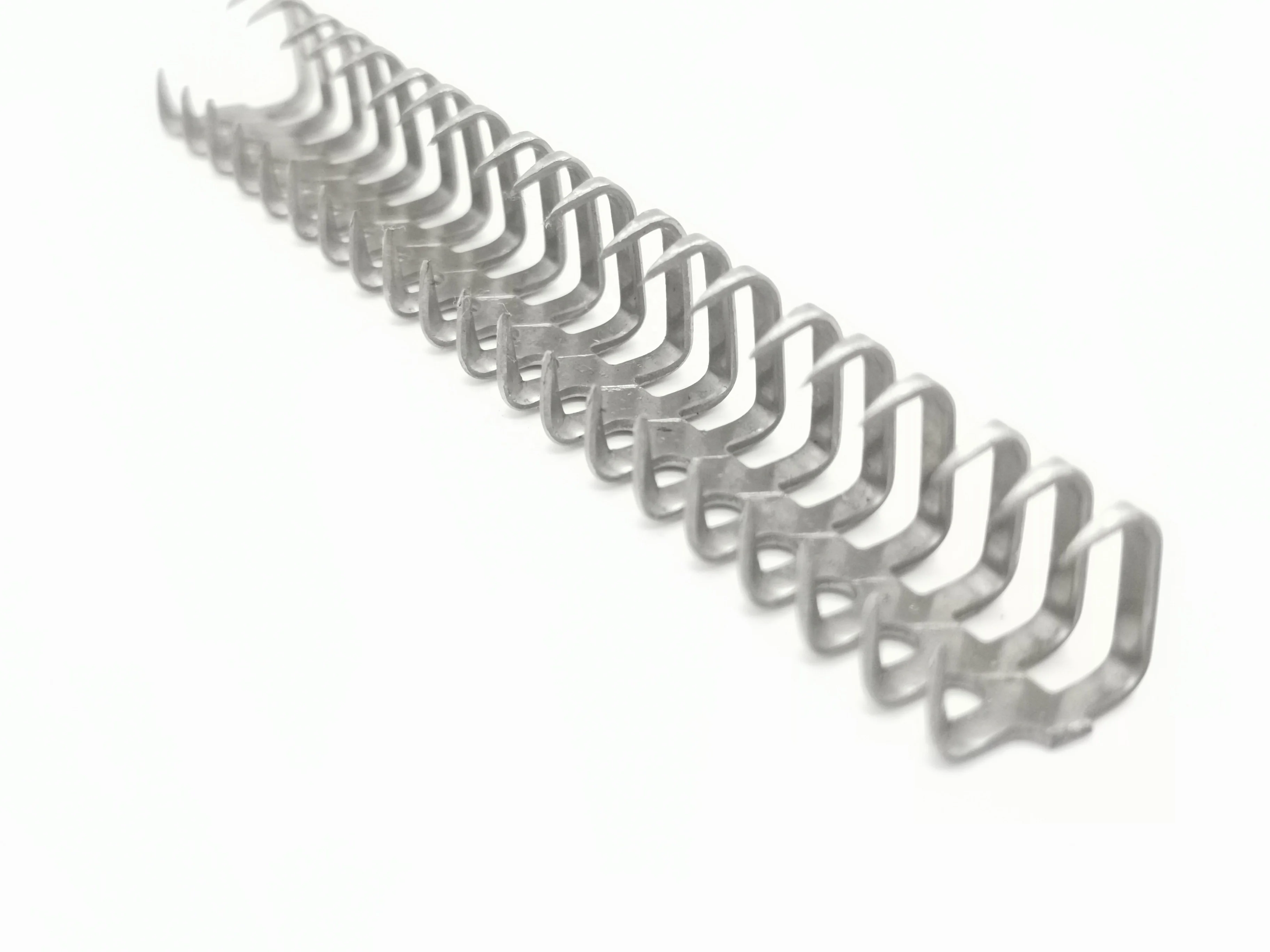

N0.55 Industrial Alligator Staple Fastening System Carbon Steel Conveyor Belt Lacing with Zinc Plated Rivets and Bolts
- Category: >>>
- Supplier: Yancheng Goodlark International Trade Corp. Ltd.
Share on (1600733553889):
Product Overview
Description
Products Description
Size | For belts with Mechanical fastener ratings up to: | Belt thickness | Recommended minimum pulley diameter | Approximate corrugated hinge diameter | ||||||||
P.I.W | KN/M | IN | MM | IN | MM | IN | MM | |||||
15# | 65 | 11.4 | 1/8-5/32 | 3.2-4.0 | 2-1/2 | 64 | 3/32 | 2.4 | ||||
20# | 95 | 16.6 | 5/32-3/16 | 4.0-4.8 | 3 | 76 | 7/64 | 2.8 | ||||
25# | 100 | 17.5 | 3/16-7/32 | 4.8-5.6 | 4 | 102 | 1/8 | 3.2 | ||||
27# | 100 | 17.5 | 7/32-9/32 | 5.6-7.1 | 5 | 127 | 1/8 | 3.2 | ||||
35# | 150 | 26 | 9/32-5/16 | 7.1-7.9 | 7 | 178 | 9/64 | 3.6 | ||||
45# | 165 | 28 | 5/16-3/8 | 7.9-9.5 | 9 | 229 | 3/16 | 4.8 | ||||
55# | 175 | 30 | 3/8-7/16 | 9.5-11.1 | 12 | 305 | 13/64 | 5.2 | ||||
65# | 200 | 35 | 7/16-1/2 | 11.1-12.7 | 14 | 356 | 13/64 | 5.2 | ||||
75# | 250 | 40 | 1/2-1 | 12.7-13.5 | 16 | 400 | 13/64 | 5.5 | ||||
Advantage
1.Low Cost: Competitive and economic splice.
2.Easy Installation: Simple Installation with basic tooling or hammer only.
3.Flexible: Suitable for smaller pulley diameters.
4.Low Maintenance: When correctly installed Ultilace will give a long working life
5.No Corrossive: Available in Stainless steel which is corrosion free. This avoids corrision and contamination of conveyed
products.
6.Universal:Suitable for installation on many different conveyor belt types.
Applications
Flat Transmission Belts
Agriculture Belts
Packaging Machines Belts
Commercial Laundry
Logistics Applications
Airport Belt
1.Low Cost: Competitive and economic splice.
2.Easy Installation: Simple Installation with basic tooling or hammer only.
3.Flexible: Suitable for smaller pulley diameters.
4.Low Maintenance: When correctly installed Ultilace will give a long working life
5.No Corrossive: Available in Stainless steel which is corrosion free. This avoids corrision and contamination of conveyed
products.
6.Universal:Suitable for installation on many different conveyor belt types.
Applications
Flat Transmission Belts
Agriculture Belts
Packaging Machines Belts
Commercial Laundry
Logistics Applications
Airport Belt
