Automatic CNC construction Stirrup Steel Bar bending machine Rebar stirrup bender up to 13 mm rebar
- Category: >>>
- Supplier: Langfang Runsun Intelligent Technology Co. Ltd.
Share on (1600733570774):
Product Overview
Description
Product Description

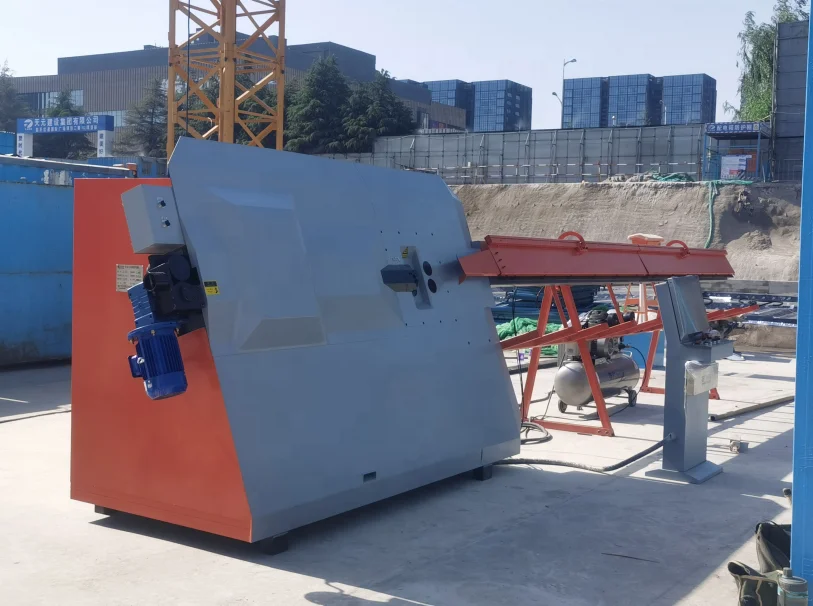

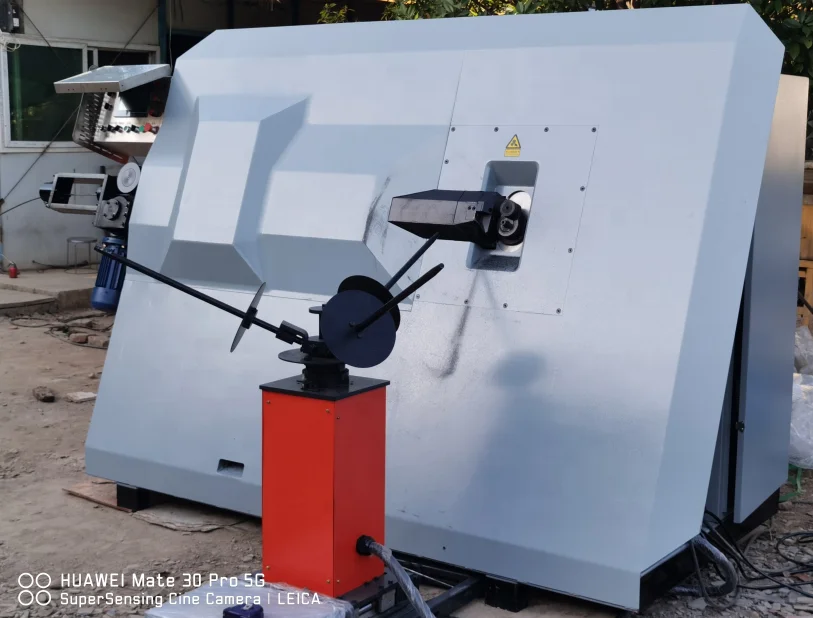

WGJ13B Multifunctional Auto. Steel Wire Stirrup Bending Machine
(Multi-functional Stirrup Bender with Floor Bar Collect Stacker)
(Multi-functional Stirrup Bender with Floor Bar Collect Stacker)
WGJ series automatic cnc rebar stirrup bending machine hoop bender, it's controlled by servo system and PLC, can automatically accomplish rebar feeding, decoiling, straightening, bending and cutting working. Could continuously bend various stirrup figure, mainly used for production of hook and stirrup product on construction, material including
cold rolled deformed steel wire, hot rolled ribbed steel wire, cold-rolled & hot-rolled plain steel wire.
cold rolled deformed steel wire, hot rolled ribbed steel wire, cold-rolled & hot-rolled plain steel wire.
Multi-functional Auto. Rebar Stirrup Bending Machine
- Working Capacity:
Single Wire: 6-13mm
Double Wire: 6-10mm
- Bending Angle: ±180°
- Pulling Speed: 130 m/min
- Bending speed: 1350°/s
- Power: 44.7+4.0kW
- Bi-directional Bending
- Automatic Stirrup Collector
- Two sets wire guider
- Wireless Remote
- 6m length rebar collector
- Working Capacity:
Single Wire: 6-13mm
Double Wire: 6-10mm
- Bending Angle: ±180°
- Pulling Speed: 130 m/min
- Bending speed: 1350°/s
- Power: 44.7+4.0kW
- Bi-directional Bending
- Automatic Stirrup Collector
- Two sets wire guider
- Wireless Remote
- 6m length rebar collector
Main Technical Advantages:
1 Reliable Working Performance
2 Top Rate Productivity
3 Low Operating Cost
4 Easy Operation
3 Low Operating Cost
4 Easy Operation
Technical Specification
Model | WGJ13B |
Working Capacity | 6-13mm (Single Wire) / 6-10mm (Doulbe Wire) |
Working Productivity | 1100 pcs/h (Single Wire) / 2200 pcs/h (Doulbe Wire) |
Straightening System | Arc Straightening system(Straightening wheels) |
Wireless remote control | Yes |
Bending Angle | ±180° |
Bending Speed | 1350°/s |
Max. Rebar Traction Speed | 130 m/min |
Length Tolerance | ±1mm |
Bending Angle Tolerance | ±1° |
Bending Mandrel Shaft Size | 16,20,25mm |
Bending Shaft Size | 50mm(Standard), 60mm/70mm customized size |
Rated Total Power | 44.7+4.0kW |
Voltage | 3 Phase, 380V, 50Hz or Customized |
Applicable Material Grade | HPB235, HPB300, HRB335, HRB400, HRB500 |
Bending Head (Up+Down) | Yes |
Bi-directional Bending | Yes |
Hold Bending Wheel | Bi-directional Feeding Rebar (Front & Back) |
Pneumatic System Pressure | 0.6Mpa |
Gross Weight | 2.3 Ton |
Overall dimensions | 3000*1280*2000mm |
Rebar Collect Stacker | 6600*810*1640mm |
Key Words | Rebar Automatic CNC Stirrup Bending Machine |
Function | Decoiling, Straightening, Bending and Cutting Coil Steel Wire |
Product Name | WGJ13B Multifunctional Auto. Steel Wire Stirrup Bending Machine (Multi-functional Stirrup Bender with Floor Bar Collect Stacker) |

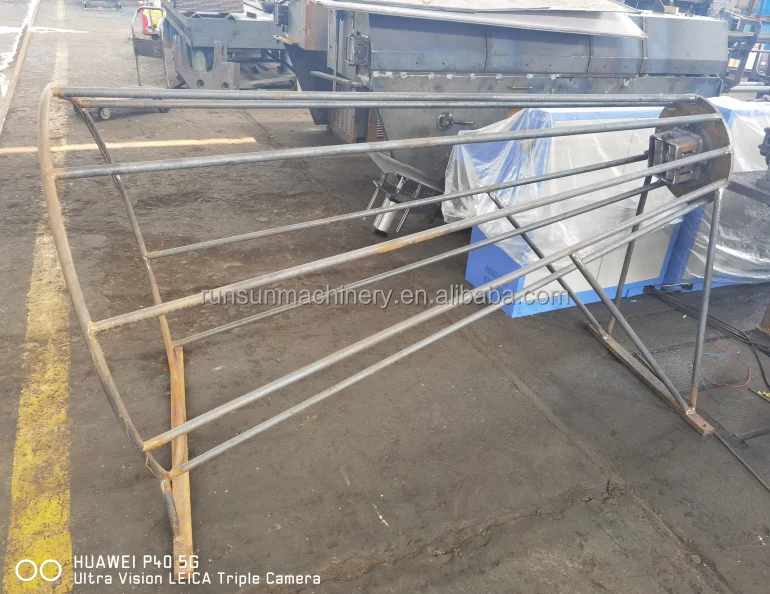

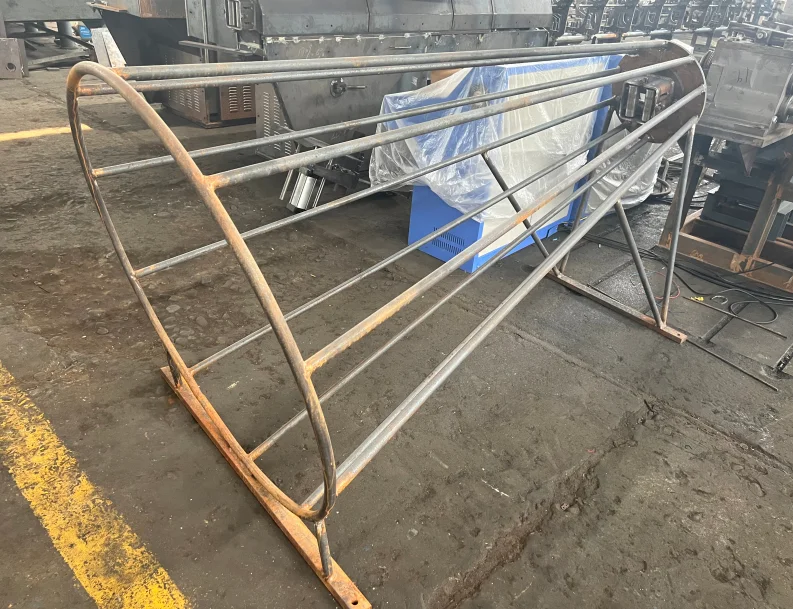

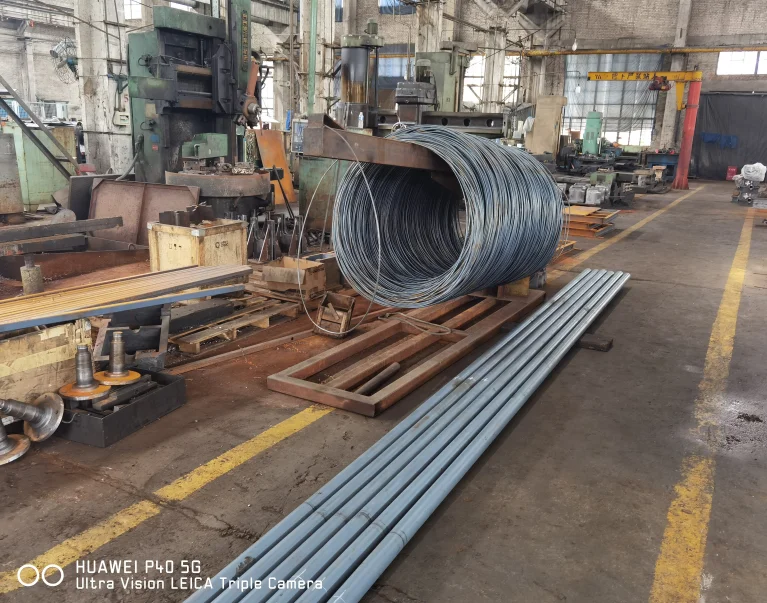

Vertical Type Rebar Pay-off
Horizontal Type Rebar Pay-off
Wire Guider

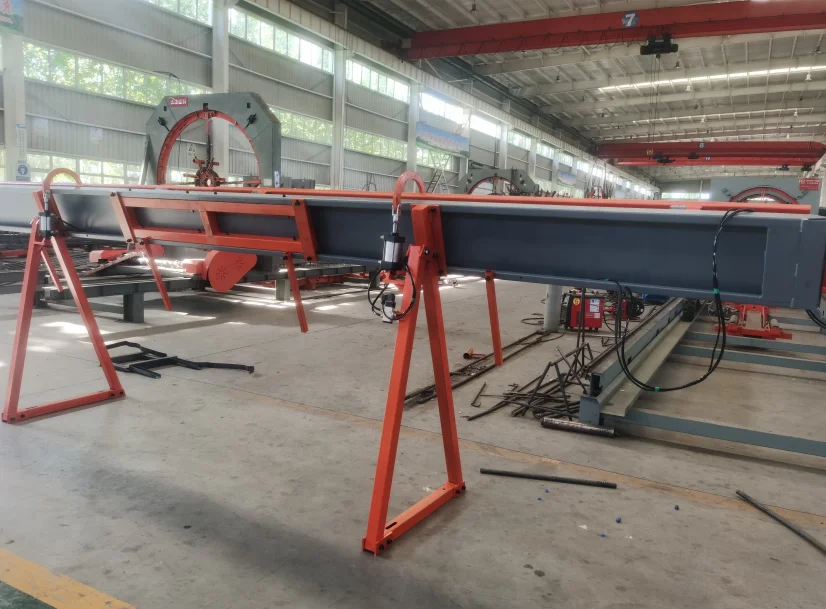

Floor Bar Collect Stacker
Working Vidoes
Technical Advantages
1. Arc straightening system (patented technology) prevents the axial twist of the rebar. Double-line feeding, single-line independent straightening, can achieve non-stop independent straightening.
2. Servo-controlled bending and wire feeding ensure the accuracy of the bending angle and size of the finished stirrups, which can work 24h/day.
3. Intelligent fault identification is convenient for fault detection and maintenance; centralized oil supply and lubrication to lubricating parts can prolong the service life of equipment.
4. Human-machine interface interactive operation, can store a variety of shapes and graphics, and can be adjusted and used at any time.
5. The cutting support block and cutting arm are made of special materials, which are professionally quenched, have good fatigue resistance, wear resistance, and effectively improve the service life, provide 10 years warranty period.
6. The core electronic components (encoders, sensors) are imported from Germany, with excellent performance, stability and reliability, good anti-interference ability, and can be used in different environments, provide 5 years warranty period.
2. Servo-controlled bending and wire feeding ensure the accuracy of the bending angle and size of the finished stirrups, which can work 24h/day.
3. Intelligent fault identification is convenient for fault detection and maintenance; centralized oil supply and lubrication to lubricating parts can prolong the service life of equipment.
4. Human-machine interface interactive operation, can store a variety of shapes and graphics, and can be adjusted and used at any time.
5. The cutting support block and cutting arm are made of special materials, which are professionally quenched, have good fatigue resistance, wear resistance, and effectively improve the service life, provide 10 years warranty period.
6. The core electronic components (encoders, sensors) are imported from Germany, with excellent performance, stability and reliability, good anti-interference ability, and can be used in different environments, provide 5 years warranty period.

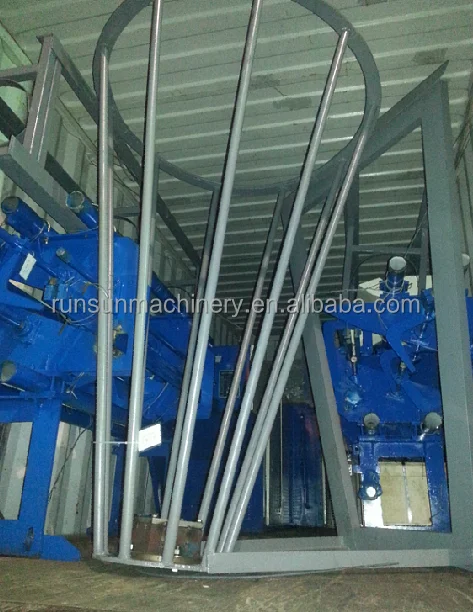

Packing & Delivery
All goods packaged in 1*20’GP, Spare parts packaged in wooden box.
Or according to client's requirements, LCL
FAQ
1. Q:Do you have your own production factory?
A:Yes, we not only have our own factory,We also have a cooperative relationship with other factories in China
2. Q: Can you send us samples?
A: We are pleased to send you the sample to test the quality and market.
3. Q: About your products, could you do it OEM?
A: Yes, OEM service is available.
4. Q: Do you also provide spare parts ?
A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some
easy-broken parts.
5. How long is your machine warranty ?
A: One year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintain
video, or ever can teach you face-to-face. if machine have serious quality problem ,we support to back .
6. Q: What's the delivery time?
A: It usually takes about 7-30 working days to produce one order.
7. Q: How is the payment terms?
A: Normally T/T 30% in advance and T/T 70% before shipment, other terms could be discussed and confirmed then.
8. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
9. Q: How does your factory do regarding quality control?
A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
10. Q: Do you have quality certification?
A: Yes, we have CE, SGS,ISO, ect.
A:Yes, we not only have our own factory,We also have a cooperative relationship with other factories in China
2. Q: Can you send us samples?
A: We are pleased to send you the sample to test the quality and market.
3. Q: About your products, could you do it OEM?
A: Yes, OEM service is available.
4. Q: Do you also provide spare parts ?
A: Once we confirm the models you'd like to order, we will send you the diagram for checking and also suggest you some
easy-broken parts.
5. How long is your machine warranty ?
A: One year(Artificial damage and incorrect use is not included),within warranty period ,we will offer free part and maintain
video, or ever can teach you face-to-face. if machine have serious quality problem ,we support to back .
6. Q: What's the delivery time?
A: It usually takes about 7-30 working days to produce one order.
7. Q: How is the payment terms?
A: Normally T/T 30% in advance and T/T 70% before shipment, other terms could be discussed and confirmed then.
8. Q: Can I mix different models in one container?
A: Yes, different models can be mixed in one container, but the quantity of each model should not be less than MOQ.
9. Q: How does your factory do regarding quality control?
A: We always pay great attention to quality control from the very beginning and every product was tested piece by piece before delivery.
10. Q: Do you have quality certification?
A: Yes, we have CE, SGS,ISO, ect.
