Digital Textile Flow meter Steam Gas Vortex Type DN50 DN80 LUGB Steam Flow meter 4-20mA
Product Description
LUGB Vortex flow meter
Product Introduction
vortex flow meter with RS 485 or HART protocol is based on Carmen (Karman) vortex principle,
it can measure the gas, steam or volume flow rate of the liquid, volume flow of standard conditions
or mass flow .Also it can be applied as a flow transmitter for automation and control systems.
Scope:
Gas: air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas, ammonia gas etc.
Steam: superheated steam, saturated steam.
Liquid: water, oil
Application:
Vortex flow meters are widely used in large, medium and small variety of pipes ,for drainage, industrial recycling, sewage treatment, oil and chemical reagents .As well as measuring compressed air, saturated and superheated steam metering,natural gas.
LUGB smart display vortex flow meter
Material: stainless steel
Display: LCD display in English
Power supply:24VDC or Battery
Output: 4-20mA or Pulse
Medium: steam, vapor, gas, liquid etc.
Communication:RS485 modbus, HART protocol
Connection type: flange, wafer type, thead connection

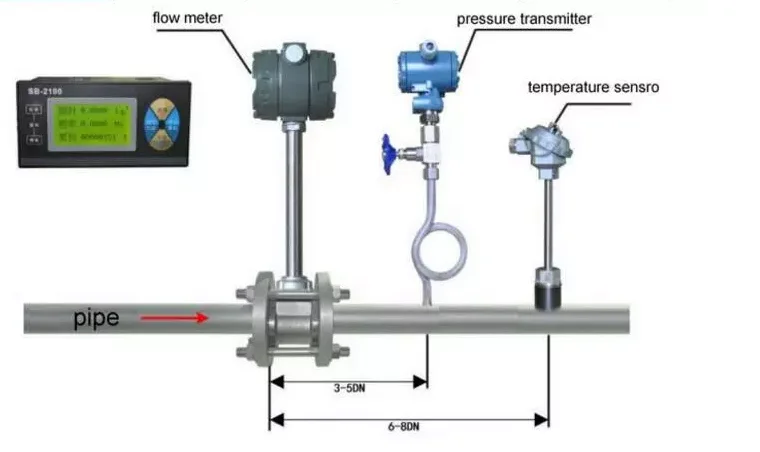

With temperature and pressure compensation
Vortex flow sensor(JB/T9249-1999) | ||||
Vortex flow meter(JJG1029-2007) | ||||
Flow meter classification | Vortex sensor, Smart display vortex flow meter,Temperature and pressure compensation vortex flow meter, insertion type vortex flow meter
| |||
Medium | Steam, compressed air, coal gas, liquid and other high-velocity medium | |||
Meter diameter and connections | DN15-DN300 flange connection or flange clamp | |||
| DN200-DN1500 is insertion type | |||
Flange Standard | GB/T9119-2000,Standard ANSI, standard JIS can be customized | |||
Power supply | 24VDC or 3.6V Lithium batteries,Power Consumption <.5W | |||
Output | 4-20mA or pulse output | |||
RS485communication,or MODBUS-RTUcommunication. | ||||
Accuracy Grade | Liquid | ±1.0%R(Pipeline)±2%(Plug-in) | ||
| Gas or steam | ±1.5%R(Pipeline)±2.5%(Plug-in) | ||
Repeatability | Lliquid | ≤0.2% | ||
| Gas or steam | ≤0.5% | ||
Range ratio | 1:10-1:20 | |||
Using condition | Medium temperature | T2(medium temperature type) | -40℃~+280℃ | |
|
| T3(High temperature type) | 280℃~+350℃ | |
| pressure | 1.6MPa ,2.5MPa,4MPa |
|
|
| Ambient temperature | -20℃~+60℃ | ||
| Atmospheric pressure | 86KPa~106KPa | ||
Application area
Vortex flow meters are widely used in large, medium and small variety of pipes ,for drainage,
industrial recycling, sewage treatment, oil and chemical reagents .As well as measuring
compressed air, saturated and superheated steam metering,natural gas.
Gas: air, compressed air, oxygen, carbon dioxide, nitrogen gas, natural gas, methane gas,
ammonia gas etc.
Steam: superheated steam, saturated steam.
Liquid: water, oil

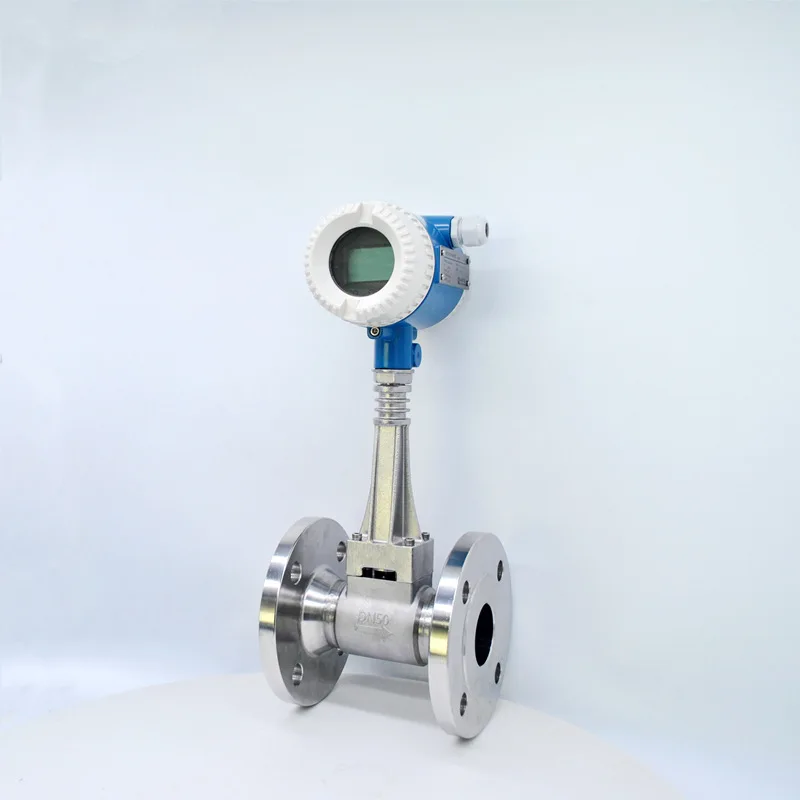

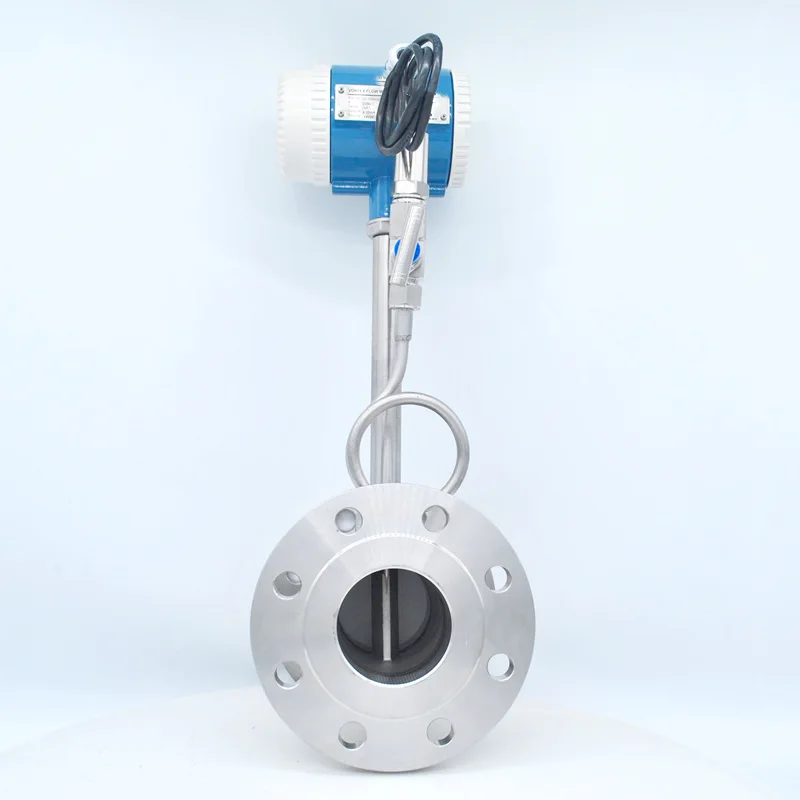

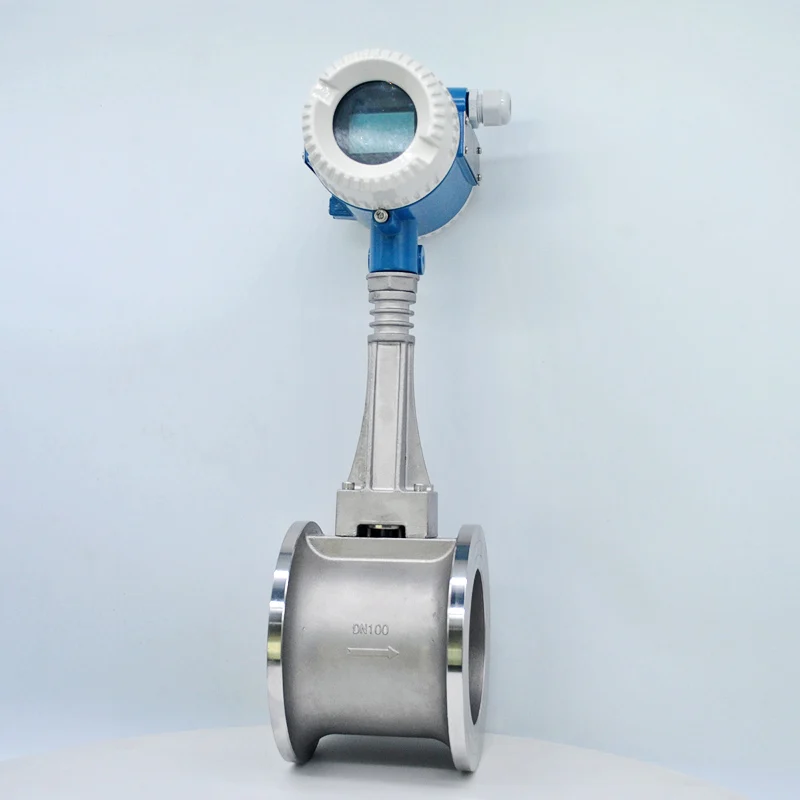

Detailed Images

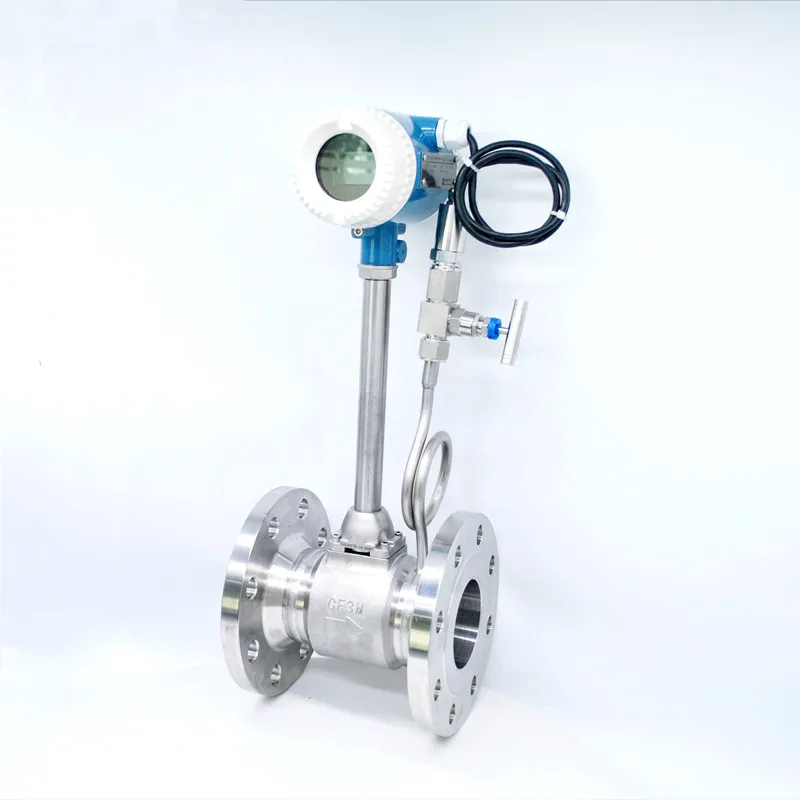

Vortex flow meter measure steam, with temperature and pressure compensation, with flow totalizer

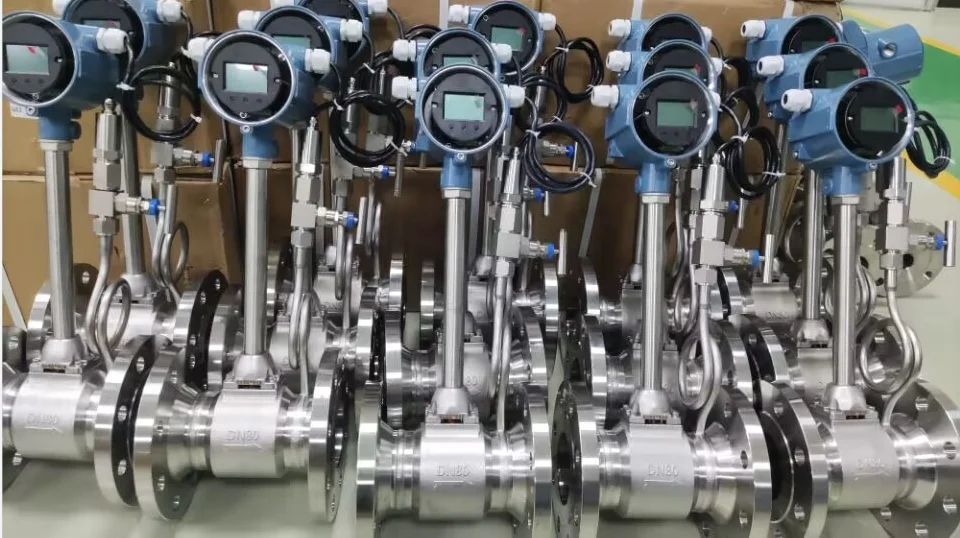

Vortex Flow Meter Ready for deliveyry
