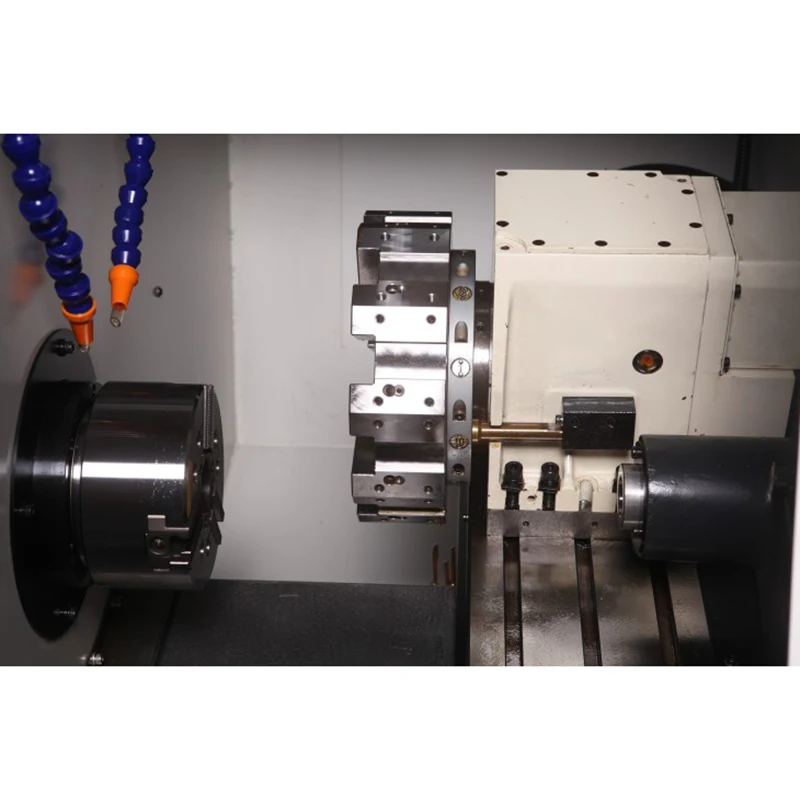

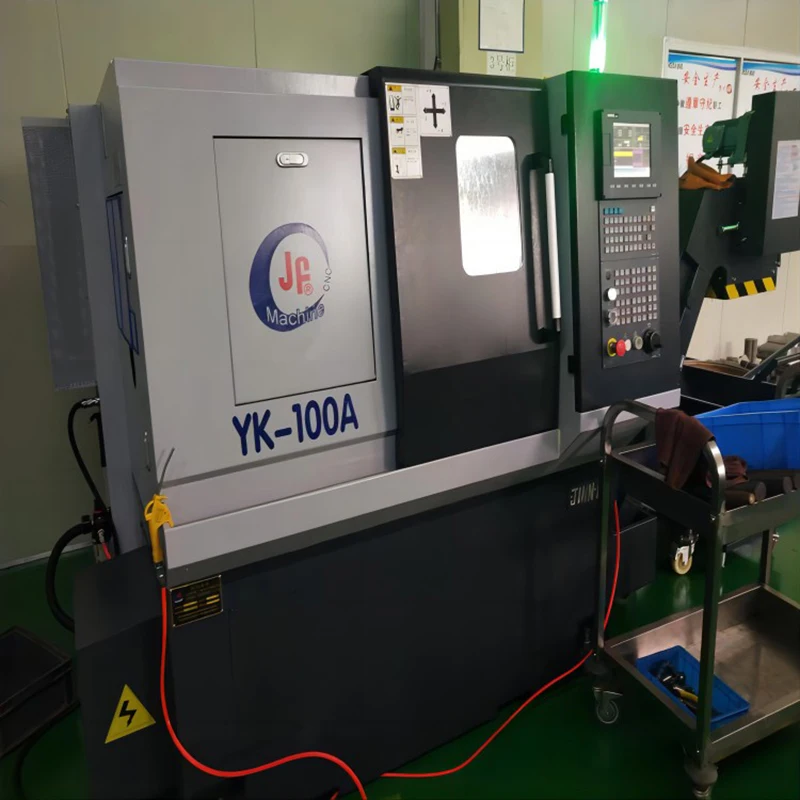

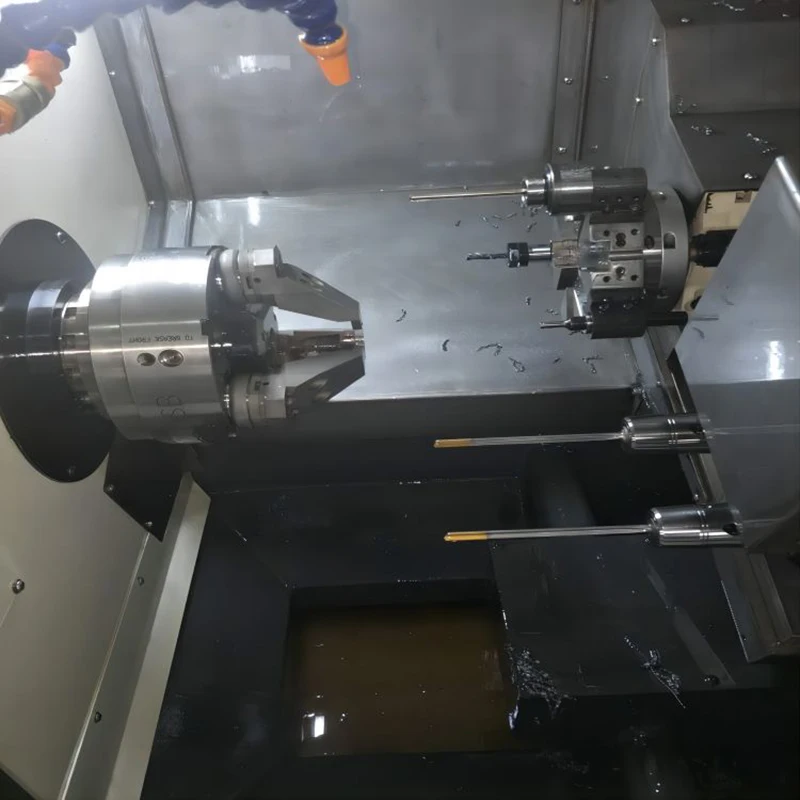

China Professional Supplier Parallel Lathe JINN FA YK 100A Single Spindle Slant Bed Cnc Lathe Machine For Sale
- Category: >>>
- Supplier: Xiongyi Intelligent Machinery (changzhou) Co. Ltd.
Share on (1600733584763):
Product Overview
Description
Product Description
YK-1OOA machine tool adopts inclined bed, hard rail design, and has high-strength turning function. High precision and good stability.
jin chang industrial co., ltd. YK-100A |
| Basic specifications | Maximum spindle diameter | φ 320mm |
| Maximum machining diameter | φ 200mm | |
| Maximum bar diameter | φ 42 mm | |
| Maximum machining length | 200mm | |
| trip X axis | 110mm | |
| trip Z-axis | 200mm | |
| X axis | 16m/min | |
| Z-axis | 16m/min | |
| Tool selection speed | 0.3sec | |
| Stand alone profile (long × wide × High) | 1800×1550×1780 | |
| Total weight of single machine (Kg) | 2200 Kg | |
| Overall appearance (standard configuration) | 2800×1550×1780 | |
| Weight of complete machine (standard configuration) | 2400 Kg | |
| Repetitive positioning accuracy | 0.005 | |
| noise | 85Db |
| Parameter or function | |||
| principal axis | Motor model and manufacturer | B6/10000i | SYNTEC |
| Transmission mode | Belt | ||
| Motor power (continuous) | 7.5HP | SYNTEC | |
| Motor power (peak value) | 10HP | SYNTEC | |
| Speed range | 45~3500RPM | ||
| Maximum torque | 67.2NM | SYNTEC | |
| Spindle through-hole | φ 55.5 | ||
| Spindle nose | A2-5 | ||

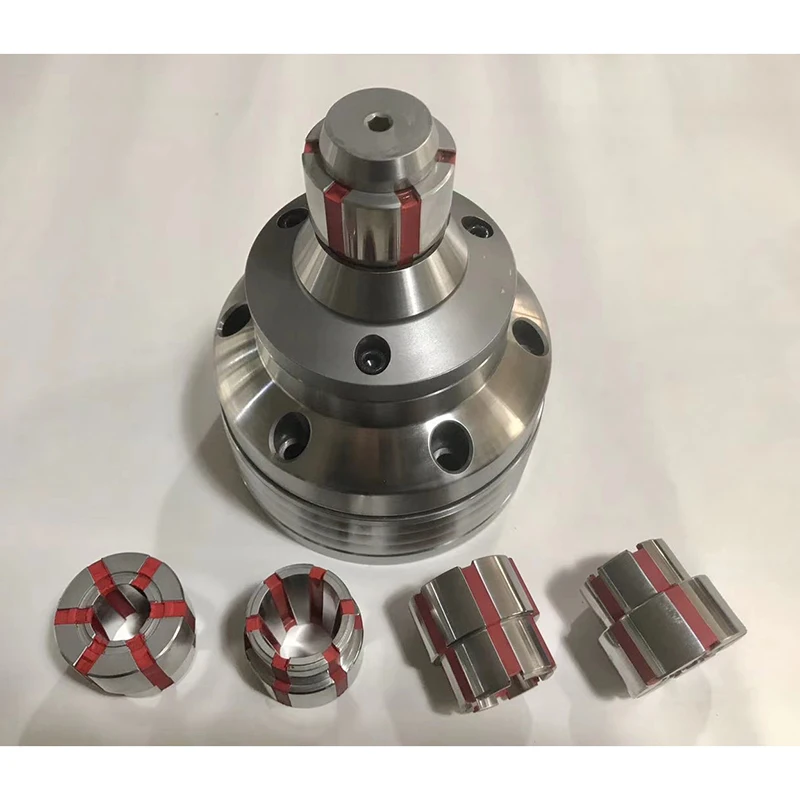

| Spindle collet | 6'' | Taiwan | |
| Main shaft bearing model | 7016ACD+NN3015 | Japan | |
| Diameter of front bearing of main shaft | φ 80 | ||
| Lubrication medium | GREASE LGLC2 | ||
| Spindle cooling mode | Air cooling | ||
| Accuracy of main shaft bearing | P4 |
Please contact us for more equipment parameters.
Company Information
Packaging & Shipping
FAQ
1.What is your minimum order quantity and warranty?
MOQ is one set, and warranty is one year.
2.What CNC system do you use?
FANUC, SIEMENS, MISTSUBISHI, GSK,SYNTEC. It depends on your choice.
3:How can I choose the most suitable machines?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you.
4: What's your main products of your company?
A: We specialize in selling all kinds of machine tools, such as CNC lathes, CNC milling machines, vertical machining centers, lathes, Swiss-type lathes, grinding machines and special fixtures for machine tools, tools, non-standard fixtures, tools
5: Where is our factory located? How can I visit there?
A :Our company is located at C307, Block C, Boyunhui, No. 18, Xingao Road, Niutang Town, Wujin District, Changzhou City, Jiangsu Province, China. You are warmly welcomed to visit us.
6. What is your trade terms?
A : FOB, CFR and CIF all acceptable.
7: What's the Payment Terms?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .
