Fully Automatic SMT Stencil Printer SMT printing machine solder paste screen printerfor SMT assembly line

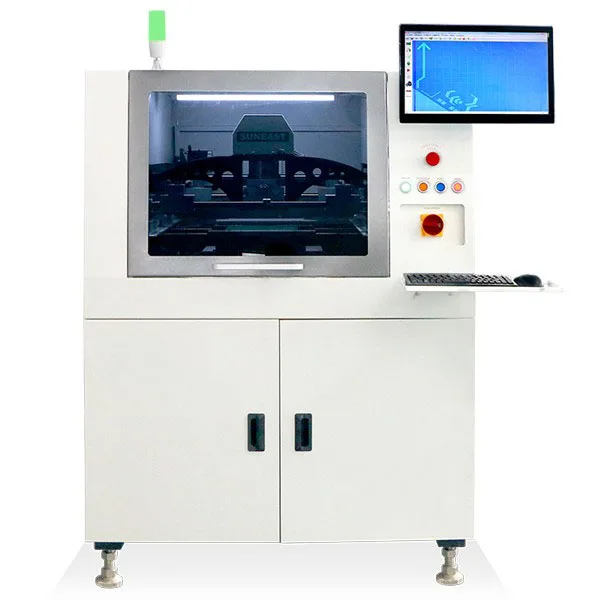

Vision automatic printing machine

1. Main features:

1) Integral welding frame provides basic guarantee for the accuracy and stability of the equipment;

2) Double-layer platform design, motor drive realizes automatic adjustment in X, Y, and Ѳ directions, and Z direction can be adjusted manually and quickly to adapt to changes in customer product thickness;

3) The equipment adopts the visual alignment method to ensure the accuracy requirements. In actual use, there are two modes of single shot and double shot. Single shot mode is to select the reference zero of the machine to grab the position of the product in the equipment, and double shot mode is visual At the same time, grab the steel mesh and compare the position of the product, and drive the motor to move for positioning;

4) Integral transmission system, stable structure, stepper motor drive, stable and reliable transmission, the transmission speed and direction can be quickly set in the software, and the product clamping force can be set and modified at the same time;

5) Independent cleaning mechanism, programmed cleaning mode and frequency, integrated spray system, detachable transfer paper fixing method, convenient and quick replacement of cleaning transfer paper;

6) The lift of the scraper adopts a structure directly connected to the screw rod, the transmission is stable and reliable, and the flexible scraper structure ensures that the pressure is balanced while adapting to the uneven surface of the steel mesh, which can better print the deformed plate, and innovatively increase the contact induction technology to ensure Consistency of pressure

7) WINDOWS operating system, multi-layer software structure design, humanized operation interface, easy to learn and easy to use, built-in software diagnostic system, alarm reminder and other multi-function application programs, standard SMEMA communication interface, can realize data communication with upper and lower computers .

2. Main technical indicators:

1) Maximum board size (XY) 400mm310mm

　　Minimum board size (XY) 50mm50mm

　　 Overboard thickness: 0.6mm~4.0mm

　　The board weight≤4kg

　　The height of the parts on the bottom surface of the board≤10.0mm

　　 Over the board process edge ≥3.0mm

2) Minimum size of steel mesh (XY) 520mm420mm

　　Maximum size of steel mesh (XY) 737mm737mm

　　Steel mesh thickness: 20mm~40mm

3) Transmission height 900±40mm

4)) Printing accuracy: ±0.025mm

　　Printing cycle: ≥10sec (the actual data is related to the production process of the printed product, and does not include the printing time and cleaning time)

5) PCB support method: magnetic thimble, magnetic top block

6) PCB splint method: side clamp.

7) Printing speed: 0~200mmsec Printing pressure: 0~20kg

8) PCB transmission speed: 500~1500mmsec, increment of 1mm

9) PCB transmission direction: left-right, left-left (factory default setting, customers can choose right-left, right-right before leaving the factory).

10) Fixed direction of transportation rail: the front rail is fixed, the rear rail is moving

11) Main power supply: AC 220V±10% 5060HZ single phase

12) Total power: about 3kw

13) Main air supply source: 4.5～6kgfcm2

14) Machine weight: about 950Kg

15) Machine dimensions: 1140(L)1350(W)1490(H) mm

16) The front and rear clear space of the machine is 1000mm

17) Scraper: specified separately by the customer.
