OEM ODM 4 20mA 0 5V Water Air Pressure Sensor For Industrial Compressor
- Category: >>>
- Supplier: Hefei Wnk Smart Technology Co. Ltd.
Share on (1600733603675):
Product Overview
Description

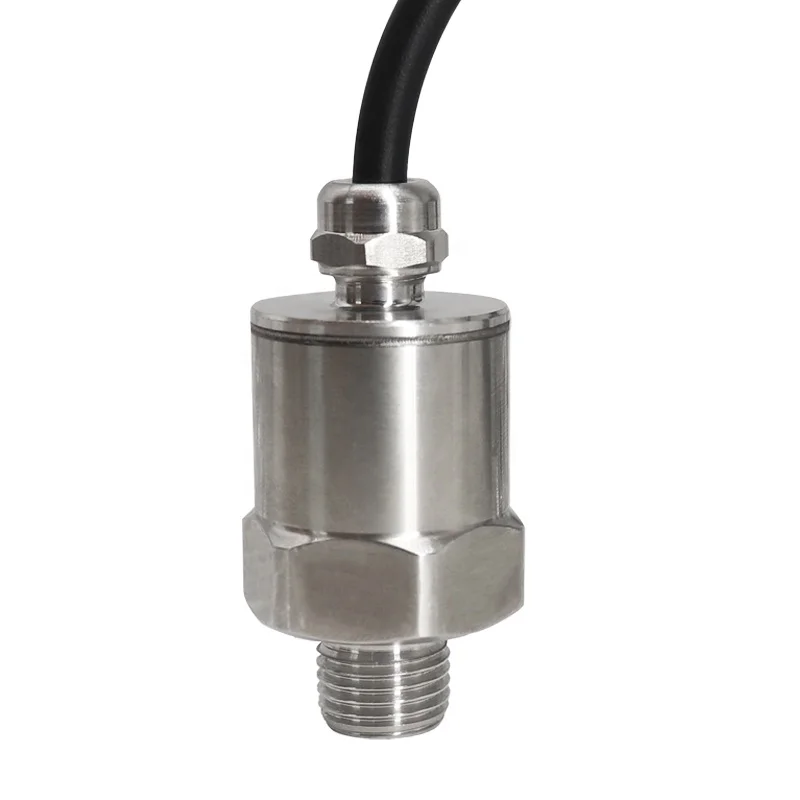

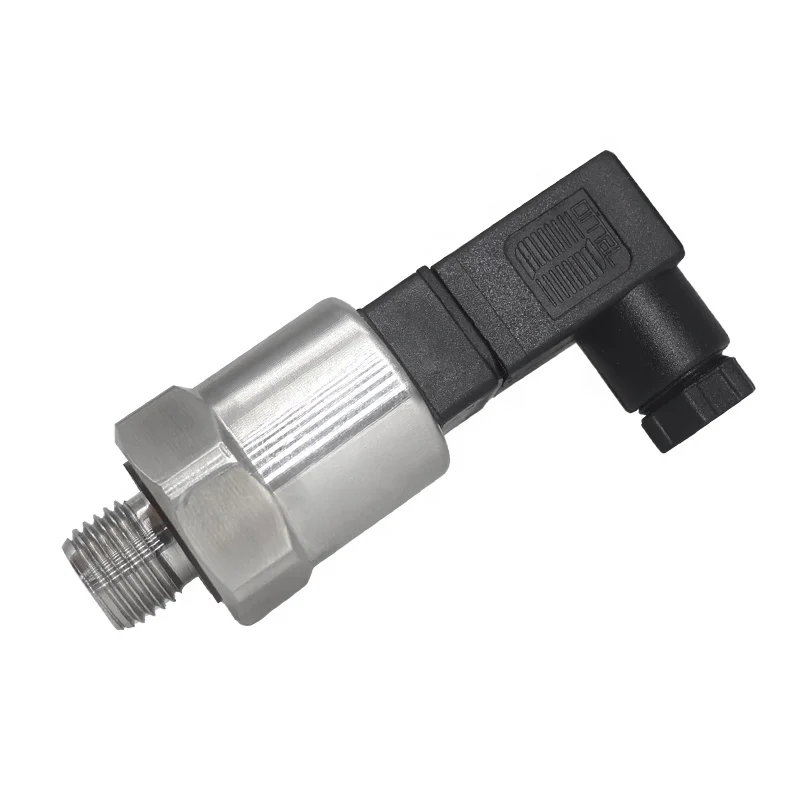

OEM ODM 4-20mA 0-5V Water Air Pressure Sensor For Industrial Compressor
Product Description

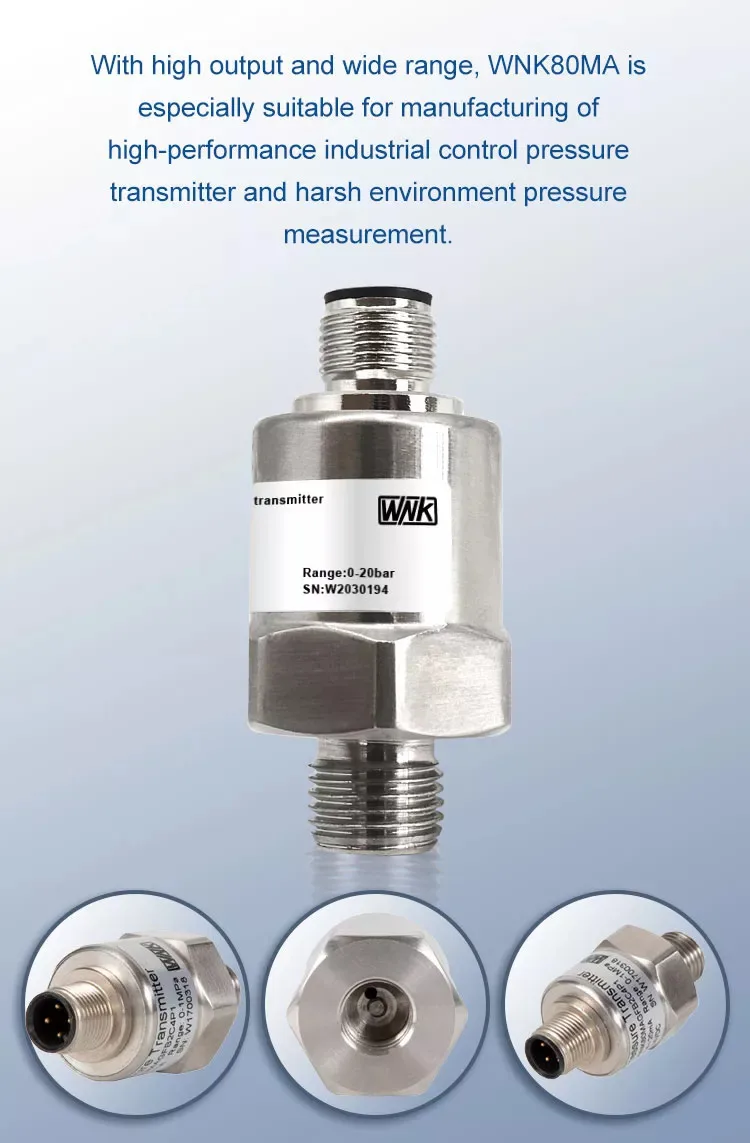

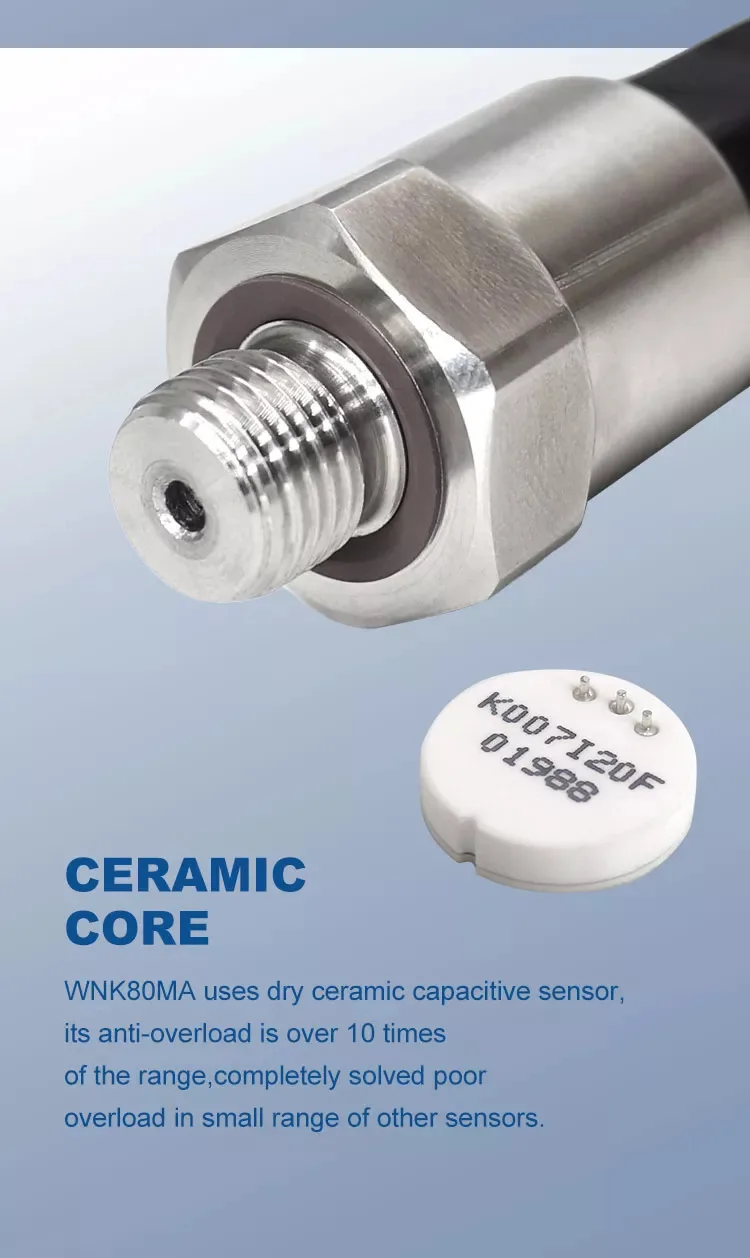

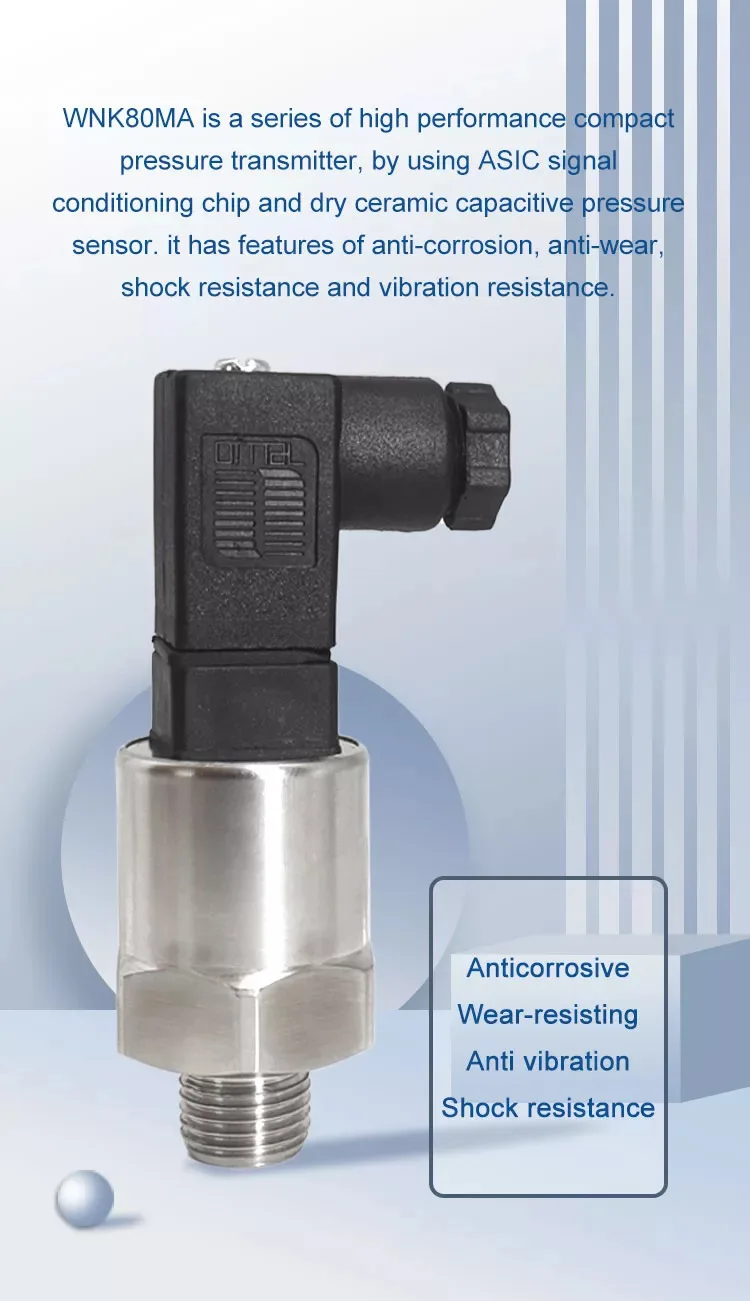

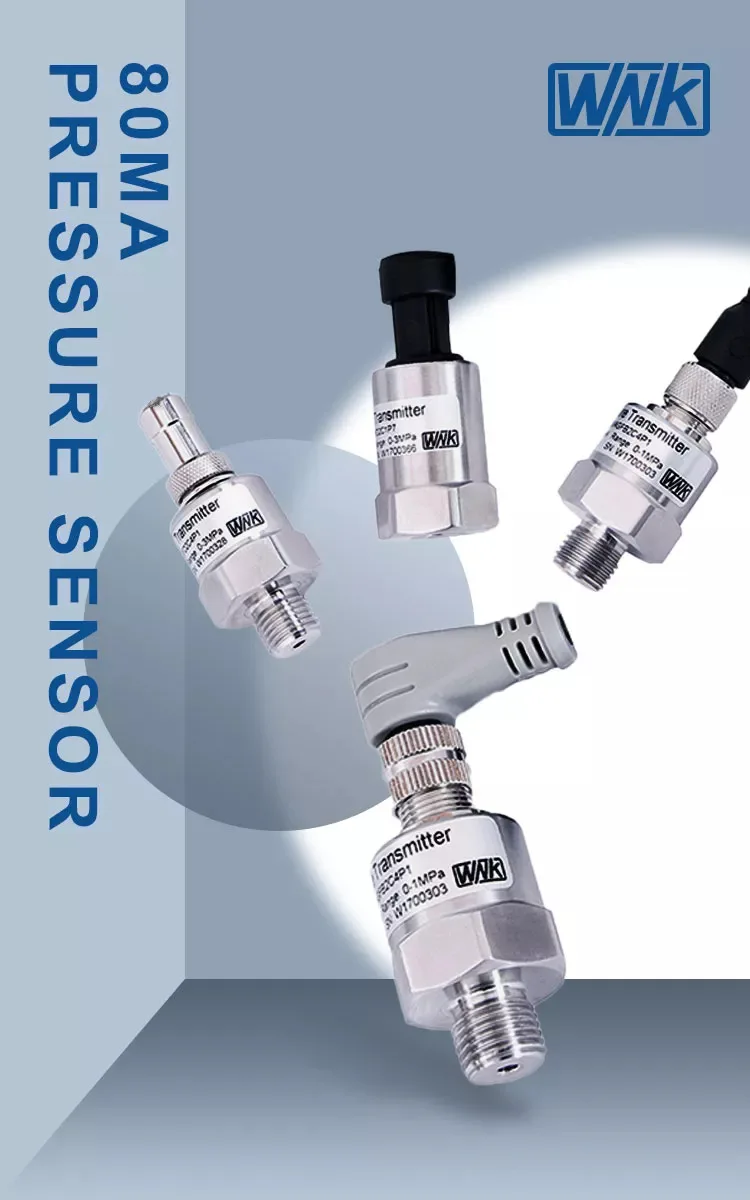

WNK80MA is a series of high performance compact pressure transmitter by using ASIC signal conditioning chip and dryceramic capacitive pressure sensor. It has features of anti-corrosion, anti-wear, shock resistance and vibration resistance. lts anti-overload capacity is 5~10 times of therange, completely solved poor overload in small range of other sensors. ln addition to general ranges of normal sensors, itsmost outstanding characteristic is the positive and negativegauge pressure function. As high output and wide range of itscore ceramic capacitive sensor, WNK8OMA is especially suitablefor harsh industrial environment pressure measurement.
Applicable media | Liquid, Gas |
Pressure Range | 0-60bar |
Pressure Type | Gauge Pressure, Absolute pressure, Sealing pressure |
Output | 4-20mA/0.5-4.5V/1 -5V/0-10V/I2C |
Accuracy(linearity,Hysteresis and Repeatability) | 0.5%F.S.(Typical) |
0.5%F.S.(Typical) | 24VDC/12VDC/5VDC/3.3V |
Compensation temperature | -20~85ºC |
Ambient temperature | -40~125ºC |
Working temperature | -40~125ºC |
Temperature drift(zero) | ±0.15% F.S. (-20~85ºC) |
Temperature drift(full range) | ±0.15% F.S. (-20~85ºC) |
power(electrical) connect | Parkard, M12, DIN43650, Cable outlet |
Mechanical connection | G1/4, 1/4NPT, 1/8NPT, M12*1.5, customize |
Housing material | 304 stainless steel(inner core is 316 stainless steel) |
Protection | IP65 |

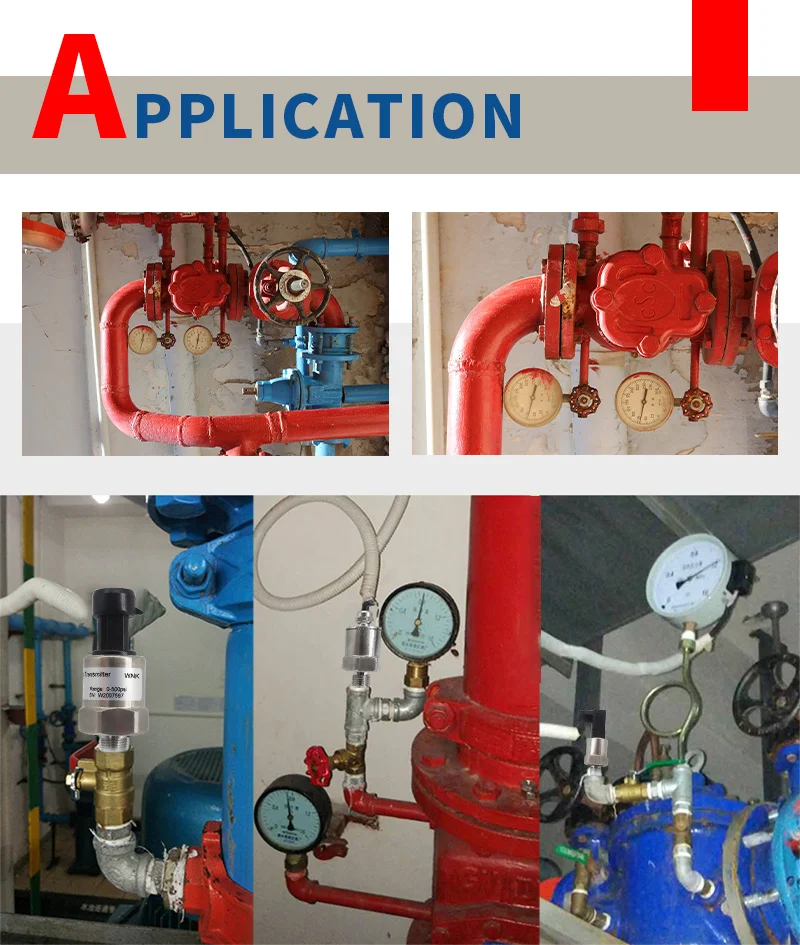

Applications

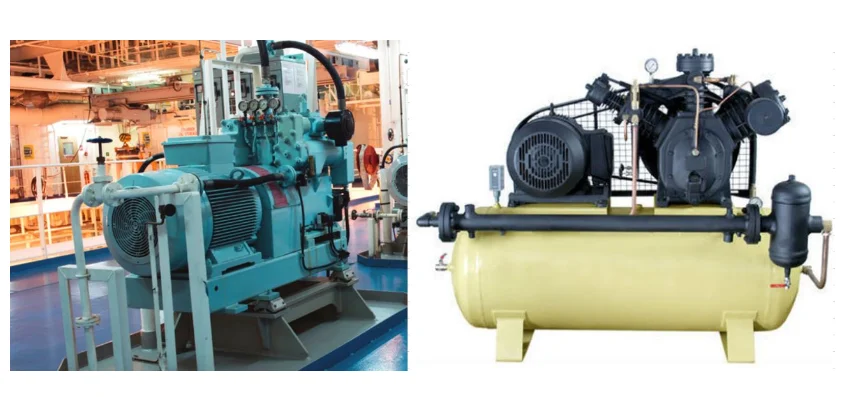

-Automobile, Compressor and Refrigeration Industry-Engineering machinery
-Pressure control and monitor
-Water treatment system
-Hydraulic and Pneumatics
-HAVC and BAS Control
-Pump, fitness equipment,household appliances
-Factory Automation
-Fluid Control and Instrumentation Systems
-Pressure control and monitor
-Water treatment system
-Hydraulic and Pneumatics
-HAVC and BAS Control
-Pump, fitness equipment,household appliances
-Factory Automation
-Fluid Control and Instrumentation Systems
Customer Feedback

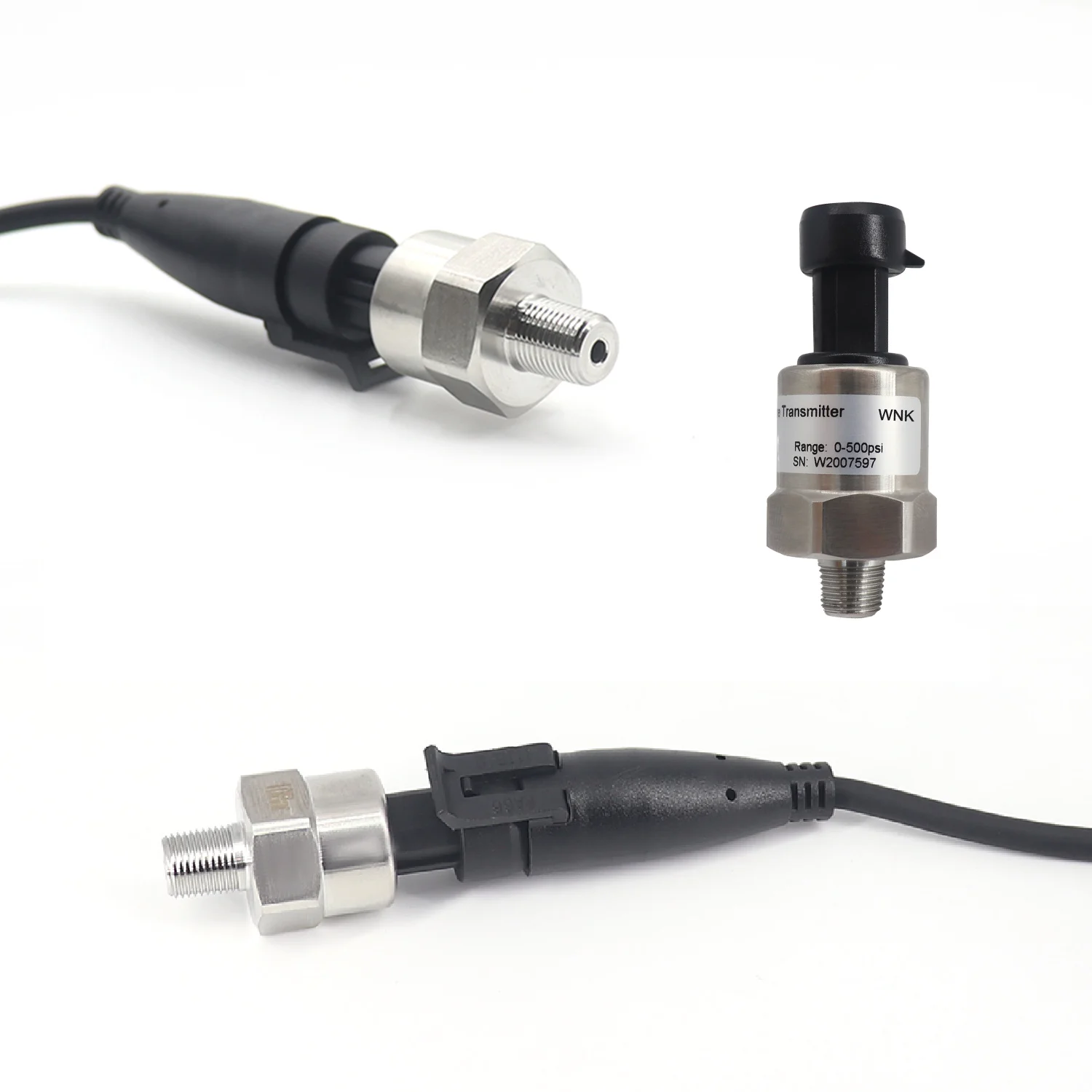

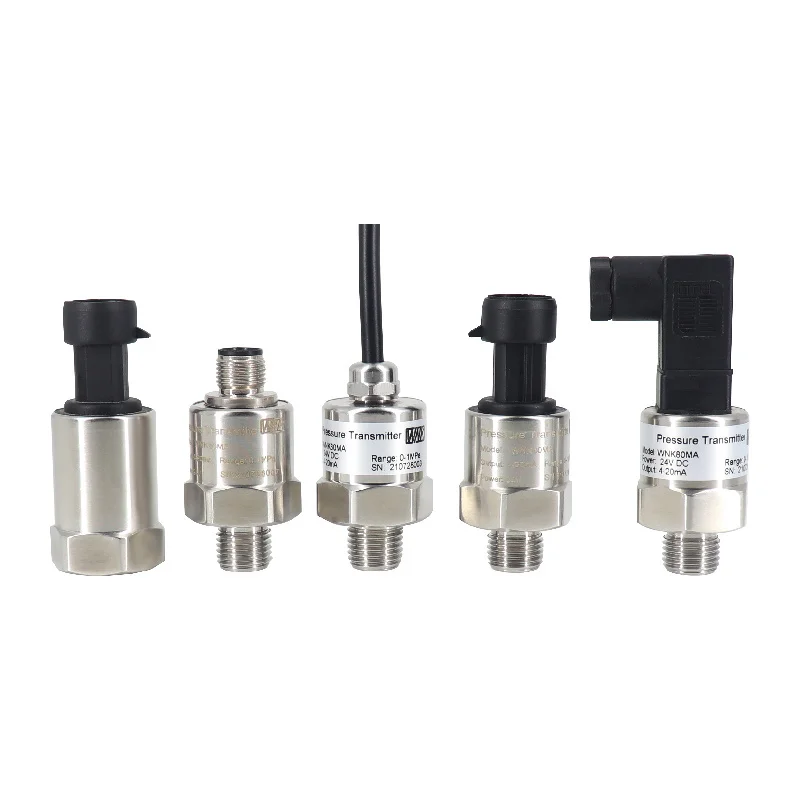

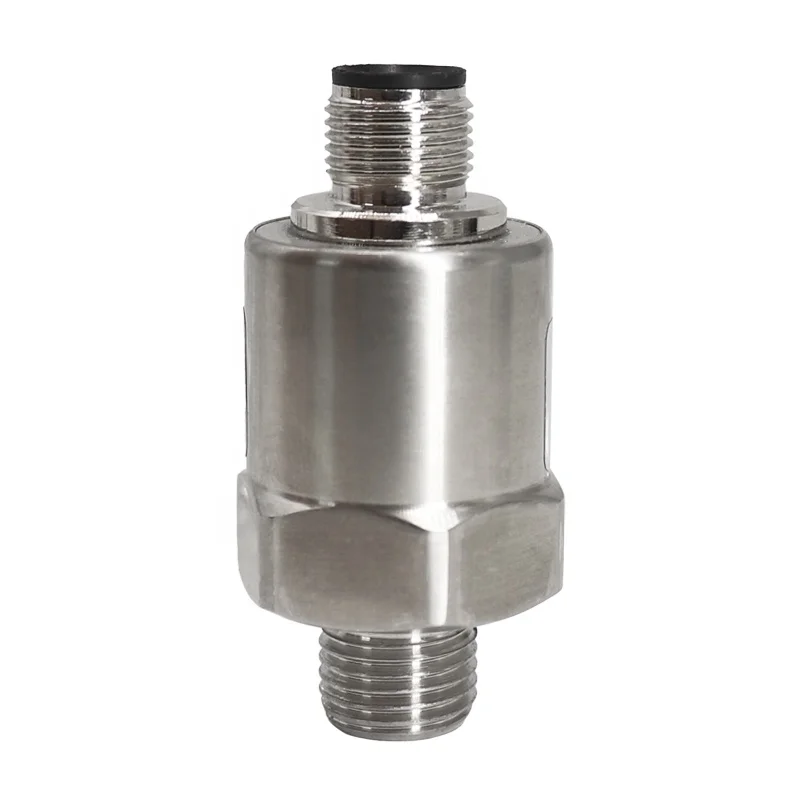

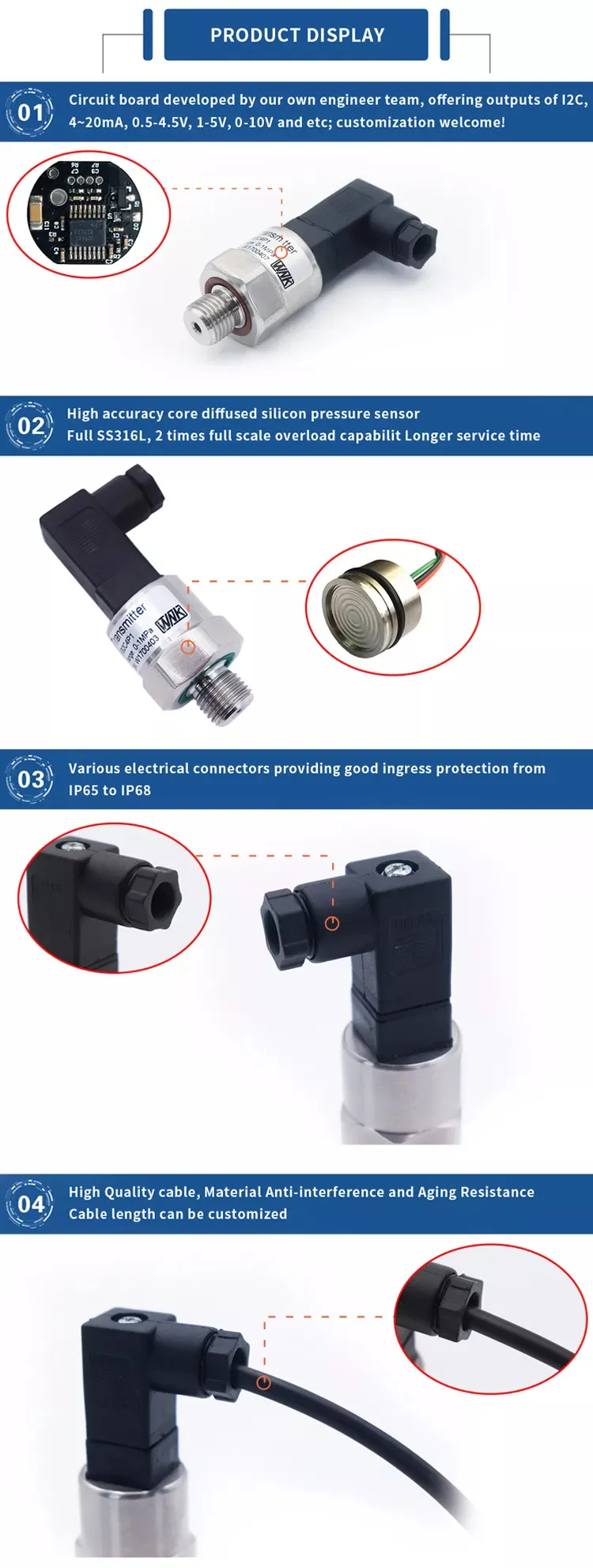

Product Show
Hot Products
Company Profile
Applications
Packing & Delivery
FAQ
Q: Are you manufacturer or trading company?
A: We are 14-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
A: We are 14-year professional manufacturer of Pressure/ Level/ Temperature transmitters with 4~20mA, Hart, Profibus & FF protocols, pressure sensors with SPI, I2C, 4~20mA, 0.5~4.5V and etc, and electronic switches. We provide high quality products with high competitive factory price.
Q: What’s your quality control system?
A: As an ISO9001:2015 certificated manufacturer, we have strict quality control system, and each product is done fatigue testing, calibration, temperature compensation before shipment. High quality is guaranteed.
Q: Is there MOQ with your product?
A: We have no MOQ limits, 1pc for testing purpose is acceptable.
Q: Can we print our logo on the products? Do you provide customized products?
A: Yes, we can print your logo on our products; OEM, ODM&customization are welcomed.
Q: What is the warranty of your products? And after-sales service?
A: Our warranty time is 12 months after shipment, and our after-sales dpt will respond with your questions in 24hrs, remote instruction by PC network is always available.
Q: What is lead time of your product?
A: We are factory, our lead time is always within 7 working days for products without customization, but lead time for flange products is a little longer.
