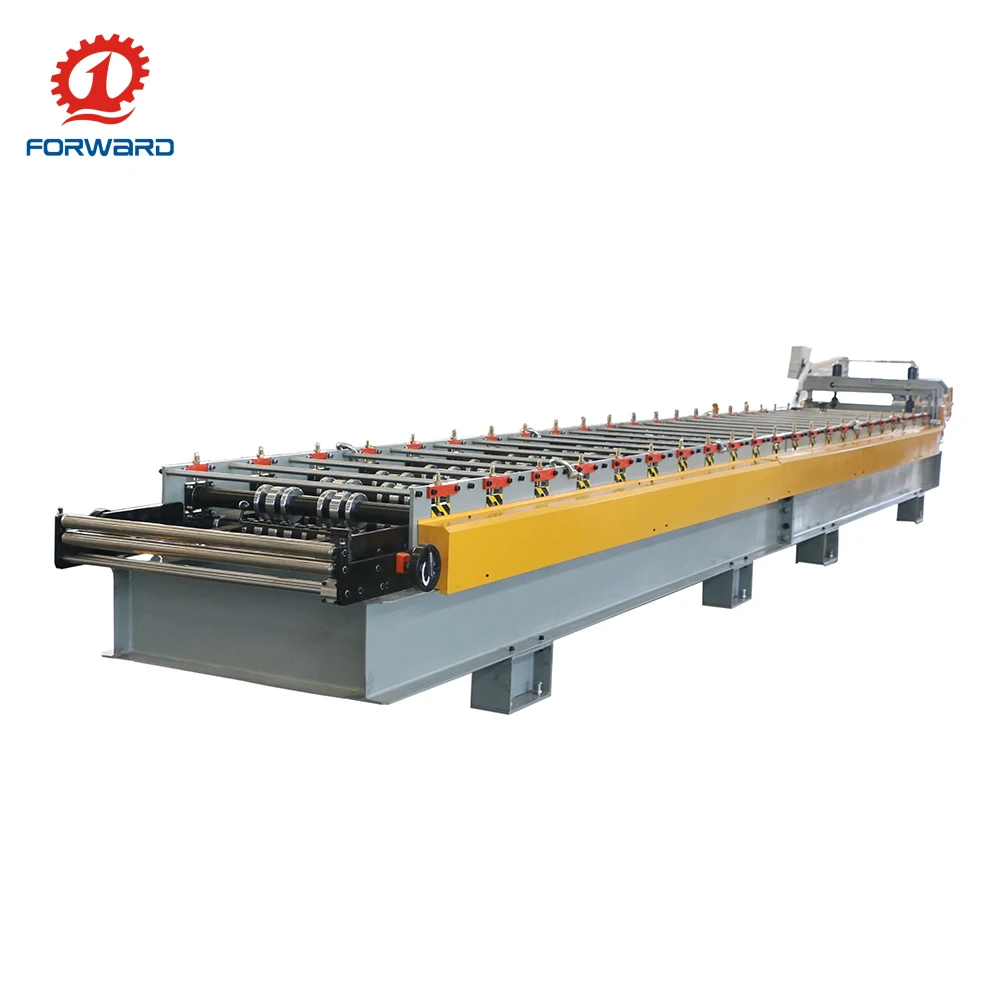

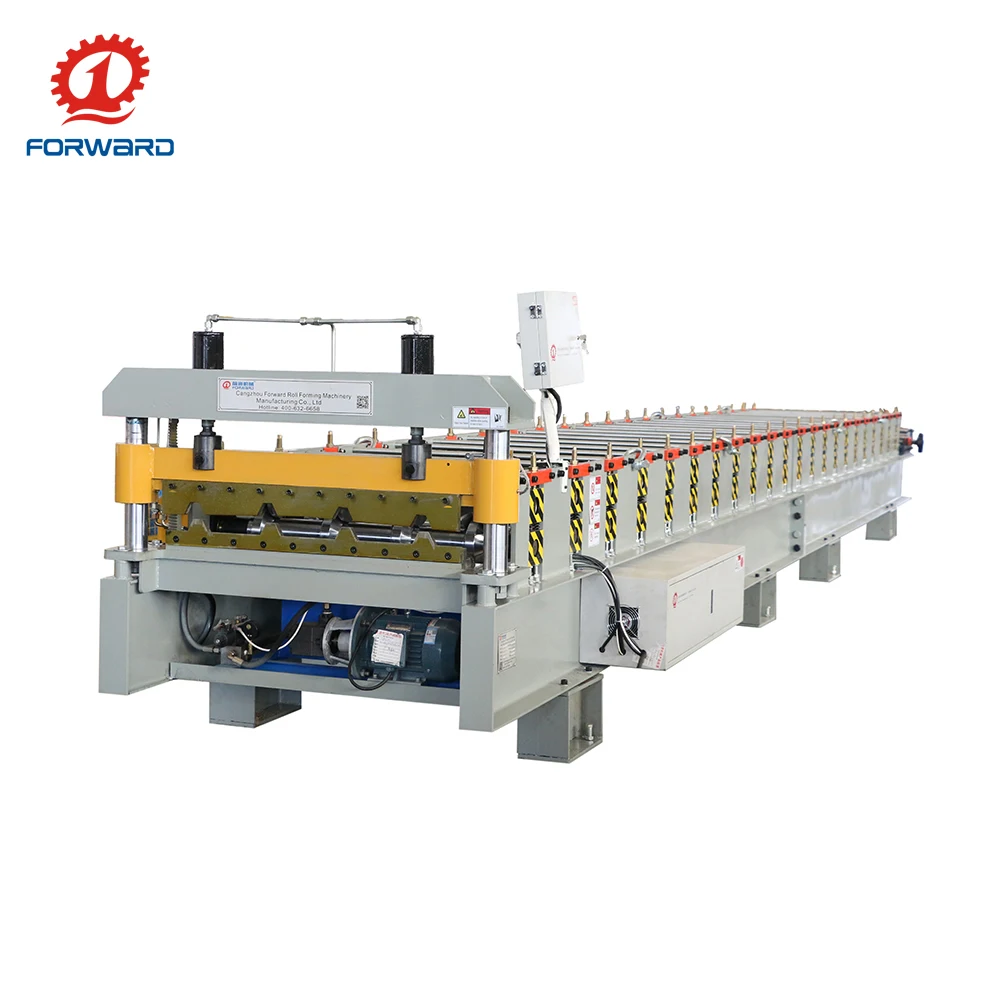

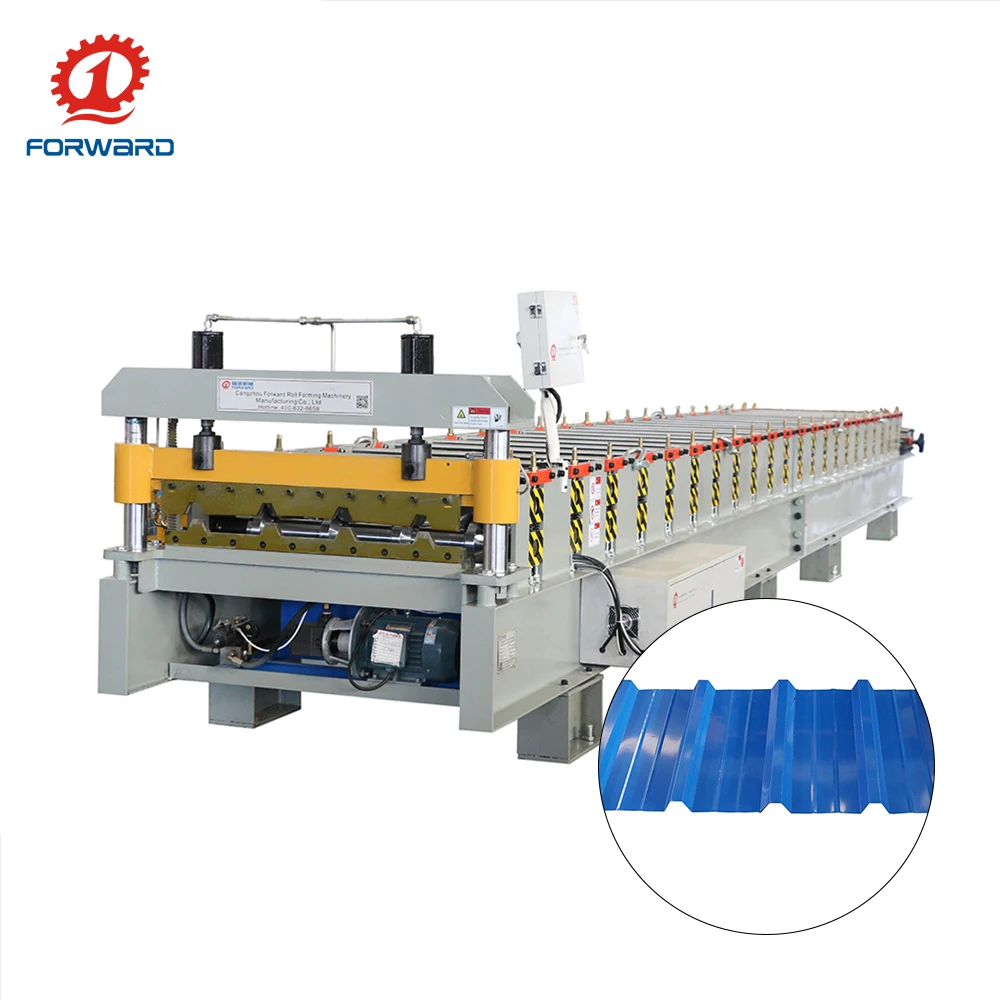

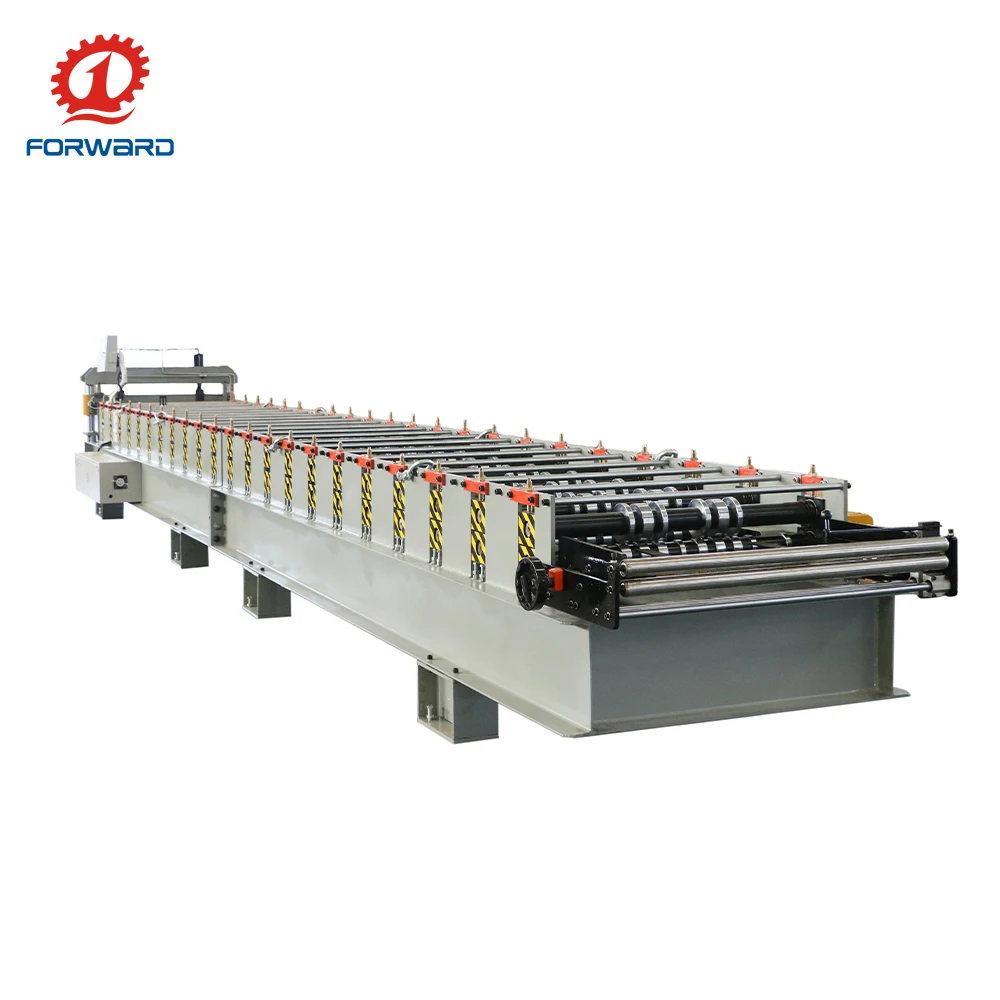

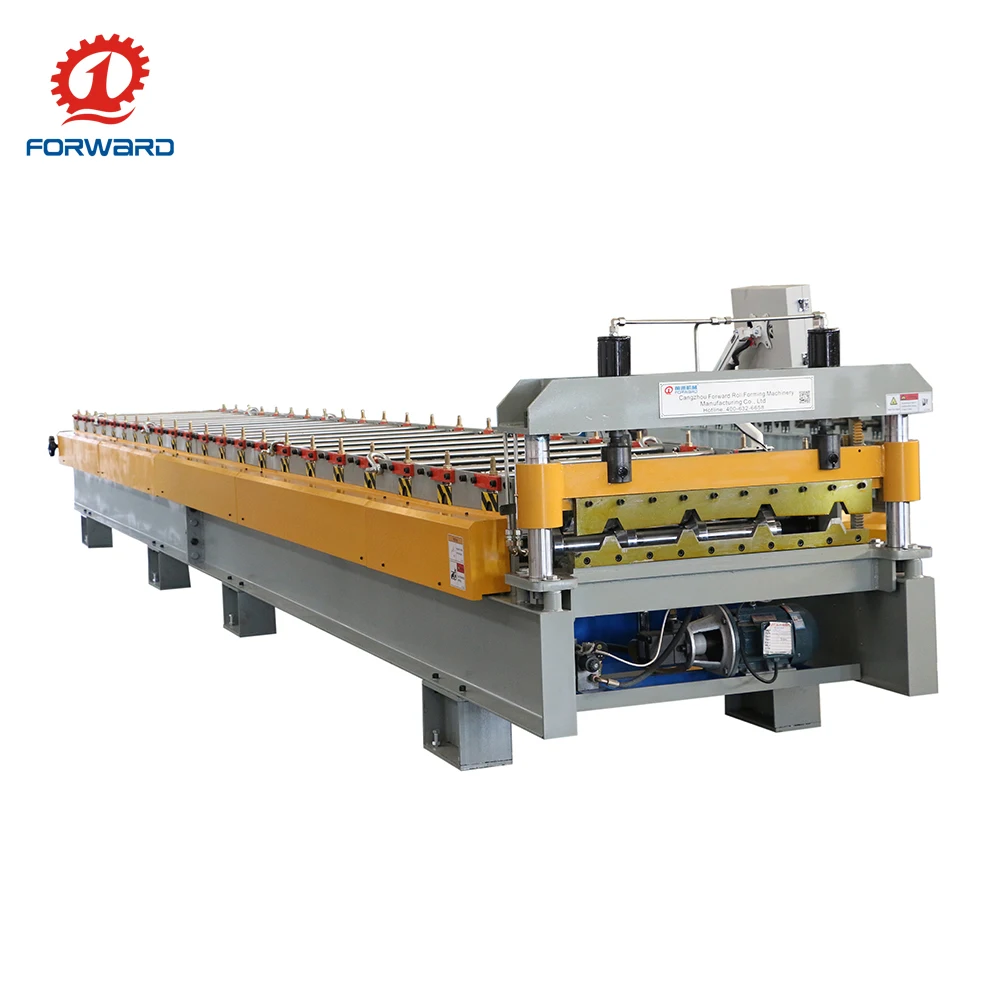

IBR Roof Sheet Making Machine Trapezoidal Tile Sheet Roof Wall Panel Roll Forming Equipment
- Category: >>>
- Supplier: Cangzhou Forward Roll Forming Machinery Manufacturing Co. Ltd.
Share on (1600733615538):
Product Overview
Description
No. | Item | Specification |

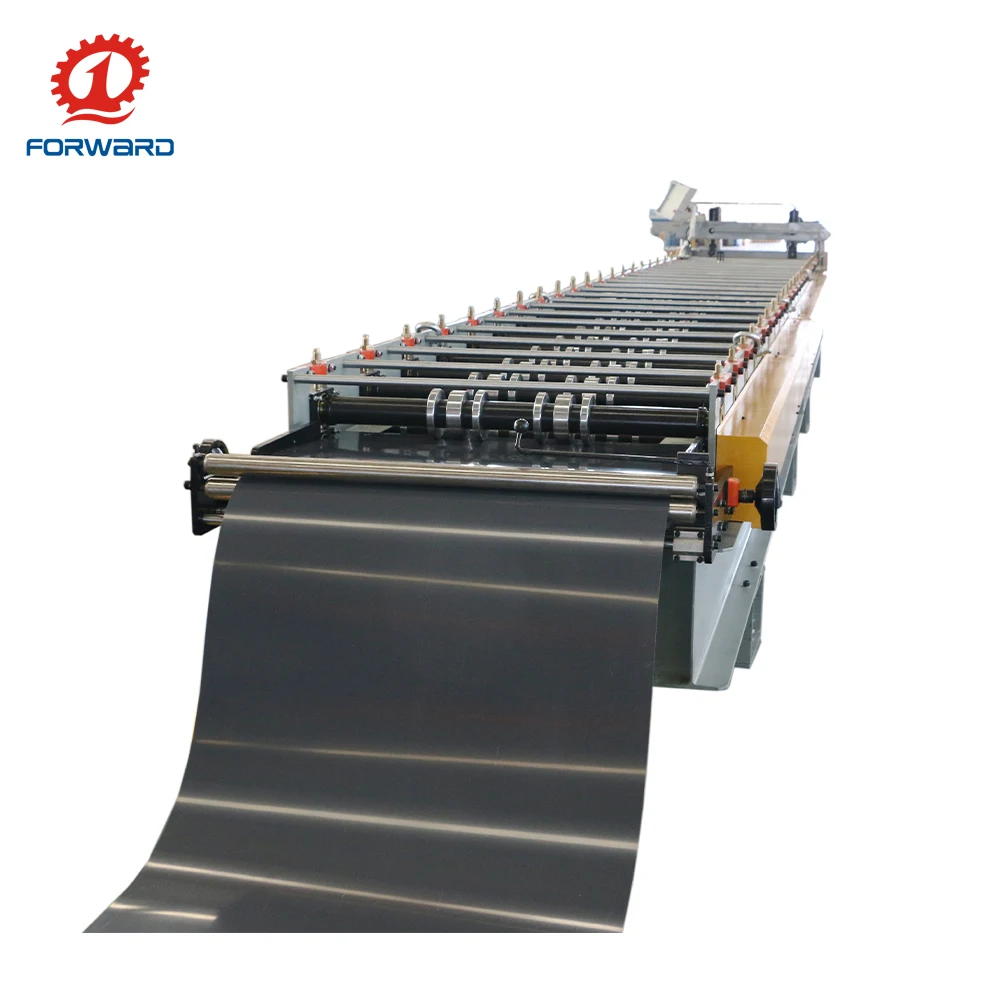

Main Machine | Raw Material | Pre-painted Steel Coil, Galvanized Steel Coil |
Feeding Thickness | 0.2-0.6mm | |
Machine Body Thickness | 16mm steel plate | |
Solid Shaft Material | High grade 45# steel , key-way treatment & polished | |
Shaft Diameter | 70mm-0.01mm | |

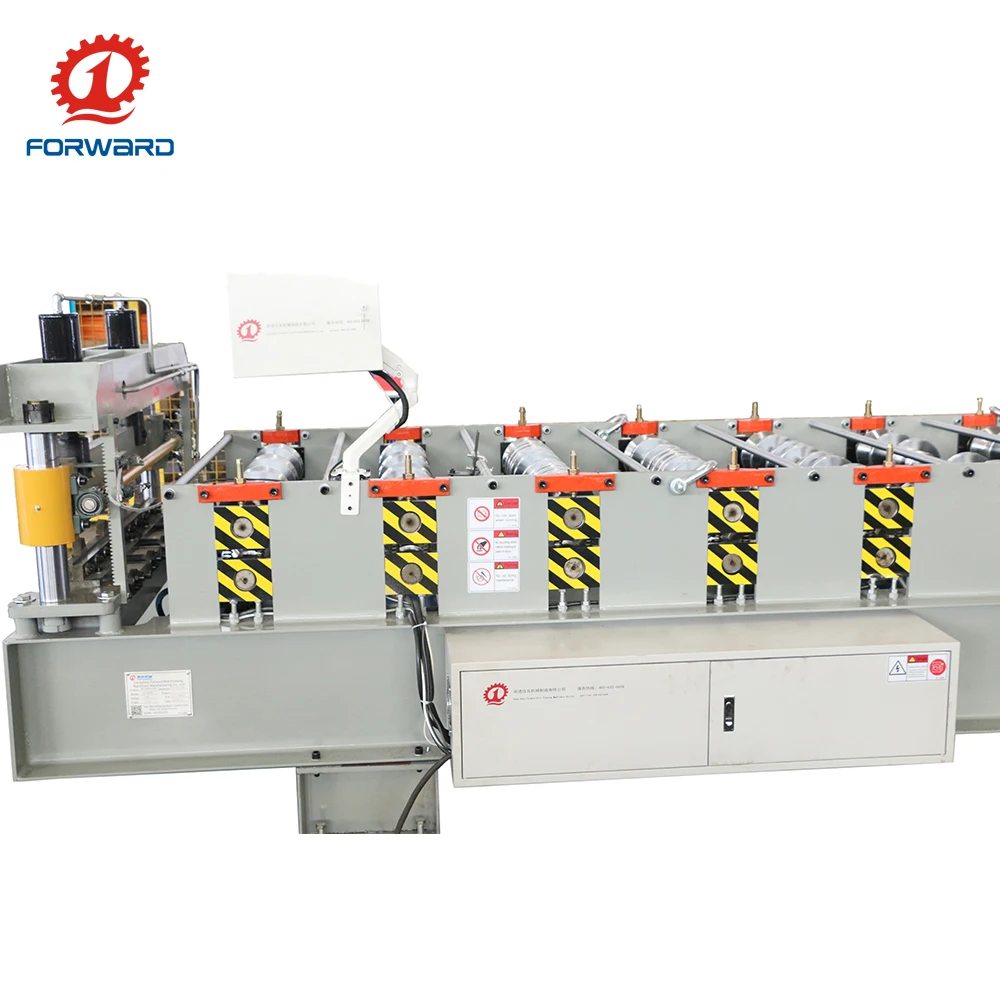

Roller Station | 22 roller stations | |
Roller Material | High grade 45# steel with CNC process and key-way | |
Coder Brand | Shanghai/Siemens/Omron | |
Line Speed | 20-30m/min | |
Transfer Method | Synchronous belt , more stable and stronger | |
Power | 7.5KW Servo motor | |
Dimension of the Machine | 10.5M*1.4M*1.3M | |
Weight | About 6500KGS | |

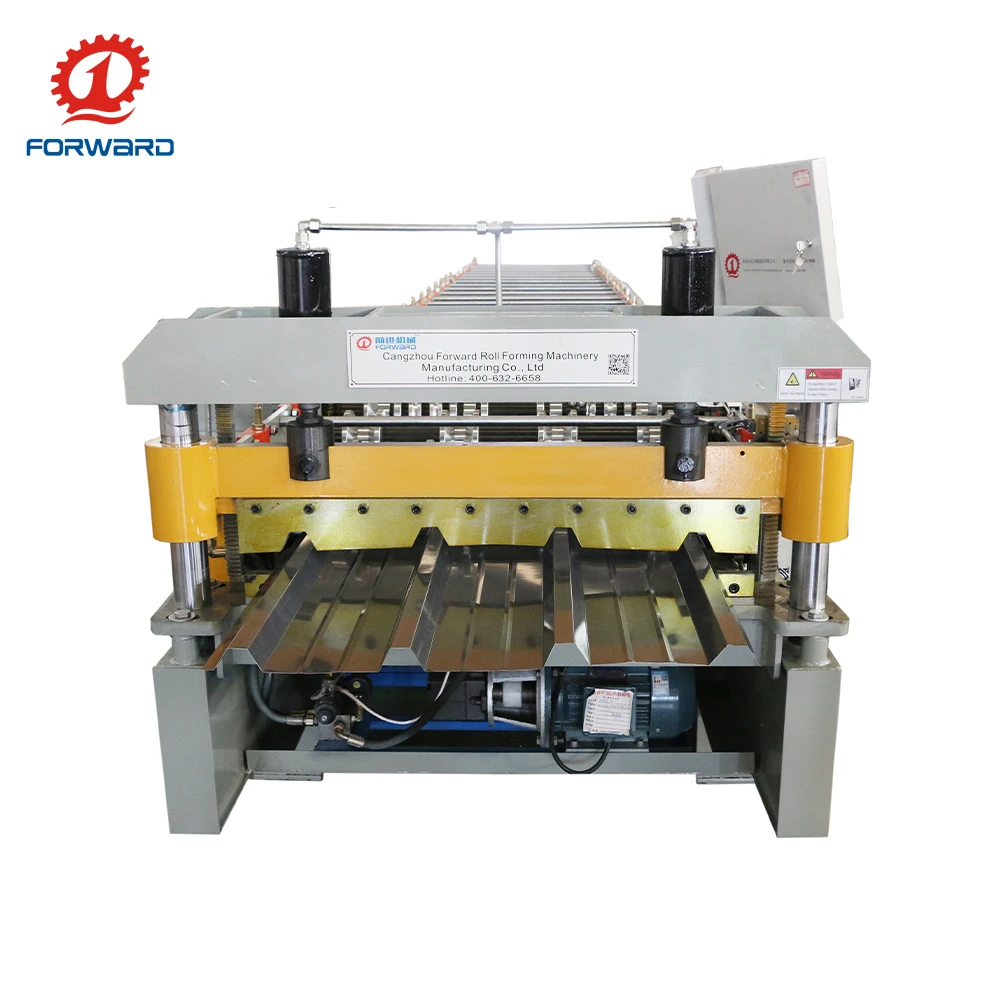

Cutting Machine | Type | Servo motor for electrical cutting |
Thickness Capacity | 0.2-0.6mm | |
Width Capacity | As drawing | |
Cutting Blade Material | Cr12Mov, quenching | |
Hardness | 55-58HRC | |
Cutting Tolerance | +/- 1mm | |
Cutting Operating | Stop to Cut | |
Type | Delta/Siemens PLC controlled | |
PLC brand | Delta/Siemens PLC controlled | |
Frequency Converter | Delta/Siemens PLC controlled | |
Touch Screen | 7 inches |

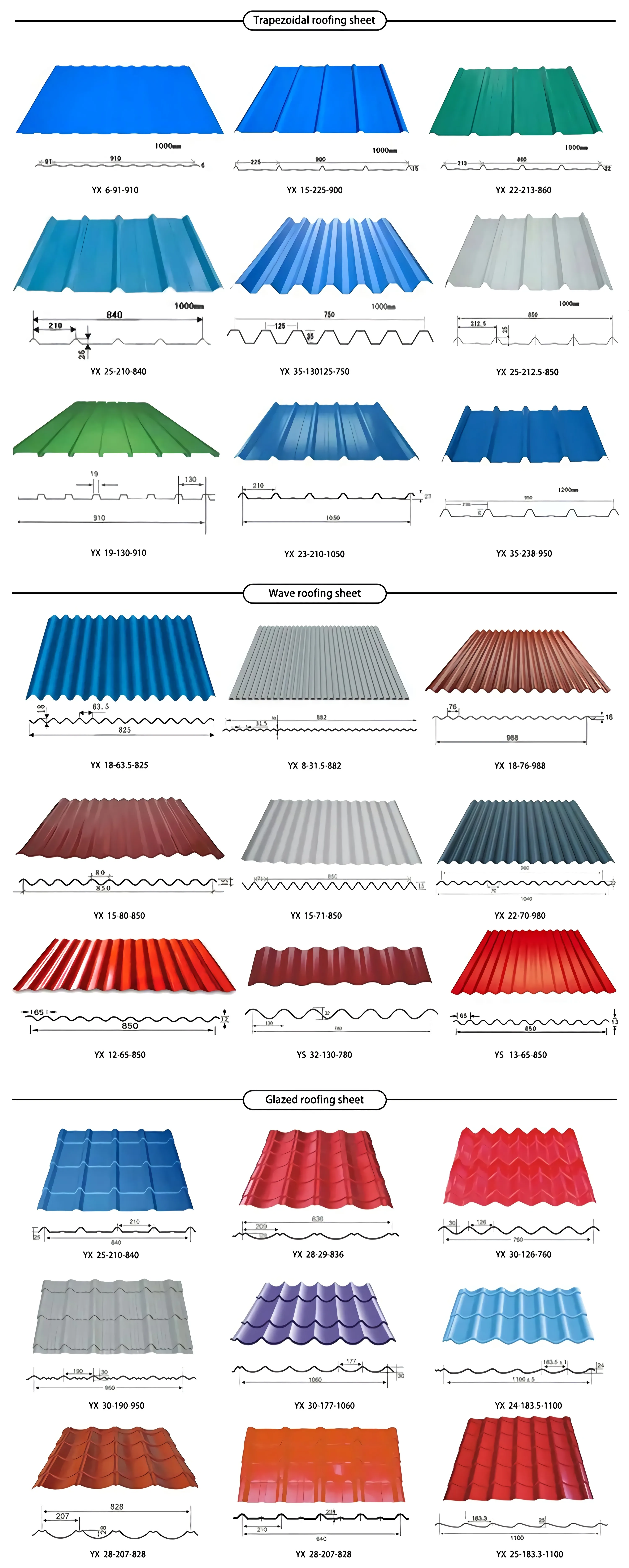

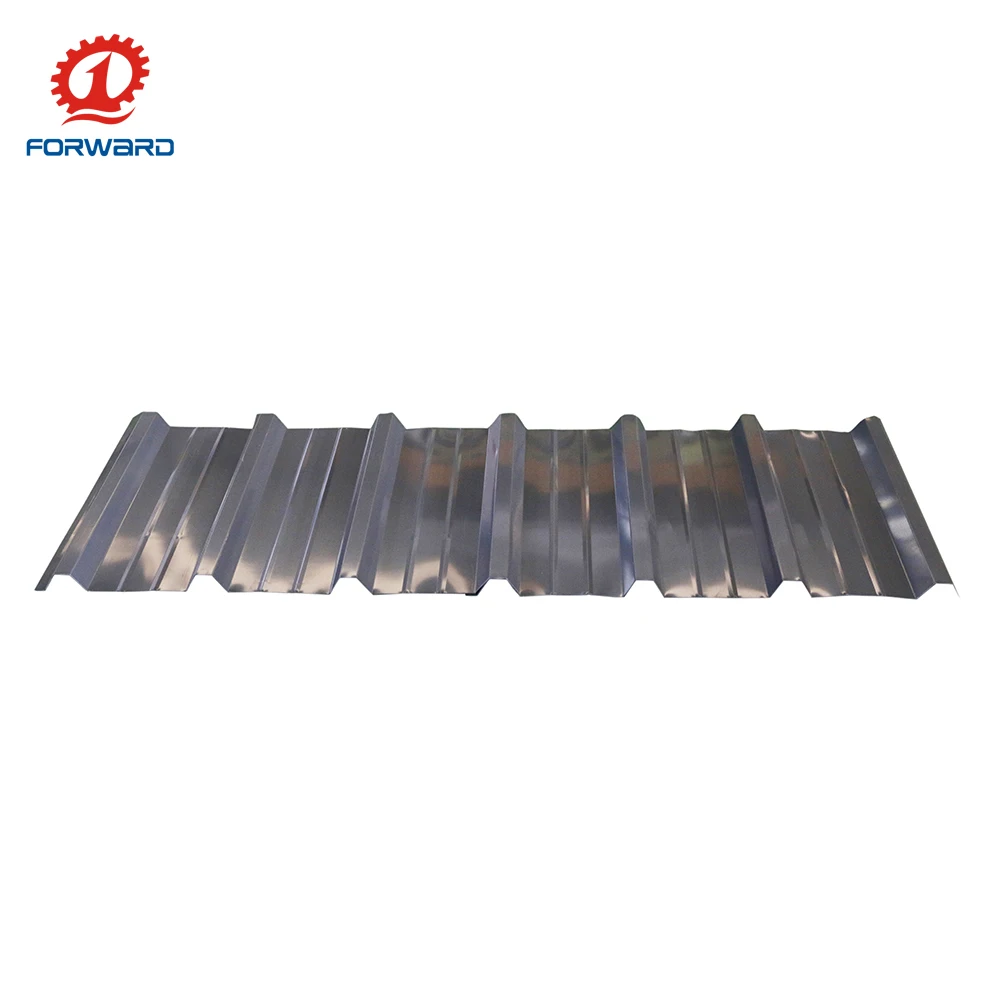

Machines are customized as your drawing.Hot sale drawing profiles for your reference.
Q1. What are the main key points for selecting right machines?
A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point. Good quality is for long-term business cooperation.
Q2. Can you provide OEM service for roll forming machine?
A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.
Q3. What’s your standard trade terms ?
A3: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.
Q4. How about the quality control?
A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(.) Certificate.
Q5. How about the after-sale service?
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
Q6. If I am in Beijing,Shanghai or Guangzhou,how to visit your company?
A6:
1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
1) Beiing South Statioin to Cangzhou West Station (by fast train 1 hour).
2) Shanghai Hongqiao to Cangzhou West (4.5 hours)
3) Guangzhou Airport to Tianjin ,then Tianjin to Cangzhou West
