Product Overview
Description
Veterinary Anestesia Machine Veterinary DM6C With Competitive Price
Model:DM6C
Product Description
Application
The Veterinary Anesthesia machine makes a good performance in animal clinics. From high to low acuity, simple to complex cases, small to big animals, Perlong Medical Anesthesia Systems offer you the choices you need in ventilation, monitoring and technique. what’s more, our expertise in anesthesia delivery and ventilation is based on rich 23-year history of developing anesthesia solutions that meet your needs. Good performance based on High Security, High Accuracy, High Stability and accurate monitoring.
Trust Points
l Simplicity: easy to use, easy to move with 4 wheels.
l Choice: adapt the equipment to different animals and procedures freely
l Centered Ventilation: Precision in an anesthesia ventilator, from conventional ventilation to advanced modes, including 5 modes: IPPV; A/C; PCV; SIMV; SIGH.
l Designed and manufactured by Perlong Medical with over 23 years experience in this area.
l Flexible configurations to suit your needs.
l International standard and advanced technology suitable for wide range use.
l Compact interface and touch screen give you better operating experience.
l Over 2,000 units installed in the world.
Features
l 10.4” TFT LCD touch screen displays the Ventilation parameters, Alarming information and Waveform.
l Electronic flow meter, instantly know the fresh gas flow to your patient.

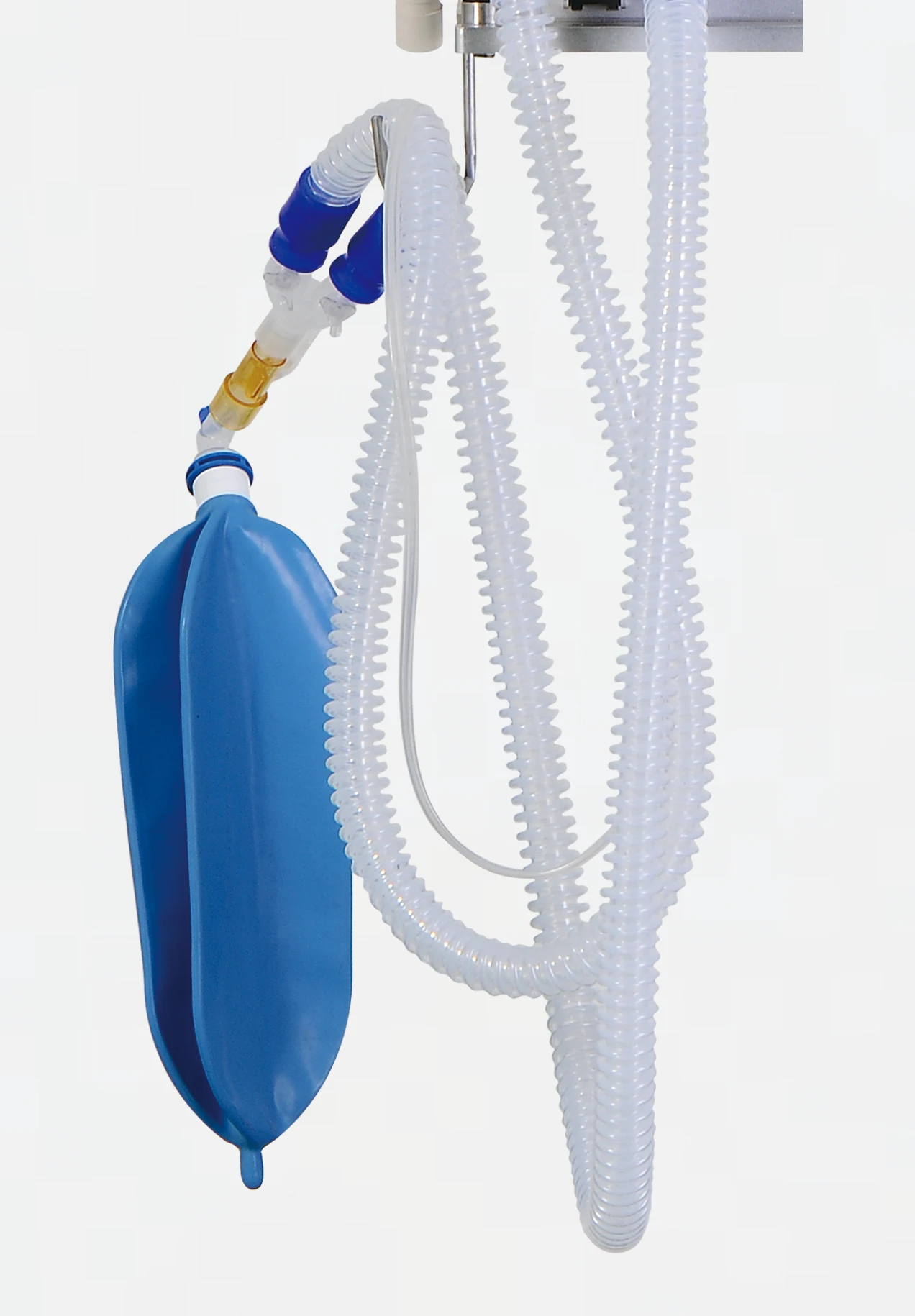

l Integration breathing circuit design, ensure easy operating and keep tidy.
l Multiple working modes such as volume control and pressure limit, adapt to wide range animal.

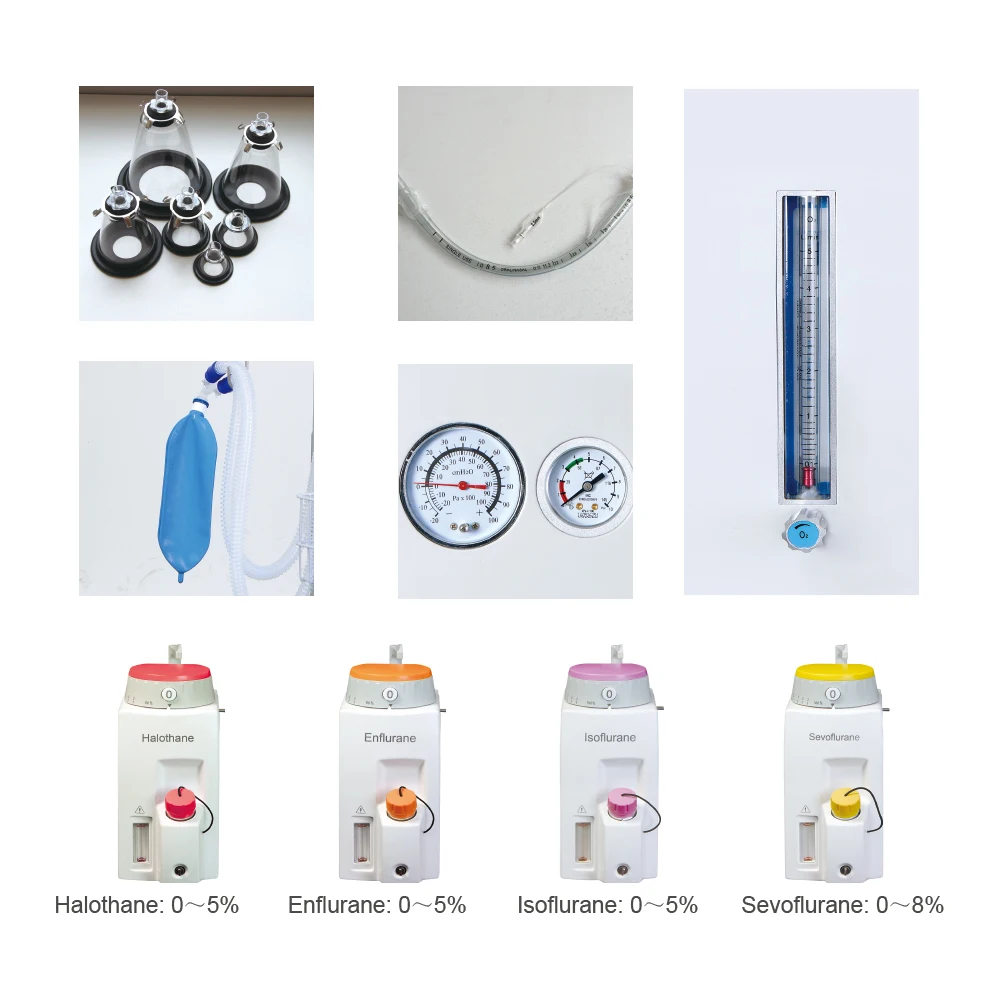

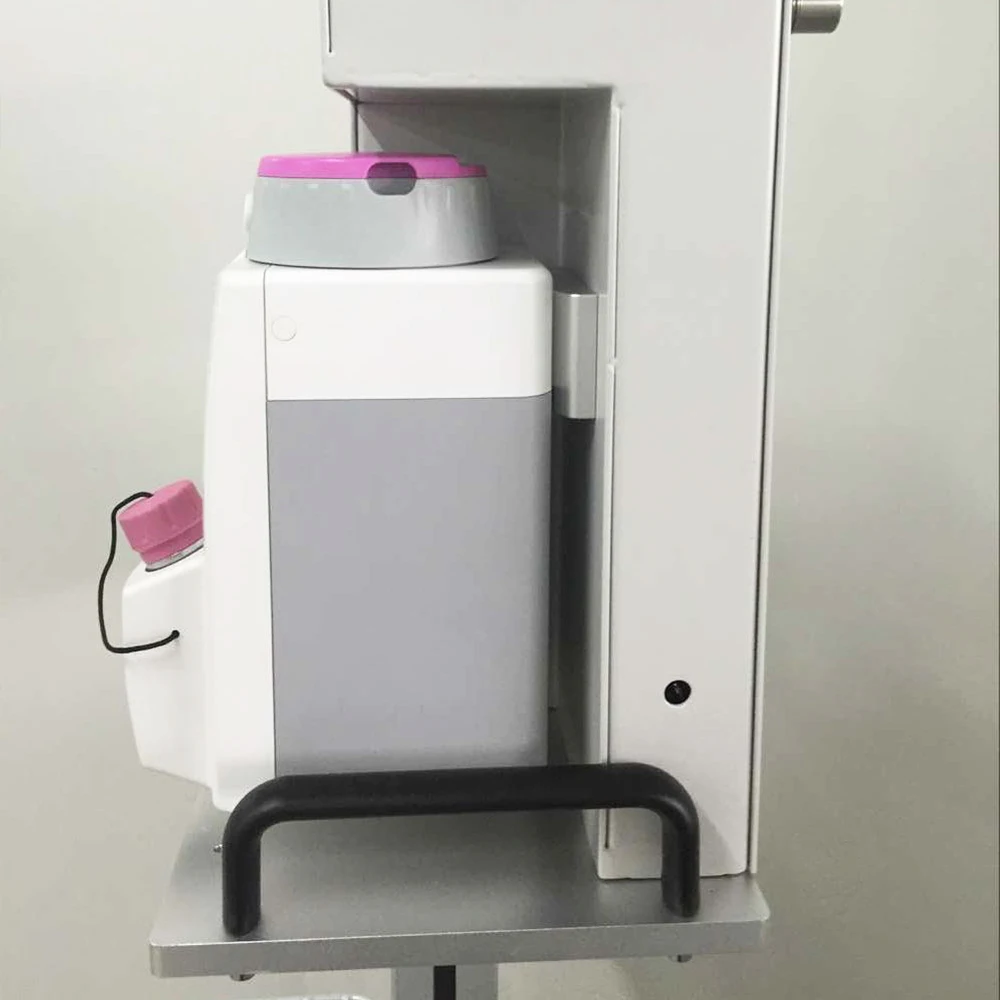

l Vaporizer with temperature, flow compensation and self-lock function, keep safety anytime.
l Multiple parameters monitoring interface, make every parameter clear, let users know the animal conditions in all aspects;
l Real time pressure-time, flow-time loop graphics and high precision ETCO2,O2 concentration detection function included.
l Wide use range including animals within 200KG.
Safety
l Three level alarming system, visual and sound alarm information.
l Intelligent dual system controls ensure safe use in clinics.
l With lots of alarming, reminding and protection functions.
l Advanced power management control technology.
l With built-in backup power source, when outside power source goes off, back-up power source starts to work.
Specification
Ventilation mode | IPPV; A/C; PCV;SIMV; SIGH;MANUAL | Alarm and protection | |
Ventilator Parameter | The AC Power Failure alarm | Power failure or no connection | |
Flowmeter | O2(0.1-10L/min) | Internal Battery Backup Low Voltage Alarm | <11.3±0.3V |
| N2O(0.1-10L/min) | No Tidal Volume | No Tidal Volume within 6s |
Rapid oxygen supply | 25-75l/min | High Oxygen Concentration Alarm | 19%-100% |
Tidal volume | 0,20-1500ml | Low Oxygen Concentration Alarm | 18%-99% |
Frequence(Freq) | 1-100/min | High Airway Pressure Alarm | 20cmH2O-100cmH2O |
I:E | 4:1-1:8 | Low Airway Pressure Alarm | 0cmH2O-20cmH2O |
PEEP | 0-20 cmH2O | High Minute Volume Alarm | Adult(5L/min-20L/min) |
Pressure triggering Sensitivity(Ptr) | -20-20 cmH2O(Based on PEEP) | Low Minute Volume Alarm | Paediatric(1L/min-15L/min) |
Flow trigger sensitivity(Ftr) | 0.5-30L/min |
| (0-10L/min) |
Pressure control(PC) | 5-60 cmH2O | Continuous pressure alarm | (PEEP+1.5kPa)over 16s |
SIGH | 0(off),5s-60s | Fan error | Show on screen |
Pressure limit | 20-100cmH2O | Oxygen deficit | Show on screen |
Monitored Parameter | Working condition | ||
Frequence(Freq) | 0-100/min | Gas source | O2,N2O |
Tidal volume(Vt) | 0-2000mL | Pressure | 280kPa-600kPa |
MV | 0-100L/min | Voltage | 100-240V |
Oxygen concentration | 15%-100% | Power Frequency | 50/60Hz |
Oscillogram | Size | ||
P-T(pressure-time) | Wooden case packing size | L740*W795*H 1540mm | |
F-T(flow-time) | G.W. | 98KG | |
P-V loop(pressure-volume loop) | N.W. | 66KG | |
V-T(volume-time) | CBM | 0.99m3 | |
ETCO2-T(ETCO2-time) | |||
