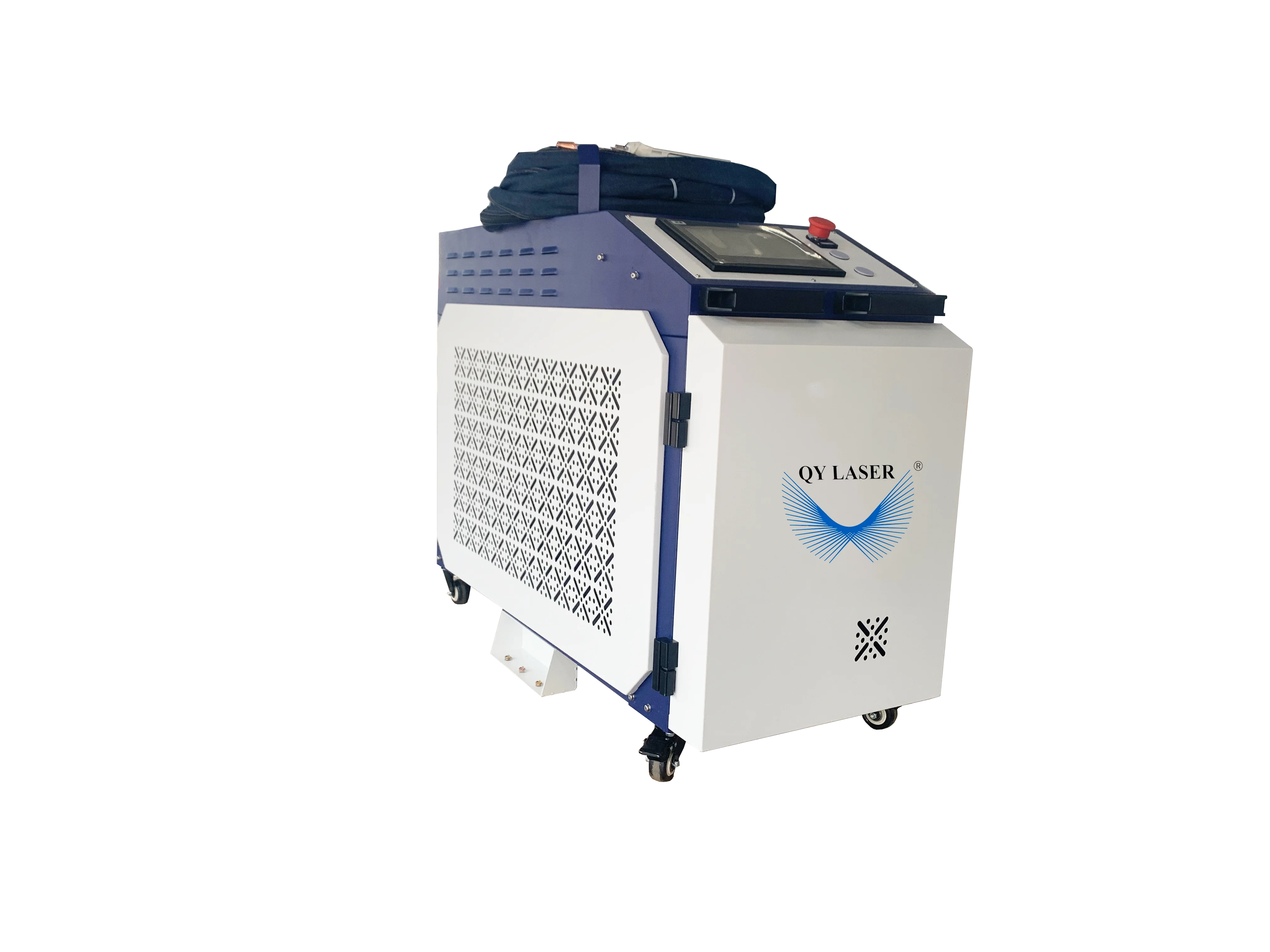

Good Price Handheld Laser Welding Machine 2000w 1500w 1000w Portable Fiber Laser Welder For Metal Laser Weld
- Category: Laser Welders >>>
- Supplier: WUXI QINGYUAN LASER TECHNOLOGY CO. LTD
Share on (1600733651677):
Product Overview
Description
Good Price Handheld Laser Welding Machine 2000w 1500w 1000w Portable Fiber Laser Welder For Metal Laser Weld
Features and Advantages:
●The hand-held laser wire feeding welding machine adopts an integrated sealed dust-proof cabinet, the laser and the water tank are integrated, occupying a small space and being convenient for movement and transportation.●There are ventilation holes on each side of the cabinet, which is easy to dissipate heat, has a low failure rate, reduces power consumption and saves costs.
●Each side can be opened for easy maintenance. Laser welding has few consumables and long service life.
●The operation is simple, you can work without an employment certificate, and you can weld beautiful products without a master.
●The weld seam is smooth and beautiful, reducing the subsequent grinding process to save time and cost. Safer and more environmentally friendly.
●It makes up for the disadvantage of small laser welding spot, expands the tolerance range of processed parts and weld width, and obtains better weld formation.
●The welding affected area is small, reducing deformation, blackening, traces on the back and other problems.
●The welding depth is large, the welding is firm, and the melting is sufficient.
●Modular design, easy to achieve functional expansion.
●It can realize wire welding, spot welding, butt welding, stitch welding, etc.
●Red light focusing, precise control, small focusing spot, and high-precision positioning.
●With the ability to work stably for a long time, it is suitable for long-term work in three shifts.
●Provide a variety of special industry fixtures and control methods, and the system is easy to implement.
Specification
Part Name | Description | Brand |
Laser | 1Kw-2Kw | Raycus |
Welding Head | SUP15S | QY |
Cooling Chiller | 1Kw-2Kw | Hanli |
Controller System | Hand-held feeding system | QY |
Electrical Box | Chiller and laser integrated | QY |
Electrical Components | Schneider | French |
Pneumatic Valve | SMC | Japan brand |
Wire Feeder | WF-007A | |
Holder | MT-602(0.5-1.5) | Optional |
Welding Material and Thickness
Material | 1000W | 1500W | 2000W |
Stainless Steel | 0.3mm—2mm | 0.3mm—3mm | 0.3mm—4mm |
Mild Steel | 0.3mm—1.5mm | 0.3mm—2.5mm | 0.3mm—3.5mm |
Aluminum | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Brass | 0.8mm—1mm | 0.8mm—1.5mm | 0.8mm—2.5mm |
Applications
Professionally used for cutting 0.3-4mm stainless steel, 0.3-3.5mm carbon steel, 0.8-2.5mm aluminum, 0.8-2.5mm copper and other metal materials (thickness and material are related to the laser).
Fiber laser weldeine VS TIG welding and MIG welding
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
TIG welding may generate extreme heat that deforms thin materials, produces poor visual finishes, is difficult when welding copper and limited welding metals of dissimilar thicknesses.
MIG welding requires consumable wire, material pre-cleaning and beveled joints for thick metals for full penetration. Travel and work angles are limited and vertical positions are extremely challenging.
Laser welding enables dramatically faster welding, is easier to learn and operate, and provides higher-quality, consistent results across a wider range of materials and thicknesses than MIG or TIG with minimal distortion, deformation, undercut or burn-through.
Fiber Laser welder welds dissimilar metals of different thicknesses with ease and creates aesthetic high-strength joints with minimal or no consumable wire.
Laser Welding Machine Parts

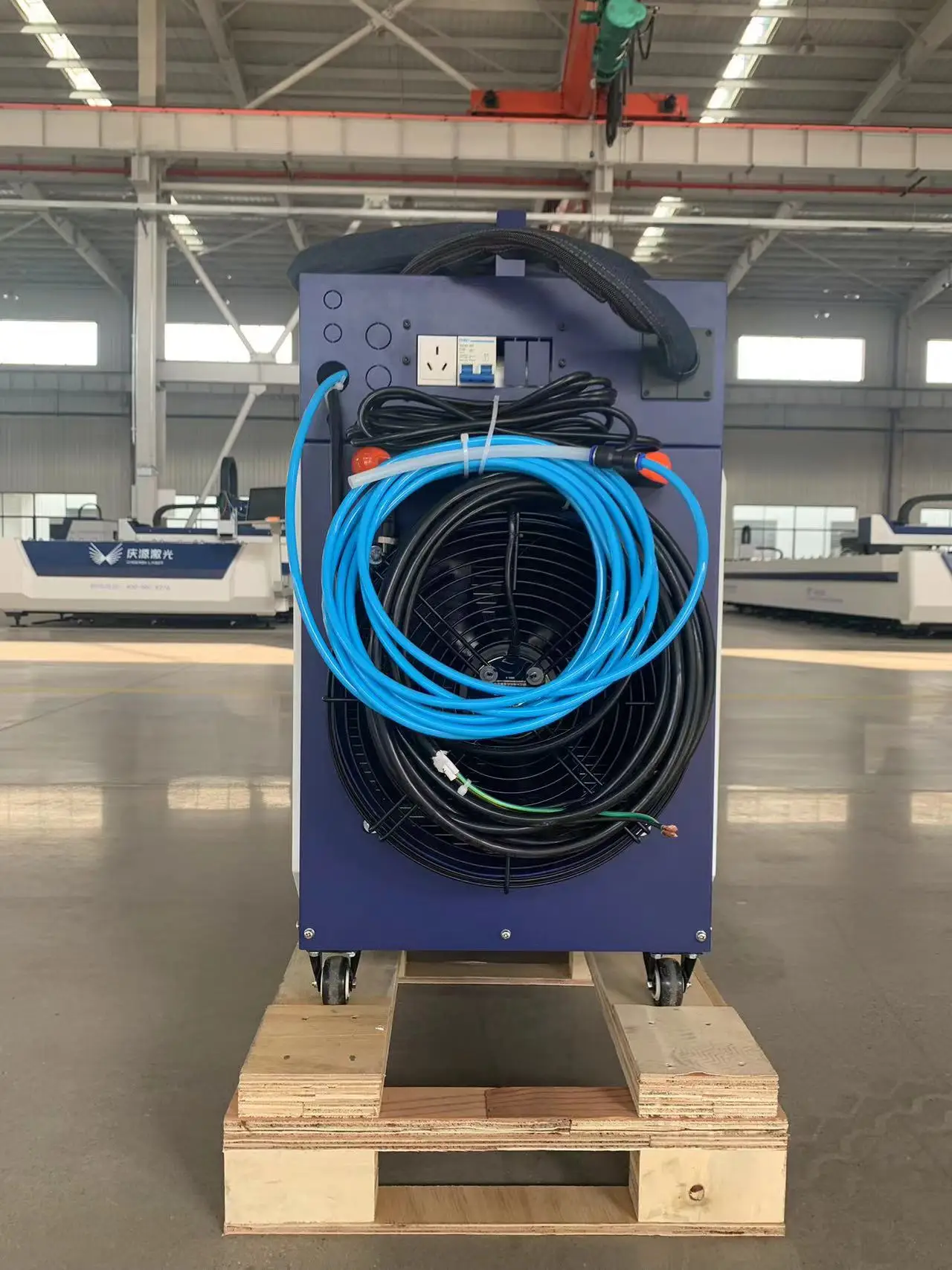

Laser and water chiller
Welding head
Wire feeder
Welding Samples
Packaging
Company Profile
FAQ
1. How to select the suitable machine?
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
Tell us your material, detail requirements by words, pictures or video.We will recommend you the suitable model with the reasonable price.
2. How to install and use it?
We have the instruction Book, Operational manual and Training Video inside the machine.We also can provide the training on line by free.
3. How to do it if we meet the issue during the operation?
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
You can send the wrong information to us by mail, we can help us solve it by mail.phone, or video communication.
4. If we want to learn how to operate the machine, Can you provide it?
Yes, we can. We can provide the on line training by video. We also provide free training course in our company.
