Waterproof Slim Connector Preterminated Compact Flat Drop Cable Fiber Optic Patch Cord
- Category: >>>
- Supplier: Shenzhen Runxiang Telecommunication Technology Co. Ltd.
Share on (1600733657362):
Product Overview
Description
Waterproof Slim Connector Preterminated Compact Flat Drop Cable Fiber Optic Patch Cord
The Pre-Terminated optical drop cables connect new subscribers to the access network.They are easily pluggable into the optical termination boxes, in a way that there is no need to open the closure to activate new subscribers.
The cable used is the low fricton Fig.8 with compact dimensions and have steel wire strength member in its composition, allowing the cable to be pushed through ducting pipes without the use of an installation guide.
Technical Data
ITEM | Technical Parameters |
lnstallation Environment | lndoor/Outdoor |
Operation Environment | Aerial self-supported |
Operation Temperature (℃) | -25/+75° |
Length | 50，100，150，220 and 300m*Other lenghts may be supplied on request |
Cable Type | Compact Low Friction Fig. 8 Drop Cable |
Connector Type | Slimconnector |
Color | Grey/Black |
Fiber Type | Single-mode Bending Loss lnsensitive,9/125um |
Polishing Type | APC |
lnsertion Loss (dB) | ≤0.15 dB - Typical≤0.30 dB - Maximum |
Return Loss (dB) | ≥65dB |
Fibers Quantity | 1 optical fiber |
Cable Flammability Rating | Optical cable with LSZH(Low Smoke Zero Halogen) flame retardant coating |
Products Features
* Flexibility with ease of expansion without quality degradation;
* Ensures high performance and reliability in the management of optical cabling;
* Ensures high performance and reliability in the management of optical cabling;
* Fast and easy installation and reconfiguration;
* Simple handling,no need for special tool；
* Simple handling,no need for special tool；
* Designed for 45 kg maximum pulling tension (cable retention)
* Designed for external connection in Network Access Points
* lP67
Application
* Preterminated Drop cable for Preterminated Drop Terminal Boxes

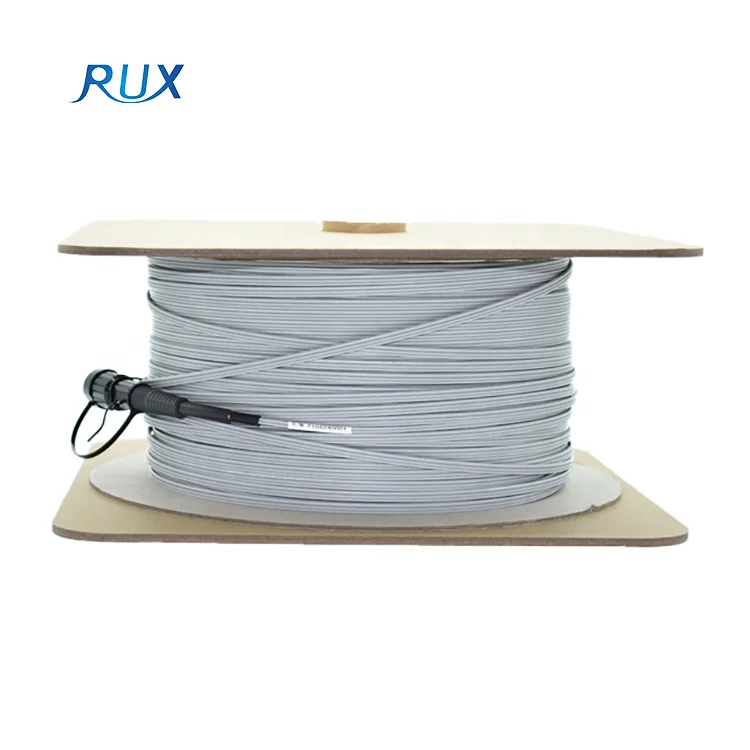

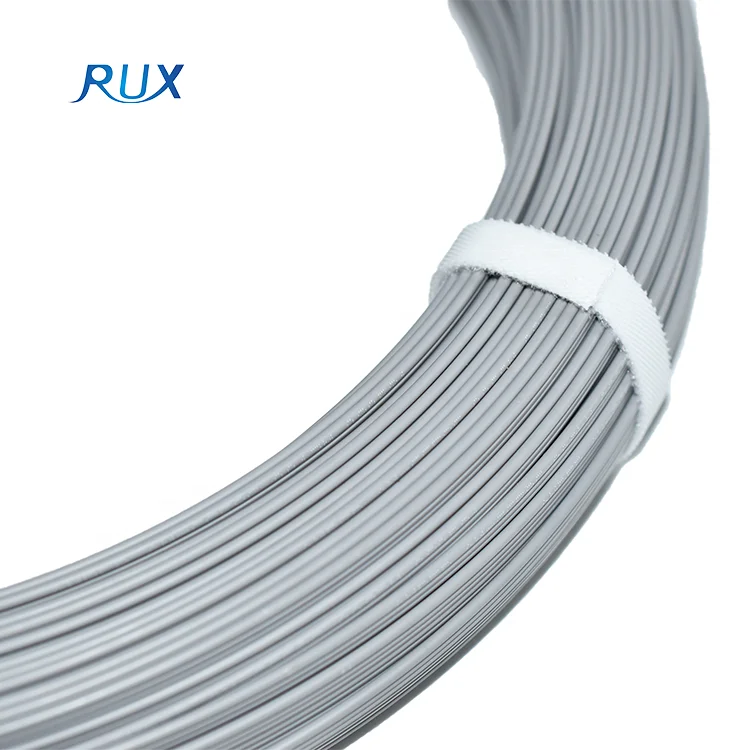

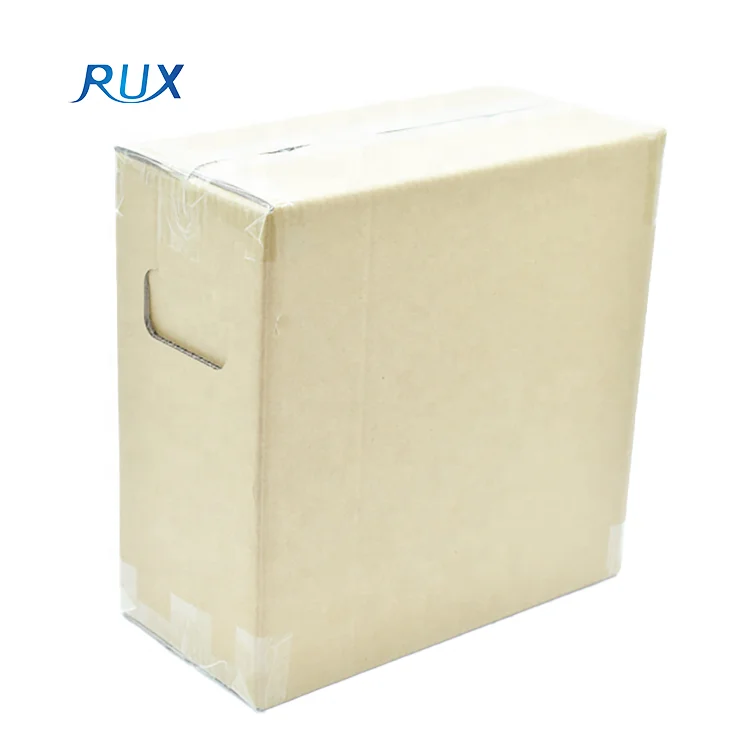

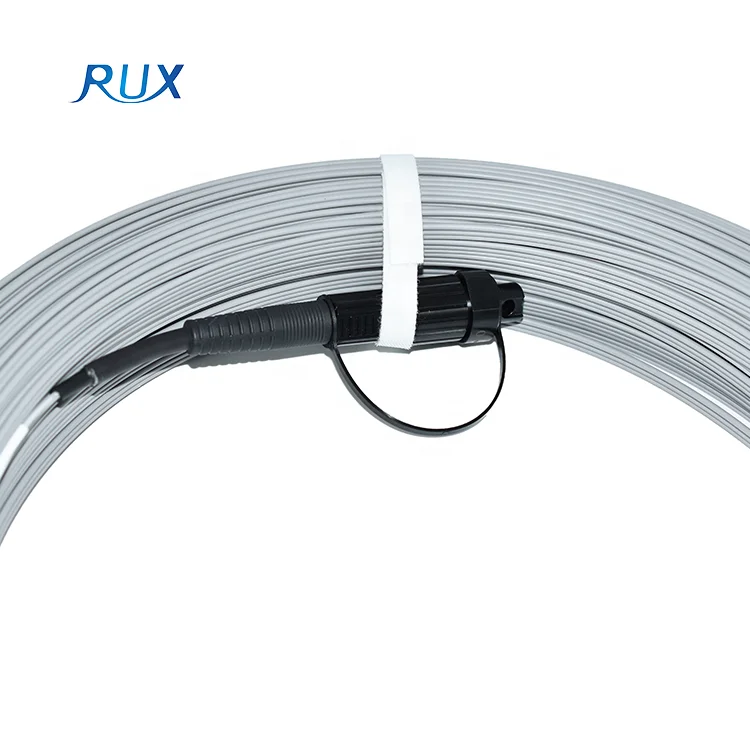

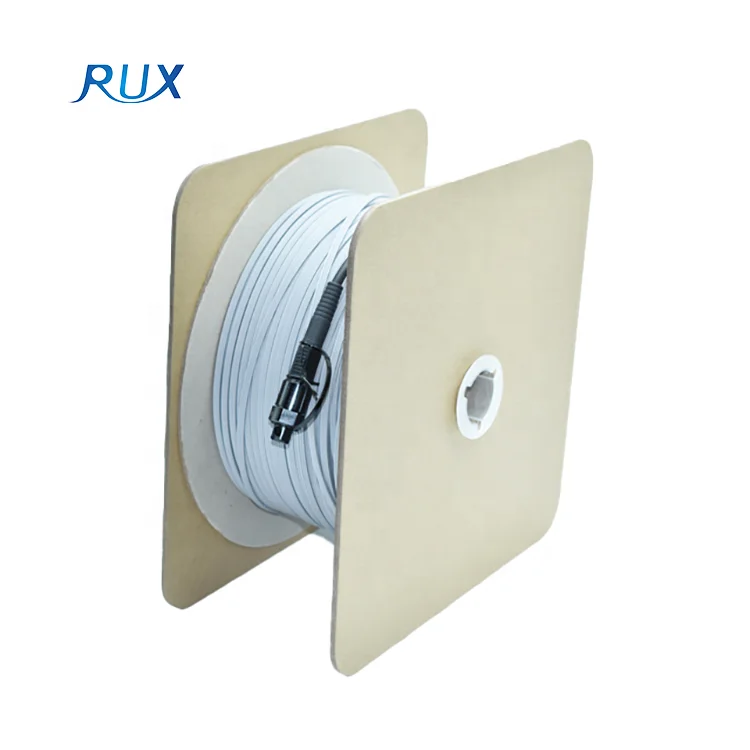

Details Images
We have first-class production line and strict quality management system.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
We can give customers the most competitive price to meet your budget.
We have big production capacity to guarantee fast delivery and on-time shipment.
We have professional team to provide comprehensive one-stop service for you.
Q1: Where is your factory located How can I visit there?
A1: Our factory is located in Shenzhen City, Guangdong Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.
A1: Our factory is located in Shenzhen City, Guangdong Province, China.All our clients, from home or abroad, are warmly welcome to visit us.
Q2: How many years experience in producing?
A2: More than 15 years,and our engineers have more than 20 years product experience.
Q3: Can provide sample to us?
A3: Yes,sample below 30m can be provided freely,but you need pay freight cost.
Q4: How is quality for your fiber optic cable?
A4: Firstly,we use top quality raw material(best fiber and friendly sheath material etc),Then surveyor will do the test,such as raw material quality test,fiber optic attenuation test and high or low temperature test etc.
Q5: How to do if don't need your company brand name?
A5: We have own factory,OEM is available;If need other brand name,it is okay.please give us letter of authorization.
