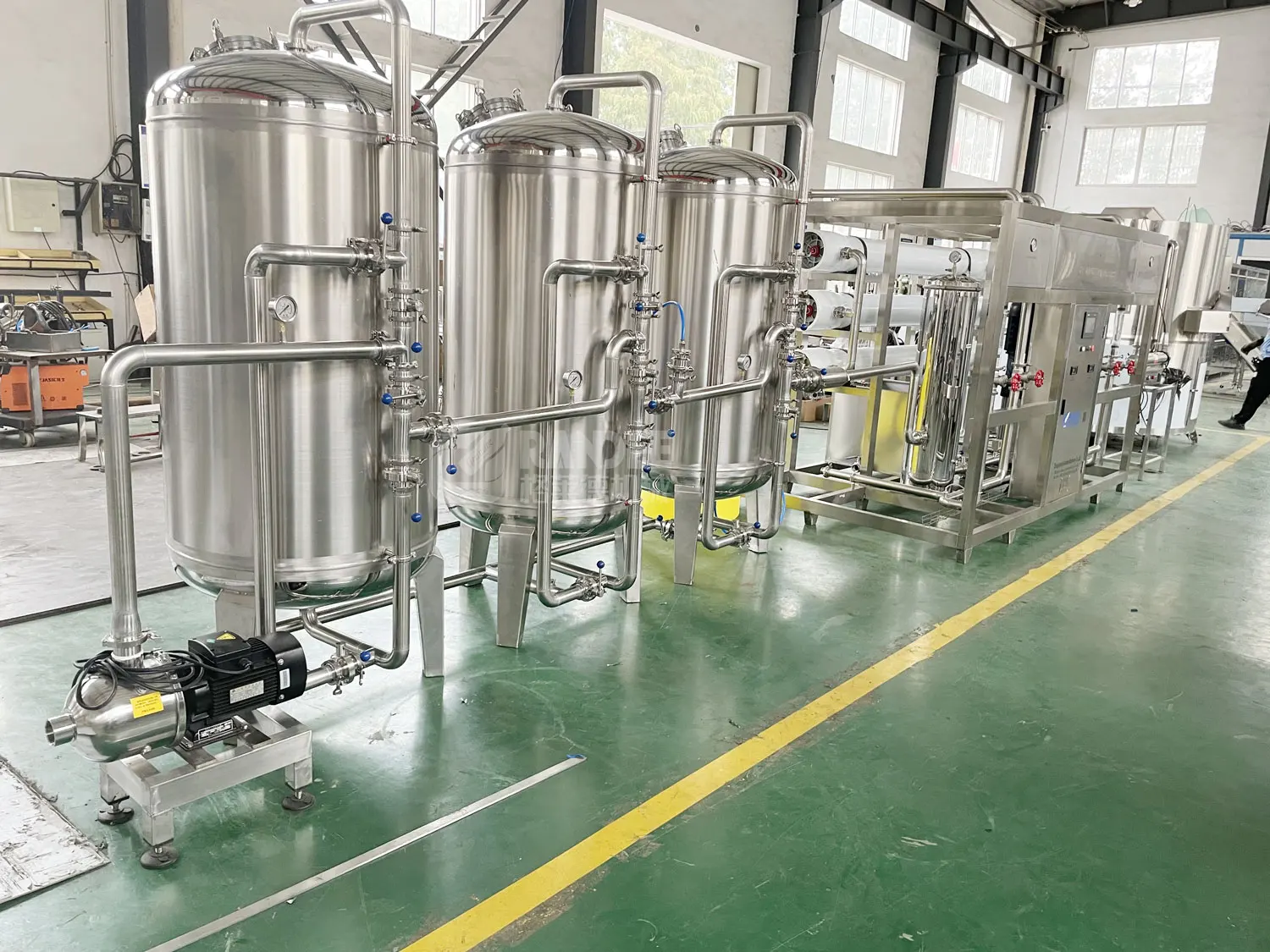

Sand carbon filter ozonator for drinking water purification and bottling plant
- Category: >>>
- Supplier: Zhangjiagang Grandee Machinery Co. Ltd.
Share on (1600733669554):
Product Overview
Description
GRANDEE MACHINE is located in Zhangjiagang City, near Shanghai China. We are expert in the field of liquid packaging machinery in the world. We have more than 10,000 square meters standard workshop, providing customers with a variety of product development, engineering design, consulting, technical services and other integrated EPC solutions.
Products Description
Water Treatment Equipment

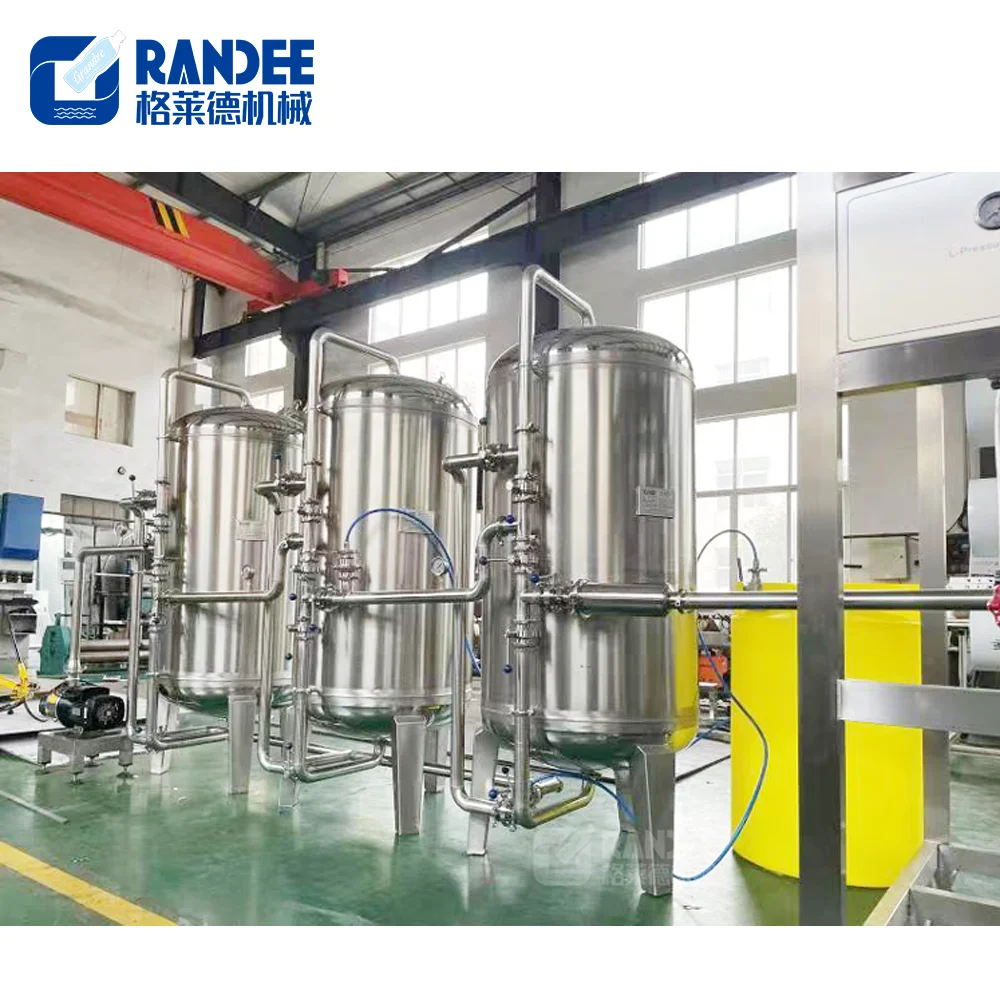

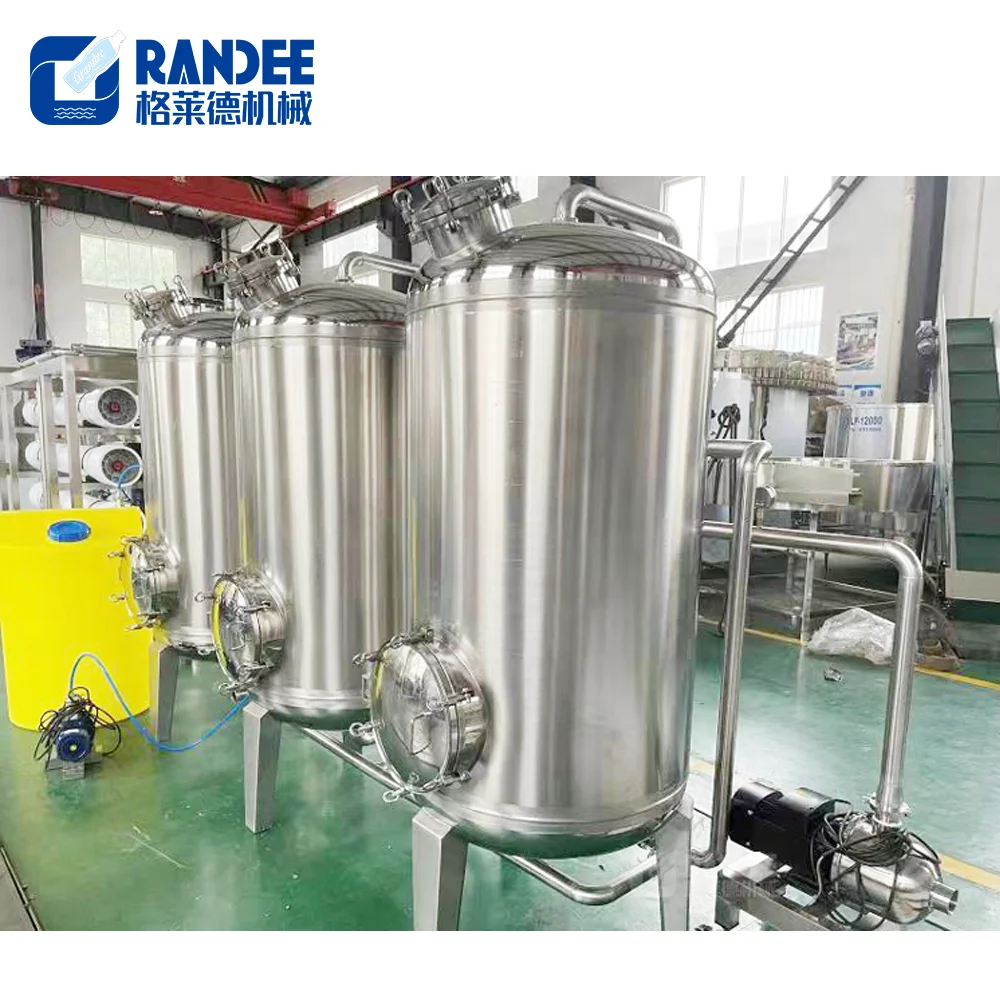

1. Quartz sand filter
The quartz sand filter can remove most of the suspended solids, colloids and granular mechanical impurities,
this sand filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions, so that the water is purified, the operation mode of the mechanical filter is manual control. So this multi-medium filter is an effective and indispensable process in the pure water purification and pretreatment.
2. Active carbon filter
Since most raw water is tap water, ground water or spring water, the content of residual chlorine in the water is high, and the low pressure composite reverse osmosis membrane has strict restrictions on residual chlorine, whose value must be less than or equal to 0.1mg/ L. Therefore, active carbon filter is set in the pretreatment to remove the residual chlorine in the raw water, Because the content of calcium and magnesium ions in raw water may be high, the Longoria index is positive. The desalting rate of reverse osmosis is as high as 97%, so the concentrated water side will produce calcium carbonate, magnesium carbonate, magnesium sulfate and other precipitates due to high concentration.So carbon filter can be effectively ensure the long-term, stable, safe and reliable operation of reverse osmosis device.

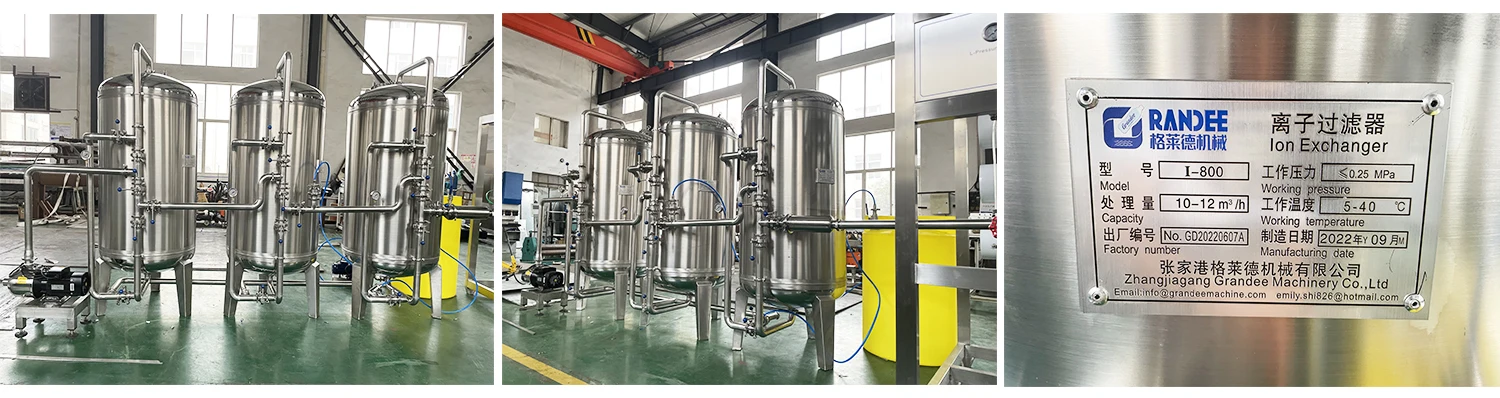

3. Ion exchange filter
Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +,Mg2+ was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions.
The quartz sand filter can remove most of the suspended solids, colloids and granular mechanical impurities,
this sand filter is a kind of "physical - chemical" process, the water through granular materials when isolated filter water impurities and colloidal suspensions, so that the water is purified, the operation mode of the mechanical filter is manual control. So this multi-medium filter is an effective and indispensable process in the pure water purification and pretreatment.
2. Active carbon filter
Since most raw water is tap water, ground water or spring water, the content of residual chlorine in the water is high, and the low pressure composite reverse osmosis membrane has strict restrictions on residual chlorine, whose value must be less than or equal to 0.1mg/ L. Therefore, active carbon filter is set in the pretreatment to remove the residual chlorine in the raw water, Because the content of calcium and magnesium ions in raw water may be high, the Longoria index is positive. The desalting rate of reverse osmosis is as high as 97%, so the concentrated water side will produce calcium carbonate, magnesium carbonate, magnesium sulfate and other precipitates due to high concentration.So carbon filter can be effectively ensure the long-term, stable, safe and reliable operation of reverse osmosis device.
3. Ion exchange filter
Cationic resin used for water softening, primarily to remove hardness of water. The hardness of water is a major calcium (Ca2 +), magnesium (Mg2 +) ion composition, when containing the raw water hardness ions through the resin layer, the water of the Ca2 +,Mg2+ was exchanged resin adsorption, and other objects at the same time the quality of the release of sodium Na + ions flow from the softener in the water is removed from the softened water hardness ions.
Main technical parameter
Model | RO-2000L | RO-4000L | RO-6000L | RO- 8000L | RO-10000L | RO- 12000L | RO- 15000L | ||||||
Output of RO (L/Hr) | 2000 | 4000 | 6000 | 8000 | 10000 | 12000 | 15000 | ||||||
Recovery rate | 65-70% | ||||||||||||
Precision filter | Filtering accuracy: 5UM+1UM PP membrane | ||||||||||||
Filler materil | Sand, Coconut shell activated carbon, Cationic resin | ||||||||||||
Membrane brand | DOW or Hydranautics | ||||||||||||
High pressure pump (KW) | 3.5 | 4.0 | 5.5 | 7.5 | 9.5 | 11 | 15 | ||||||
ozone (g/hr) | 10 | 20 | 30 | 40 | 50 | 60 | 75 | ||||||
Pure water tank (T) | 2 | 4 | 6 | 8 | 10 | 12 | 15 | ||||||
NAME | BRAND | AREA |
PLC | Siemens | Germany |
INVERTER | Siemens | Germany |
CONTACTOR | Siemens | Germany |
TOUCH SCREEN | Siemens | Germany |
INVERTER | Siemens | Germany |
MOTOR | ABB | SWISS |
PNEUMATIC PARTS | FESTO | GERMANY |
ELECTRICAL PARTS | SCHNEIDER | FRANCE |
For more information, please feel free to contact us to send an inquiry!

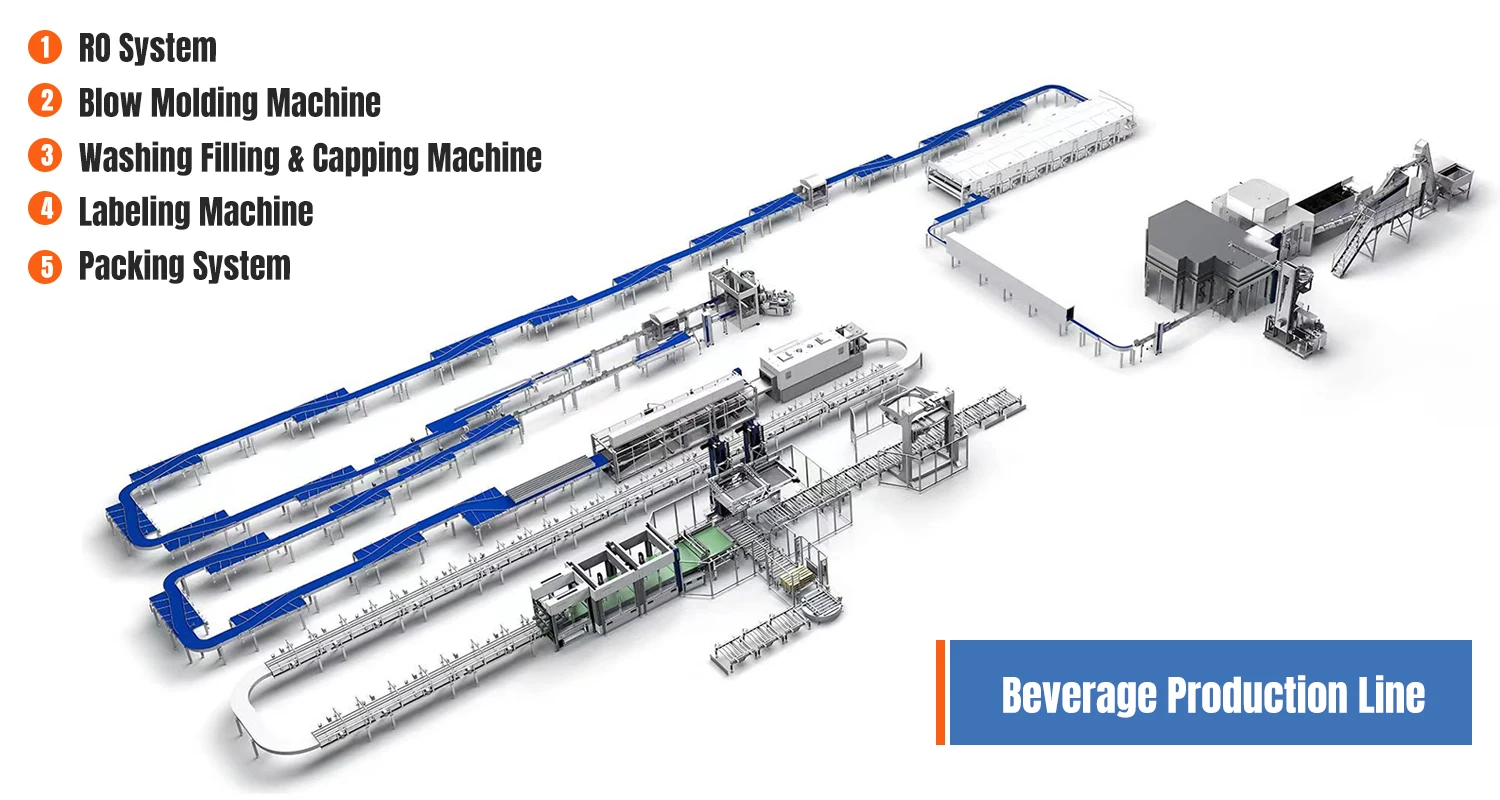

Turnkey Solution
1.RO system
This RO system is very important in the whole water project, we prefer you supply water analysis report from your local inspection department. This RO system we can make to match up with your water filling machine from capacity from 500L/Hr to 50000L/hr.

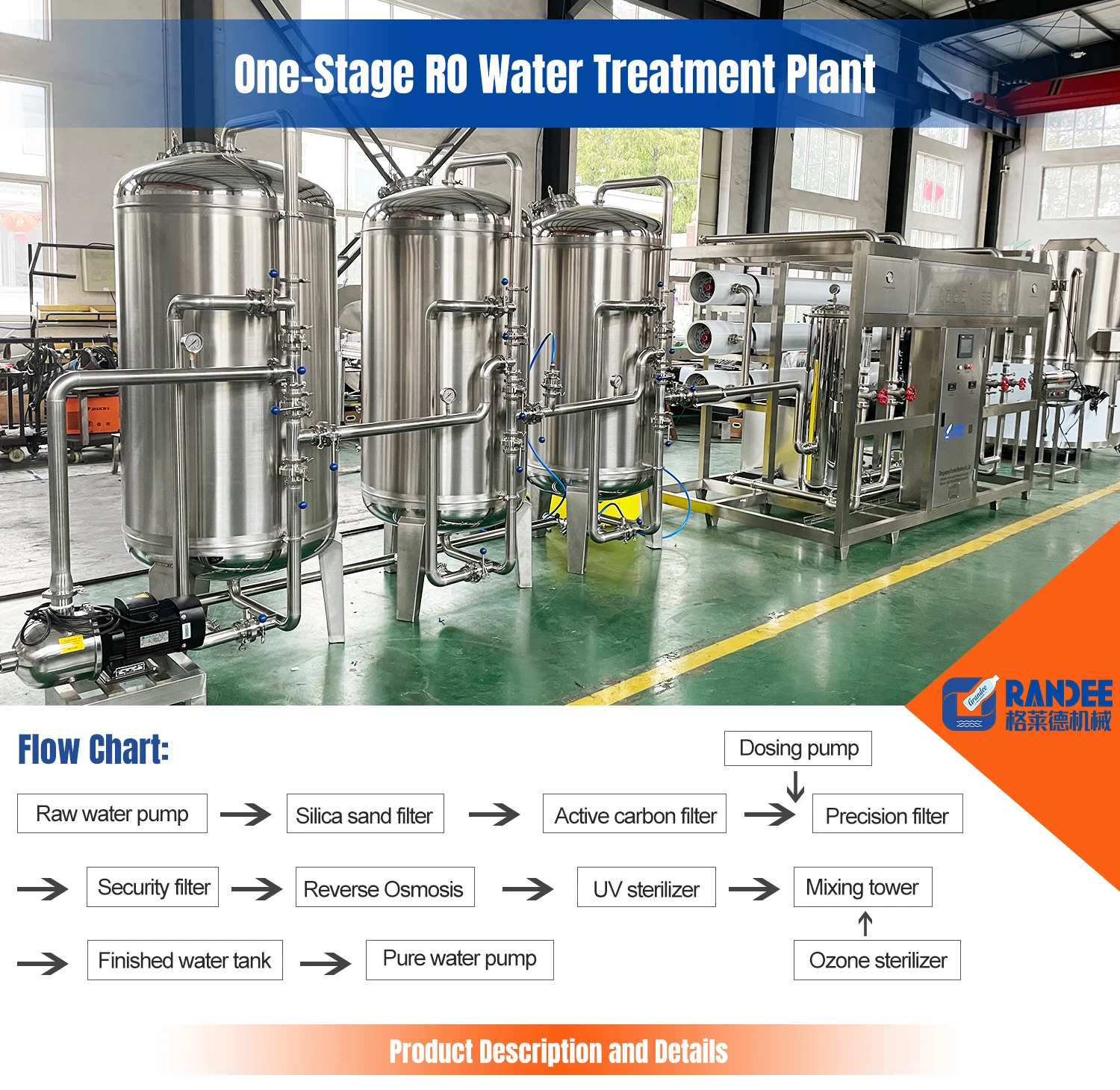

This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
This system included sand filter, carbon filter, sodium exchanger, precision filter, Reverse Osmosis, UV, Ozone generator, Ozonized Tower, Pure water tank. This system is made of SUS304 or SUS316 material, thickness is 2.5mm-3mm we promised.We use GNP or CNP water pump, USA DOW or HYDRANAUTICS membrane, etc
2.Automatic blow molding machine for PET bottle:
Full automatic blowing machine from 2 cavity, 4 cavity, 6 cavity, 8 cavity, 9 cavity, etc from 2500BPH to 12000BPH for 500ml bottle.
3. Automatic OPP hot glue labeling machine:
Capacity: 100-350bottles/min can be chosen Label material: PVC PET OPS, etc
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
Bottle material: PET PE PP Glass Bottle Diameter: 28 ~ 120mm
Bottle Height: 15~320mm Bottle shape: round, square, ellipse, rectangular
Label length: 30~250mm(max) Label thickness: 0.03~0.13mm
4. High speed automatic PE film shrink packing machine:
Film material: PE Shrink membrane thickness: 70~100um
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
Capacity: 20-25packages/ min can be chosen Conveyor belt max width: 600mm
Height : 1000～1100mm
