Blank Label Rotary Die Cutting Machine
- Category: >>>
- Supplier: Suzhou Shanggong Blade Co. Ltd.
Share on (1600733689397):
Product Overview
Description
Production process
Special points:

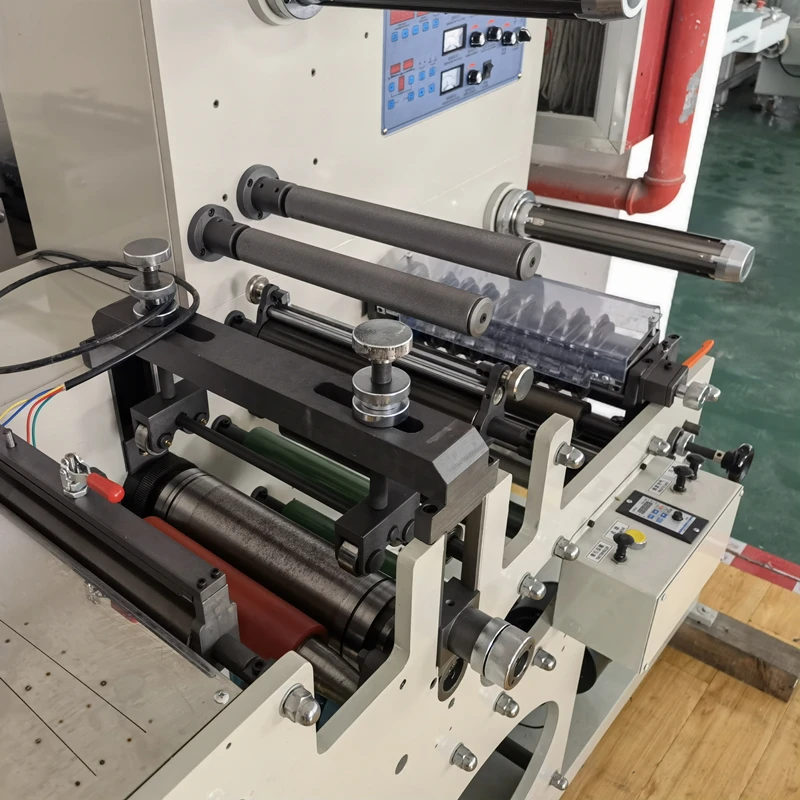

Circular die cutting machine is a new cutting machine with die cutting function, it has a high precision round knife die cutting system. This machine is suitable for blank sticker labels. Die cutting, slitting can be completed in one time. It has automatic meter meter, automatic stop, photoelectric eye correction and other functions. This machine is characterized by compact structure, fast speed, high efficiency, simple operation, smooth running.
Standard configuration:

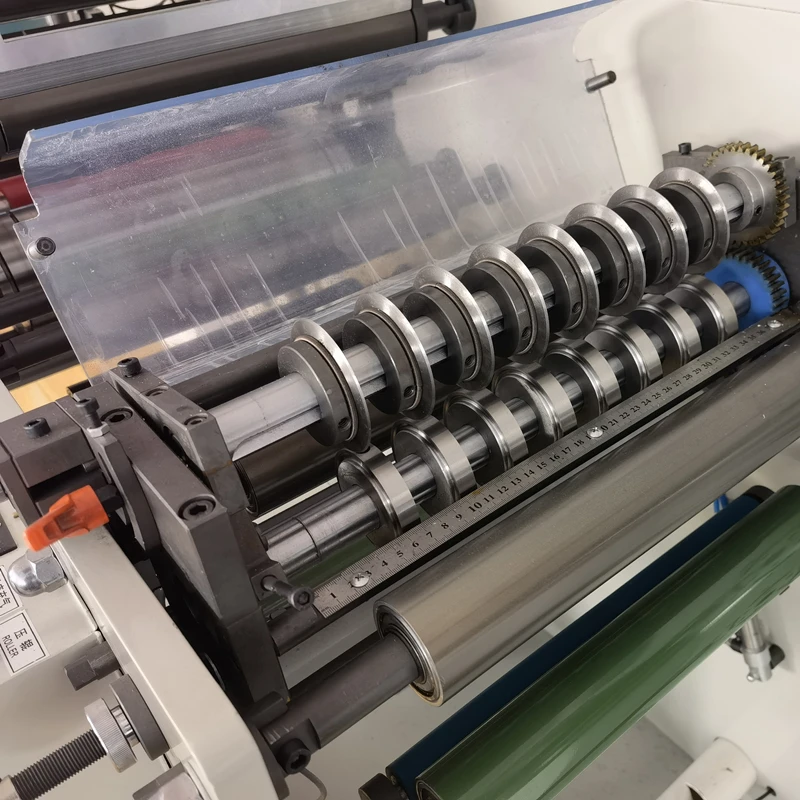

· Slitting device
· One 3-inch blowout shaft and two 3-inch blowout shafts
· Counter/meter meter
· Two photoelectric eyes correct deviation
·8 round knives
· One magnetic powder brake and two clutches
Circular die cutting machine is a new cutting machine with die cutting function, it has a high precision round knife die cutting system. This machine is suitable for blank sticker labels. Die cutting, slitting can be completed in one time. It has automatic meter meter, automatic stop, photoelectric eye correction and other functions. This machine is characterized by compact structure, fast speed, high efficiency, simple operation, smooth running.
Standard configuration:
· Slitting device
· One 3-inch blowout shaft and two 3-inch blowout shafts
· Counter/meter meter
· Two photoelectric eyes correct deviation
·8 round knives
· One magnetic powder brake and two clutches
Product Overview

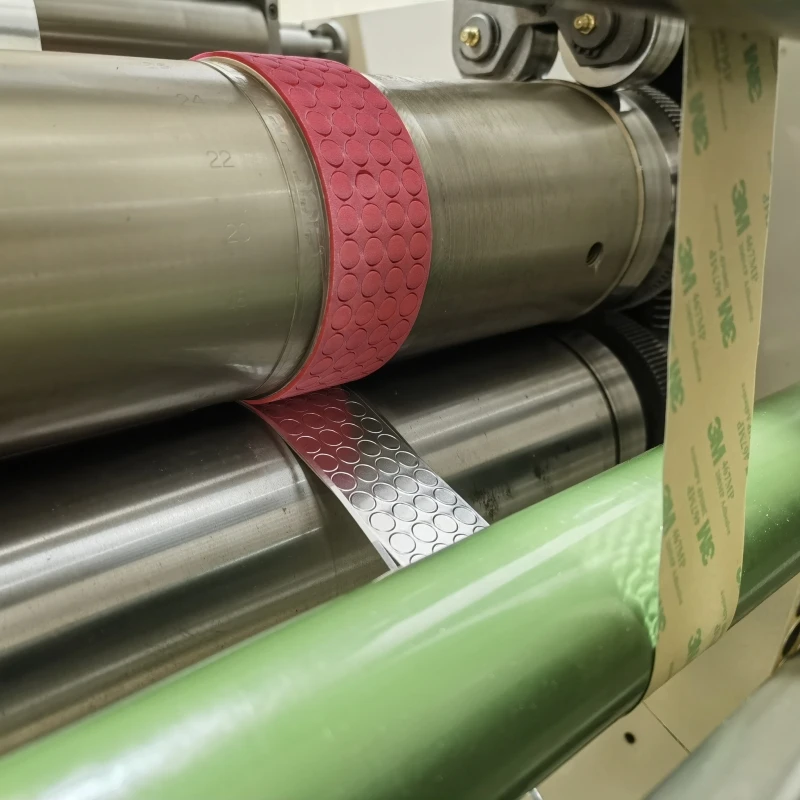

round knife

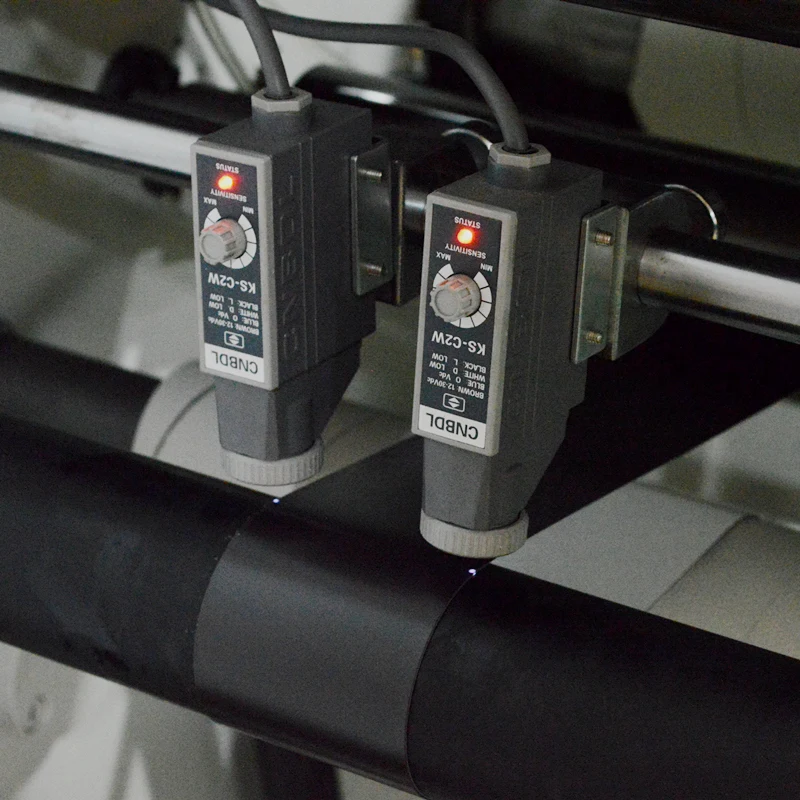

Correction system
laninating
PRODUCT SPECIFICATIONS
Model | SG-320C | Tungsten Carbide(YG12),SKD-51,W6Mo5Cr4V2,D2 and so on |
Slitting Speed | 100/75m/min | Burr-free, Widely Applied |
Die Cutting Speed | 100/70m/min | 0.8-1.5mm, Customized thickness available |
Max Web Width | 320mm | 25.4, 32, 38mm |
Max Unwinding Diameter | 500mm | OD160 - 610mm, customized size is available |
Max Rewinding Diameter | 480mm | 45 °,could be adjusted according to your requirement |
Die Cutting Length | 178mm-470mm | single edge and double edge are available |
Overall Diameter | 1.32mx1.02mx1.5m | Paper, film, foam, rubber,foil, graphite and so on |
Machine Weight | 700kg |
1 | This machine employs microcomputer controller to set belt cutting length. | Φ25.4 | 2.0T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
2 | The cutting length is accurate. | Φ25.4 | 2.0T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
3 | Operation is easy. | Φ25.4 | 2.5T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
4 | Waste rate is low. | Φ25.4 | 3.0T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
5 | Manufacturing experience: 20 years | Φ25.4 | 3.0T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
6 | Export experience: 12 years | Φ25.4 | 3.5T | SKD-11, HSS, SKH-51, Tungsten carbide | |||
Application scenarios
Applicable scope
Product packaging
Company Profile
Suzhou Shanggong Blade Co., Ltd is located in No. 66, Kaigui Road, Yushan Town, Kunshan. Our company covers around
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
6,600 square meters. We have around 120 employees and nearly 130 sets high-precision grinding equipment and testing
equipment which are used in processes from raw material to finished products.
We have been specialized in manufacturing all kinds of precise mechanical tools and carbide tools since 16 years ago.
Our Products have been exported to more than 40 countries in the world. Products are used in many industries such as
electronic film, food processing, metal, rubber tires, textile chemical fiber, printing, package and so on.
