Raynool Low Loss 400 LMR400 CNT 400 RG8 Coaxial Cable China factory Indoor Outdoor Rated Coax Cable
- Category: Communication Cables >>>
- Supplier: Raynool,Technology,Co.,Ltd.
Share on:
Product Overview
Description
Product Description
Feature:
Max Frequency 5.8 GHz
Shielding Effectivity > 90 dB
80% Phase Velocity
PE Jacket
Low Insertion Loss
Shielding Effectivity > 90 dB
80% Phase Velocity
PE Jacket
Low Insertion Loss

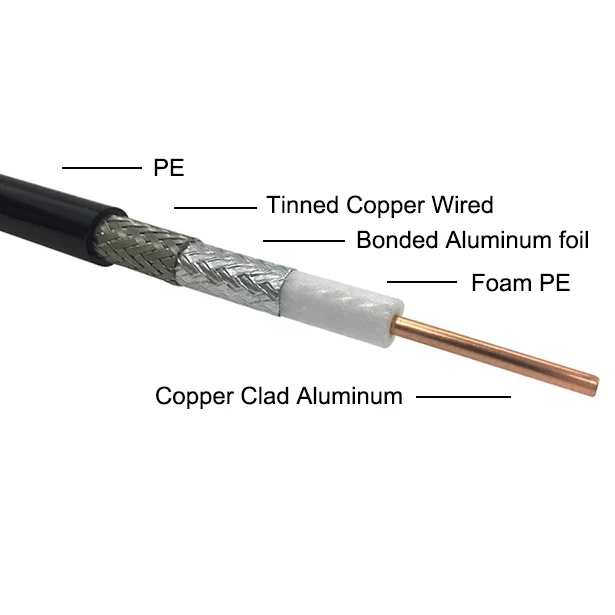

Construction | Diameter |
Inner Conductor | 2.74 mm |
Dielectric | 7.24 mm |
Outer Conductor | 8.15 mm |
Jacket | 10.16 mm |
Cable Type | Other brand P/N |
Low Loss 400 | LMR400, CNT-400, RG8, KSR400 |
Application
General Purpose
Laboratory Use
Antenna Installations
Land Mobile Radio & Other Communication Systems
Cellular & Wi-Fi Systems
Laboratory Use
Antenna Installations
Land Mobile Radio & Other Communication Systems
Cellular & Wi-Fi Systems

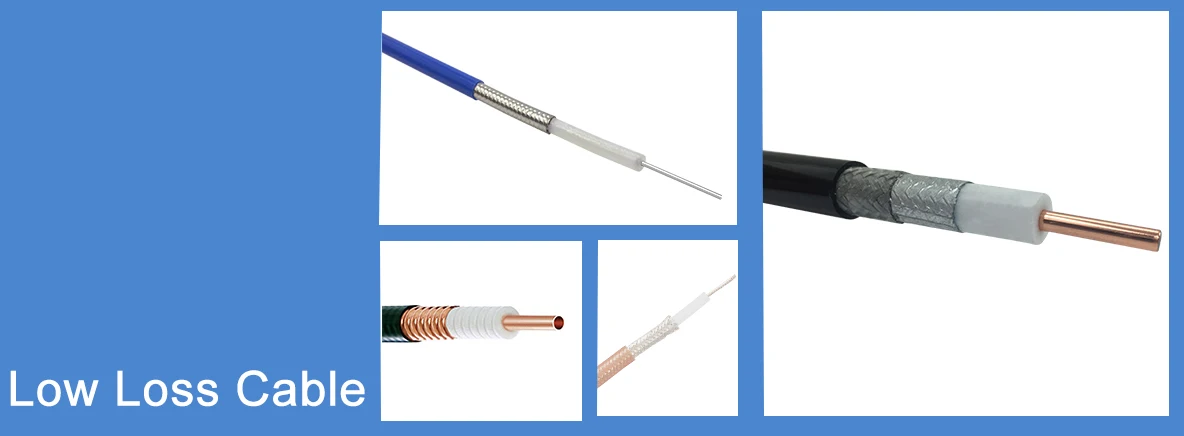

A full series of Low Loss coaxial cable
From LMR100 to LMR600
Ultra Flexible version available for LMR240 and LMR400.
CMR rated Fire Retardant jacket available
CMP rated Plenum LMR400 available for indoor DAS/BDA
Low Loss 100 | Low Loss 195 | Low Loss 200 | Low Loss 240 | |
Inner Conductor(mm) | 0.46 | 0.94 | 1.12 | 1.42 |
Dielectric (mm) | 1.52 | 2.79 | 2.95 | 3.81 |
Outer Conductor(mm) | / | 3.53 | 3.66 | 4.52 |
Jacket(mm) | 2.75 | 4.95 | 4.95 | 6.10 |
Low Loss 300 | Low Loss 400 | Low Loss 400 UF | Low Loss 600 | |
Inner Conductor(mm) | 1.80 | 2.74 | 2.74 | 4.47 |
Dielectric(mm) | 4.80 | 7.24 | 7.24 | 11.56 |
Outer Conductor(mm) | 5.70 | 8.13 | 8.13 | 12.50 |
Jacket(mm) | 7.60 | 10.16 | 10.29 | 14.99 |
High Quality PE jacket
Raynool use brand new raw material instead of reused one.
Providing a very good protective of the cable.
High quality dielectric and shielding
Standard Form PE dielectric.
High quality TC braiding & Al foil shielding
Related Products
RG Series
RG8
RG58
RG174
RG178
RG316
RG213
RG214
RG400
RG401(.250'')
RG402(.141'')
RG405(.086'')
LMR Series
LMR195
LMR200
LMR300
LMR400
LMR600
Corrugated Cable
1/4''S flex(FSJ1-50A)
1/2''S flex(FSJ4-50B)
1/2'' standard(LDF4-50A)
7/8'' standard(LDF5-50A,AVA5-50)
Company Profile
Expert--Low PIM,Low Loss,High Frequency products
Raynool can provide practical guidance on the optimum combination of coaxial cable and connectors to meet specific electrical and mechanical requirements for a customer’s operating frequency band and temperature ranges.
Raynool technology Co.,ltd has Its own R&D team ,and focuses on manufacturing RF connector, Cable assemblies, high speed cable assembly, and accessories for Wireless Infrastructure.

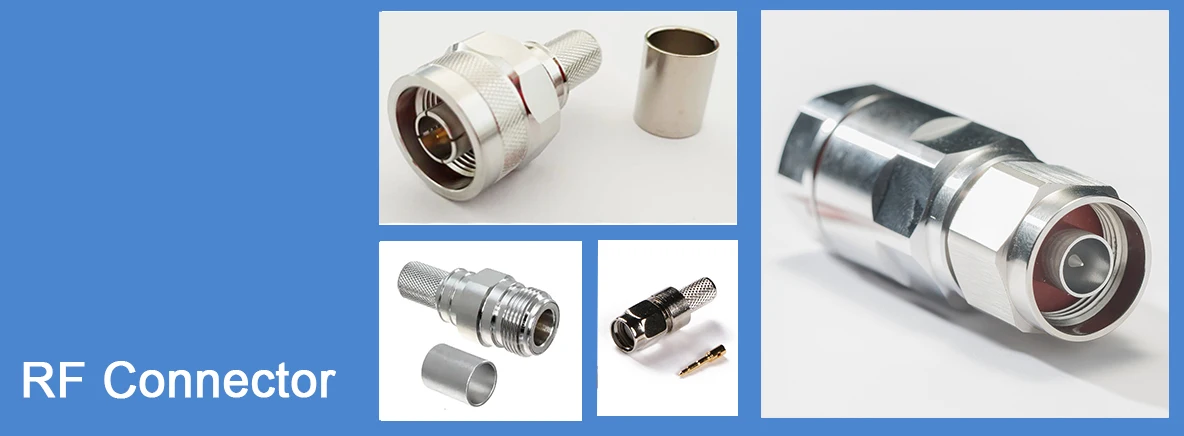

Connector
Coax Cable

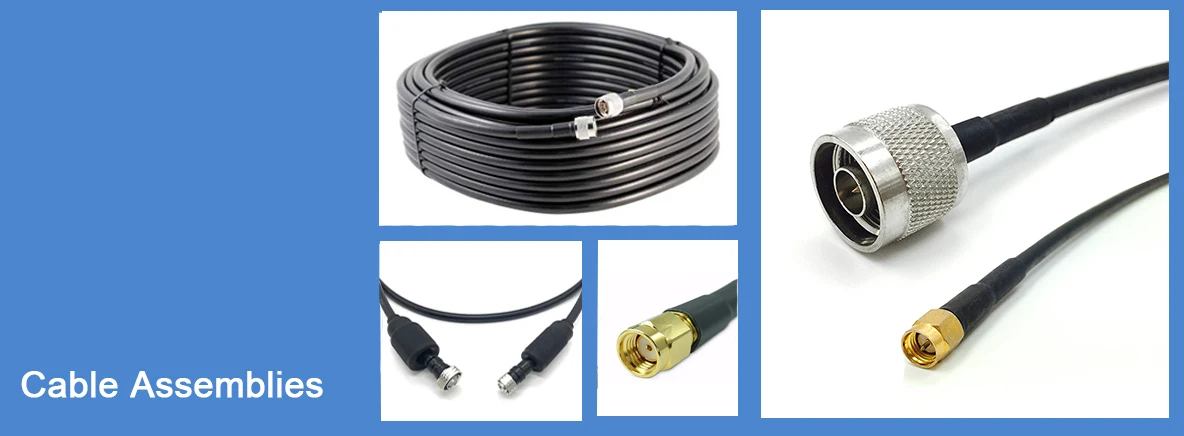

Cable Assembly
Manufacturing Technique
Connector Line
Coaxial Cable Line
Cable Assembly Line
Quality Control
Certifications
Why Choose Us
Provide Excellent service to our customer
No matter you order 1 pcs or 1 meter
You will get the same quality service.
Cable, Connector, Cable Assembly.
Raynool can help you.
FAQ
Q:Could you please advise reference list of customers?
A: We are an OEM manufacture of Amphenol & Rosenberger.
Q: Could you accept custom products?
A: Raynool is a custom solution provider,especially in Low PIM products,pls contact our sales and share the specification to us.
Q: What is your MOQ?
A: Our MOQ is normally 200 pcs.
Q: How about the Lead Time?
A: For connector, the LT is 2 weeks.
For Cable Assembly, the LT is 3 to 4 weeks.
For Coaxial Cable ,the LT is 4 weeks.
Leave a message to us,
We will come back to you with custom solution!
