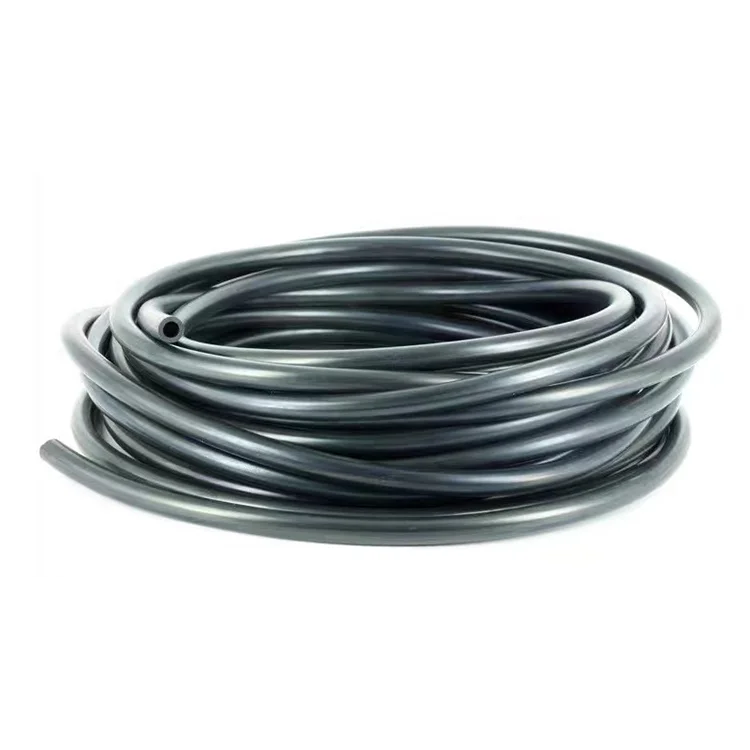

High Voltage Fluoroelastomer Heat Shrinkable Tubing Fluororubber Heat Shrink Tube
- Category: >>>
- Supplier: Changzhou Longchuang Insulating Material Co. Ltd.
Share on (1600733706550):
Product Overview
Description
Product Description
Product Technical Date:
Viton Fluororubber Heat Shrink Tubing | ||
PROPERTY | TEST METHOD | STANTARD |
Tensile Strength(MPa) | ASTM D638 | ≥8.5 |
Elongatio(%) | ASTM D638 | ≥250 |
Elongation at Break after aging(%) | 250℃×168h | ≥200 |
Dielectric strength(kv/mm) | ASTM D2671 | ≥7.9 |
Volume resistance(Ω.cm) | IEC 60093 | ≥1×109 |
Flame redundancy | UL224 | VW-1 |
Operation temperature | -55℃~200℃ | |
Shrink temperature | ≥175℃ | |
Environment | RoHS Compliant | |
Standard Color | Black | |
Material:1.Fluororubber | ||
Viton Fluororubber Heat Shrink Tubing Specification | |||||
Size | As Supplied (mm) | After Recovery(mm) | Tube shape | Standard Package | |
mm | Min I.D. | Max I.D. | Total W.T. | ||
Φ2.4 | ≥2.4 | ≤1.2 | 0.70±0.2 | Round | 200 |
Φ3.2 | ≥3.2 | ≤1.6 | 0.76±0.2 | Round | 200 |
Φ4.8 | ≥4.8 | ≤2.4 | 0.89±0.2 | Round | 100 |
Φ6.4 | ≥6.4 | ≤3.2 | 0.89±0.2 | Round | 100 |
Φ9.5 | ≥9.5 | ≤4.8 | 0.89±0.2 | Flat | 50 |
Φ12.7 | ≥12.7 | ≤6.4 | 0.89±0.2 | Flat | 50 |
Φ19.1 | ≥19.1 | ≤9.5 | 1.07±0.3 | Flat | 25 |
Φ25.4 | ≥25.4 | ≤12.7 | 1.25±0.3 | Flat | 25 |
Φ38.1 | ≥38.1 | ≤19.1 | 1.40±0.3 | Flat | 25 |
Φ50.8 | ≥50.8 | ≤25.4 | 1.65±0.3 | Flat | 15 |
Company Information
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex, UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train. We will use good packing and ensure the safety. We will be responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock products in 3 work days.
If without stock,or stock is not enough, we will check the delivery time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have over 10 years OEM experience.
