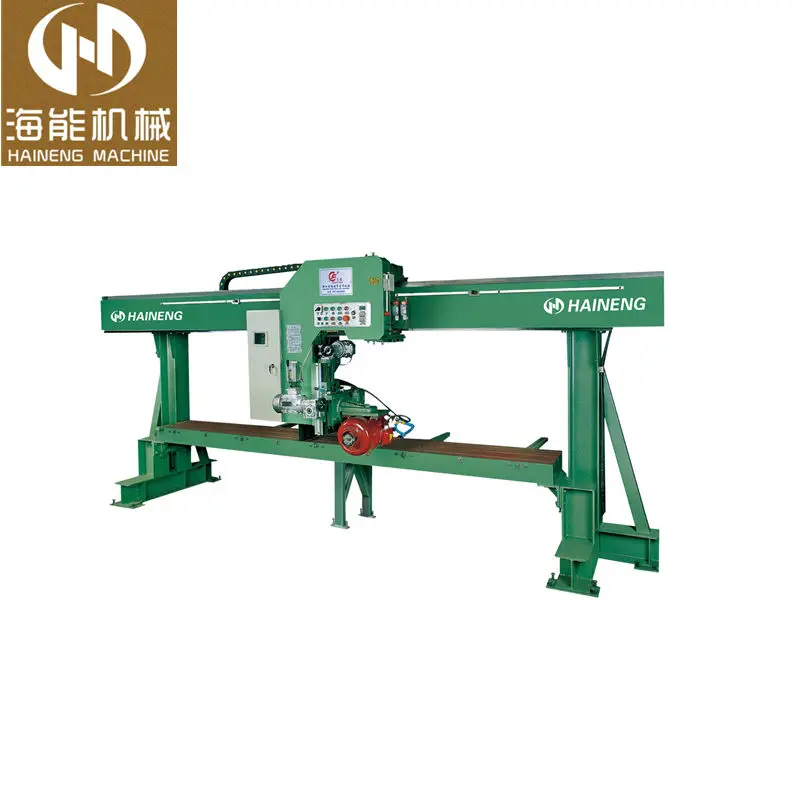

Custom curved linear edge grinder rock cutter automatic edge polishing floor brick saw stone cutting machine

Product Overview

Description

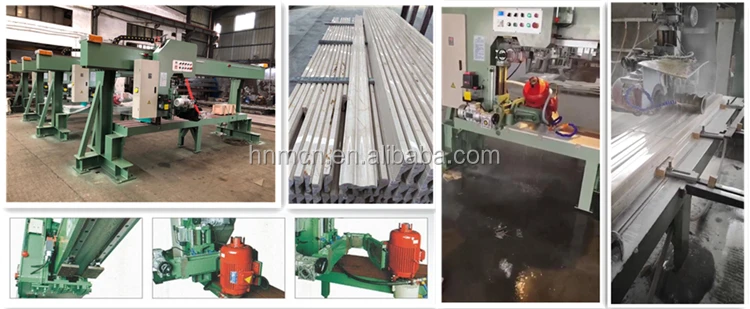

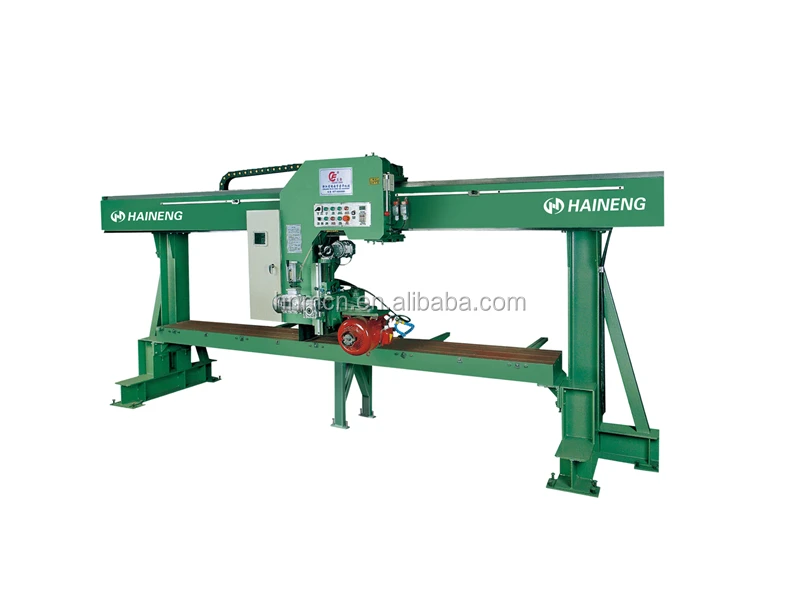

AYH Portal curved linear edge grinder

This machine is the latest high-precision, multi-functional shaped stone processing equipment. This machine has a variety of straight edge, curve and cutting functions. With the activity of this machine, you can also process a variety of inner and outer curve laces, and you can also process the disk table after adding the turntable. Cutting can be done after replacing the saw blade. It is a multi-functional equipment integrating stone straight grinding, curve grinding and stone cutting. This machine adopts imported high-precision linear ball guide rail, which has the characteristics of high precision, strong load capacity, high reliability and long service life, which greatly prolongs the service life of the machine. This machine adopts variable frequency stepless speed regulation structure, and the processing walking speed is adjustable between 0.25-45m/min, which can meet various processing needs. In addition, the machine also adopts automatic upgrade and automatic entry and exit, which greatly reduces the labor intensity of workers and improves labor efficiency.

Type	unit	AYH
Grinding disk diameter	mm	Φ140-Φ160
Max. cutting length	mm	3300
Grinding curve	mm	Arbitrary internal and external curves
Power of main motor	kw	7.5
Lifting motor	kw	0.55
Advancing motor	kw	1.5
Table size	mm	3500×500
Water consumption	m³/h	1.6
Dimension(L×W×H)	mm	4800×1400×2100
Total weight	kg	2500
