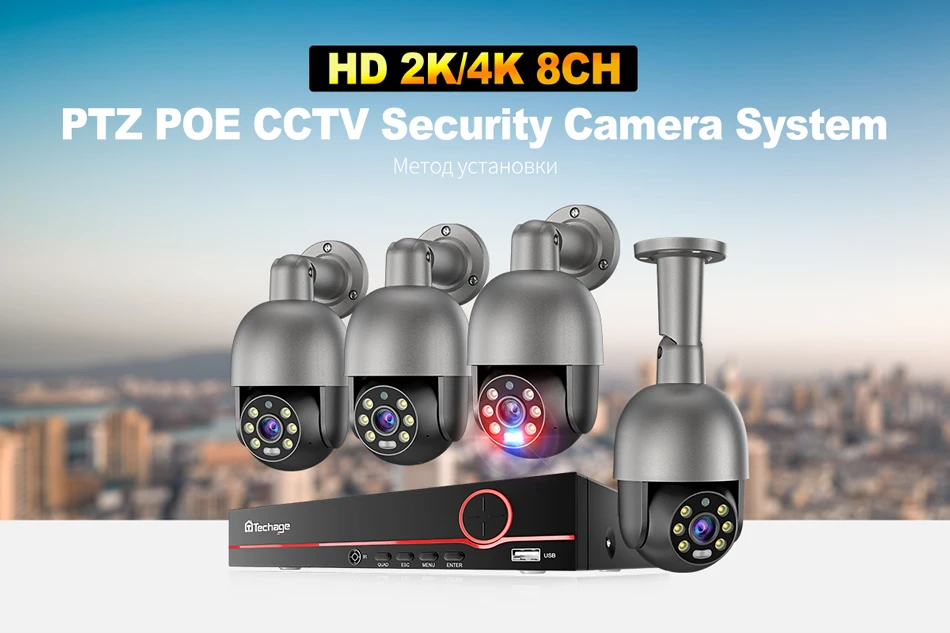

China Factory 4MP Auto Human Tracking Human Detection PoE PTZ Security Camera System Ip Camera Kit
- Category: >>>
- Supplier: Shenzhen Techage Technology Corp. Ltd.
Share on (1600733716607):
Product Overview
Description
Details Images
Product Description
Mian Features:
1. HD 4K POE Camera System. Support Motion Detection + Email Alert + Alarm Siren. Trigger multiple alarms at the same time to scare off intruders.
2. Support custom camera alarm sound or alarm bell.
3. 8 channel 4K NVR design, support to connect up to 8pcs 4K Cameras. You can buy Tinosec PoE IP cameras and a PoE Switch to expand your CCTV system to 16 channels.
4. Speed Dome PTZ camera, support to remote control pan 355°/ tilt 90° rotation.
5. Smart AI PoE camera, support human detection, humanoid auto tracking and red-blue light alarm.
6. The cameras have bulit in microphone and speaker, support two-way audio recording.
7. Three Night Vision Modes Setting: Infrared night vision, Dual warning lights, Full color night vision
8. P2P Multi-User Remote Access: P2P technology let you be able to view the live situation of your house wherever you are, just with the P2P account on the app via your Smartphone or tablet.
9. XMeye independently developed the RTS Cloud architecture, which is faster and the preview is more stable.

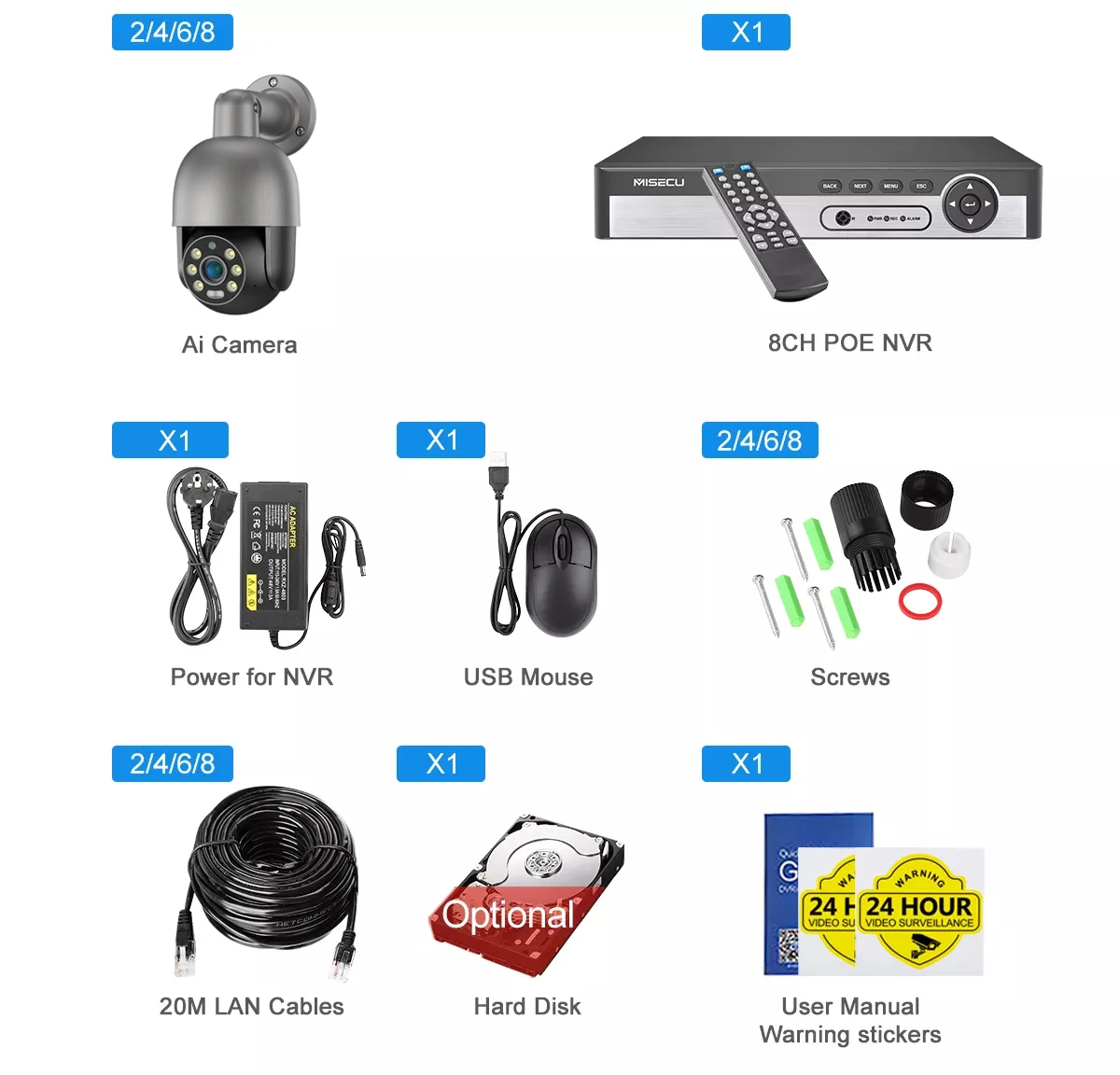

Package Included:
1 x 8CH 8MP 48V POE NVR
4 x 4MP/8MP PoE IP Cameras.
4 x 20M Power Network Cable for Camera
1 x Power Supply for NVR
1 x Mouse for NVR
1 x User manual
2 x Warning Sticker ( gift )
NO HDD or 1TB,2TB,3TB,4TB HDD for Optional Carton packaging, with air pocket, and we can design the box as your require.
1. HD 4K POE Camera System. Support Motion Detection + Email Alert + Alarm Siren. Trigger multiple alarms at the same time to scare off intruders.
2. Support custom camera alarm sound or alarm bell.
3. 8 channel 4K NVR design, support to connect up to 8pcs 4K Cameras. You can buy Tinosec PoE IP cameras and a PoE Switch to expand your CCTV system to 16 channels.
4. Speed Dome PTZ camera, support to remote control pan 355°/ tilt 90° rotation.
5. Smart AI PoE camera, support human detection, humanoid auto tracking and red-blue light alarm.
6. The cameras have bulit in microphone and speaker, support two-way audio recording.
7. Three Night Vision Modes Setting: Infrared night vision, Dual warning lights, Full color night vision
8. P2P Multi-User Remote Access: P2P technology let you be able to view the live situation of your house wherever you are, just with the P2P account on the app via your Smartphone or tablet.
9. XMeye independently developed the RTS Cloud architecture, which is faster and the preview is more stable.
Package Included:
1 x 8CH 8MP 48V POE NVR
4 x 4MP/8MP PoE IP Cameras.
4 x 20M Power Network Cable for Camera
1 x Power Supply for NVR
1 x Mouse for NVR
1 x User manual
2 x Warning Sticker ( gift )
NO HDD or 1TB,2TB,3TB,4TB HDD for Optional Carton packaging, with air pocket, and we can design the box as your require.

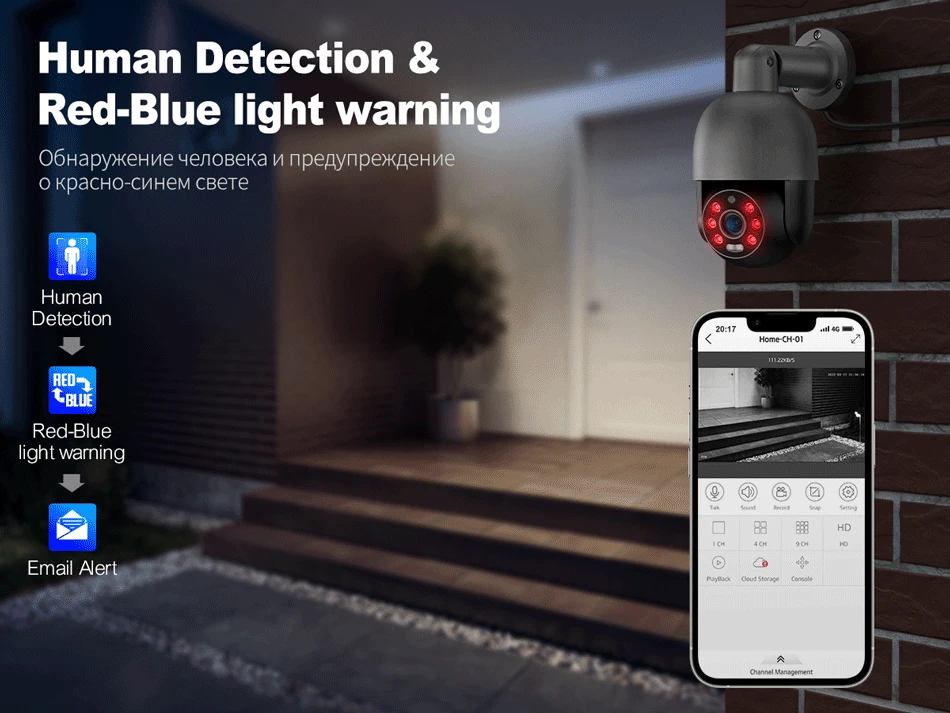

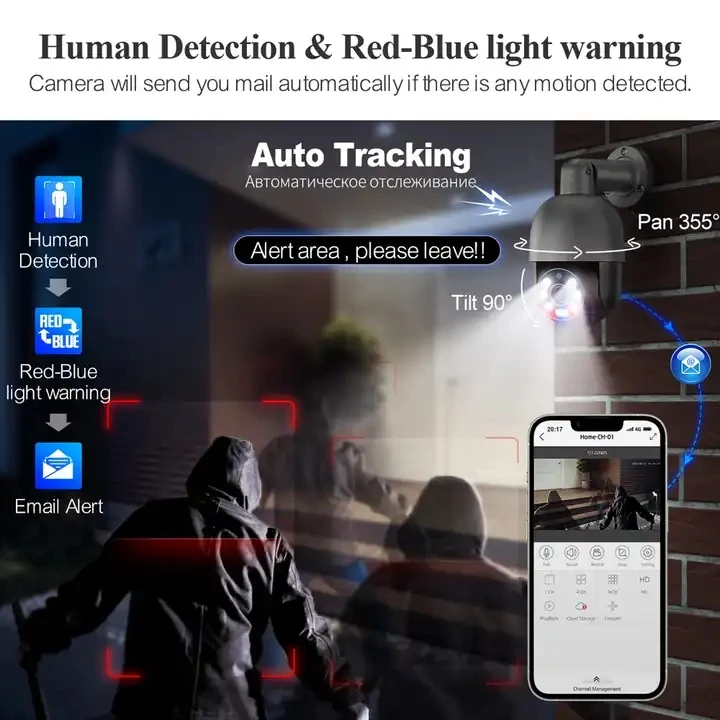

Smart AI Human Detection + Red-Blue Light Alarm
When it detects a moving human body at night, 6pcs white LED lights will light up as a warning deterrent and provide a color surveillance video.
At the same time, the camera will sound alarm and the red and blue lights will flash alternately. Then the alarm messages will be sent to your mailbox.

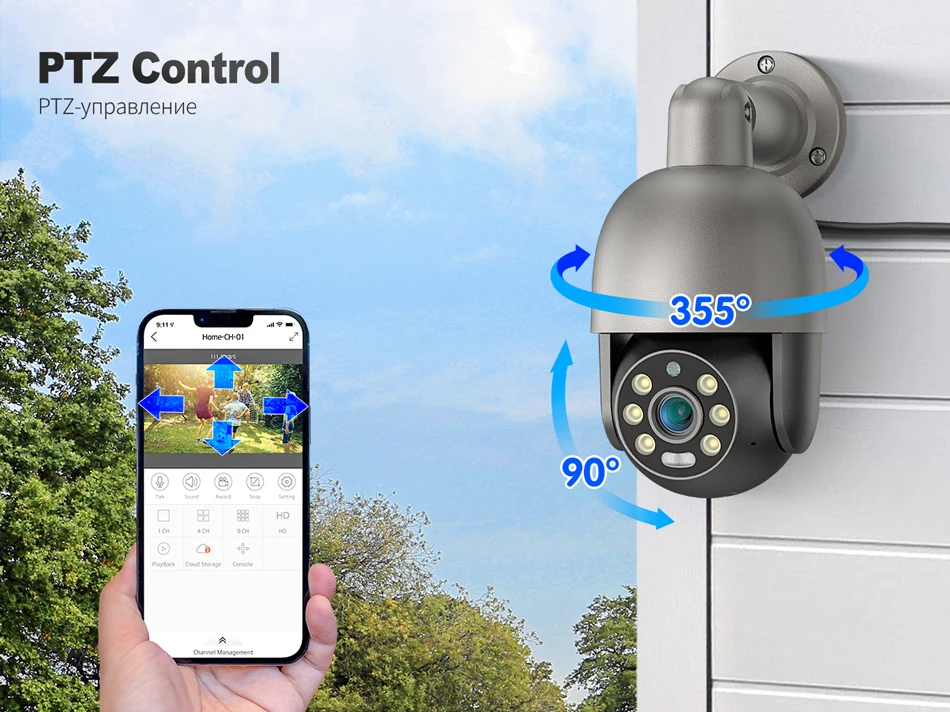

Support Pan 355°/TIlt 90° Rotation
(1)Digital zoom camera with cruise covers 355° horizontal and 90° vertical range, monitoring your home or backyard from all angles.
(2) No blind spot surveillance and never miss every detail in any corner.

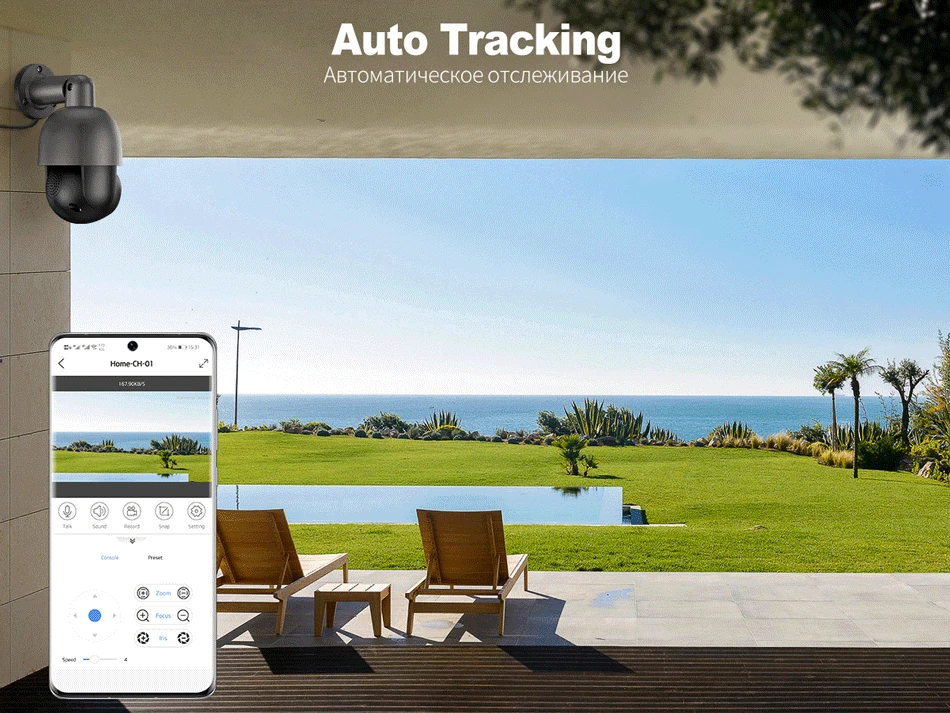

Smart Human Auto Tracking & Daemon Position Setting
When somebody move, the camera automatically track the body. When the human disappears from the camera's field of view, the camera will automatically rotate back to the daemon position you set, monitor the position you focus on at all times.
Real-time Two-way Audio
Camera has built in Microphone and Speaker. Never miss a moment with your family.

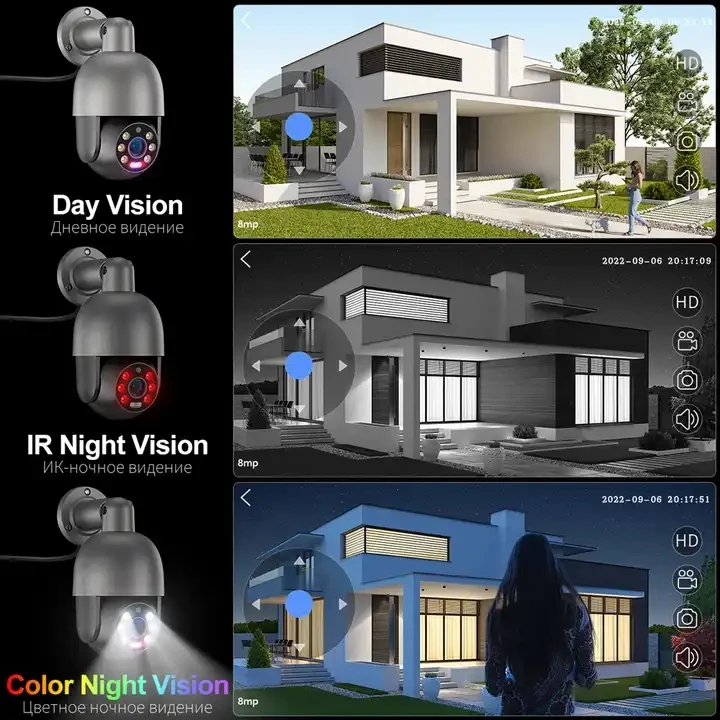

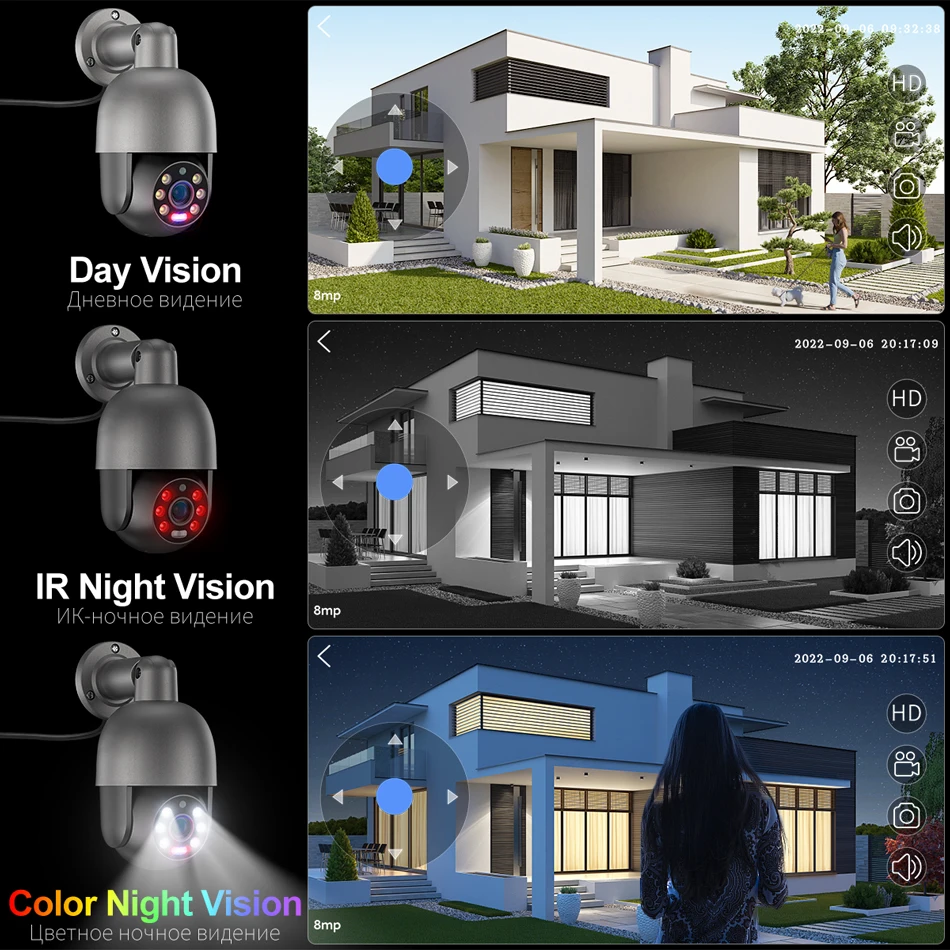

Full Color Night Vision
When the 2 white LEDs are lit, the surveillance video at night will show a colorful picture.
Three night vision modes for you to choose: IR infrared night vision, dual warning lights, full color night vision

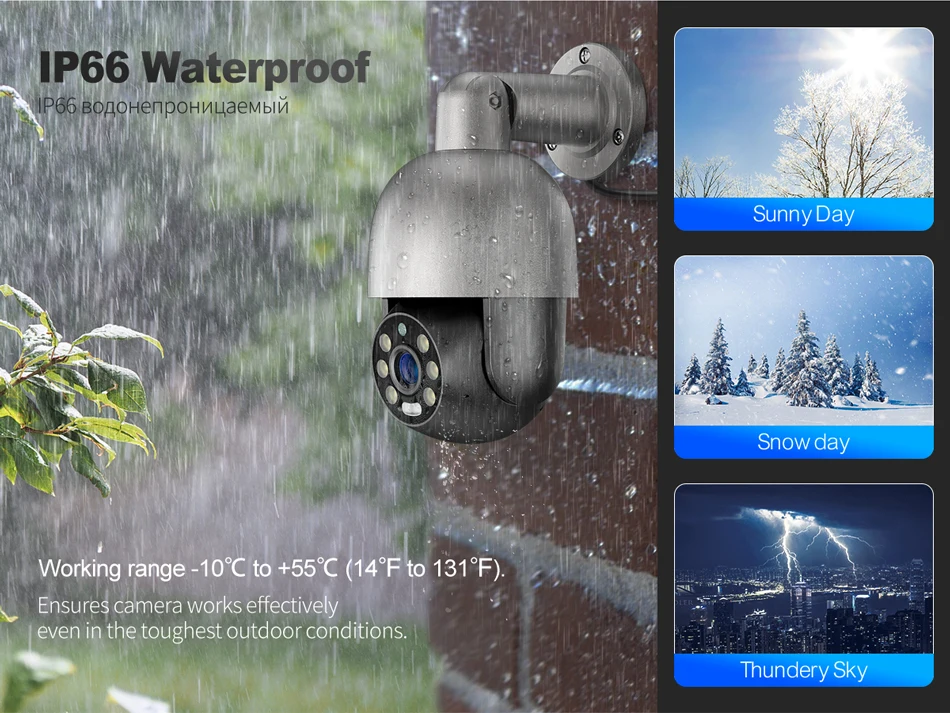

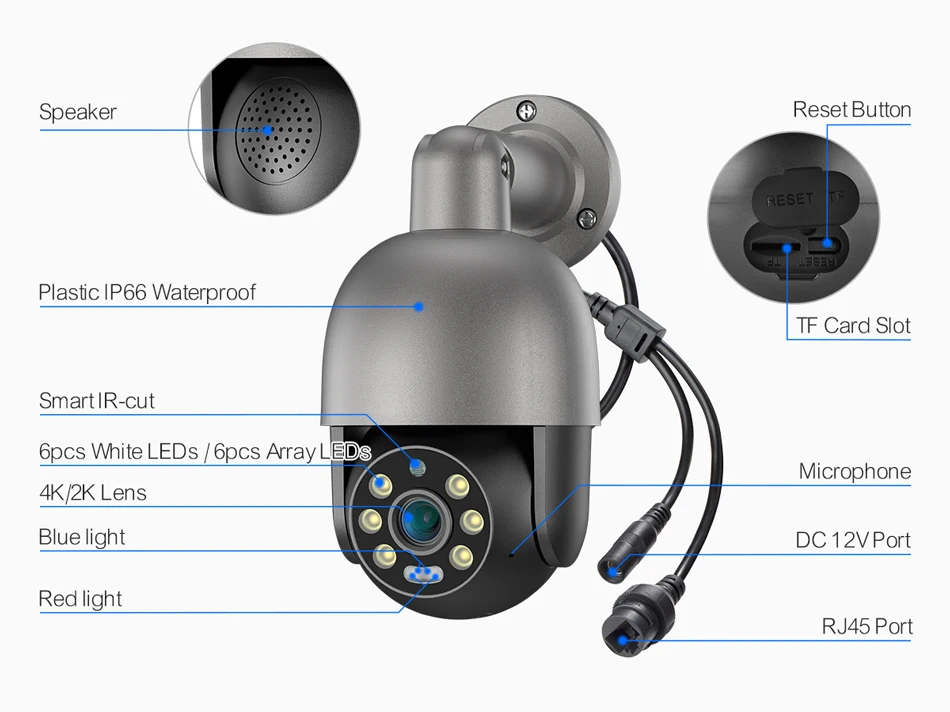

PTZ Cameras support IP66 Weatherproof
This Poe PTZ Camera has a solid body and housing, IP66 level waterproof rating makes it ideal for outdoor surveillance. It can stand harsh weather conditions. including rain, snow, intense cold and heat

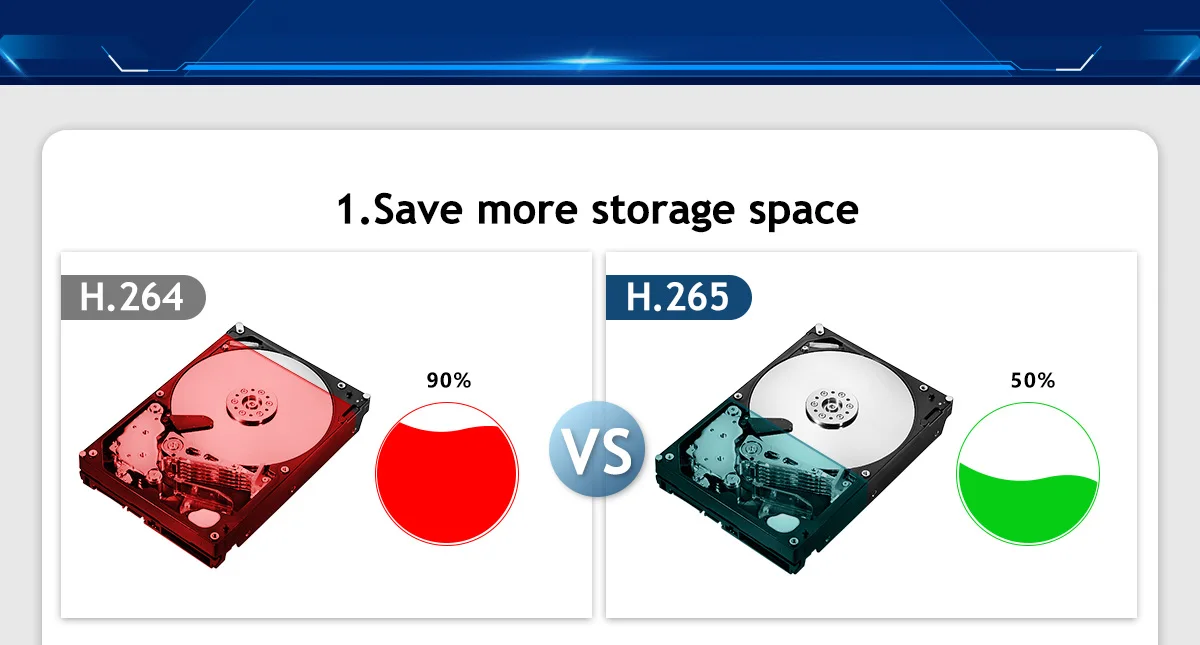

H.265 POE CCTV System
H.265 more clear , HD resolution offer you best image quality in a lower bit rate.
Save more storage space,can reduce 40%-50% file size.
H.265 only need a lower bandwidth, Speed loading faster, Play video more smoothly.

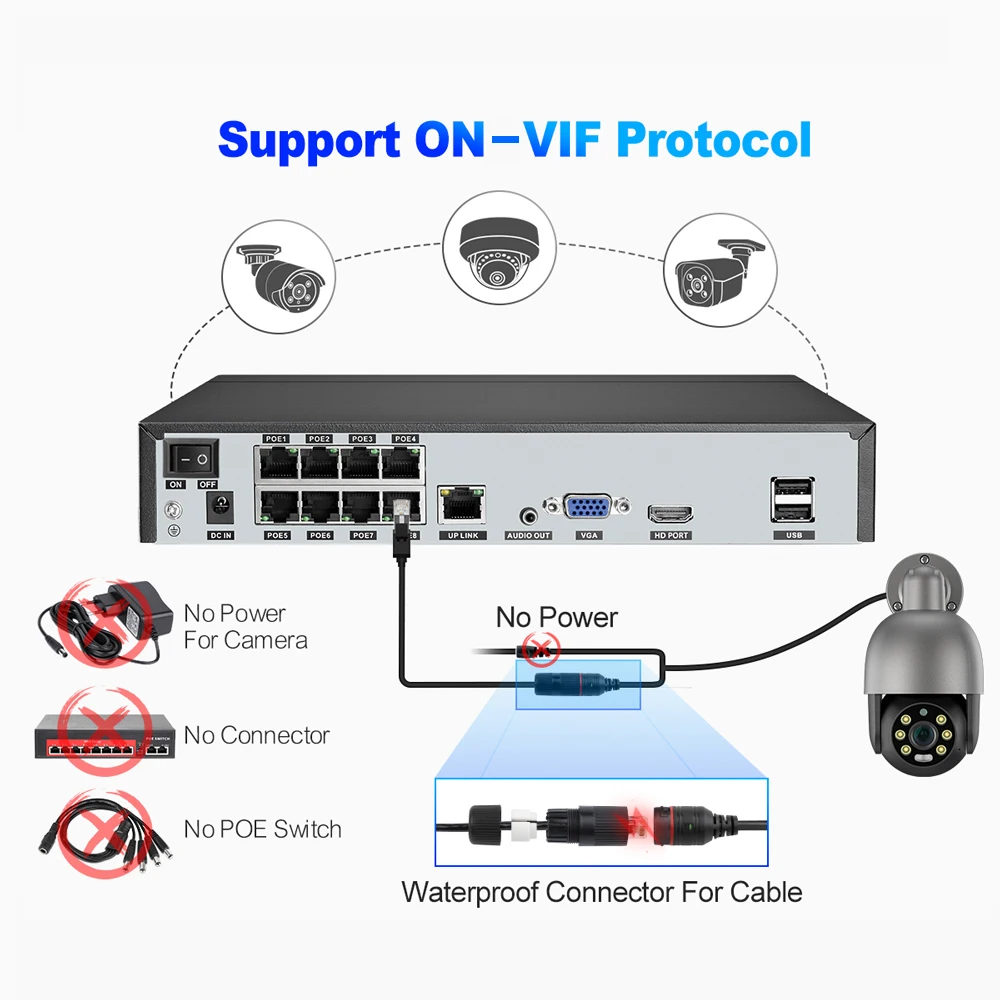

POE Advantage, Why Choose POE?
Don't need extra power cables or adapters or switch.Plug And Play and easy setup.
Save Money and Convenient, POE NVR = NVR + POE Switch.
Each camera comes with a Waterproof connector for cable.

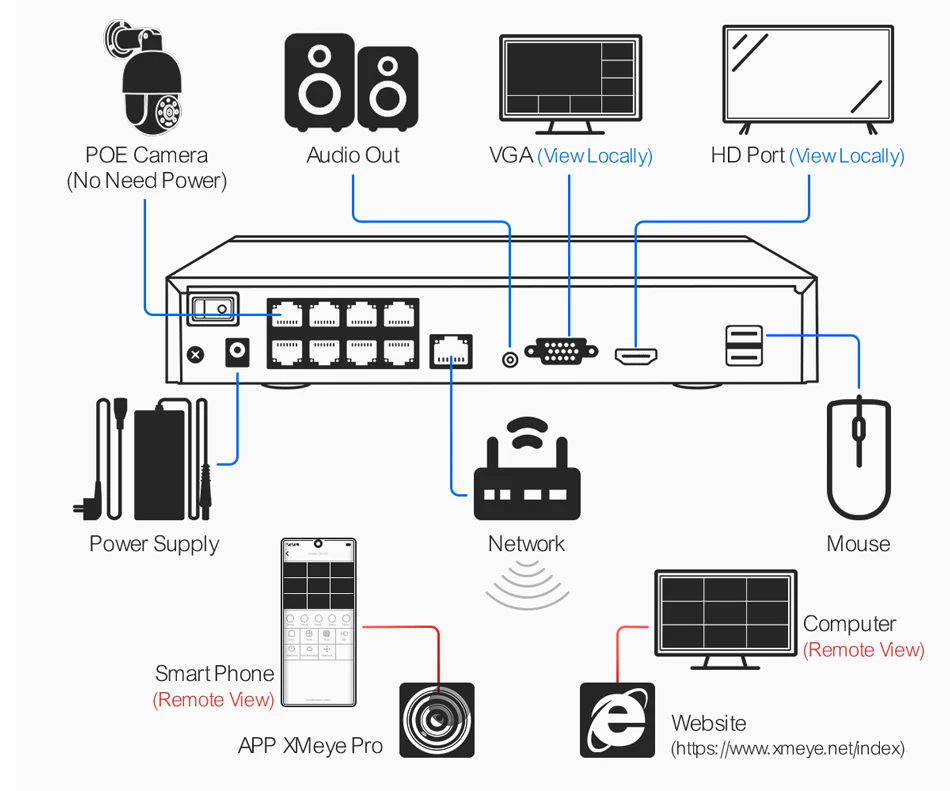

Install and Connect it
It can be quickly and easily setup by anyone. Instantly see live video using your computer, tablet, or phone from anywhere.
Don't need extra power cables or adapters or switch

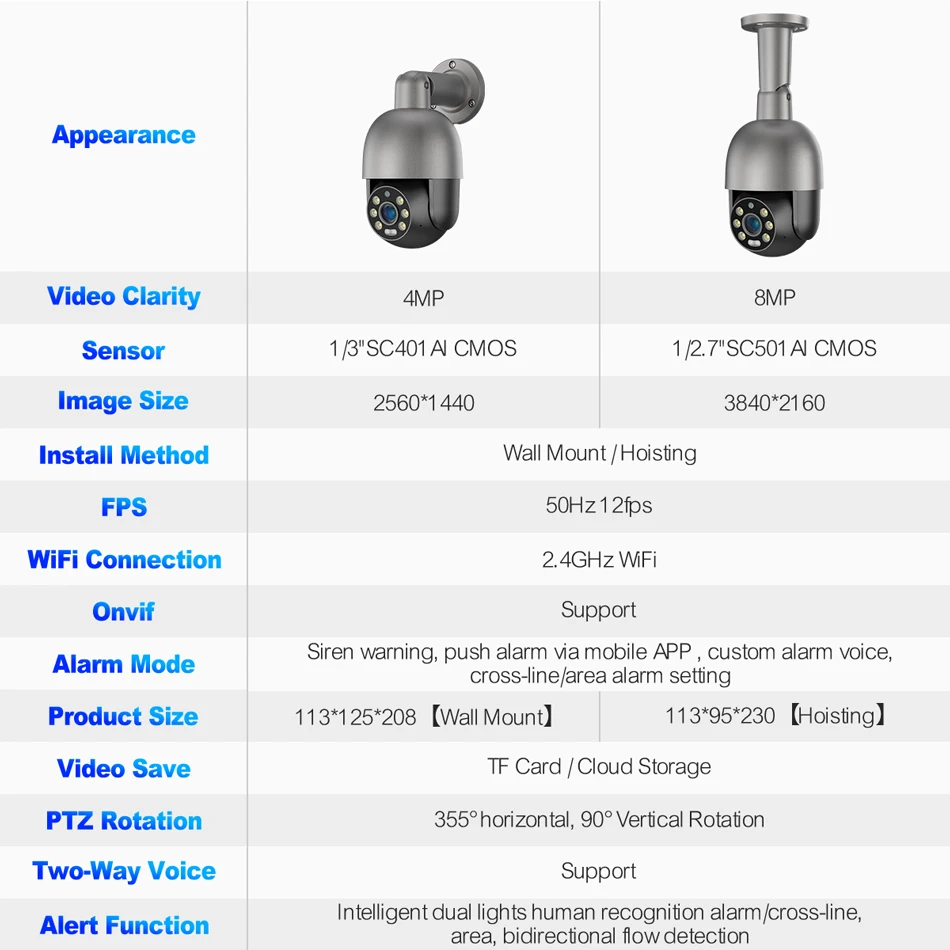

Specification
Model | XM-PT825-80P | ||
Video | Sensor | Embedded RTOS,dual-core 32bit DSP(NT98566),pure hard compression ,watch dog | |
Video compression | 8.0M 1/2.7"SC501AI High Quality CMOS sensor, color 0.0001Lux@F1.2, black/white 0.0001Lux@F1.2 | ||
Image output | H.265AI/H.265+(Compatible with H.265/H.264), support dual stream, AVI;0.1M~8Mpbs variable;1~30f/s variable | ||
Shutter | 1/50(1/60) s to 1/10,000s | ||
Noise reduction | Support 2D/3D | ||
Wide dynamic | Support digital | ||
Lens | 3.6mm | ||
Day and night | Support IR-CUT, IR-CUT coil has an internal resistance of 20 ohms, the power-on time is less than 200ma, and thevoltageis3.5V-6V | ||
IR distance | 20-30m | ||
Audio | Audio compression | G.711, support bidirectional talk,audio&video synchronization | |
Audio interface | build in micphone and speaker | ||
PTZ | Pan 355 degree Tilt 90 degree | ||
Auto Human Tracking | |||
Internet | Port | 1*RJ45 10/100M adaptive Ethernet port; support RTSP/FTPDHCP/NTP/UPnP etc | |
Alarm | Human detection, Motion detection, AI alarm. | ||
Alarm Notification Push, Voice Alarm, Video Record, Snap Picture | |||
Red Blue Light Alarm | |||
Recording | Time video, Event video | ||
Time play back, Event play back | |||

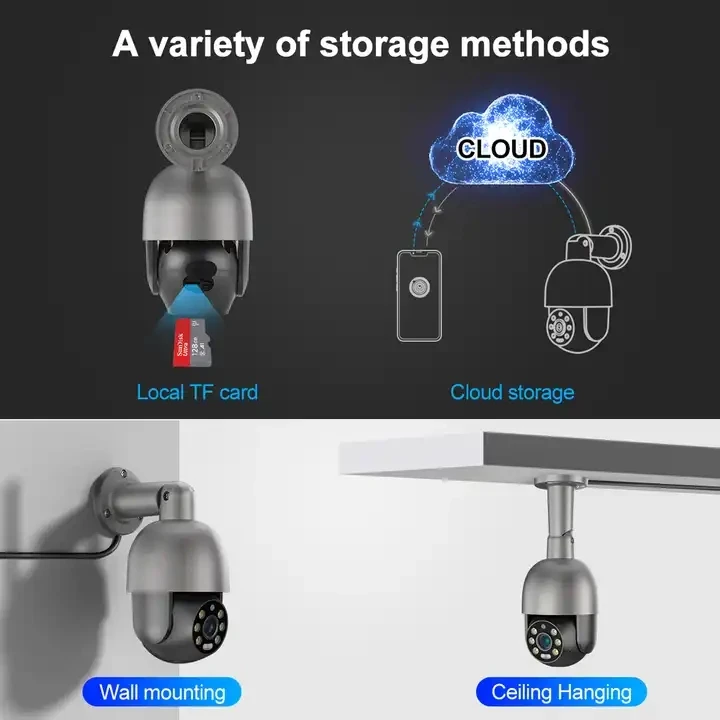

SD Card, up to 128GB. Cloud Storage | |||
Other | Reliability | Comprehensive lightning protection, 7 * 24 hours 65 ℃ high temperature stable and reliable testing | |
ON-VIF | Support | ||
Mobile monitoring | Support multiple mobile monitoring（iOS，Android） | ||
Power | POE48V/DC12V 1A | ||
Reset | Supports one-click reset | ||
Environmental conditions | Temperature | -20℃ to +55℃ | |
Humidity | 30% to 80% RH | ||
System | Main processor | Hi3536E |
Operating System | Embedded Linux | |
System resources | Simultaneous multi-channel real-time recording, playback, network operation, USB backup | |
Interface | Operator interface | 16-bit true color graphic menu operation interface, support mouse operation |
Preview | 1/2/4/6/8/9/16 | |
Video | Video input (IP) | 16*4K（Access bandwidth 72Mbps） |
Video compression | H.265AI/H.265+(compatible H.265/H.264) | |
Display quality | Max:4K | |
Playback quality | 4K/5M/4M/3M/1080P | |
VR | Unsupport | |
human shape / Face | Support(depend on camera) | |
Audio | Audio compression | G.711A |
Intercom | unsupport | |
Record & playback | Recording mode | Manual>Alarm>Dynamic Detection>Timing |
Localpayback(real-time+ Un real-time) | 4K（1*real-time）/5M（1+1）/4M（2+1）/ 3M（3+1）/1080P（5+1） | |
Search mode | Search by Time/Calendar/Event/Channel/Face | |
Record storage | HDD、Network | |
Backup mode | Network backup, USB hard disk, USB burner, SATA burner | |
External interface | Video output | 1ch VGA，1ch HDMI HD output |
Audio I/O | 0/1（3.5MM audio output） | |
Alarm I/O | 0/0 | |
Network interface | 1*RJ45 10M/100M Adaptive Ethernet port | |
USB interface | 2*USB2.0 ports(one USB extension interface is reserved) | |
HDD | 1 SATA(Up to 14TB for each disk) | |
ESATA | No | |
Serial interface | No | |
Other | ON-VIF | Support |
Power supply | 12V/2A | |
Power Consumption | <10W(Without HDD) | |
Work environment | Temperature:0℃ －55℃ , Humidity:10%－90%RH , Atm:86kpa－106kp |
Packing & Delivery
Company Profile
FAQ
Q: What is your company’s competitive advantage?
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
A: 1)TinoSec is a professional manufacturer of R&D, Production, and Marketing (3 in 1) in security camera system more than 10years.
2).Certificates:CE,FCC,RoHS and ect.
3).Service:OEM/ODM orders are welcomed!
Q: How about your company's production capacity?
A: Complete HD Camera: 5,000pcs/Week.
Q: What's the MOQ?
A: Online order:No moq,OEM/ODM:Our minimum order qty is 50pcs each model, but we support small test order for all customer.
Q: What is your delivery time?
1) Within 3-5 working days for samples order,
2) Within 7-15 working days for bulk order.
Q: What shipping method can i choose? How about the shipping time?
1) For RU / CZ order, by local express about 1-3 days.
2)For small order, by air express like DHL, UPS, TNT, FedEx and etc, about 3-7days.
3)For big order, by air about 7-12 days, by sea about 15-35 days.
Q: How about your warranty?
A: Warranty is 24 months, life-time maintain!
Q:What is your method of payment?
A:Support T/T, LC, Western Union, Paypal, Trade Assurance and more.
