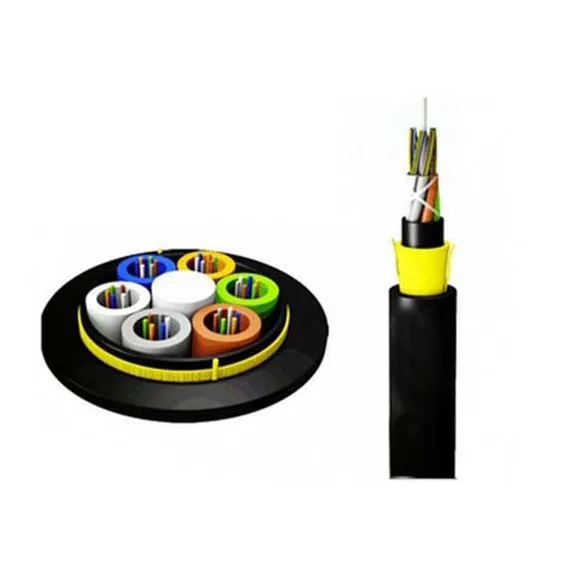

Adss Fiber Optical Cable 4km/drum G652d Manufacturer Supplier ADSS 24 Core Single Mode Optic Cable
Product Description

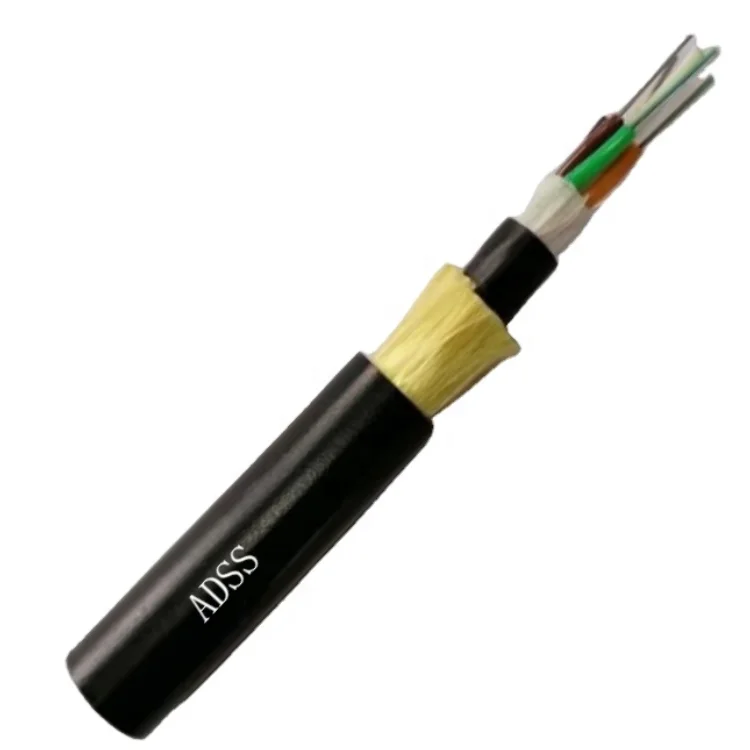

ADSS cable stands for All Die-Electric Self Supporting cable. It is a kind of fiber optic cable that can support itself between
structures without the use of conductive metal parts. With a maximum of 144 fibers, ADSS cables can support both single mode and multi mode fibers. From pole-to-building to town-to-town deployments, ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop to pologies. A full transmission circuit architecture with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures.
structures without the use of conductive metal parts. With a maximum of 144 fibers, ADSS cables can support both single mode and multi mode fibers. From pole-to-building to town-to-town deployments, ADSS fiber optic cable is designed for duct applications in local and outside plant aerial and campus network loop to pologies. A full transmission circuit architecture with high-reliability performance is provided by the cabling system, which includes cables, suspension, dead-end, and termination enclosures.

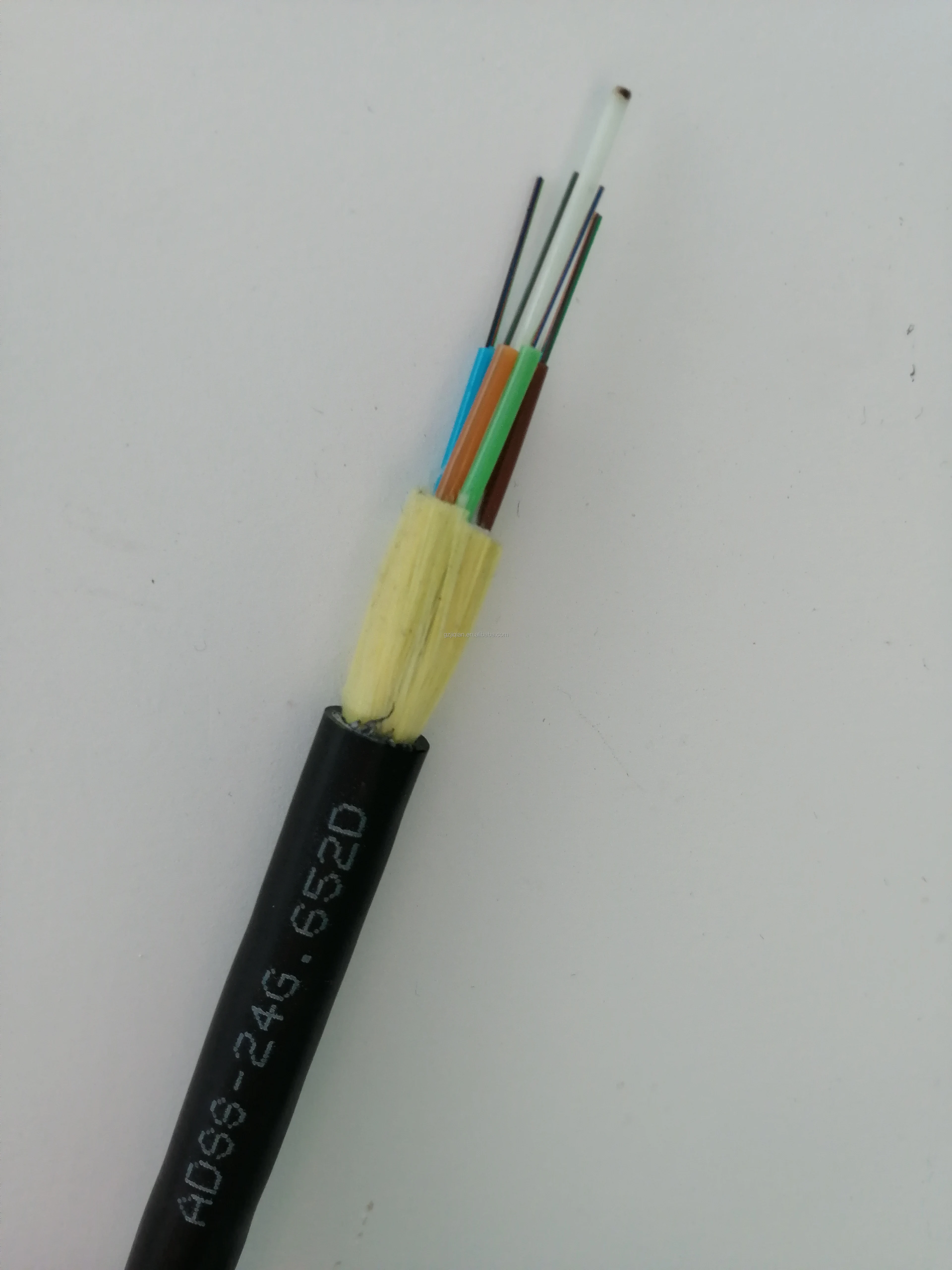

MODEL: ADSS-24B1.3
Fiber: SM G652D
Jacket Diameter: 9.8mm
Jacket Material: HDPE
Cable Length: 4Km/Drum
Simple Specification:
Insertion Loss: ≤0.30dB
Return Loss: ≥50dB
Durability: ≤0.20dB
Test Wavelength: 1310/1550nm
Operation Temperature:
-20℃ to +60℃

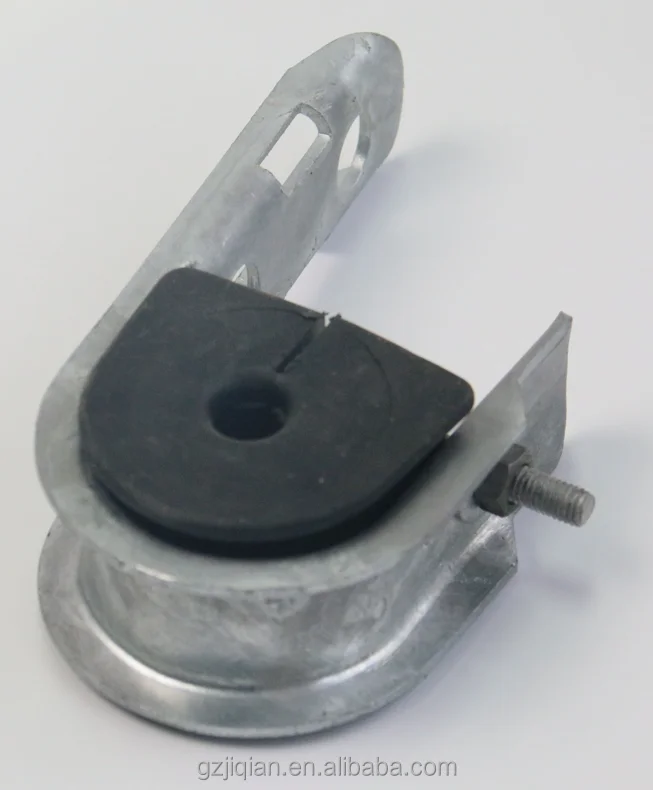

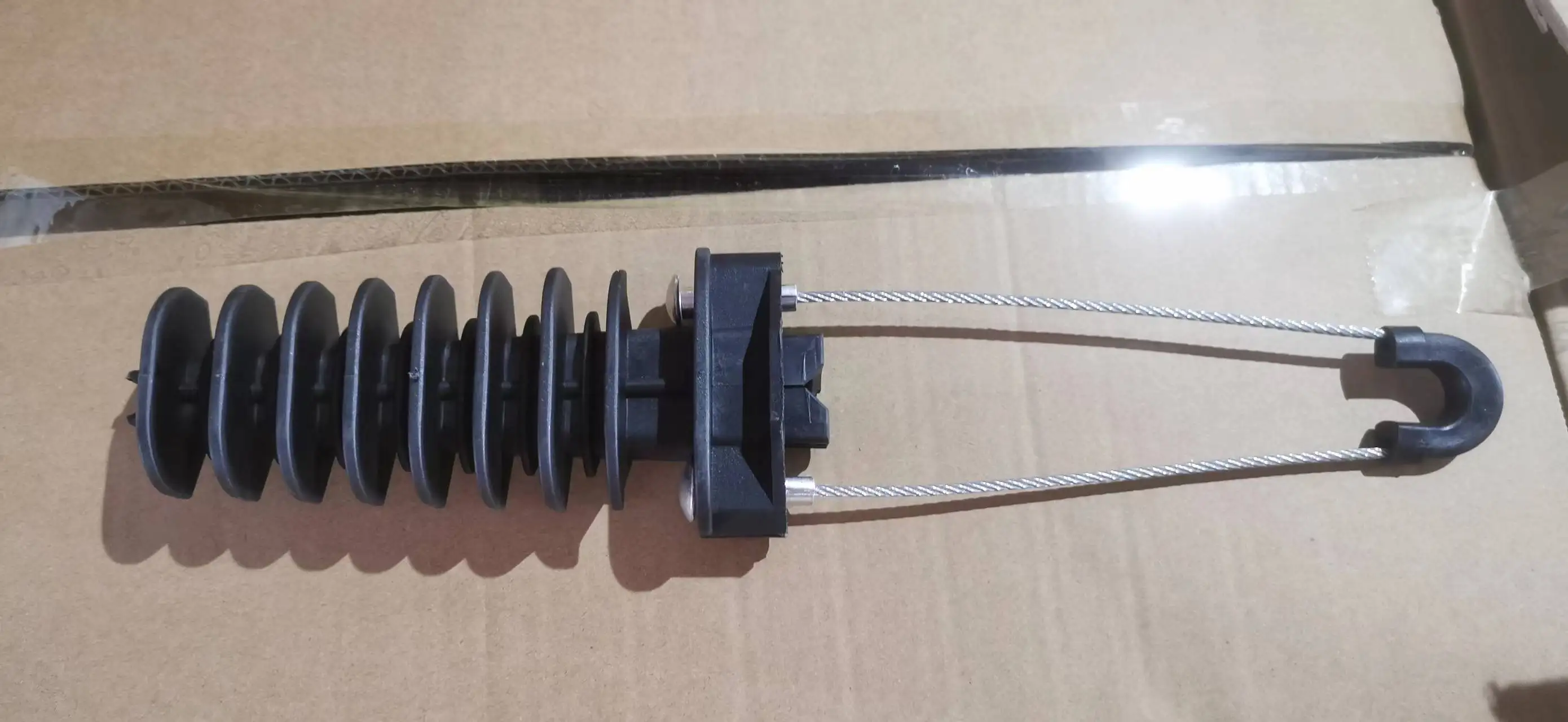

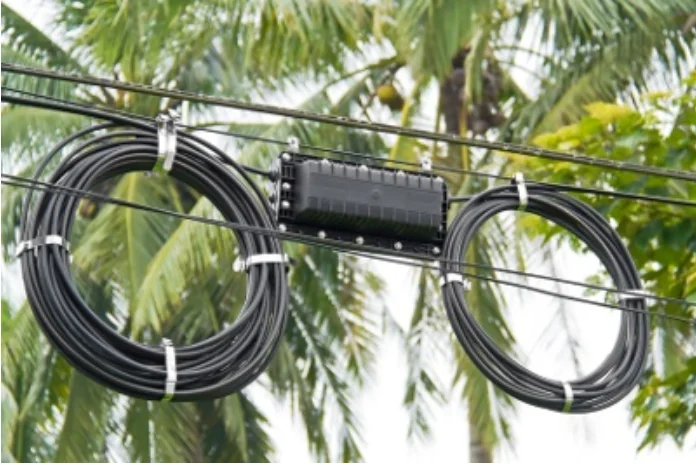

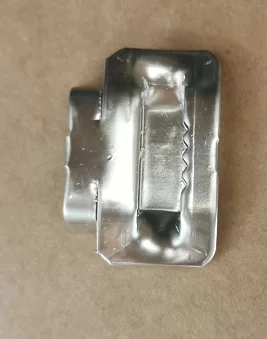

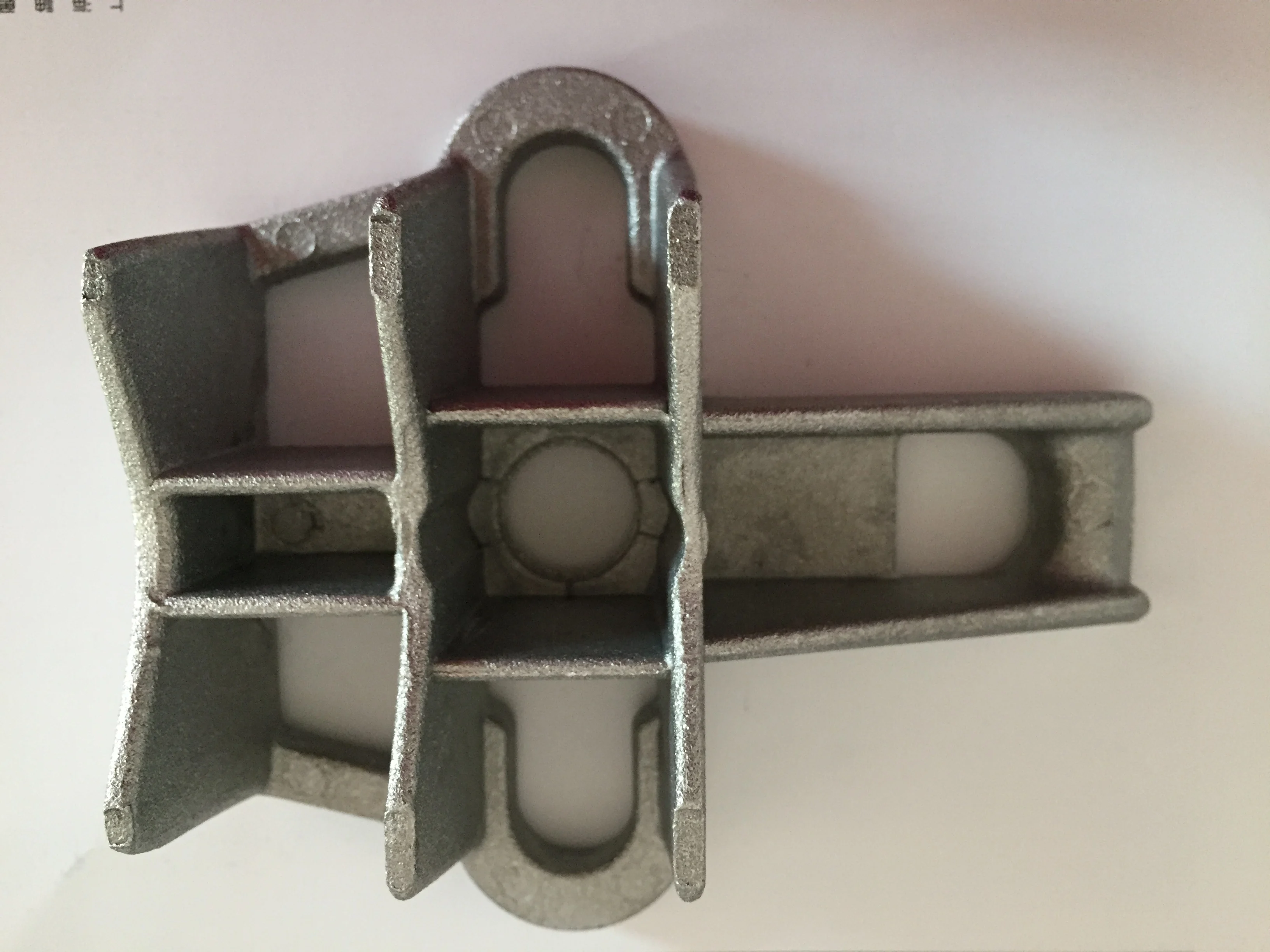

ADSS cable Fiber Accessories/Installation
Fiber Parameter
Item | Unit | Specification | ||||||
Fiber Type | G652D | |||||||
Mode field diameter | 1310nm | μm | 9.2±0.4 | |||||
1550nm | μm | 10.4±0.8 | ||||||
Cladding diameter | μm | 125.0±1 | ||||||
Cladding non-circularity | ％ | ≤1.0 | ||||||
Core/cladding concentricity error | μm | ≤0.5 | ||||||
Coating diameter | μm | 245±7 | ||||||
Coating/cladding concentricity error | μm | ≤12 | ||||||
Cable cut-off wavelength | μm | ≤1260 | ||||||
Attenuation Coefficient | 1310nm | dB/KM | ≤0.36 | |||||
1550nm | dB/KM | ≤0.22 | ||||||
Proof stress level | kpsi | ≥100 | ||||||
Note: Other parameters meet standard ITU-T G.652 | ||||||||
Technical Parameters

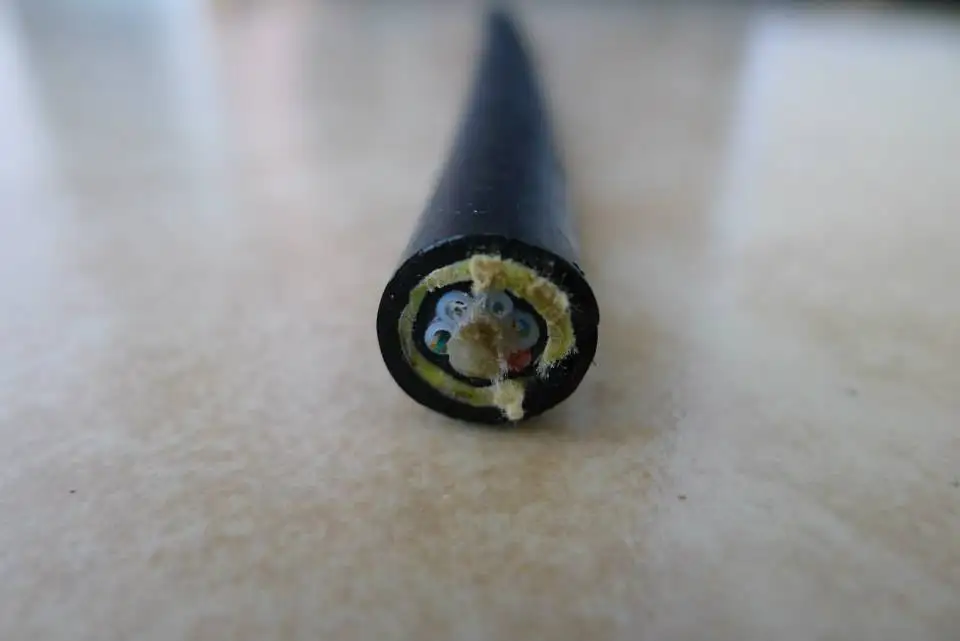

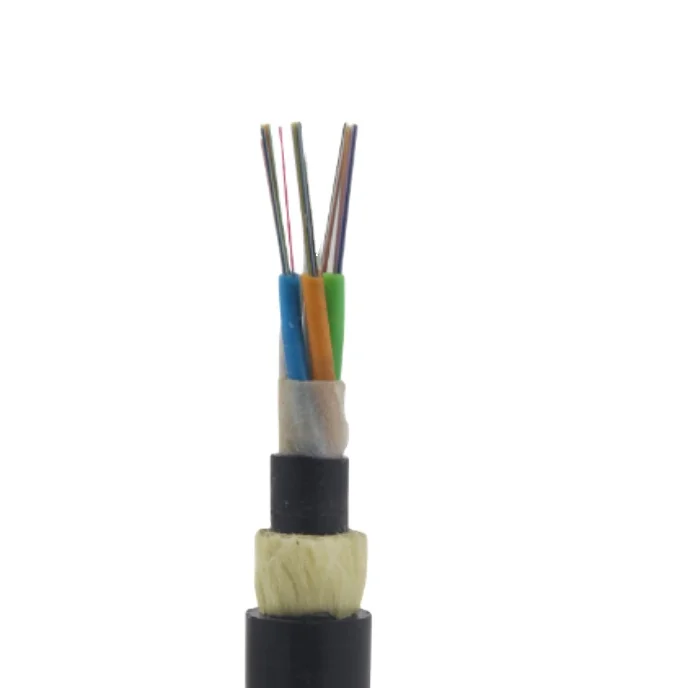

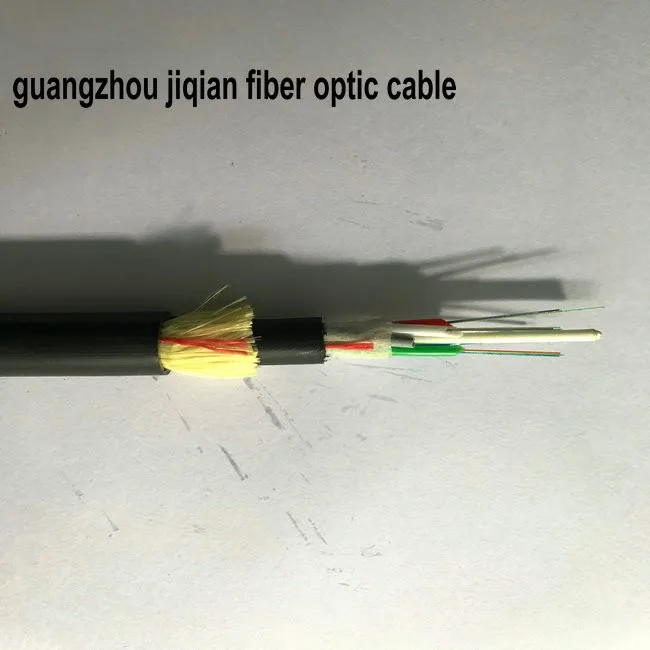

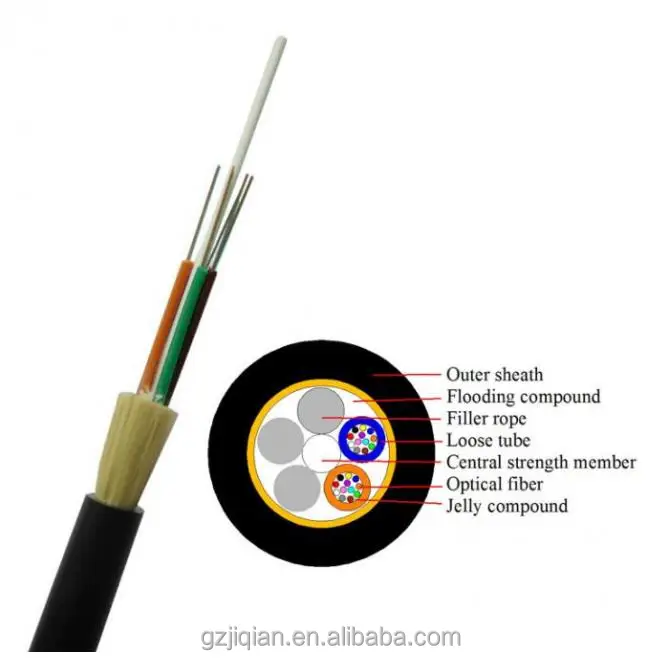

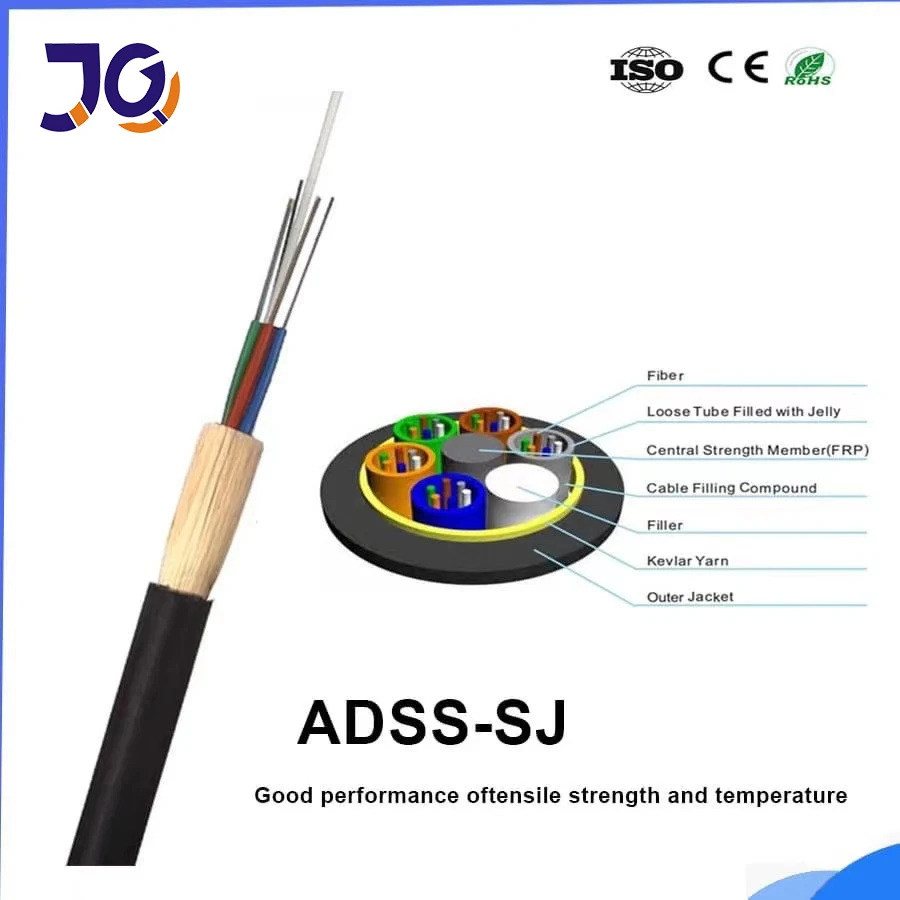

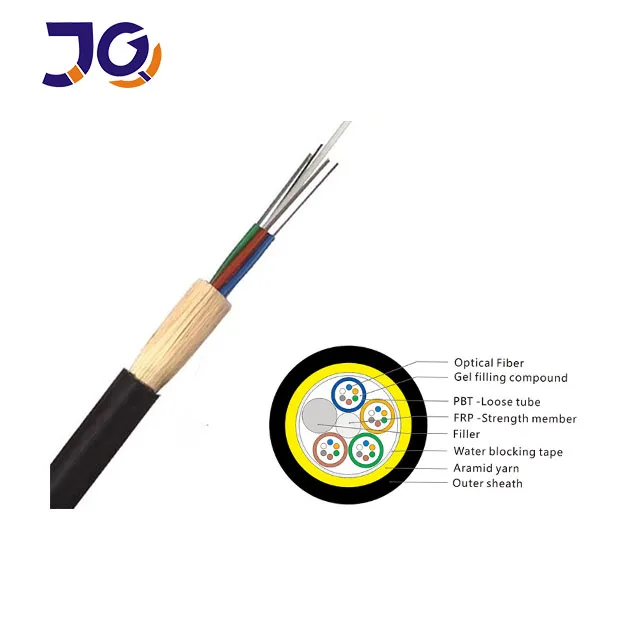

Cable structure | Name | ADSS-24B1-PE-100 |
FRP Center to strengthen core FRP | 2.0mm | |
Loose tube (filling gel) | 2±0.1mm | |
Outer sheath thickness PE | 1.8±0.2mm | |
Cable diameter | 9.8±0.3mm | |
cable weight | 85±10%kg/km | |
Loose tube(pcs) | 4 | |
Each tube contains fibers | 6 cores | |
Loose tube color | Blue、Orange Green、Brown | |
Optical fiber color | Blue、Orange、Green、Brown Gray、Natural |
Related Products

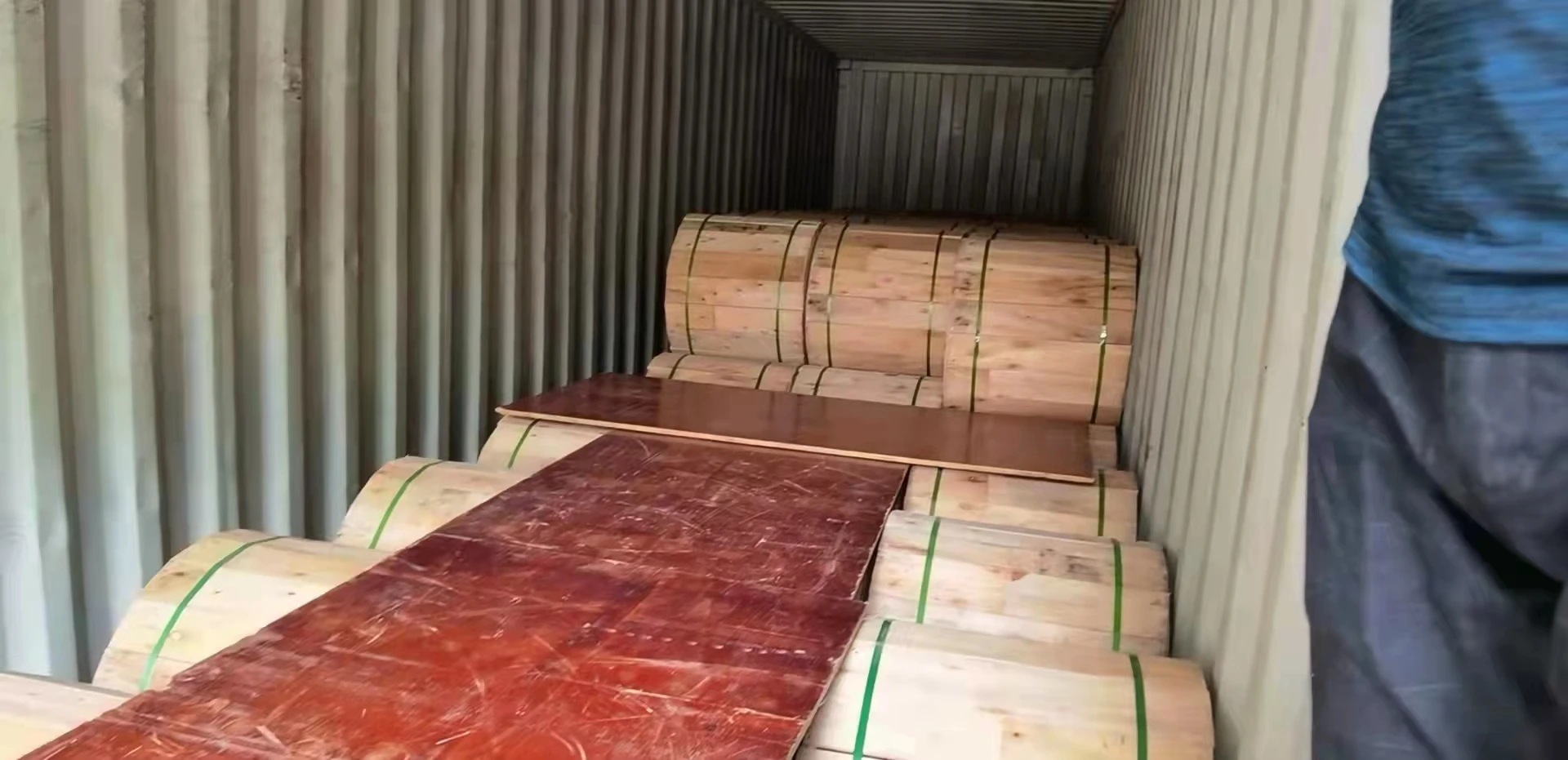

Packing & Delivery

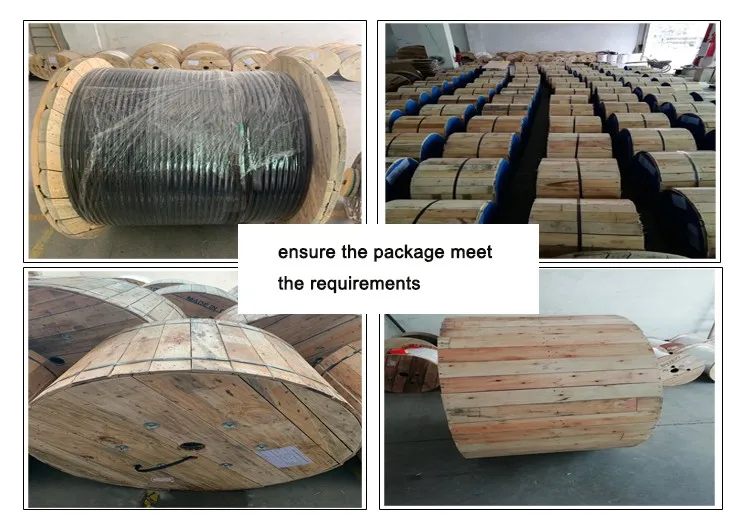

Packaging & Shipping

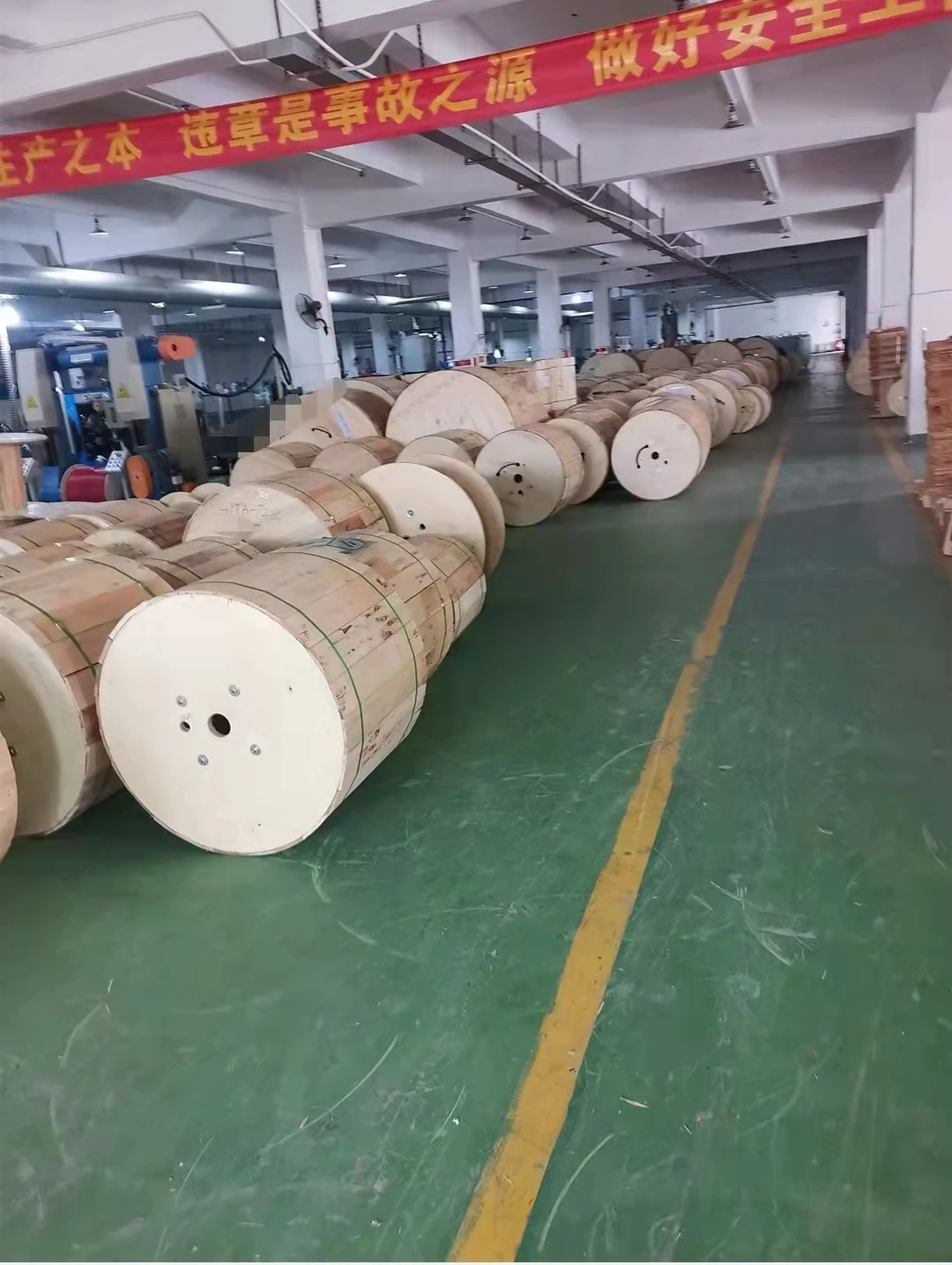

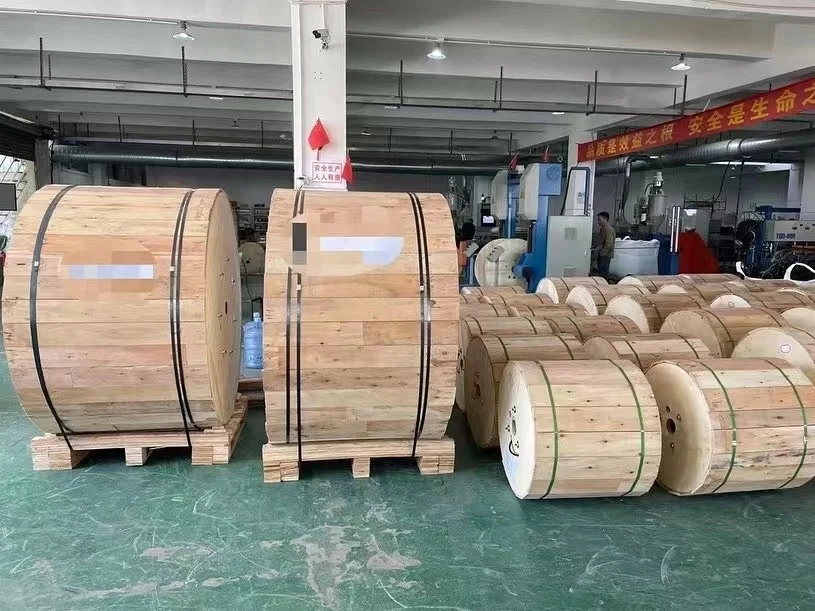

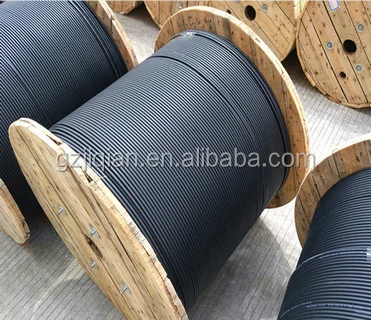

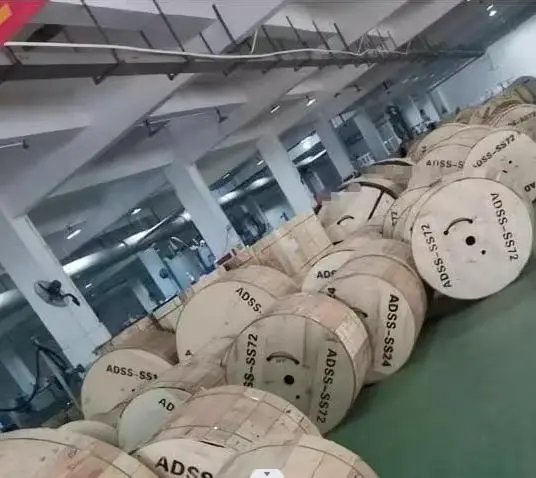

2/3/4km per plywood drum or customized
Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable
2/3/4km per plywood drum or customized
Lead time:
Order quantity 100-300km 5-7days More 300km Negotiable
Certifications

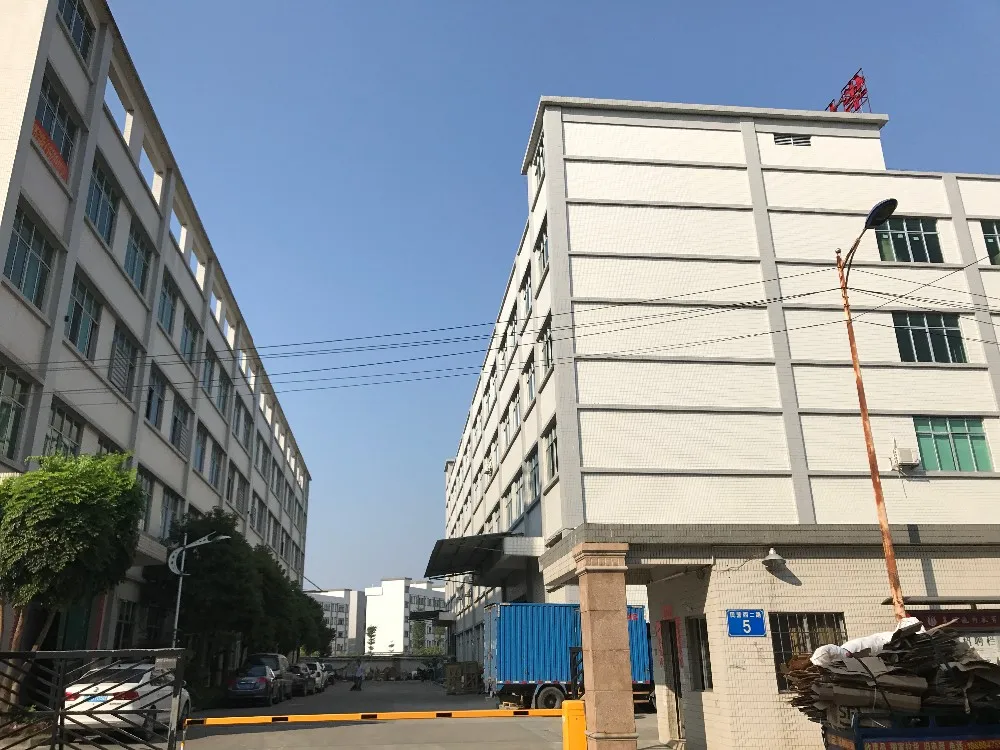

Company Information
Company profile:
Guangzhou Jiqian fiber optical cable co., LTD is a professional manufacturer of fiber optic cable,it provide a wide range of outdoor/indoor fiber optic cable,ftth drop cable,fiber patch cord with ISO9001/FCC/ROHS/CE International certifications,it's located in Guangzhou city,China
We OEM or design any structure of fiber optic cable for you.

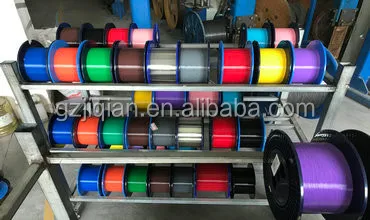

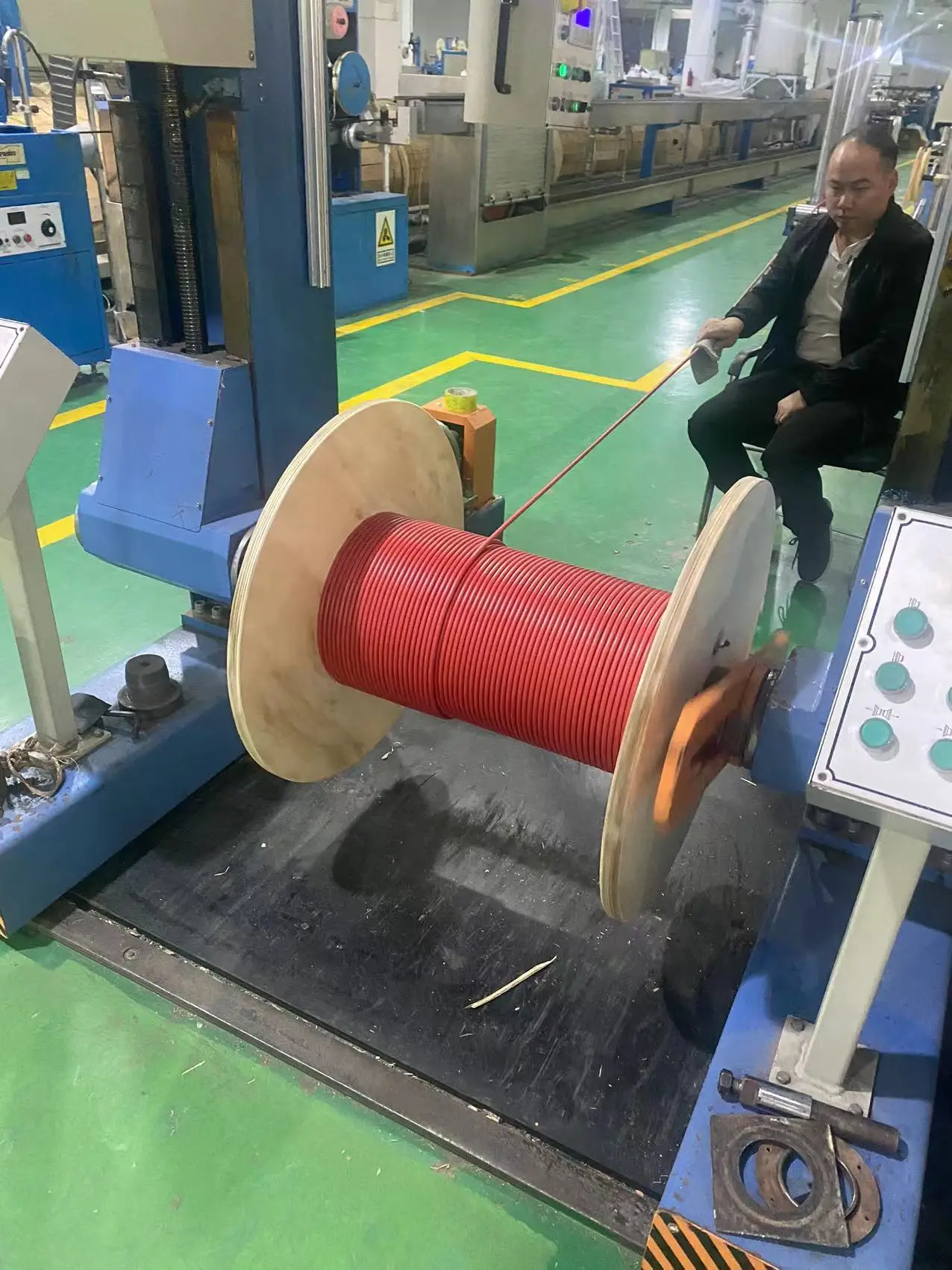

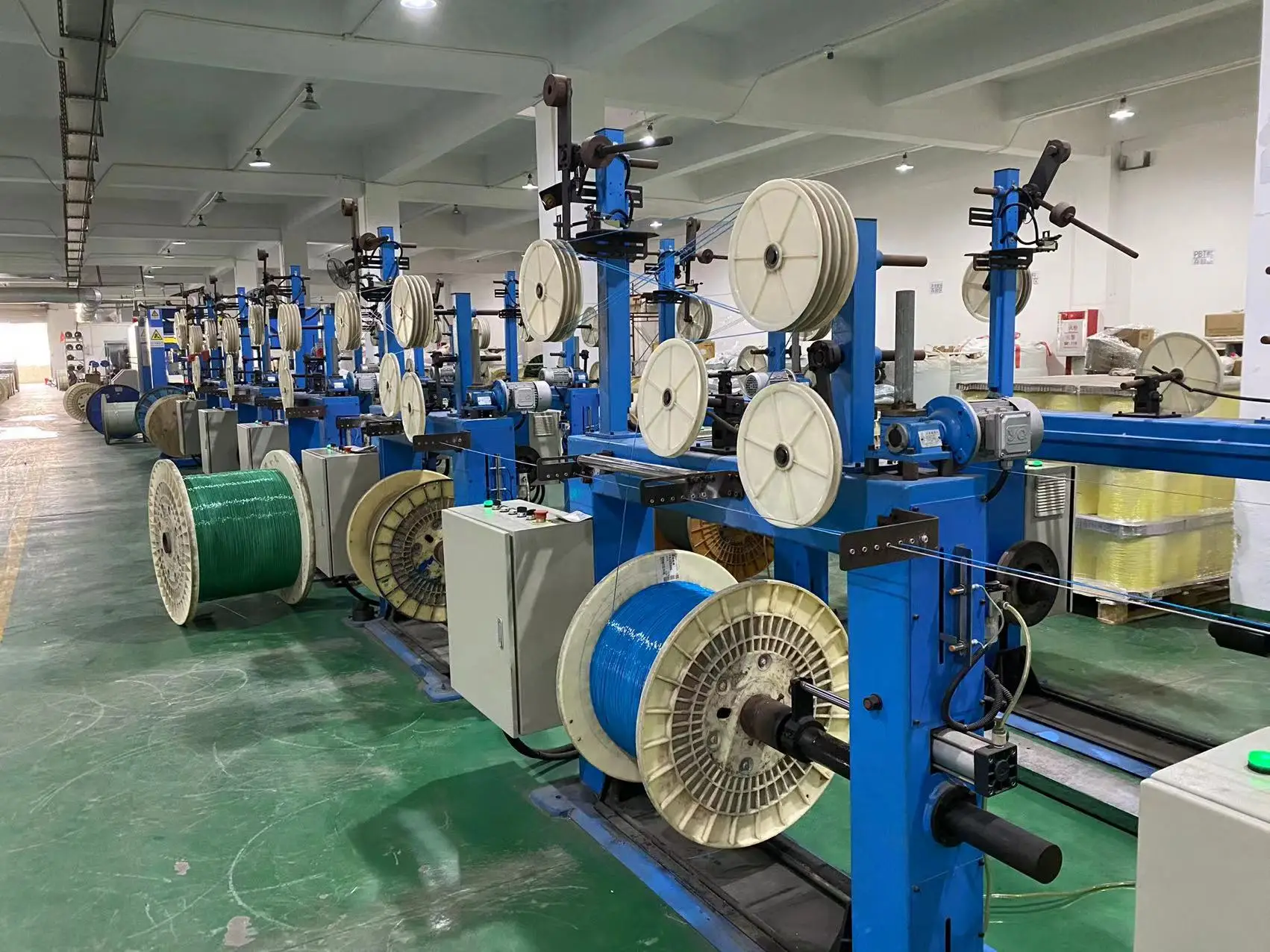

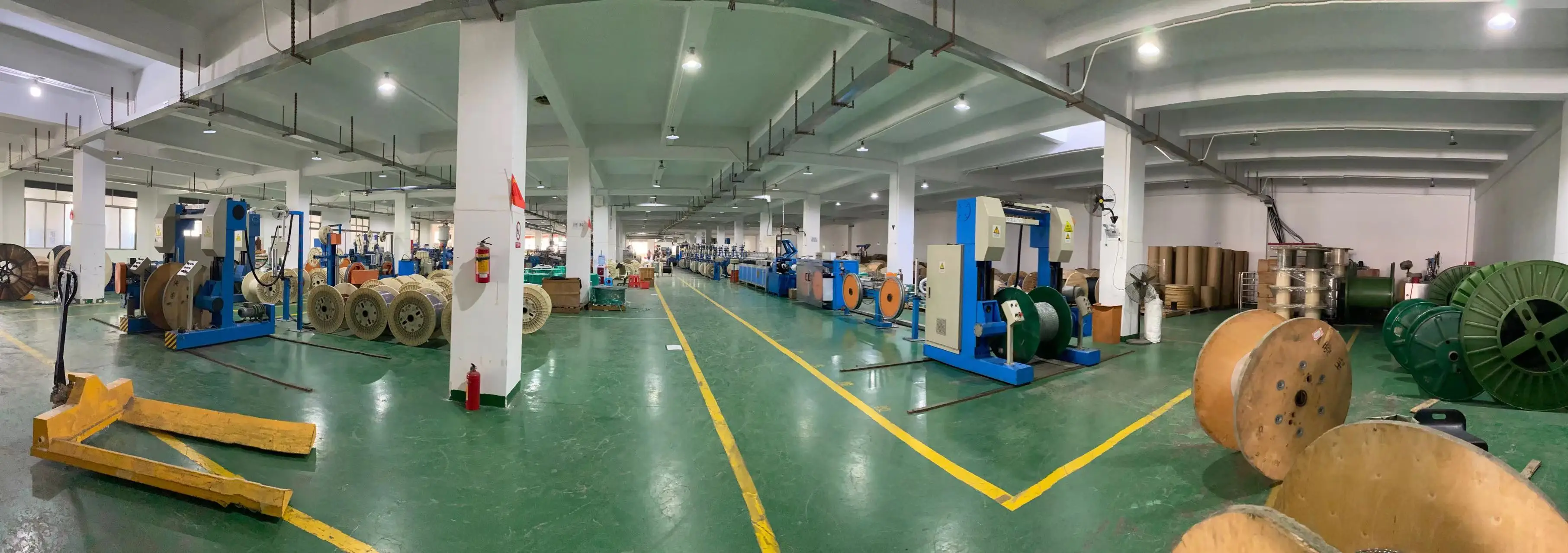

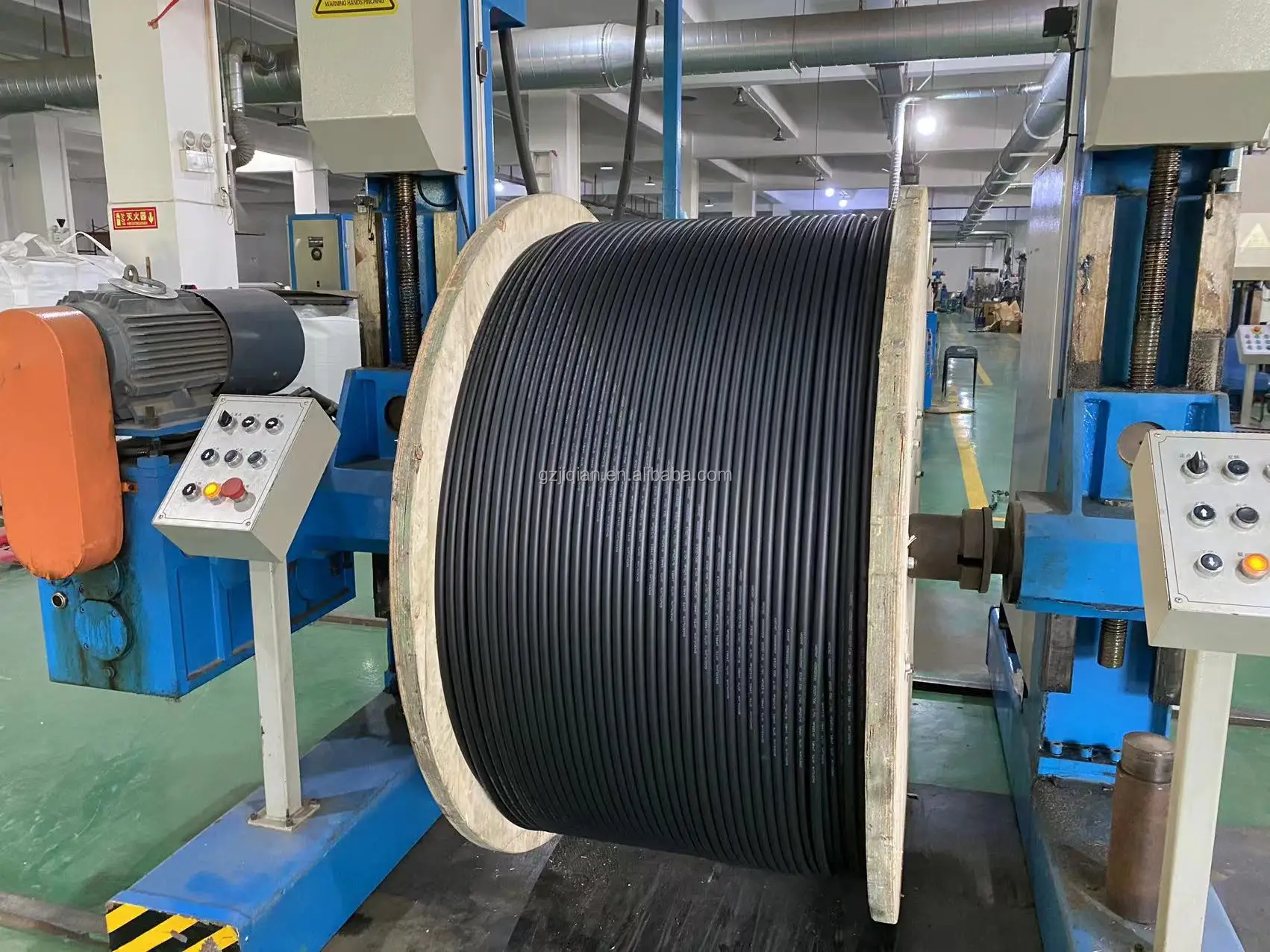

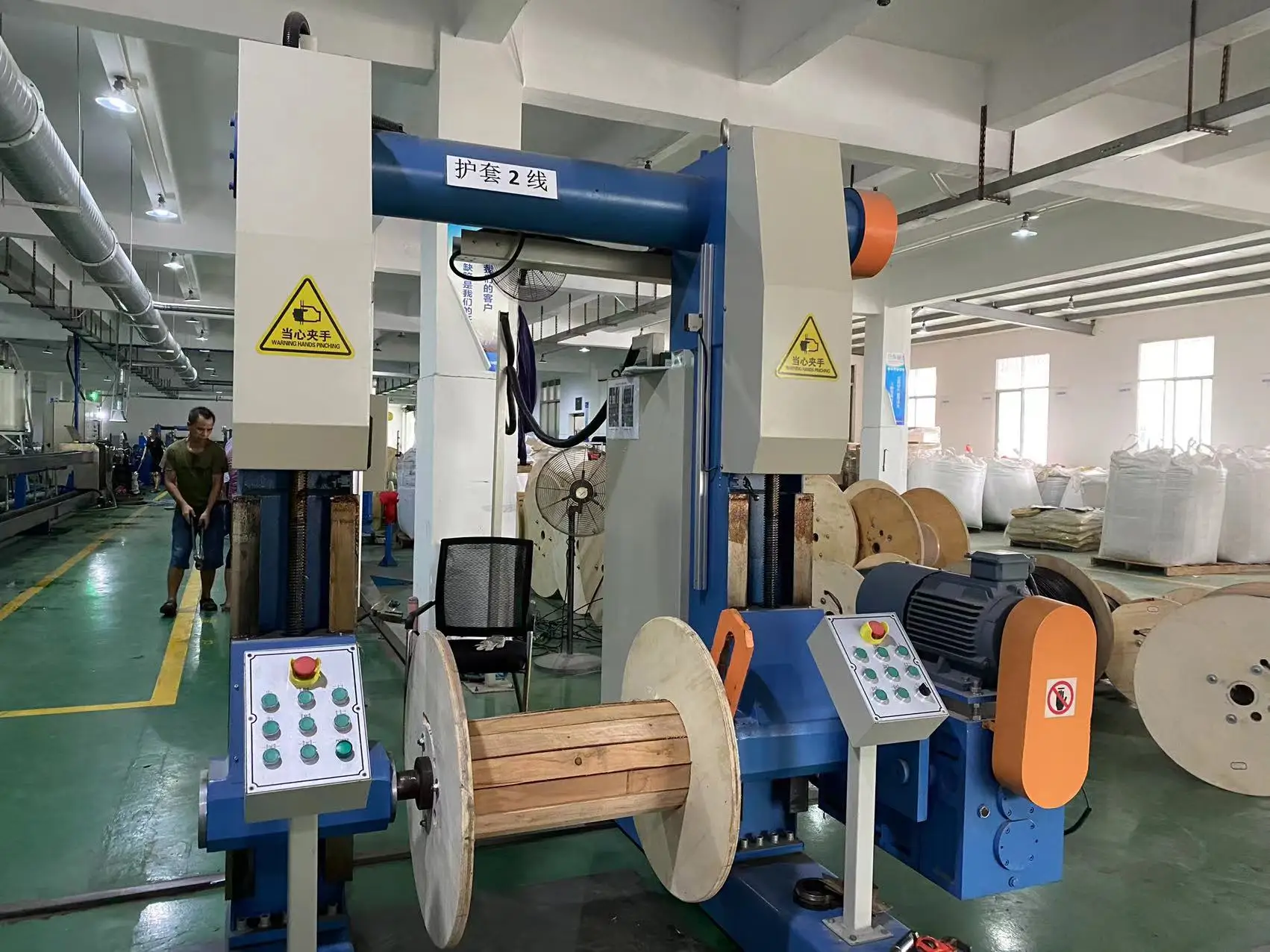

PRODUCT LINE & WORKSHOP
