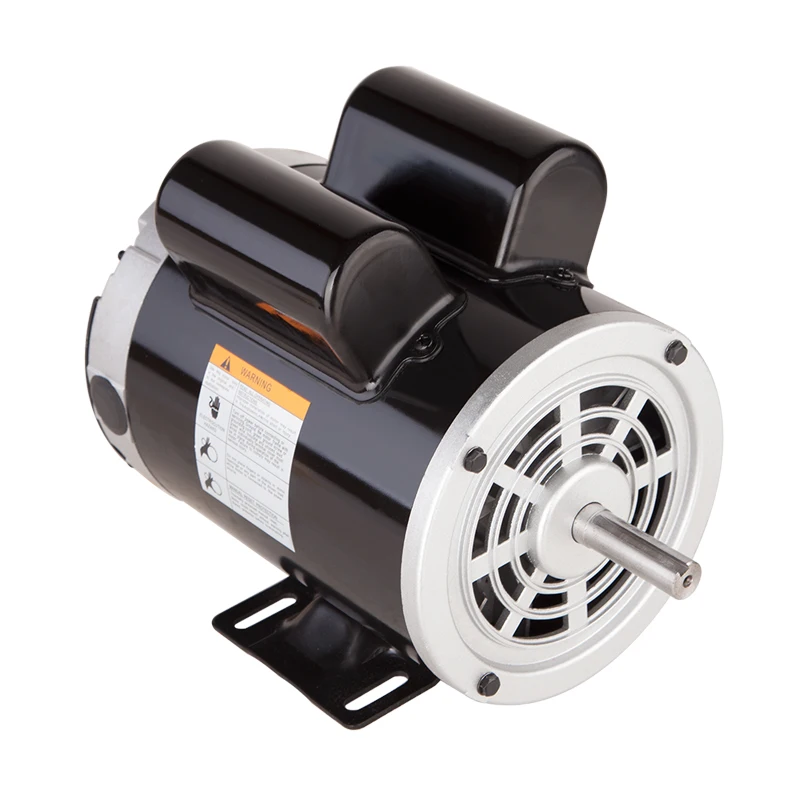

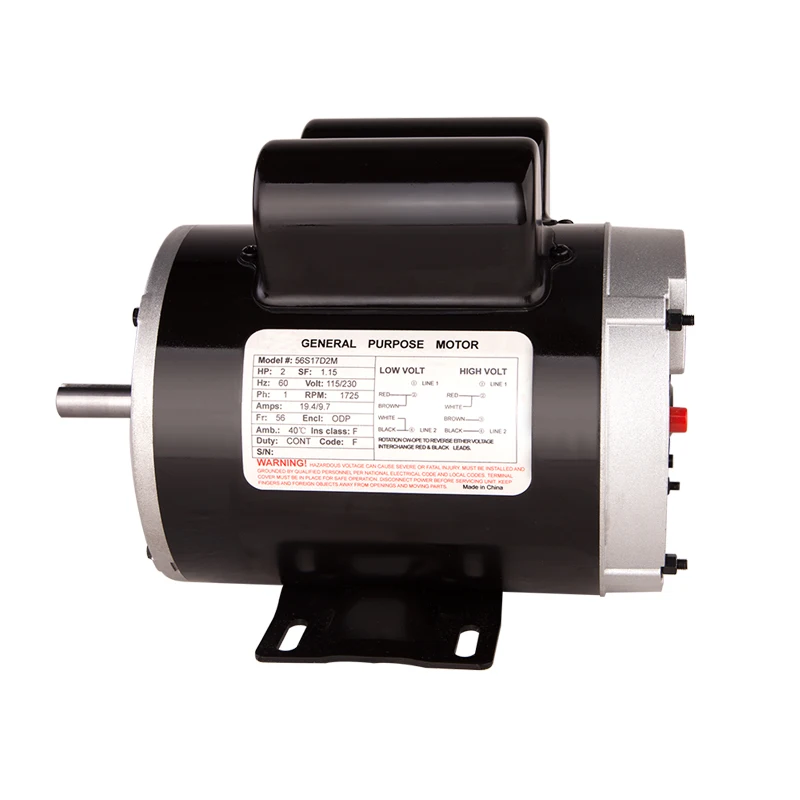

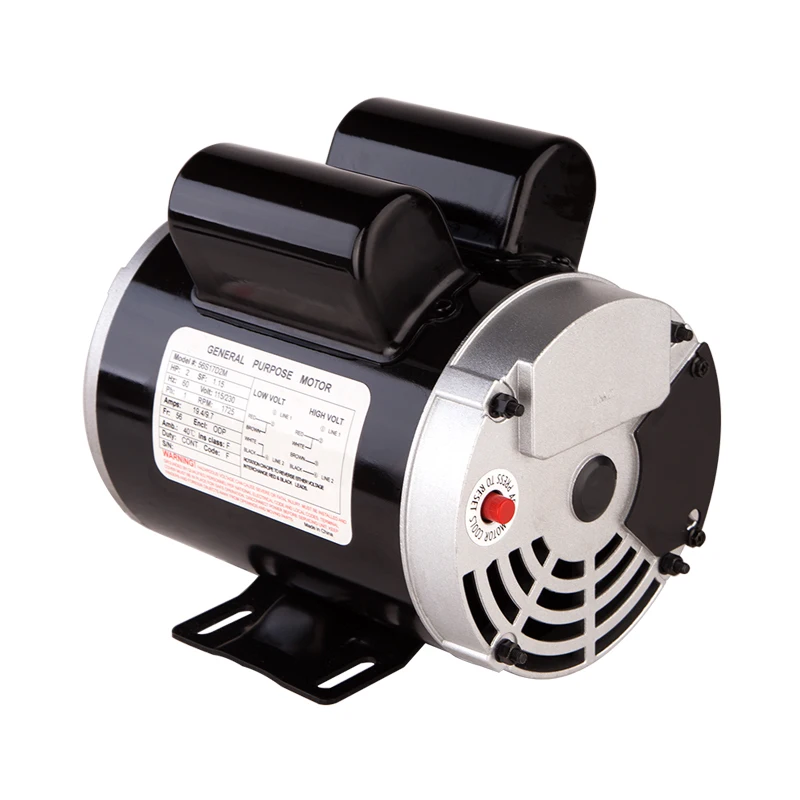

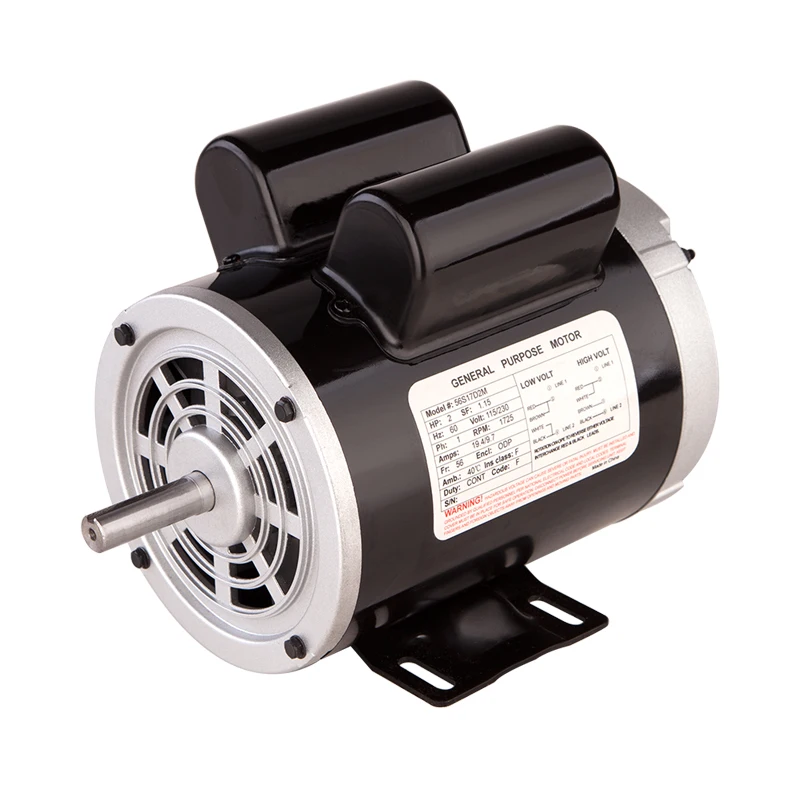

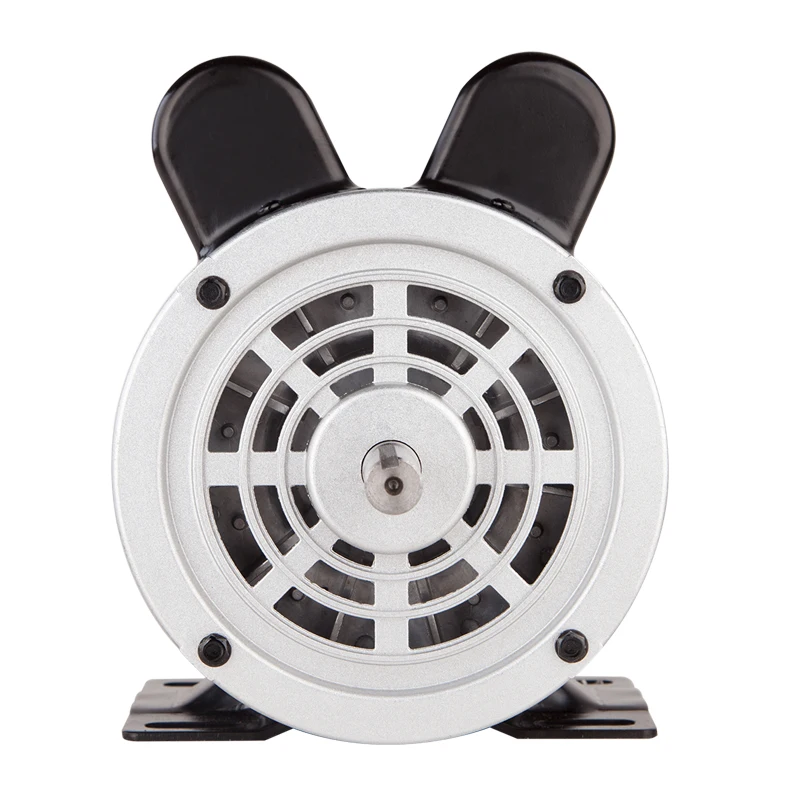

single phase 115v 220v small ac electric motor 1400 RPM 1hp 1.5HP motor

Share on (1600733728204):


Price:$61.00 - $76.00

Quantity:


Product Overview

Description





Product Description

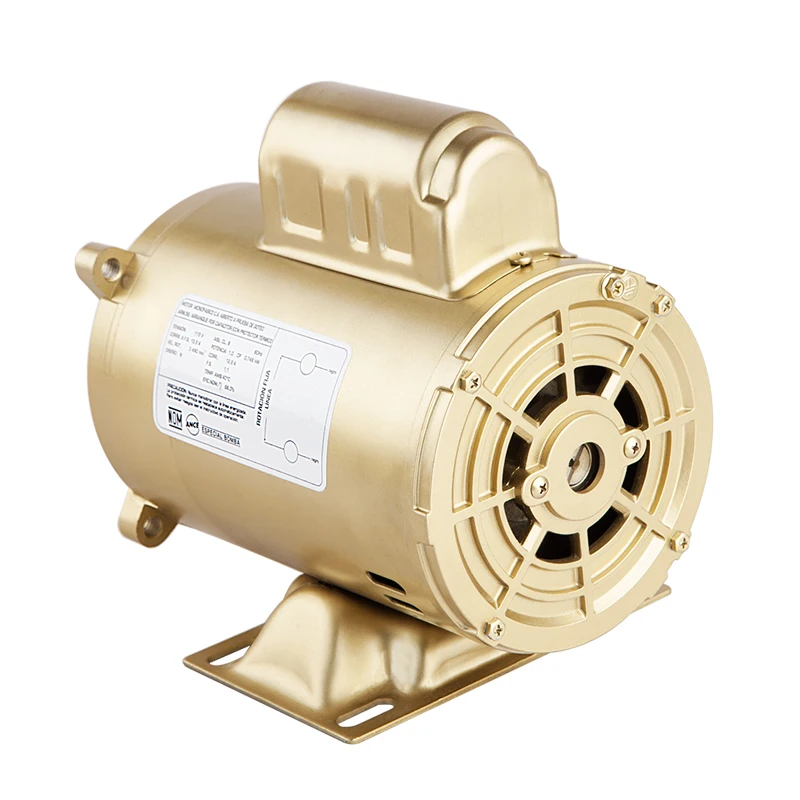

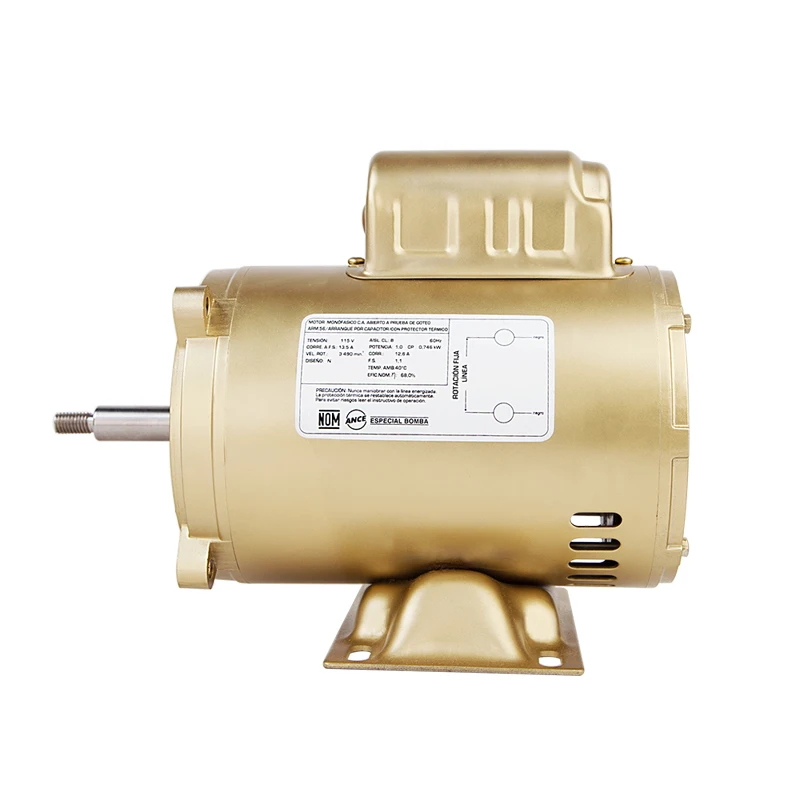

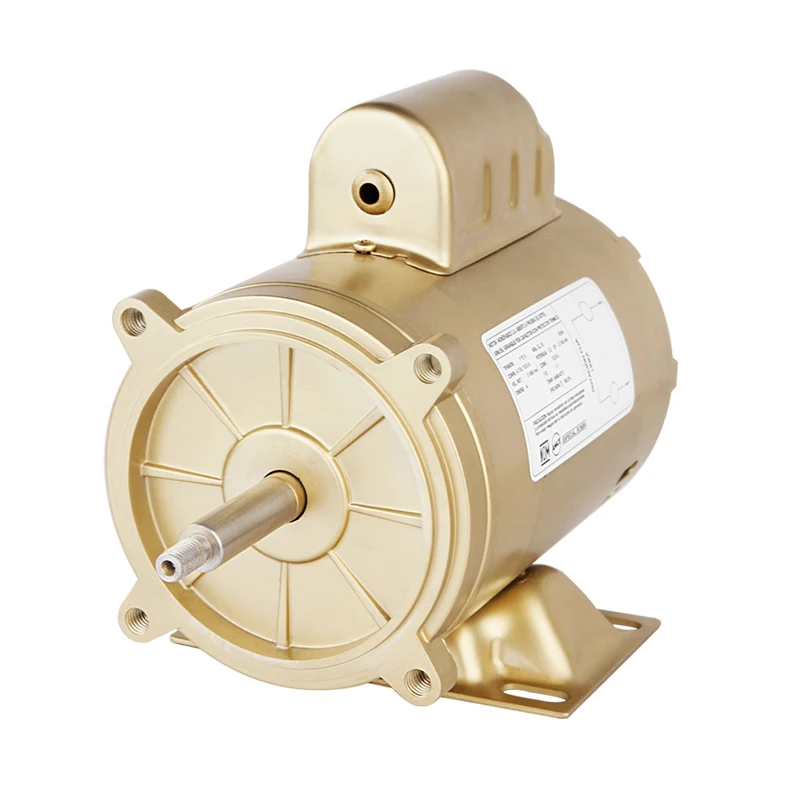

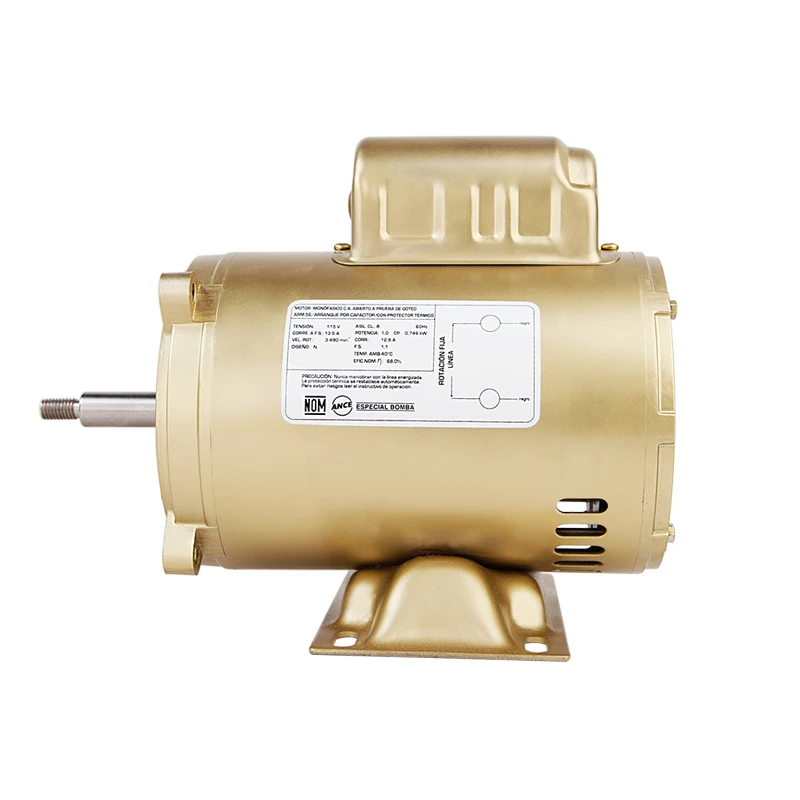

 NEMA ODP WATER PUMP MOTOR

Used on many Sta-Rite, Red Jacket, Pac Fab, American Products and Sears Jet and Pool Pumps
Capacitor Start
High Service Factors
Sealed Ball Bearings
CCW Pump End Rotation
303 stainless steel threaded shaft
50º C Ambient

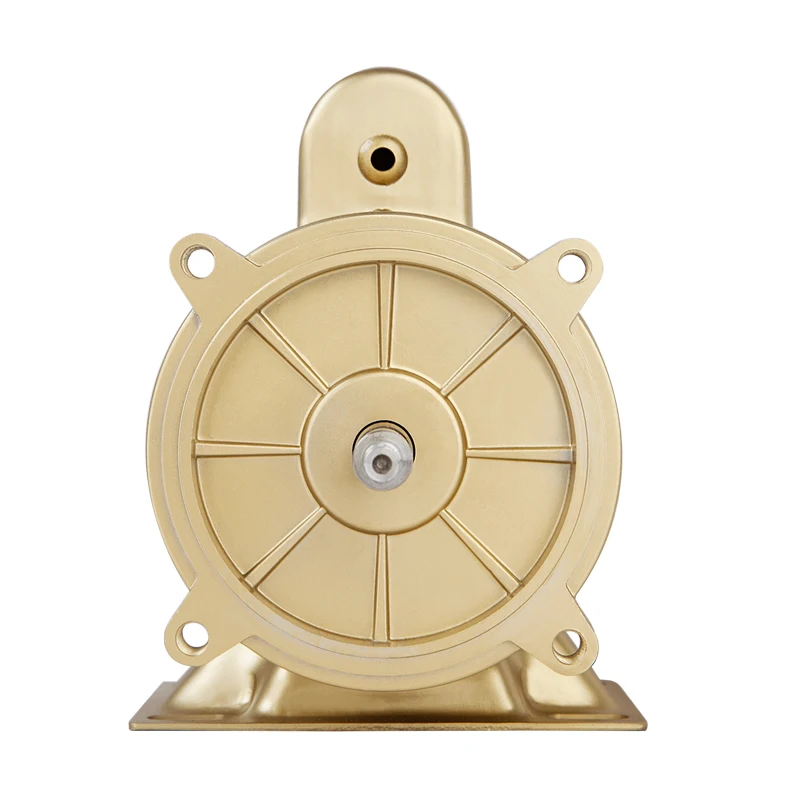

Mounting: Square Flange
Single Speed


HP
1/3HP-3HP
Frame
Rolled Steel, NEMA 56C./56J
Service Factor
1.15. 1.0.
Endosure
ODP
IP Class
IP44
PROTECTOR
Accept Manual or Auto Protector
Certification
All certified


Model
HP
RPM
Volts
Frame
Full Load Amps@230V
BT-J1
1/3
3600
115/208-230
56C/56J
3.2
BT-J2
1/3
3600
115/208-230
156C/56J
3.2
BT-J3
1/3
3600
115/208-230
56C/56J
3.2
BT-J4
1/2
3600
115/208-230|
156C/56J
3.5
BT-J5
1/2
3600
115/208-230
156C/56J
3.5
BT-J6
1/2
3600
115/208-230
56C/56J
3.5
BT-J7
3/4
3600
115/208-230
156C/56J
5.1
BT-J8
3/4
3600
115/208-230
156C/56J|
5.1
BT-J9
3/4
3600
115/208-230
56C/56J
5.1
BT-J10
1
3600
115/208-230
156C/56J
5.7
BT-J11
1
3600
115/208-230
156C/56J
5.7
BT-J12
1
3600
115/208-230
56C/56J
5.7
BT-J13
1-1/2
3600
115/208-230
56C/56J
6.7
BT-J14
1-1/2
3600
115/208-230
56C/56J
6.7
BT-J15
1-1/2
3600
115/208-230
56C/56J
6.7
BT-J16
2
3600
115/208-230
56C/56J
9.3
BT-J17
2
3600
115/208-230
56C/56J
9.3
BT-J18
2
3600
115/208-230
56C/56J
9.3
BT-J19
3
3600
115/208-230
56C/56J
12.8
BT-J20
3
3600
115/208-230
56C/56J
12.8


Detailed Images








Why Choose Us




WHY CHOOSE BIOTE

A.Certificates passed:All tests passed for most of our motors and can supply reports.

B.Fast feedback for customers:24 hours reply for all customers' inquiries.
C. Competitive prices.
D. Quality guarantee:We have shipped much motors to Italy, Spain, and other European and USA customers with high quality.
E. Fast and Timely delivery:Usually 10-15 days for goods production.
F. Professional Technical support and After-sale service.
G.Customized service for kind of motor according to your requirement.



Our Company








FAQ


Q1: What kind motors you can provide?

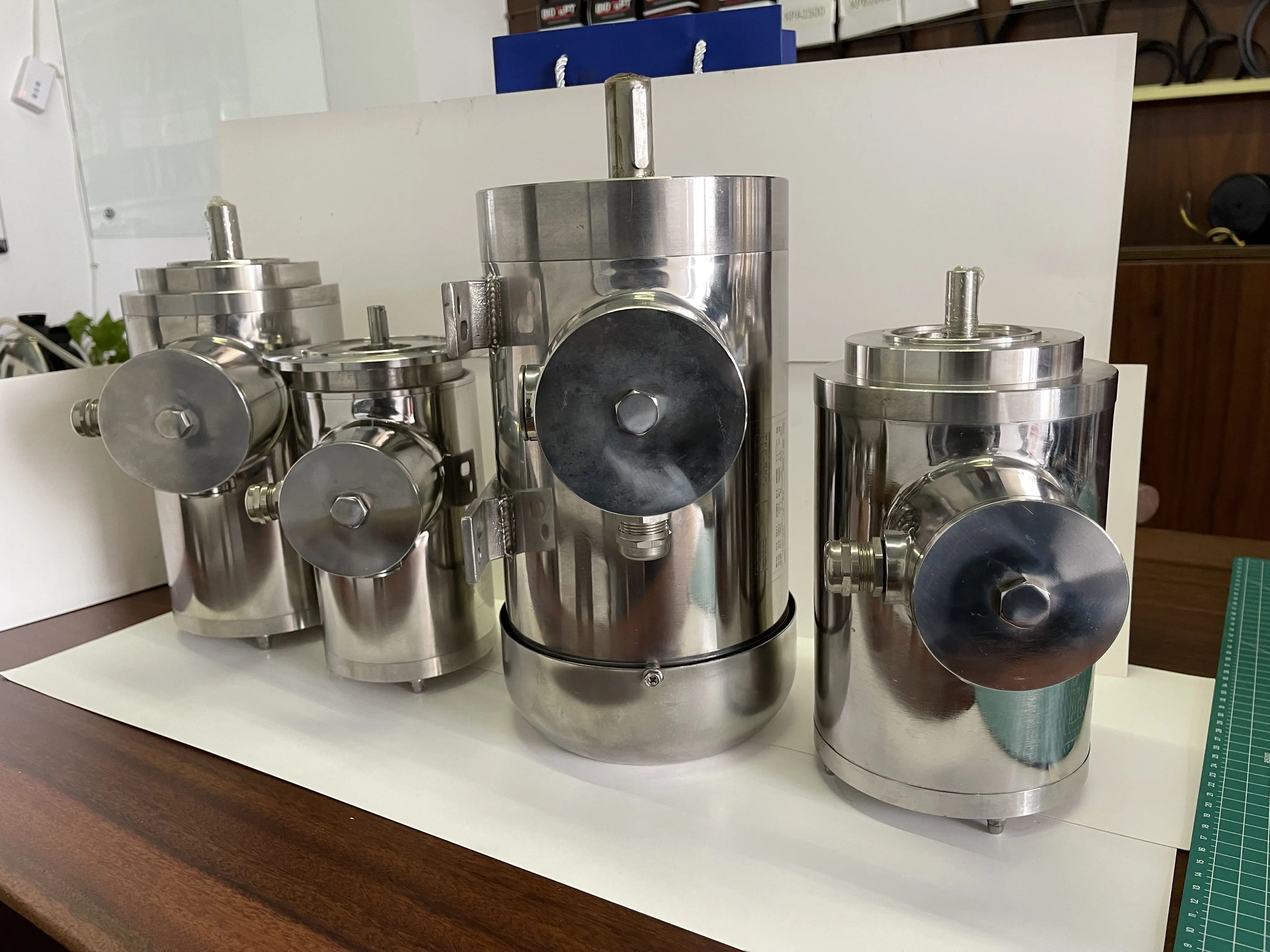

A1: For now, we mainly provide permanent magnet brush dc motors, brushless dc motor, dc gear motor, micro dc motor, ac gear motor, planetary gear motor, with diameter range in 42~110mm. NEMA dc motor. NEMA dc Motor. stainless steel motor


Q2: Is there a MOQ for your motors?
A2: No. we can accept 1 pcs for sample making for your testing,and the price for sample making will have 30% to 50% difference based on different style.


Q3: Could you send me a price list?
A3: For all of our motors, they are customized based on different requirements like power, voltage, gear ratio, rated torque and shaft diameter etc. The price also varies according to different order qty. So it's really difficult for us to provide a price list. If you can share your detailed specification and order qty, we'll see what offer we can provide.


Q4: Are you motors reversible?
A4: Yes, nearly all dc and ac motor are reversible. We have technical people who can teach how to get the function by different wire connection.


Q5:How about your delivery time?
A5: For micro brush dc gear motor, the sample delivery time is 2-5 days, bulk delivery time is about 15-20 days, depends on the order qty. For brushless dc motor, the sample deliver time is about 10-15 days; bulk time is 15-20 days.Please take the sales confirmation for final reference.



Packing & Delivery






THE SAMPLE BY EXPRESS OR AIR

LCL=LESS THAN CONTAINER LOAD, FCL=FULL CONTAINER LOAD, BY SHIPMENT
