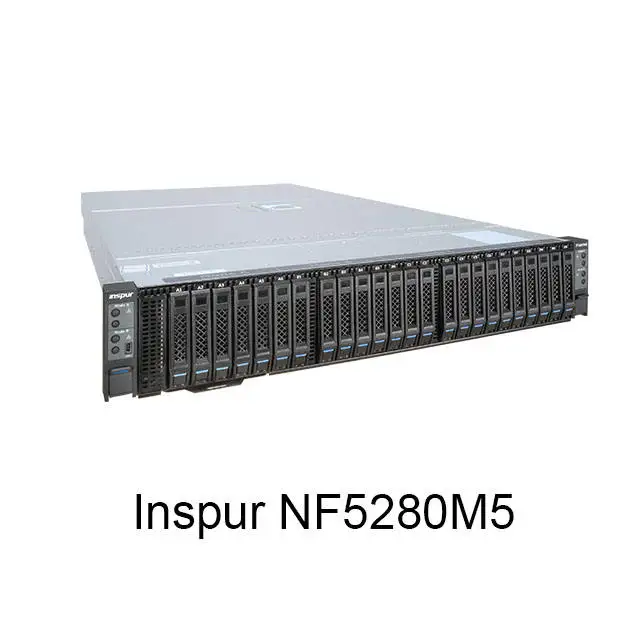

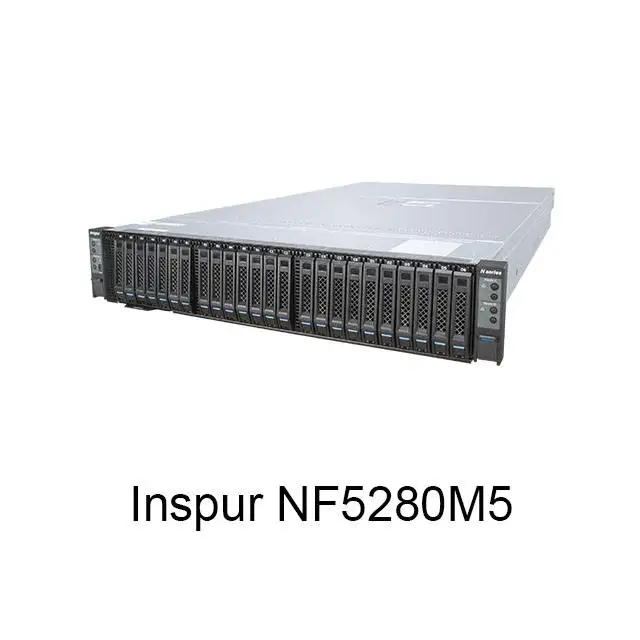

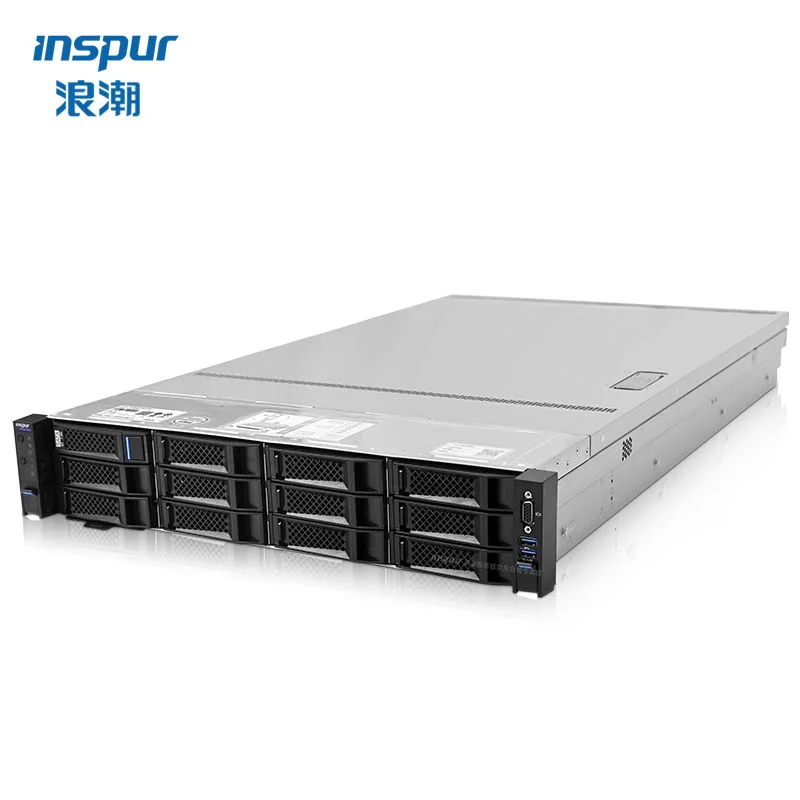

Model NO. | NF5280M5 | |||||||
Height | 2U | |||||||
Acceleration card | Supports four NVIDIA V100, P100, P40, M40, K80, M60, M10 and other GPU cards; Supports two Xilinx Alveo U200 FPGA cards | |||||||
processor | 2 2nd Generation Intel Xeon Scalable series processors | |||||||
memory | Supports 24 2933MT/s DDR4 ECC memory modules and 12 memory channels | |||||||
RAID | The storage controller with cache can be configured and the power failure protection module can be supported | |||||||
storage | Front facing: Supports a maximum of 24 2.5-inch or 12 3.5-inch front facing hard disks. Supports the full flash configuration of 24 NVMe SSDS. Built-in: Supports a maximum of four 3.5-inch hard disks and two M.2 SSDS. Rear: supports a maximum of four 3.5-inch hard disks and four 2.5-inch hard disks | |||||||
I/O expansion slot | Supports nine PCle slots, one PCIe slot dedicated to the OCP/PHY card, and four Gpus | |||||||
network | It integrates two high-performance dry gigabit Ethernet controllers to support virtualization acceleration, network acceleration,and load balancing | |||||||
power supply | Supports 220VAC/240VDC,1+1 redundant high efficiency titanium power module | |||||||
Recommended Configuration | ||||||||
CLOUD COMPUTING | BIG DATA | DEEP LEARNING | ||||||
Front 2.5-inch hard disk or NVMe SSD+ rear 2.5-inch hard disk | 3.5-inch front disk + 2.5-inch / 3.5-inch rear disk | 2/4 GPU | ||||||
Two M.2 SSDS are built in | ||||||||
