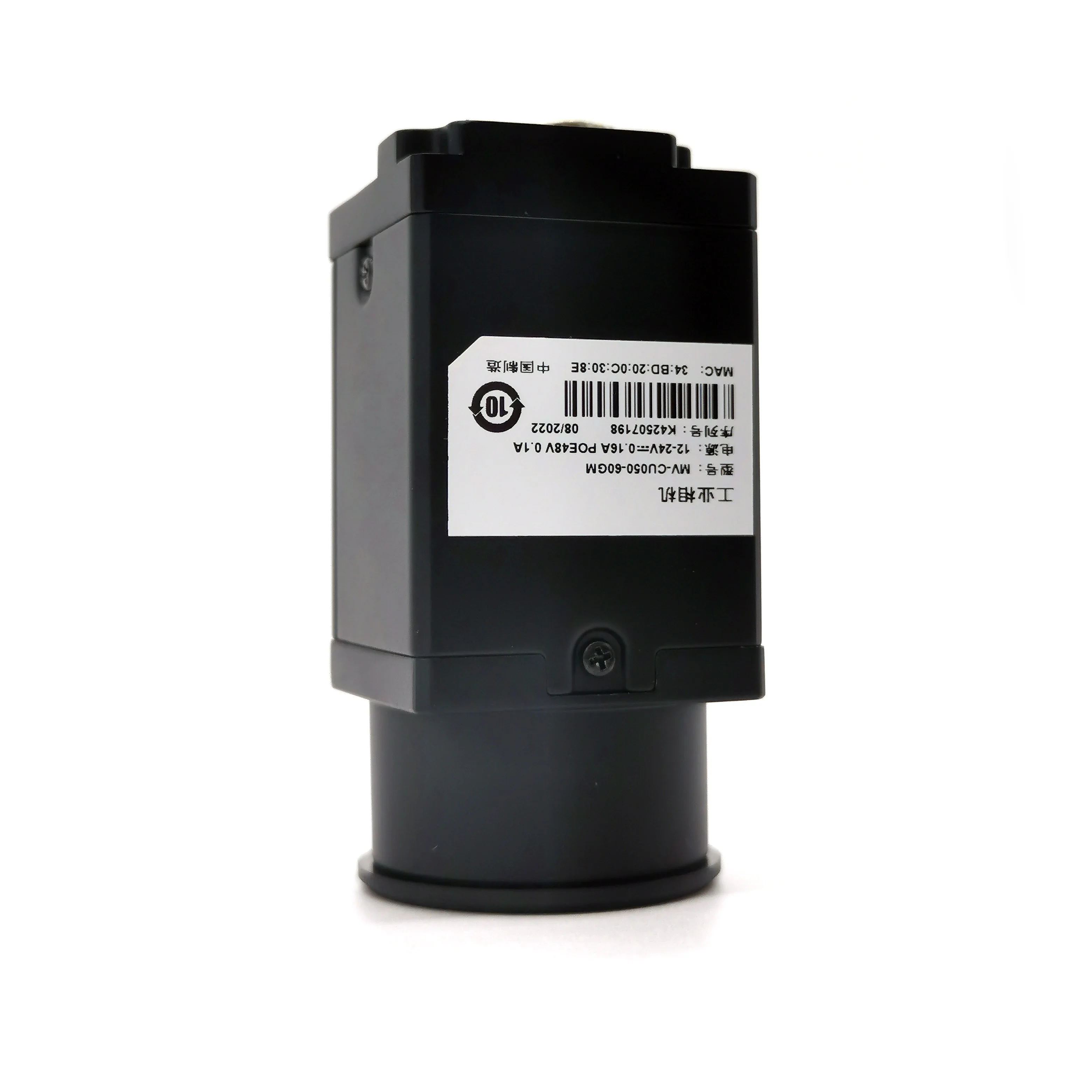

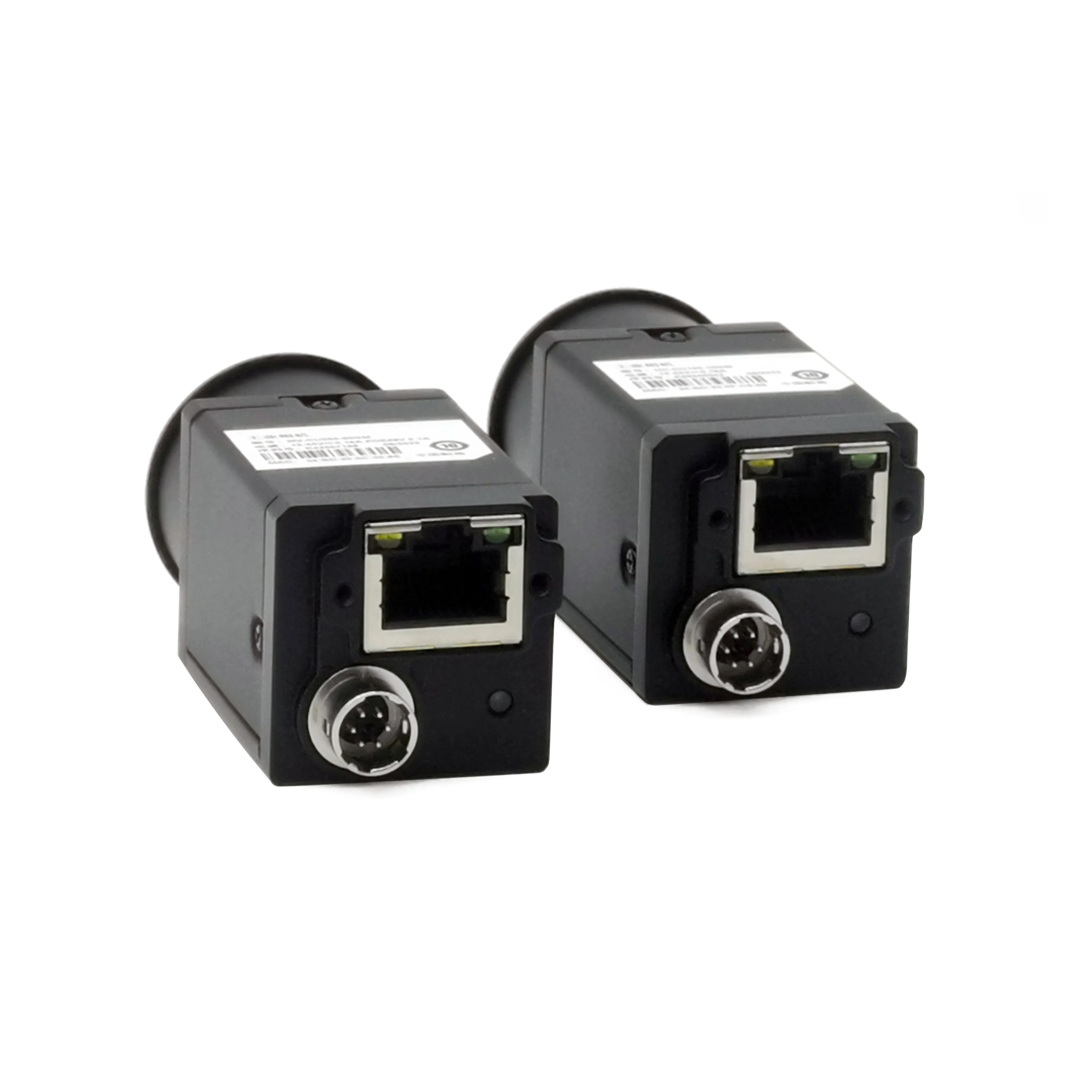

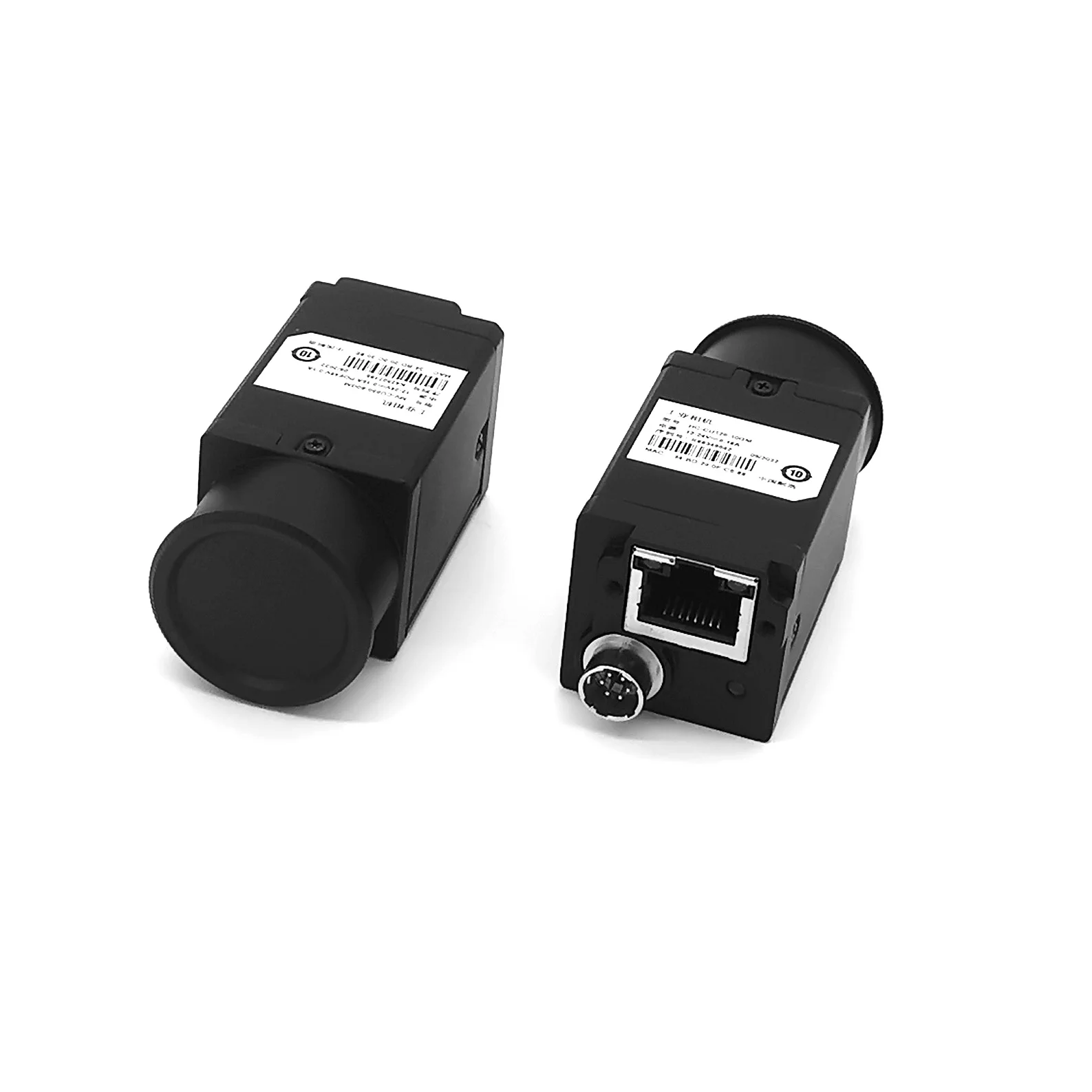

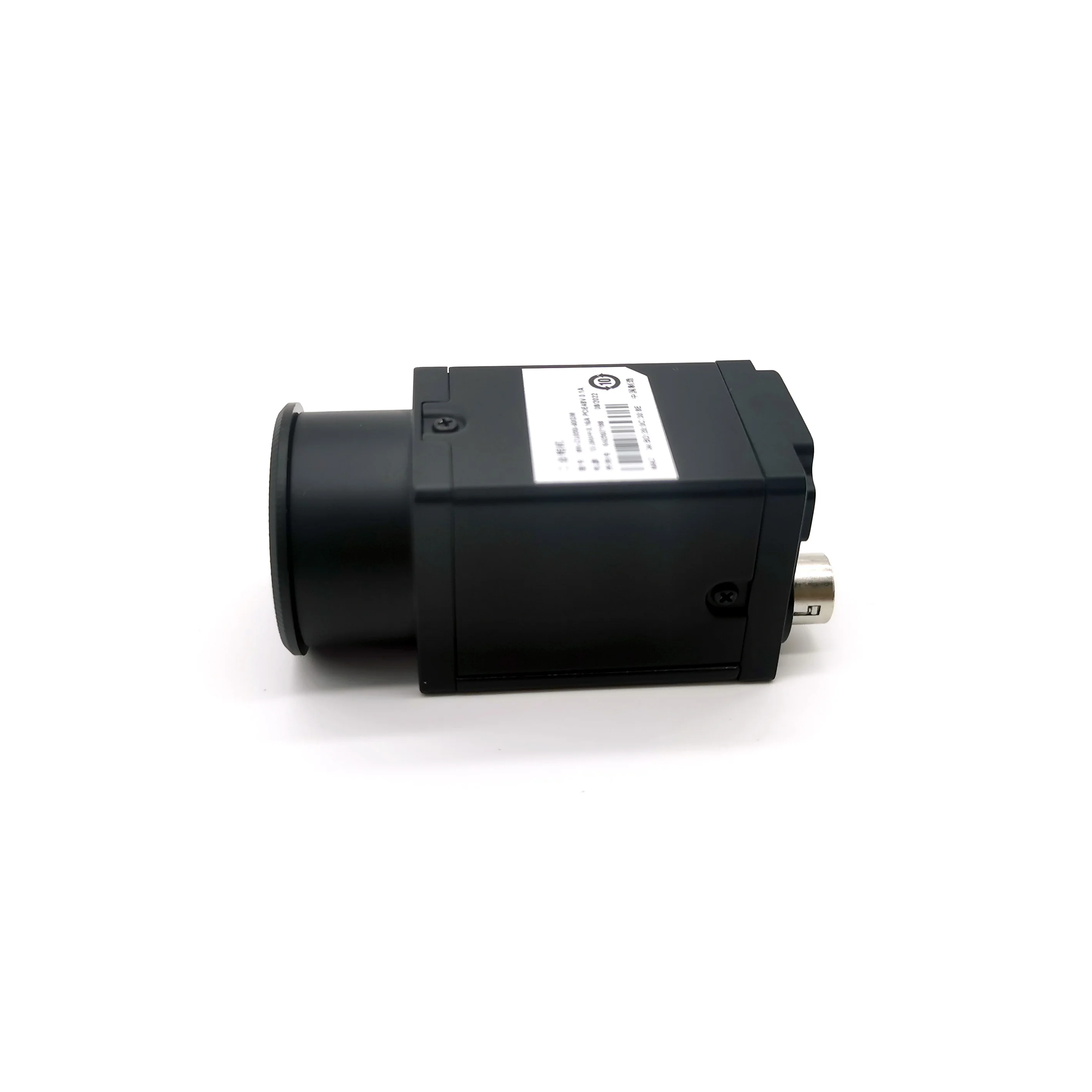

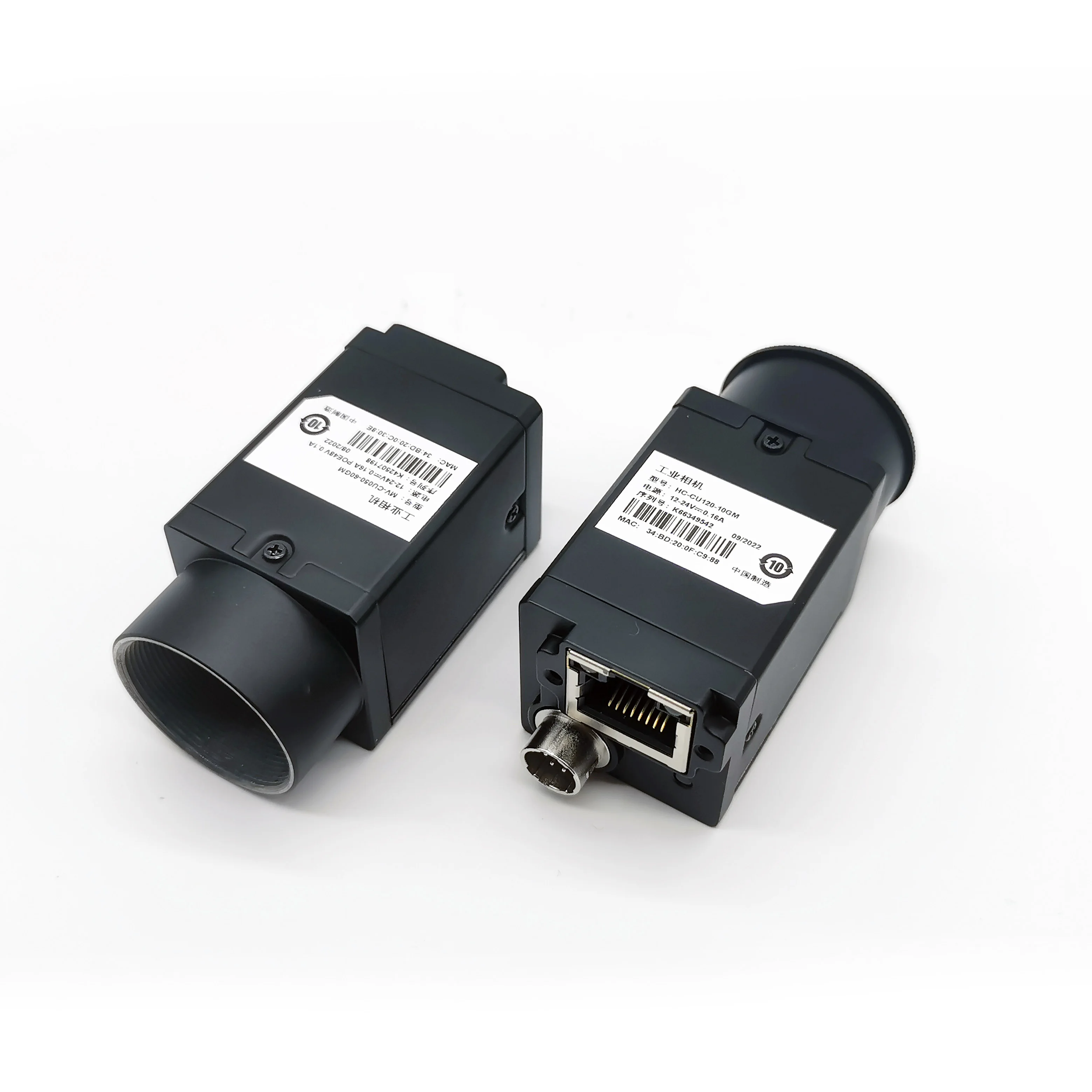

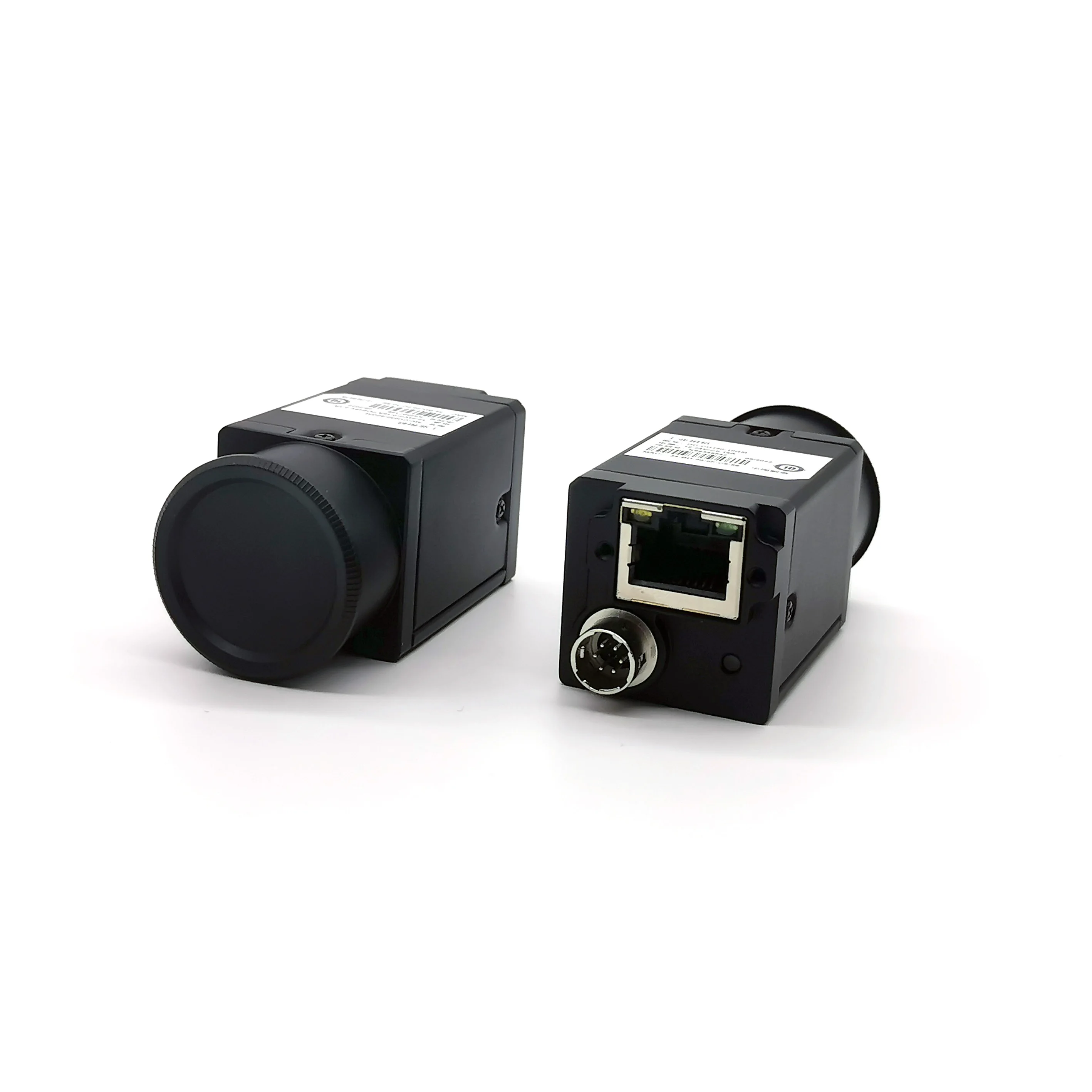

HC CU050 90GM Cost Effective 5MP High Resolution Global Shutter Mono CMOS GigE Industrial Camera For Defect Inspection
- Category: >>>
- Supplier: Hangzhou Huicui Intelligent Technology Co. Ltd.
Share on (1600733738196):
Product Overview
Description
Product Description
MACHINE VISION CAMERAS
Machine vision cameras are used to inspect and analyse objects automatically in an industrial or production environment. The data collected can then be used to control a process or manufacturing activity. Machine vision cameras can be used in many applications to check the position of something, colour, size, shape or whether an object is there or not. As well as look at and decipher a standard 2D barcode and even printed characters.
We offer a wide range of machine vision cameras, includes GigE, USB, CoaXpress, CameraLink interfaces, resolutions from VGA to 65MP, rolling and global shutters and monochrome or colour options.
We offer a wide range of machine vision cameras, includes GigE, USB, CoaXpress, CameraLink interfaces, resolutions from VGA to 65MP, rolling and global shutters and monochrome or colour options.

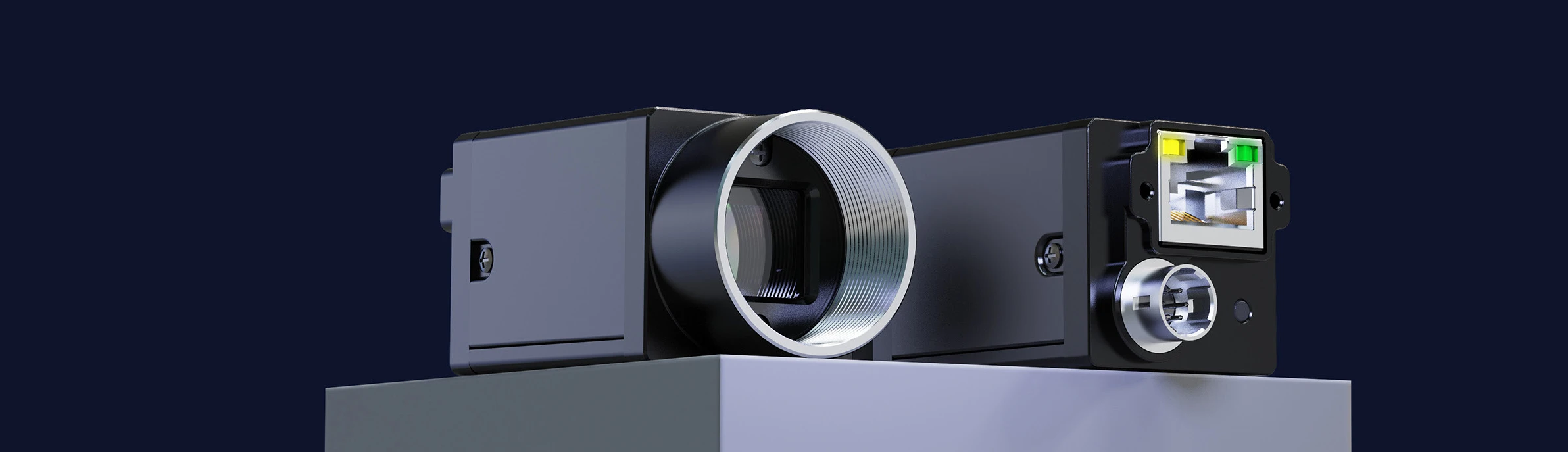

CU Series Universal Industrial Camera
The CU series is designed with low power-consuming platform and stable performance, which creates a universal industrial camera product that satisfies the requirements for stability and necessary functions, helping users to obtain vision applications more easily.

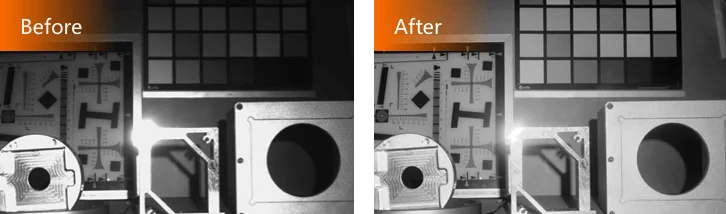

Built-in image preprocessing
With the built-in ISP algorithms like wide dynamic range, noise reduction and sharpness, it can be flexibly adjusted according to the user's actual scenarios, so as to minimize external interference, stabilize imaging, and reduce the burden on the back-end algorithm.
Technical features：
■ Adopts low power consumption design with stable performance.
■ Supports auto and manual adjustment of gain, exposure time, etc.
■ Supports hardware trigger, software trigger, free run, etc.
■ Adopts GigE interface and max. transmission distance of 100 meters without relay.
■ Compatible with GigE Vision V2.0 Protocol, GenlCam Standard, and third-party software based on the protocol and standard.
Specification
HC-CU050-90GM/GC
5MP 1/2" CMOS GigE Area Scan Camera
HC-CU050-90GM/GC camera adopts GMAX2505 sensor to provide high-quality images. It uses GigE interface to transmit non-compressed images in real time, and its max. frame rate can reach 21 fps in full resolution.
Model | HC-CU050-90GM |
Sensor type | GMAX2505 |
Sensor size | 1/2" |
Max. frame rate | 21 fps @2600 × 2160 Mono 8 |
Pixel size | 2.5 μm × 2.5 μm |
Resolution | 2600 × 2160 |
Mono/color | Mono |
Data interface | Gigabit Ethernet |
Digital I/O | 6-pin P7 connector provides power and I/O |
Power supply | 9 VDC to 24 VDC, PoE is optional |
Power consumption | Typ. 2.3W@12 VDC |
Lens mount | C-mount |
Dimension | 29 mm × 29 mm × 47.6 mm |
Weight | Approx. 76 g (0.17 lb.) |
Compatibility | GigE Vision V2.0, GenICam |

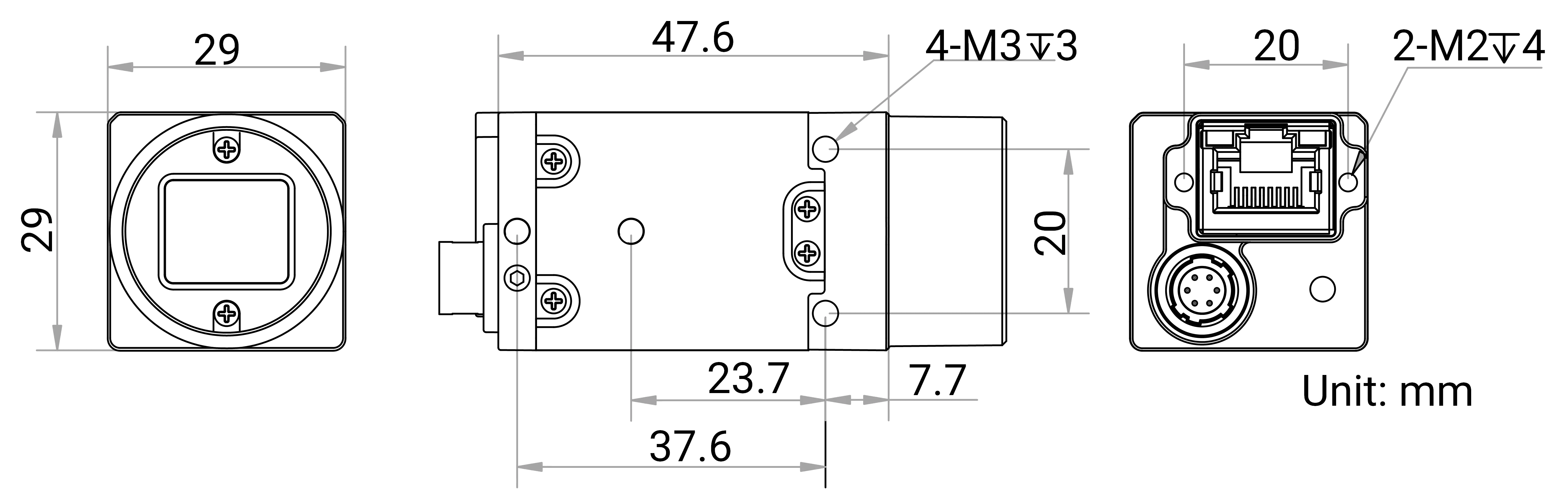

Diemension

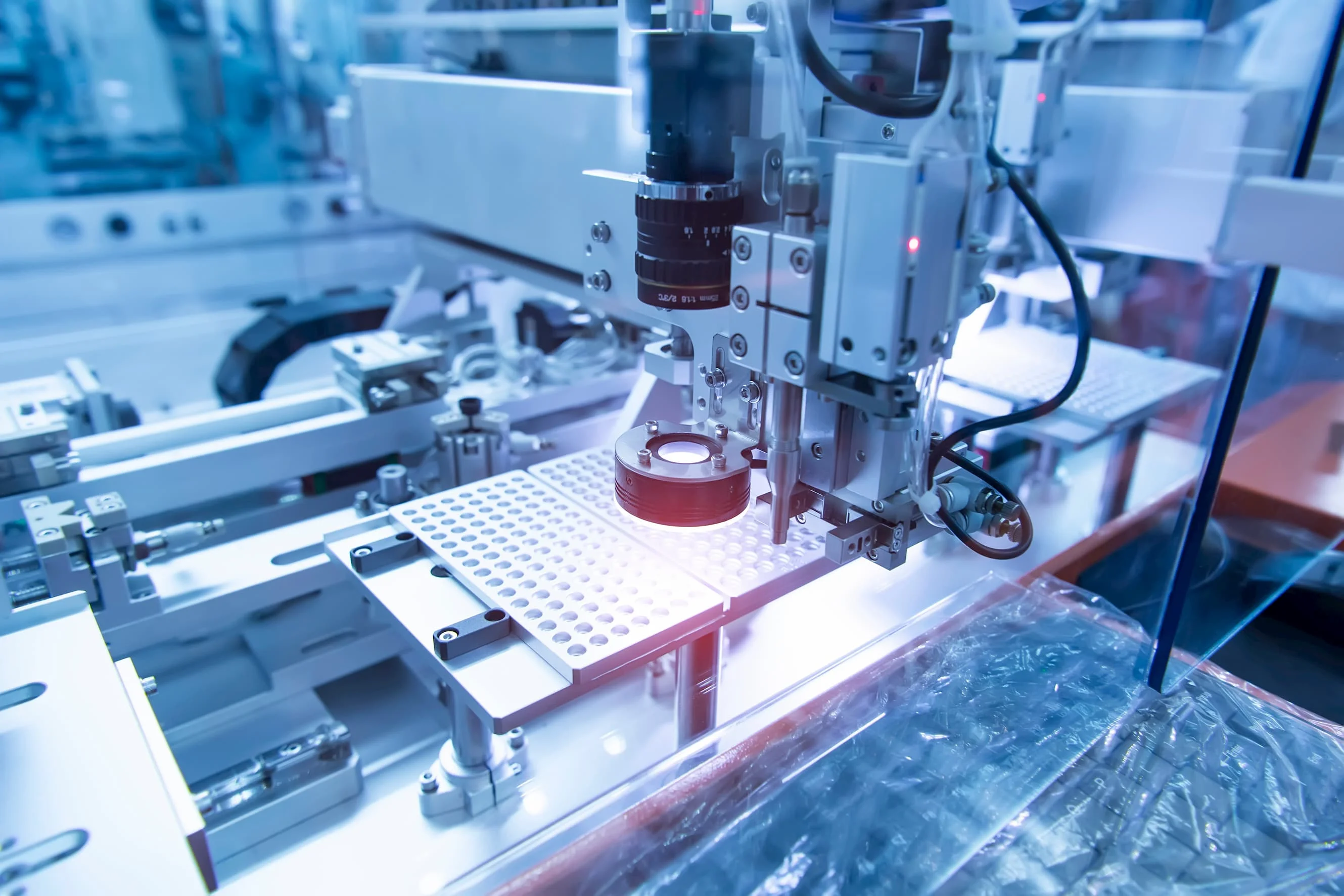

Application Industry
Application Industry
Mstar provides excellent machine vision products and platforms, and professional machine vision solutions for electronics, electrical, home appliances, medical device, packaging, semiconductors, automobile manufacturing, etc. We help users to automative production quickly and accurately, and improve the level of intelligence.
Electronics
Electrical
Home Appliances
Packaging
Automobile Manufacturing
Company Profile
Located in Hangzhou, Mstar Technologies, Inc is a professional manufacturer of machine vision products. We have over 6 years of experience in machine vision and have a good reputation in this field.
Quality and Safety: We have implemented a strict and complete quality control system, which ensures that each product can meet quality requirements of customers. Besides, all of our products have been strictly inspected before shipment.
Your Success, Our Glory: Our aim is to help customers realize their goals. We are making great efforts to achieve this win-win situation and sincerely welcome you to join us.
