Product Overview
Description
Working principle
The material --under normal or negative pressure and constant speed agitated by stirring paddle--- can be completely mixed inside the vessel of reactor system and heated thru fluid from the jacket volume and then generate?low molecular steam after heating reactions,which cools up and liquefies quickly coming down the serpentine condenser and get distilled or refluxed thru the dean-stark. The leftover residue can be released quickly thru discharge valve after reactions.The cooling reaction would be similar during the whole procedure.
Specification

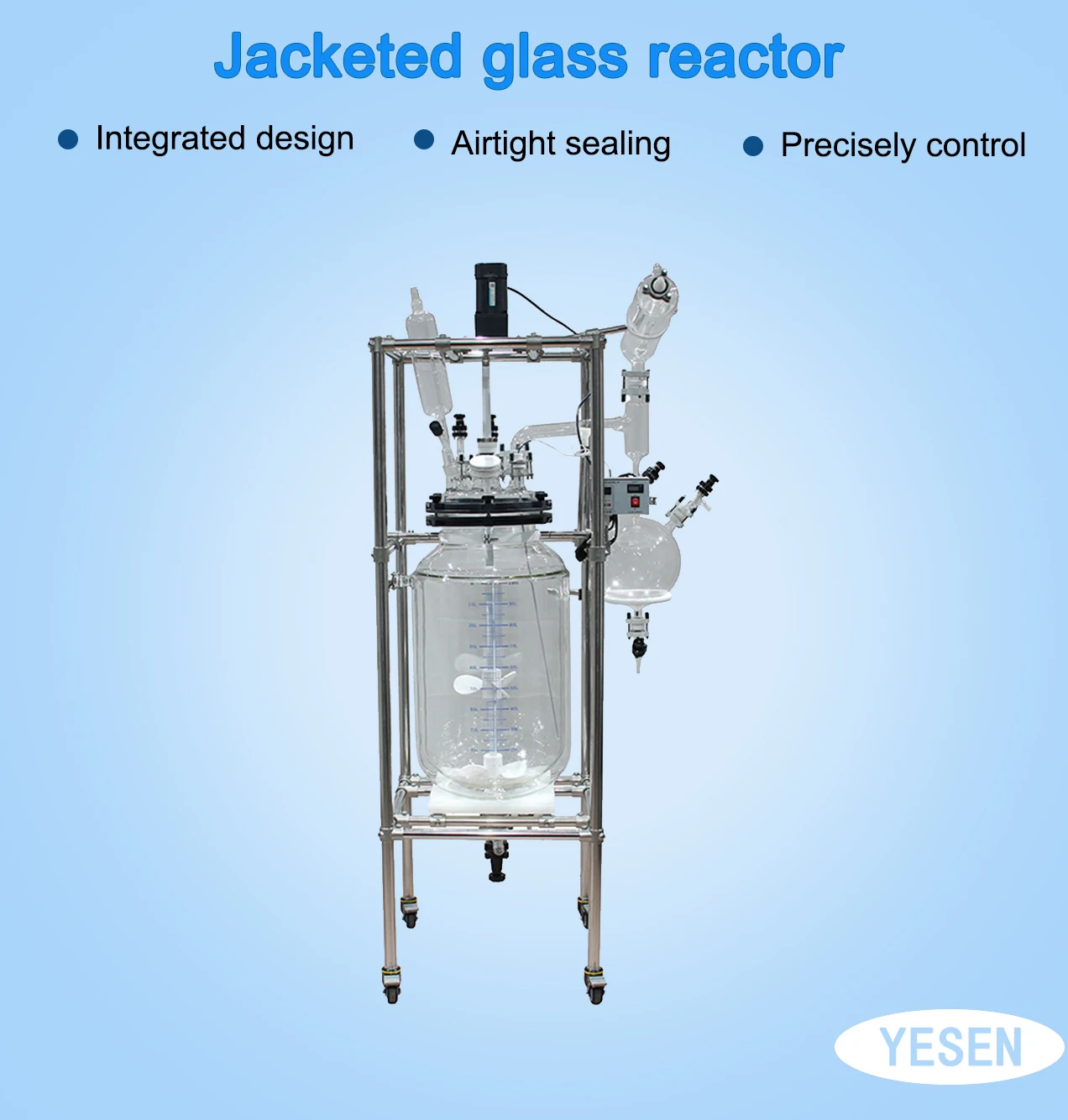

Item | Single jacketed glass reactor | ||
Model | YS-100L | ||
Vessel | 100L, bore 465mm external diameter 510 mm jacket height 695 mm | ||
Jacket capacity | 22L | ||
Power Requirements | 220V/50HZ | ||
Stirrer Wattage | 180W reduction gearbox 1:3 | ||
Torque | 2.89Nm | ||
Rotary Speed | 0-450rpm/min | ||
Glass Temp | -100℃+280℃ | ||
Temperature Accuracy | ±0.5℃ | ||
Lowest Vacuum Level | 0.098Mpa | ||

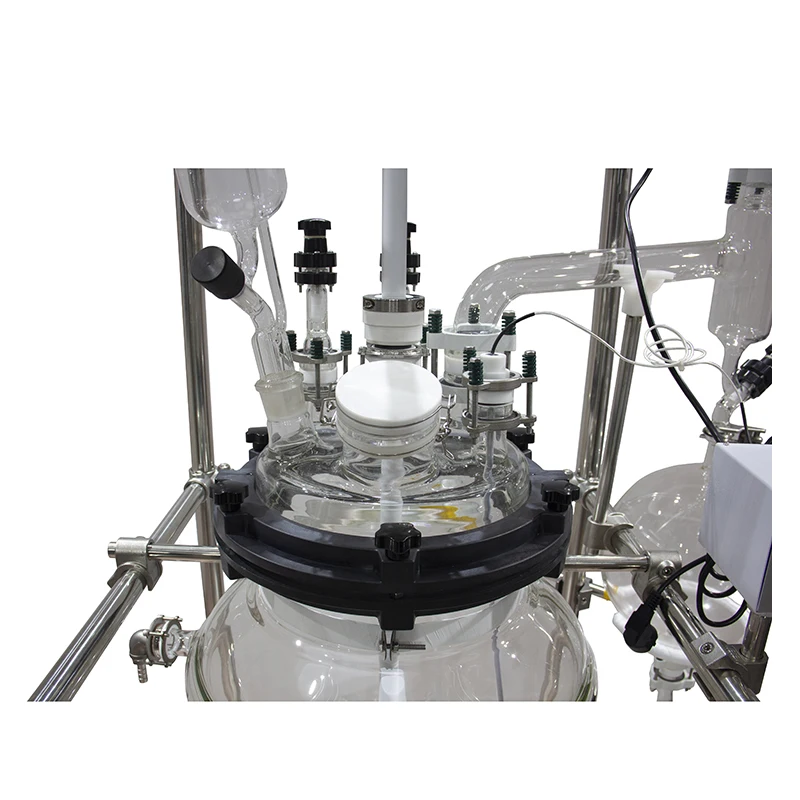

Reactor lid openings (7) Φ340mm | Stirring port | Φ60mm flange port | |
Condensing reflux port | DN40 flange port | ||
Constant-pressure funnel port | 40# standard port | ||
Liquid charging port | DN25 flange port | ||
Sensor port | DN25 flange port | ||
Standby port | DN25 flange port | ||
Solid feeding port | Φ95mmflange port, PTFE cap & quick buckle | ||
Stirring paddle | Φ25*1300H(mm) mixing diameter 240mm | ||
Condenser dimension | Φ120mm*750H(mm) bottom DN40 flange port | ||
Condensing area | 0.3㎡ | ||
Dean-stark | Inlet DN40 flange port, outlet DN40 flange port,fluid receiving flask port DN25 flange port | ||
Receiving flask volume | 10L | ||
Constant-pressure funnel | 2L top 29# standard port with glass stopper; bottom 40# standard stopper | ||
Liquid charging port | DN25 flange port, inlet（Pagoda type joint joint） external diameter 14mm | ||
Diameter of circulating fluid inlet and outlet | DN25flange port, supporting flange plate,1/2" Male NPT Adapter | ||
Discharge port | DN50 flange port, Φ25 drain hole, ground clearance 420mmm | ||
Vacuum nozzle | DN25 flange port | ||
Vacuum & fluid nozzle of condenser | 14mm external diameter(pagoda type joint) | ||
Dimensions | 670*950*2650mm | ||
Net weight | 90KG | ||
Packing size | 750*1000*2350mm 1.76㎡ | ||
Gross weight | 150KG | ||

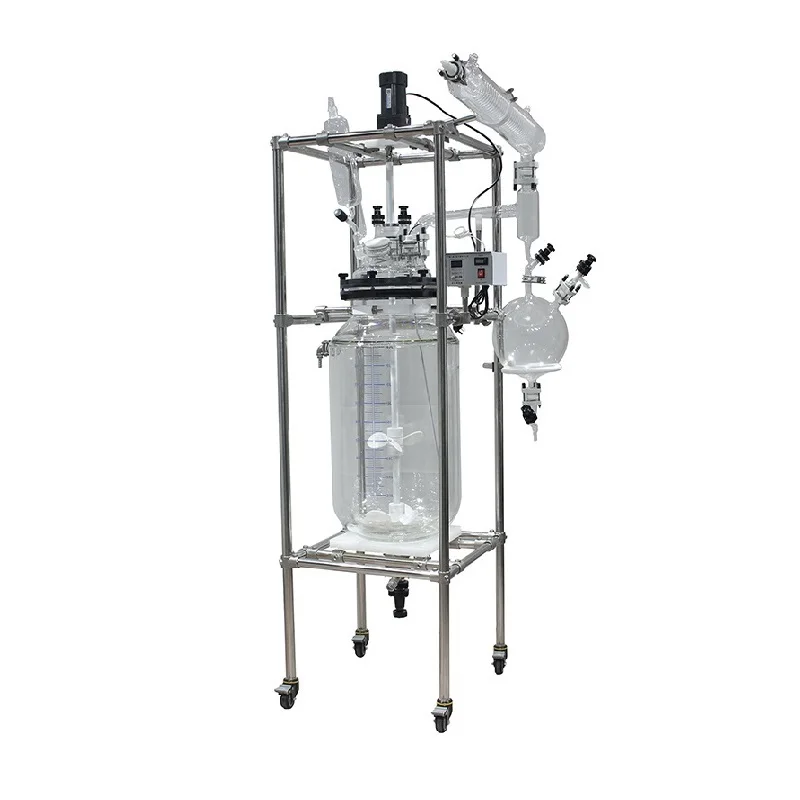

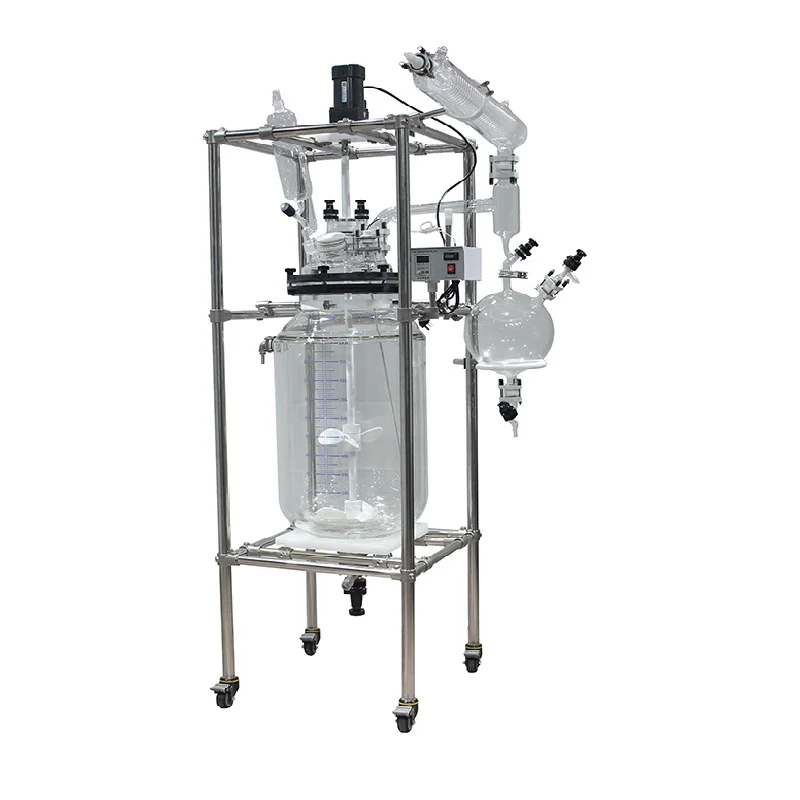

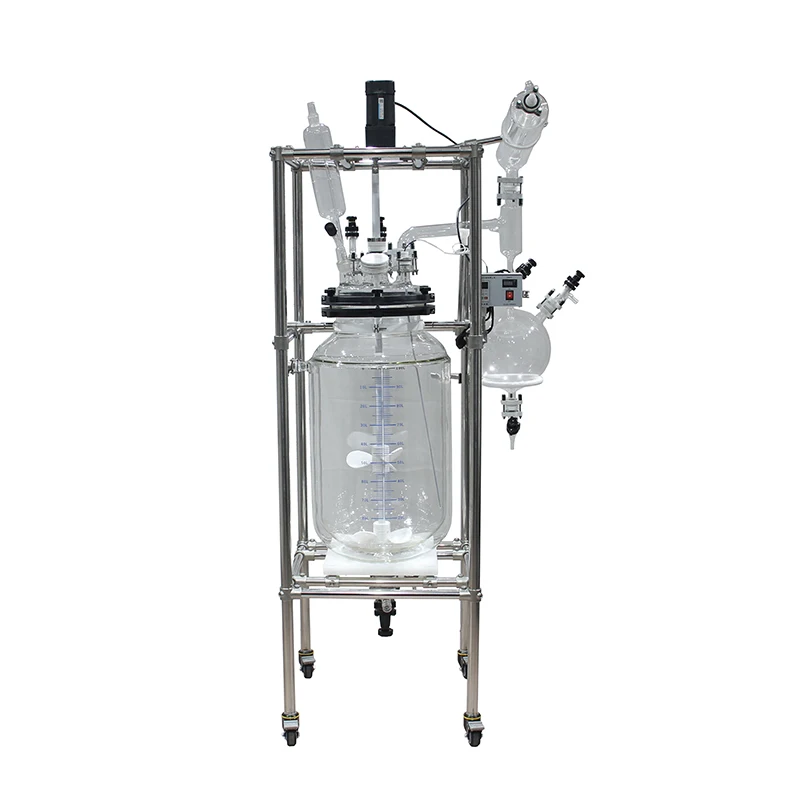

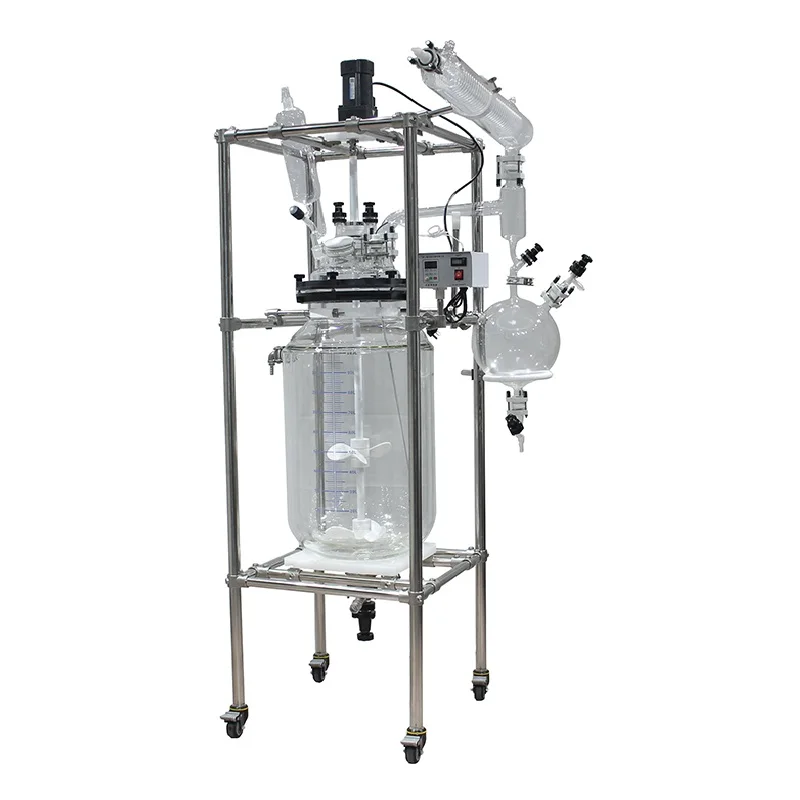

Details Images
