Product Overview
Description
Model | HAL-400G |
Motor Type | Induction |
Motor Specification | 1HP 3φ |
Conveying Capacity(L/h) | 330 |
Static Wind Pressure(mm/h2o) | 1800 |
Reservoir Volume(L) | 7.5 |
Material Diameter(mm) | φ38 |
Hose Specification(mm) | φ38mmx4m 1Pcs |
Machine Size(mm) | 206*330*670 |
Packing Size(mm) | 430x440x730 |
Approx.Net Weight(kg) | 27 |

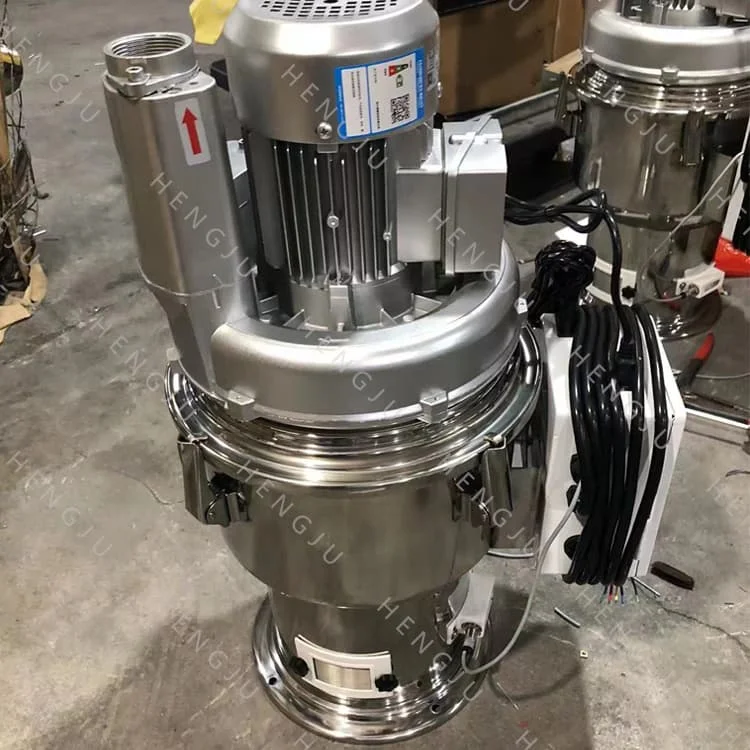

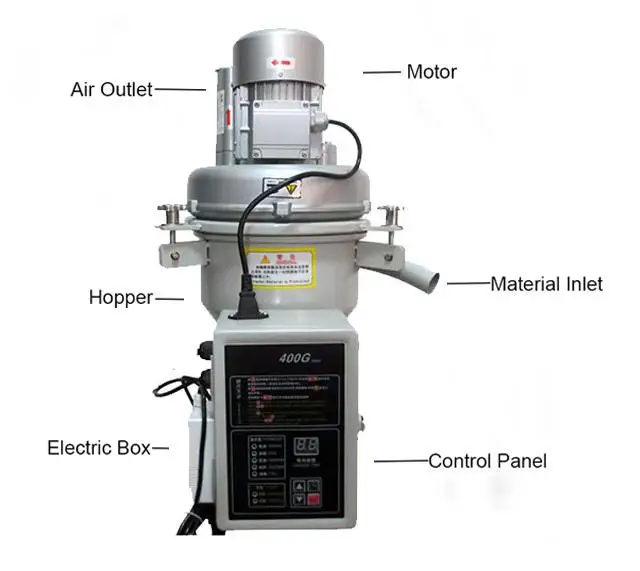

400G Hopper Loader
400G hopper loader is mainly used in the plastic processing industry to suction plastic raw materials and then transport them to processing equipment such as injection molding machines, extruders, and blow molding machines for production use. It is controlled by wire-controlled controller to automatically complete the loading work.
Feature:
1.Small size and light weight, can be directly mounted on hopper dryer or other containers for auto loading material.
2.Using high-speed rectifier motor with delicate size and strong suction force.
3.Microcomputer controlled. Alarm for overload and short of material.
4.Equipped with filter and dust bag, it can filter and remove dust from raw materials.
5.It is controlled by a wire controller, which can be placed in a high place, and the control can be set under the machine, which is convenient and quick.
2.Using high-speed rectifier motor with delicate size and strong suction force.
3.Microcomputer controlled. Alarm for overload and short of material.
4.Equipped with filter and dust bag, it can filter and remove dust from raw materials.
5.It is controlled by a wire controller, which can be placed in a high place, and the control can be set under the machine, which is convenient and quick.

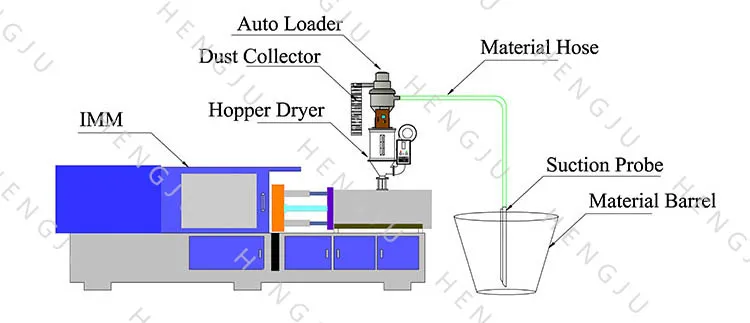

Working principle:
The air is sucked from the suction port of the main body of the hopper loader machine through the suction fan, and negative pressure is generated to make the air in the suction pipe flow, drive the plastic raw materials into the suction pipe, and then filter and remove dust through the filter, and finally transport them to the target equipment. Such as injection molding machines, extruders, blow molding machines, etc.
Company introduction:
Since its establishment, Hengju has been focusing on the research and development of dehumidifying & drying, dosing & mixing and central conveying systems to make products closer to customer’s demand and customize complete automation solutions for customers.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Hengju Machinery can provide you with complete plant automation solutions and central chiller plant design. We have 15 years of industry experience and 8,000 square meters of self-built workshops, providing services for hundreds of companies, tailor-made solutions, free design renderings, and 24-hour online communication services.
Relying on strong professional technology and stable quality, we have won high comments from customers at home and abroad.Covering industries include auto parts, chemical industry, pelletizing, new energy, new materials, etc., and excellent performance in bio-degradable plastics such as PLA, PBAT, and pipe/sheet/cable extrusion and other fields!
