KFL Expandable Kevlars Fiber Braided Sleeving / Aramid Braided Sleeves

Product Overview

Description

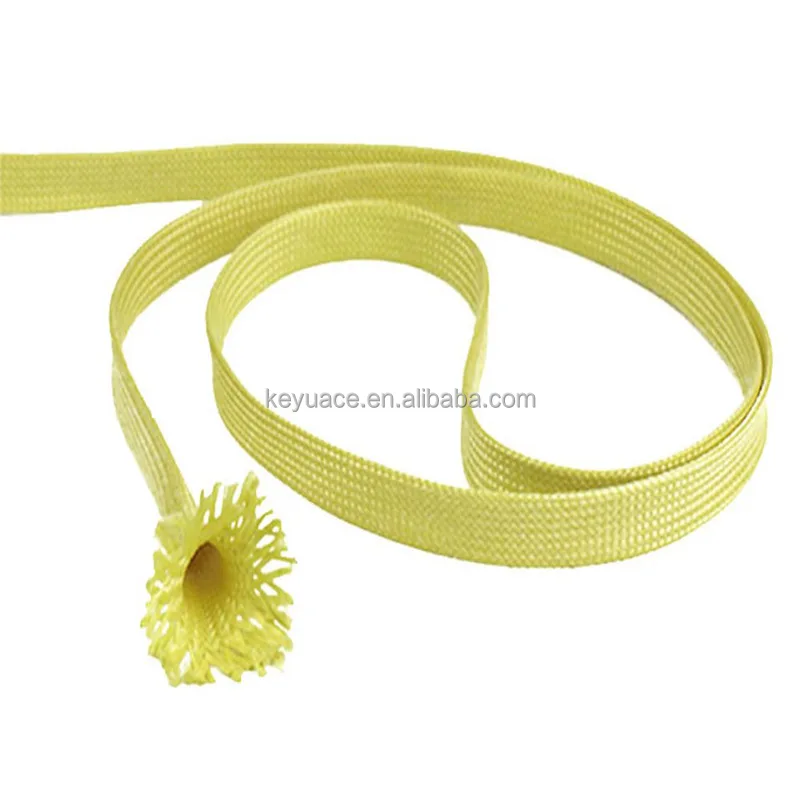

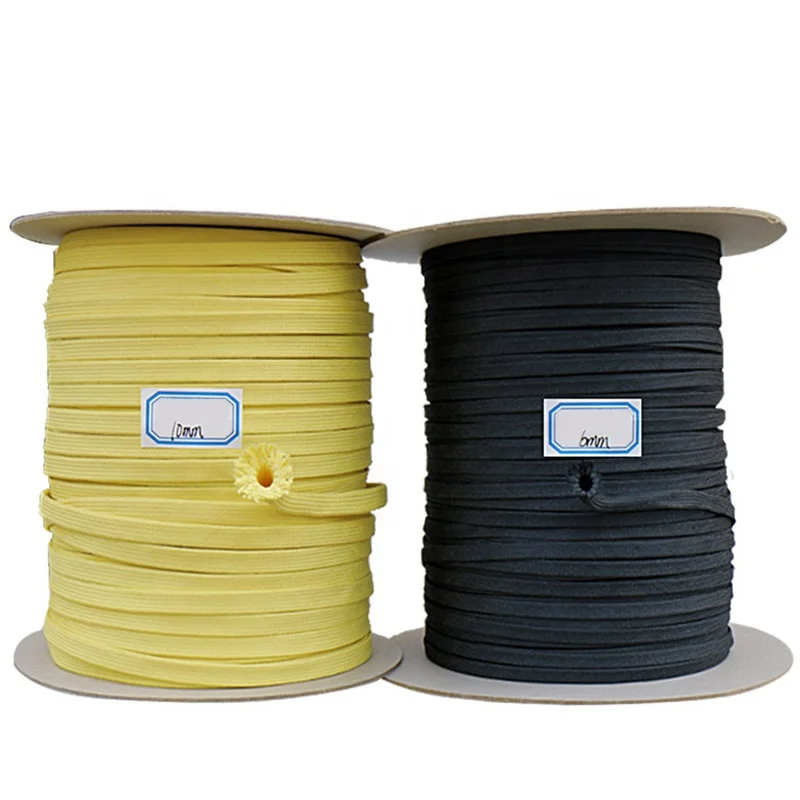

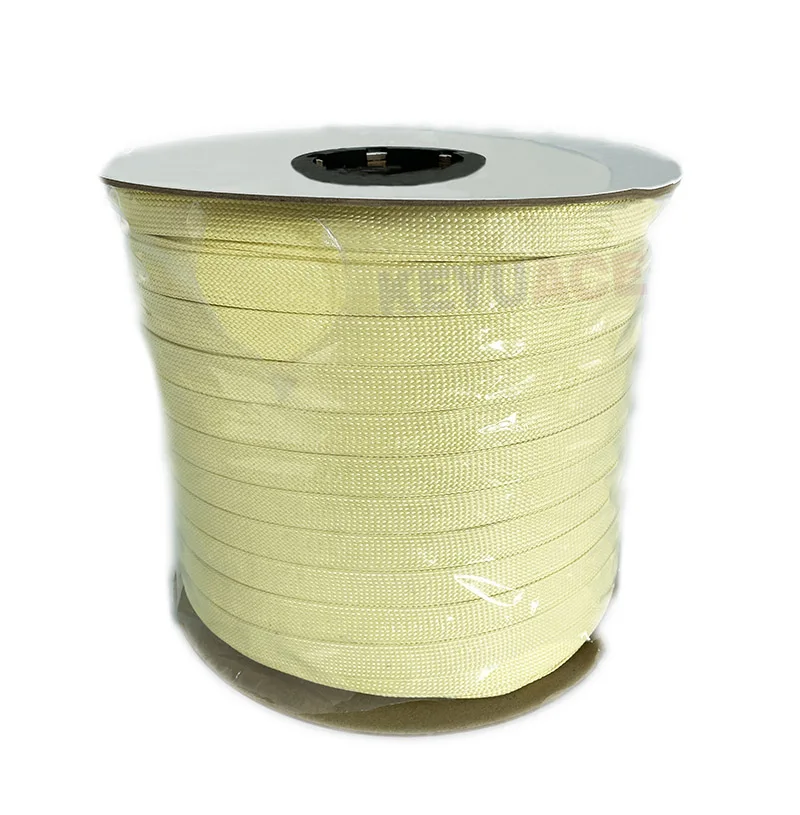

KFL- Expandable Kevlar Fiber Braided Sleeving /

Aramid Braided Sleeves



 KFL- Kevlar fiber braided sleeving is made of Aramid 1414 material, with wear proof, humidity resistant, big tension, light-weight, stable dimension and other characteristics, it can be used for protectiong the wire materials and rubber hose in bad evironments.



Kevlar braided sleeves also can called Aramid Braided Sleeves.





Product application:

Kevlar braided sleeves widely used in the racing car, spaceflight, war industry, firefighting and other high-tech fields.

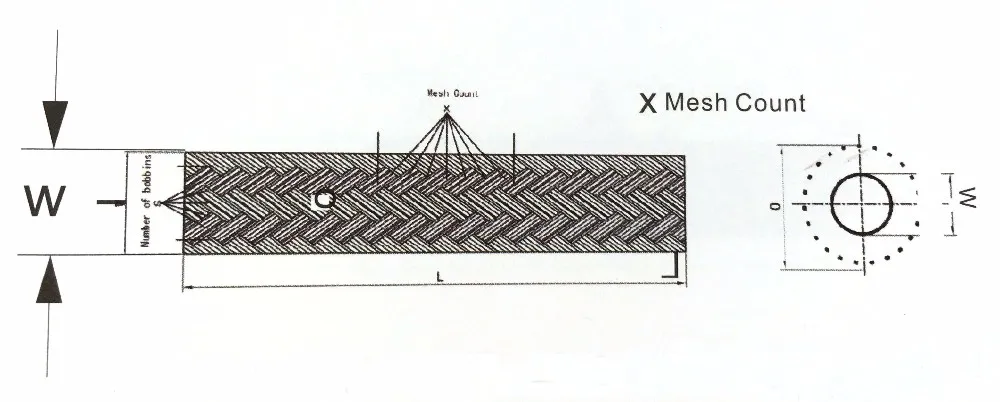

Product size chart:

Technical parameters:
1, Material quality: kevlar fibers
2, Working temperature: -170 ℃ to + 250 ℃
3, Melting point: not melt
4, Standard colors: yellow
5, Certification: ROHS
6, Cutting tools, scissors
7, Other features: resistance to organic solvents



Product specification:













Part NO.	Lay flat(W) (MM)	Bundle DIA(1~0) (MM)	Packaging (L)
KFL-003	3.0	1.0--4.0	500m/roll
KFL-006	6.0	5.0--8.0	5000m/roll
KFL-008	8.0	6.0--10.0	3500m/roll
KFL-010	10.0	7.0--13.0	3500m/roll
KFL-012	12.0	8.0--16.0	3000m/roll
KFL-015	15.0	10.0--20.0	2500m/roll
KFL-020	20.0	14.0--26.0	2000m/roll
KFL-025	25.0	18.0--33.0	2000m/roll
KFL-030	30.0	20.0--39.0	1500m/roll
KFL-040	40.0	30.0--52.0	1000m/roll
KFL-050	50.0	40.0--65.0	1000m/roll















































Remark:
1 product size is the fold diameter of the sleebing.(flat width)
2 we can provide special packaging and size sleeving according to customer's requirements
3 all the data above is common-use value, not including customized size.
4 Kevlar is one of the registered trademark of Dupont company in the United States.
