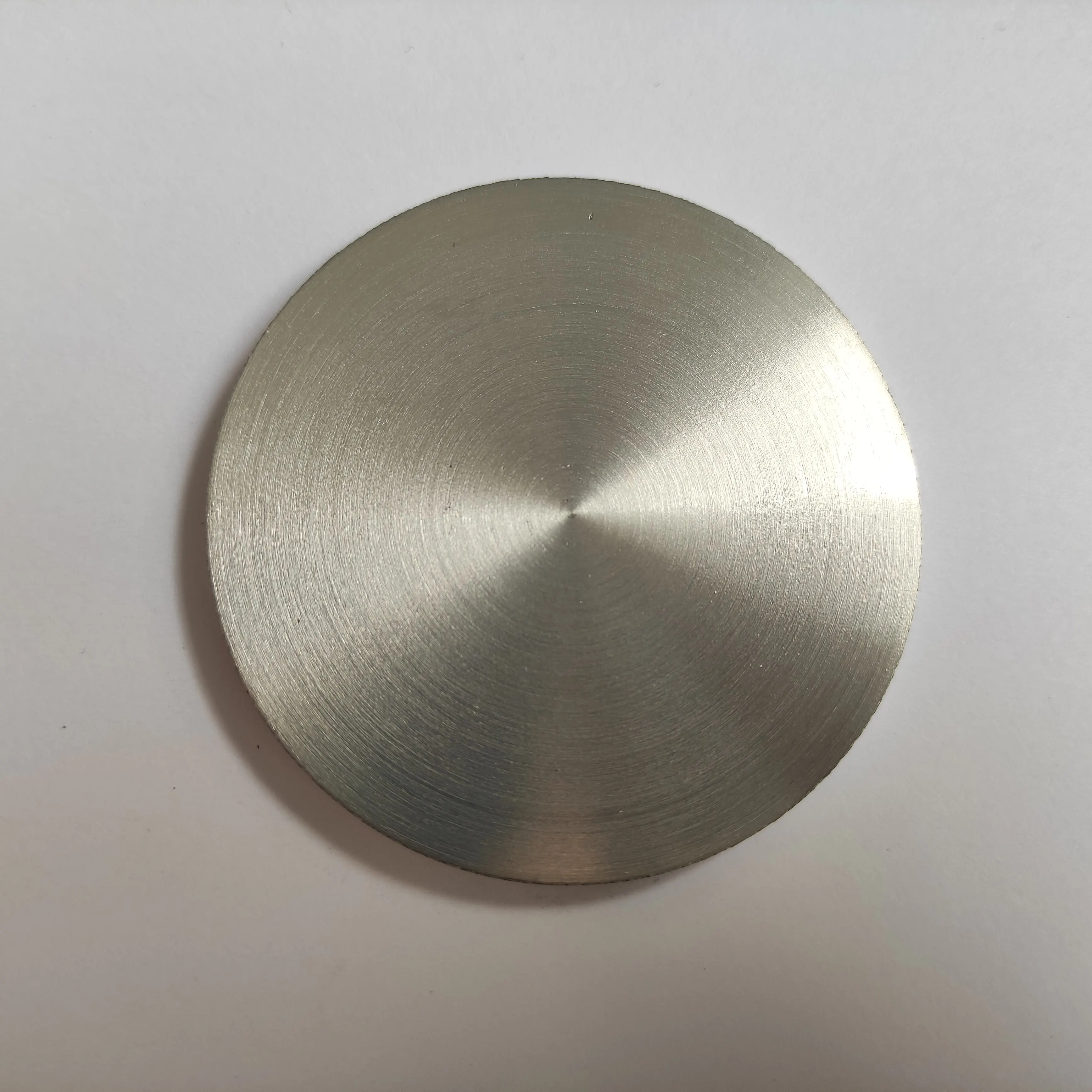

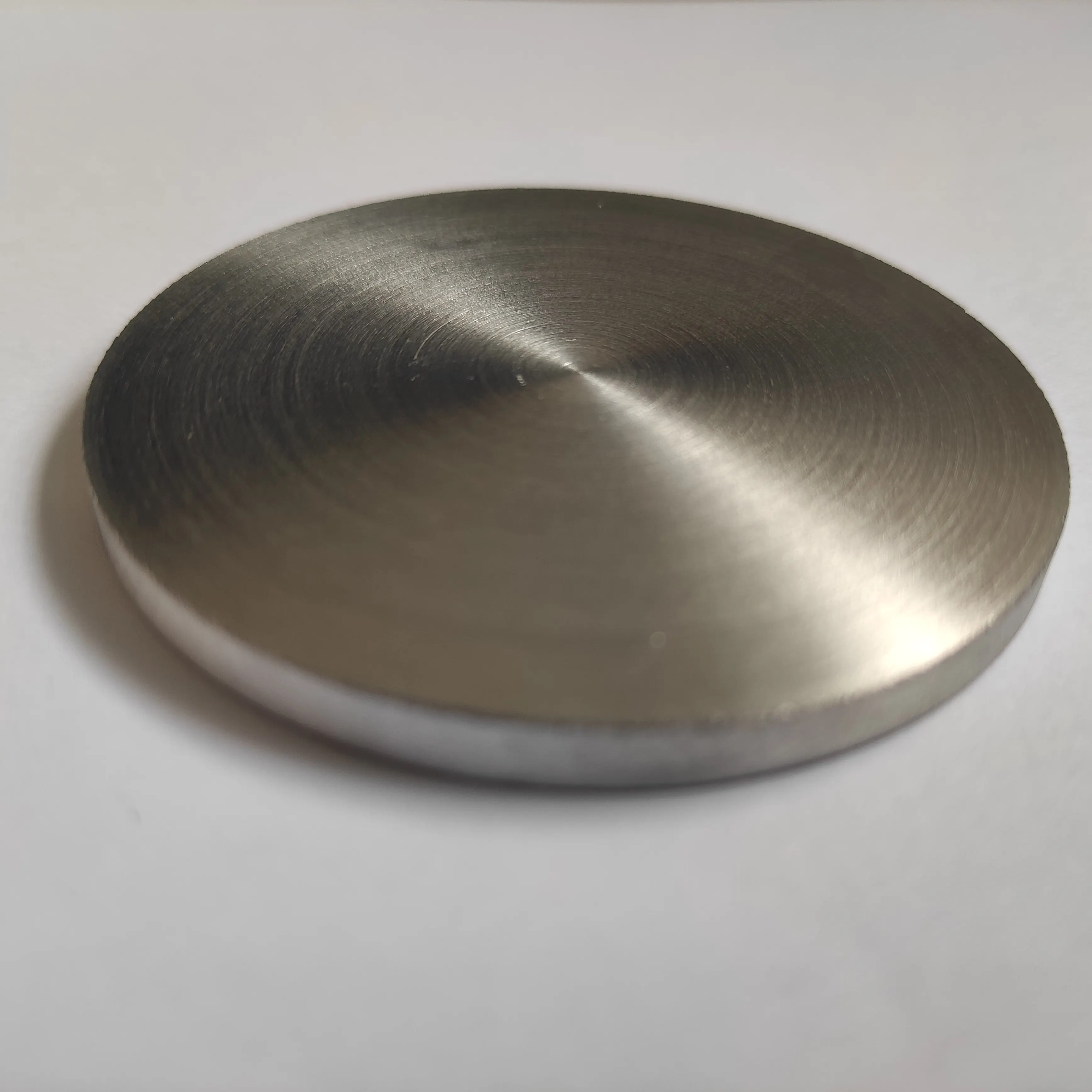

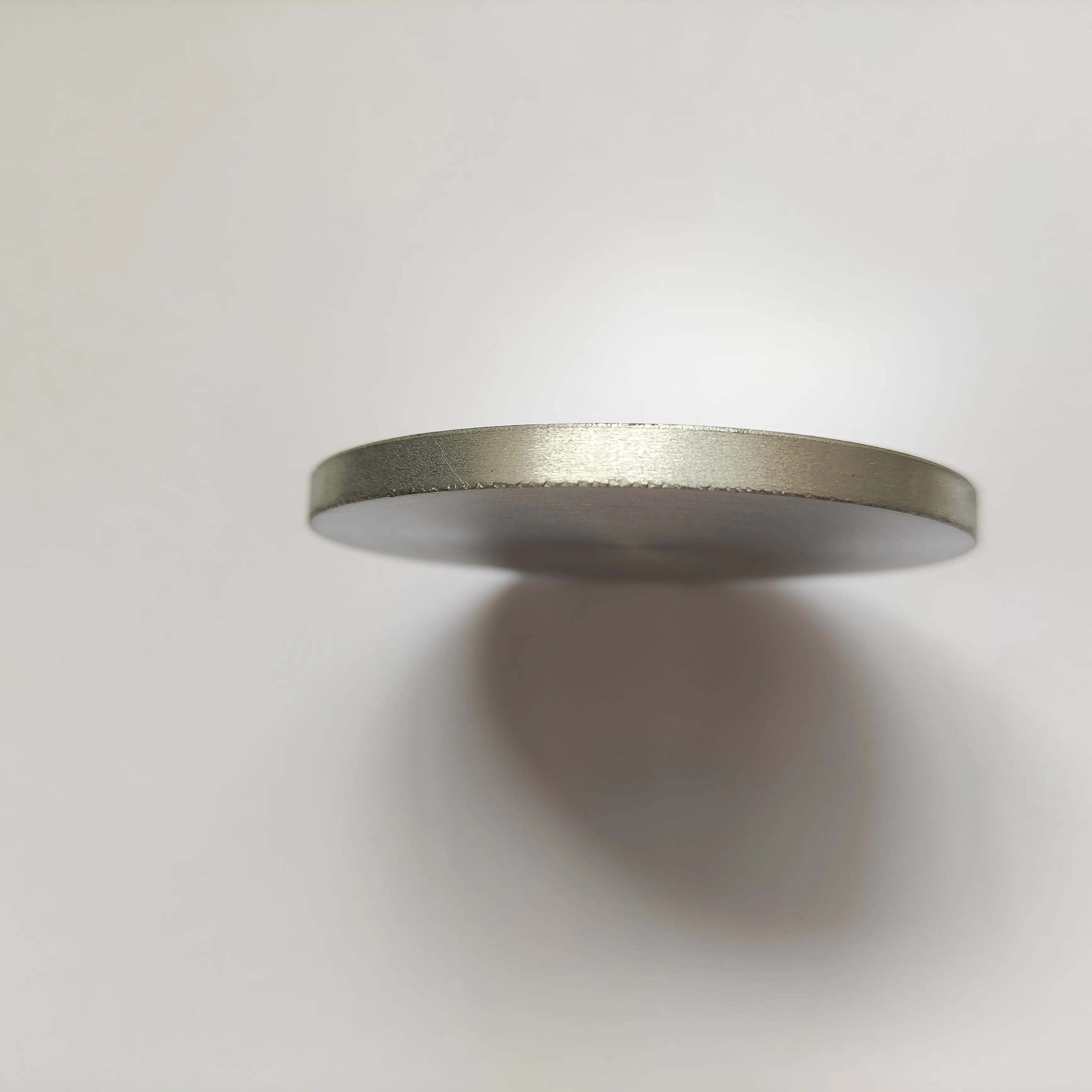

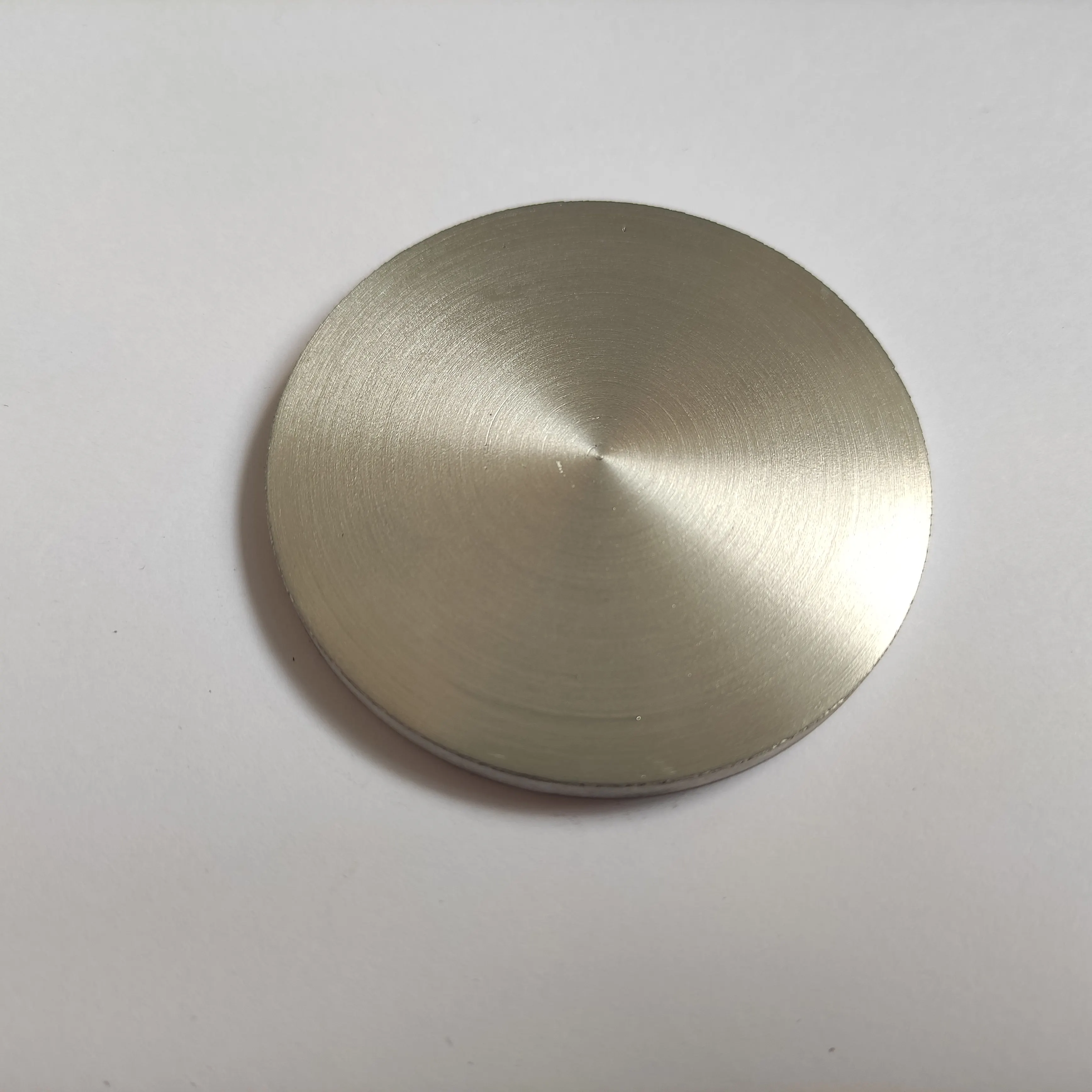

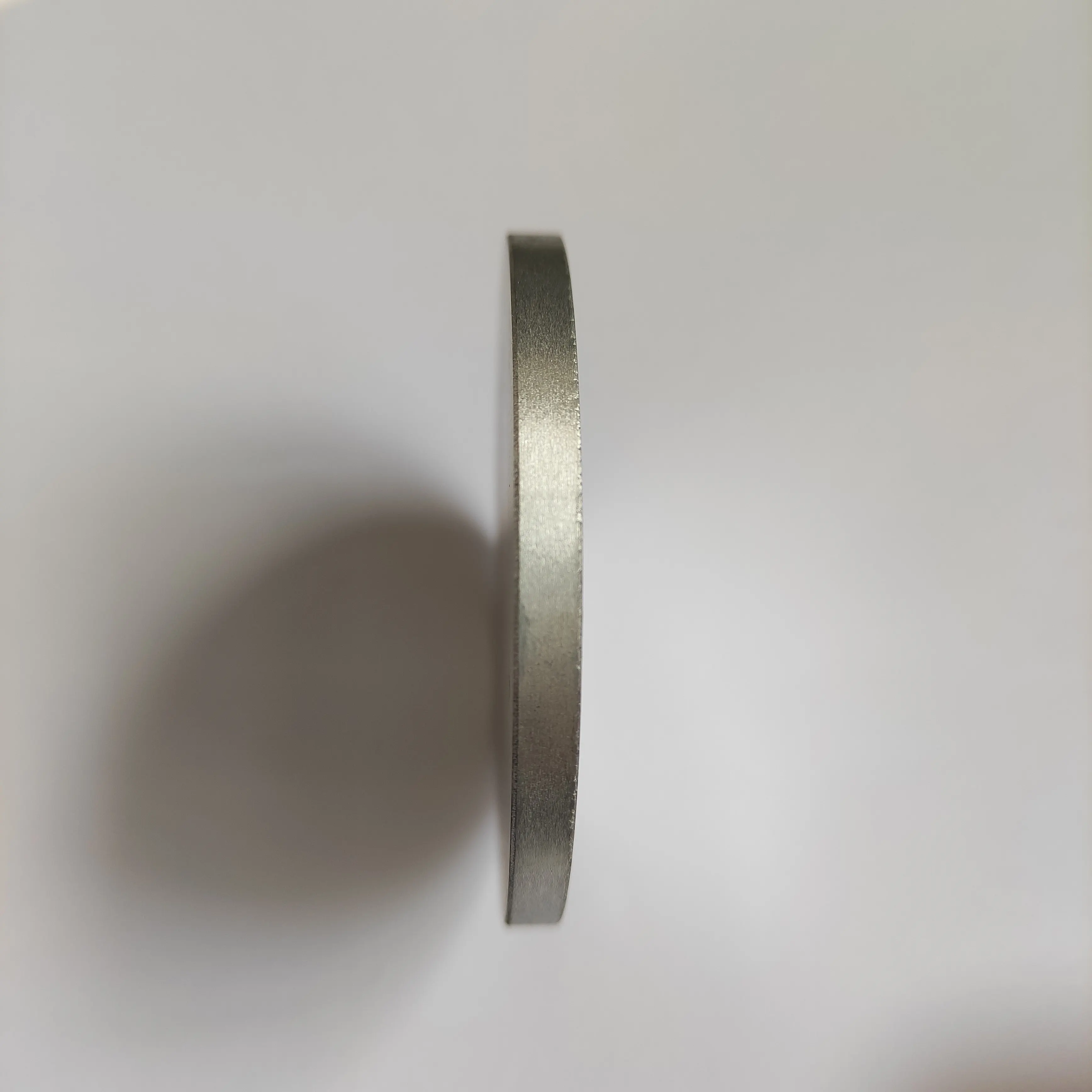

High quality Molybdenum Niobium MoNb Sputtering Target for vacuum coating
- Category: >>>
- Supplier: Rich Special Materials Co. Ltd.
Share on (1600733779599):
Product Overview
Description
PRODUCT INFORMATION
Product Name | Molybdenum Niobium Sputtering Target | ||||||
Shape | Disc, plane, tube | ||||||
Purity | 99.95% | ||||||
MOQ | 1 piece | ||||||
The Molybdenum Niobium targets are prepared by blending Molybdenum and Niobium powders followed by compaction to full density. The thus compacted materials are optionally sintered and are then formed into the desired target shape.
Molybdenum Niobium sputtering target has high melting point, strength, and toughness at elevated temperatures. It also exhibits excellent heat and electric conductivity with low coefficient of thermal expansion. Adding Niobium into Molybdenum improves liquid-crystal display pixel by at least three times.
Molybdenum Niobium sputtering target are critical materials for Flat Panel Display (FPD) and are used in large quantity in the molybdenum-niobium alloys for Liquid Crystal Display (LCD) source cuboid liquid crystal display, field emission display, organic light-emitting display, plasma display panels, cathodoluminescence display, vacuum fluorescent display, TFT flexible display and touch screens, etc. Electron beam evaporation of panel display processes can make Niobium deposit at the top end of emitter, which will be very helpful in developing large screens with high definition.
Molybdenum Niobium sputtering target has high melting point, strength, and toughness at elevated temperatures. It also exhibits excellent heat and electric conductivity with low coefficient of thermal expansion. Adding Niobium into Molybdenum improves liquid-crystal display pixel by at least three times.
Molybdenum Niobium sputtering target are critical materials for Flat Panel Display (FPD) and are used in large quantity in the molybdenum-niobium alloys for Liquid Crystal Display (LCD) source cuboid liquid crystal display, field emission display, organic light-emitting display, plasma display panels, cathodoluminescence display, vacuum fluorescent display, TFT flexible display and touch screens, etc. Electron beam evaporation of panel display processes can make Niobium deposit at the top end of emitter, which will be very helpful in developing large screens with high definition.
