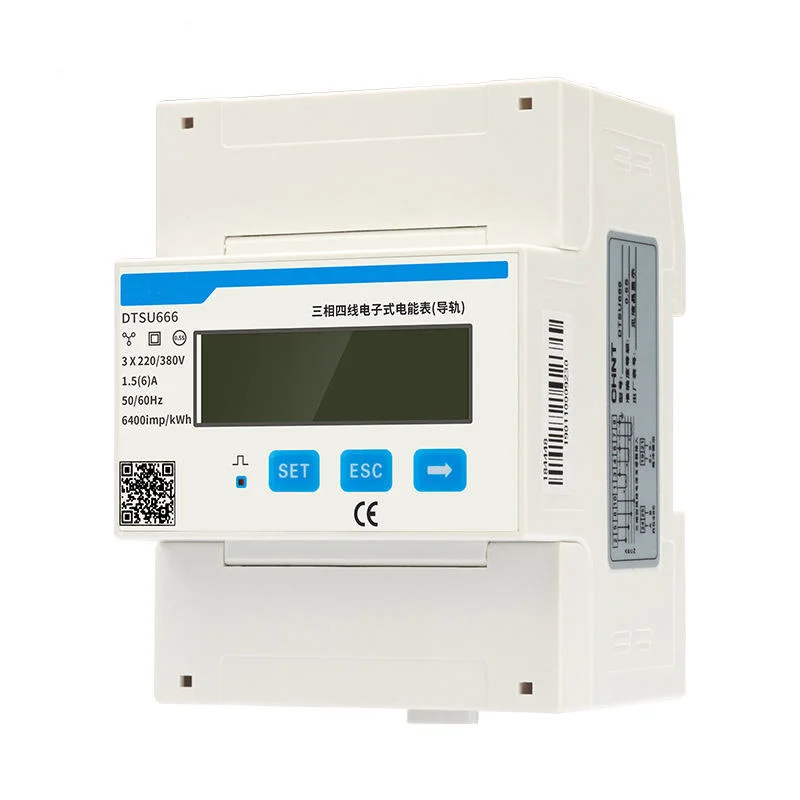

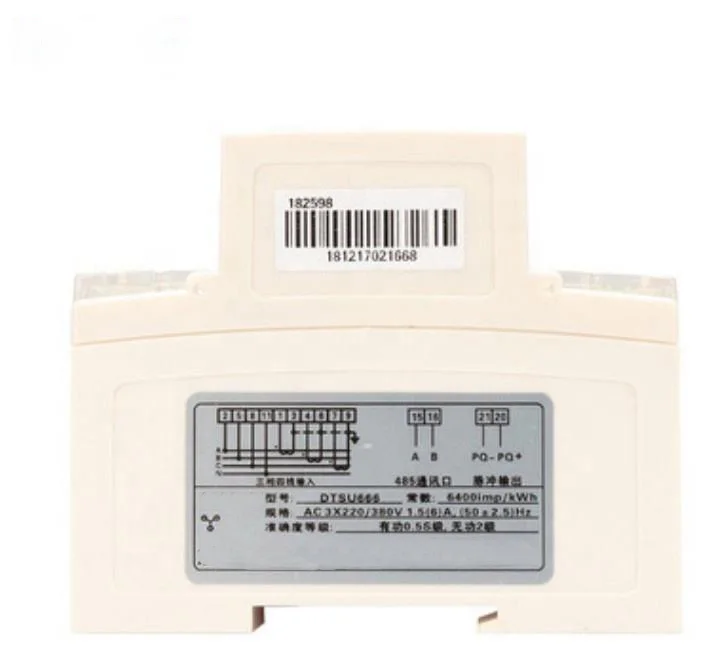

Hot Sale CHINT DTSU666 RS485 220V/380V 5 80A Watt Hour Meter Intelligent Digital Display Three phase Miniature Electronic
- Category: >>>
- Supplier: Zhejiang Quinntek Co. Ltd.
Share on (1600733787091):
Product Overview
Description
Product Details
Energy Meter

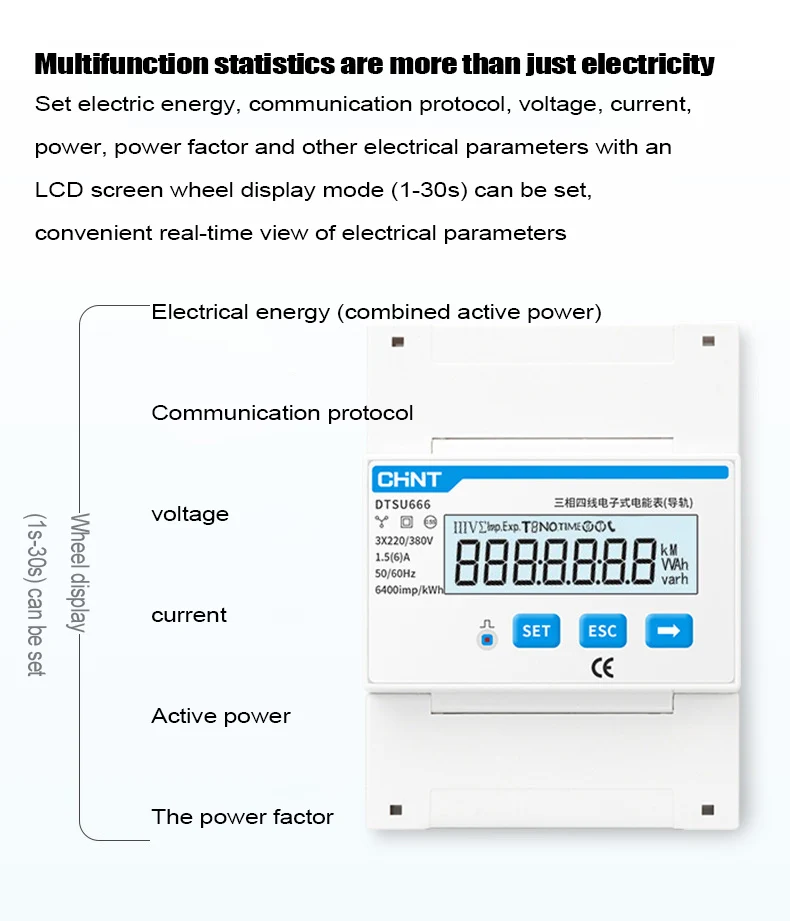

The DDSU666 Single-phase electronic type guide rail mounting electric energy meters. It is used to monitor and display the grid power (voltage, current frequency and energy), and transfer this info to solar inverter via RS485 communication in zero-export system. The DTSU666 series three phase four wire electronic energy meter (din-rail) is designed based on power monitoring and energy metering demands for PV power plants etc. Mainly applied into the measurement and display for the grid parameters in the zero-export system, including grid voltage, current, active power, reactive power, frequency, etc.
Specification
Model | DDSU666 | DTSU666 | ||
Max. direct current measurement (A) | 60 | 80 | ||
Direct Voltage measurement between phases | / | 176-458V | ||
Direct measurement between phase and neutral | 176~264V | 100-265V | ||
Accuracy Class | ||||
Active power | Class1 | |||
Reactive power | Class2 | |||
Power Supply | ||||
Power consumption | ≤1W / 8VA | ≤1.5W / 6VA | ||
AC power supply input voltage | 176-264V | 100-265V | ||
AC power supply input frequency | 50/60Hz | |||
Generation Specifications | ||||
Dimenstions (L/H/W) in mm | 36×85×66 | 100×72×66 | ||
Weight (kg) | 0.21 | 0.44 | ||

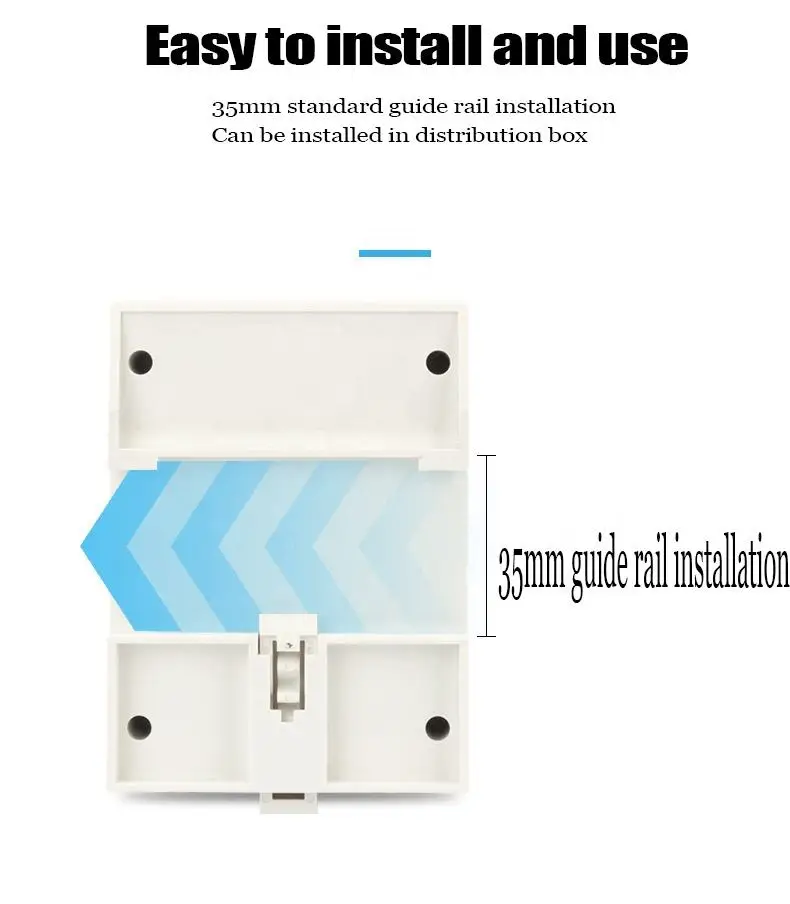

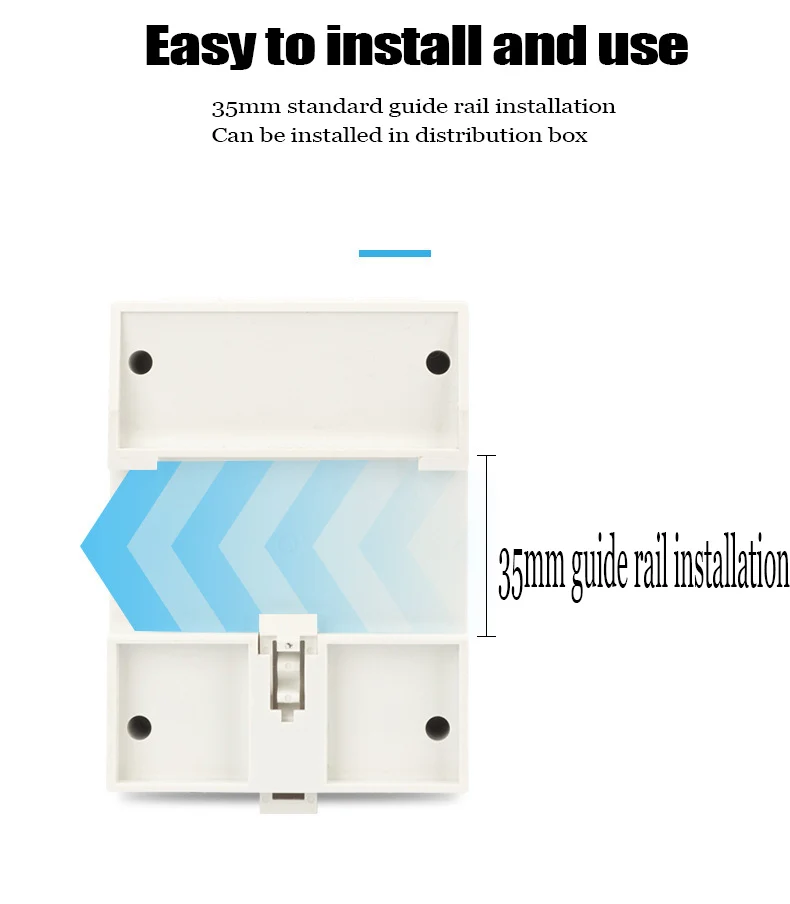

Mounting options | DIN Rail | |||
Degree of protection | IP51 | |||
Display | LCD | |||
Communication interface | RS485 | |||
Max. number of devices to connect | 32 | |||
Regulated working temperature range | -25℃~+55℃ | -10℃~+45℃ | ||
Limited working temperature range | -40℃~+70℃ | -25℃~+75℃ | ||
Humidity | ≤75% | |||
Warranty | 1.5 years | |||
