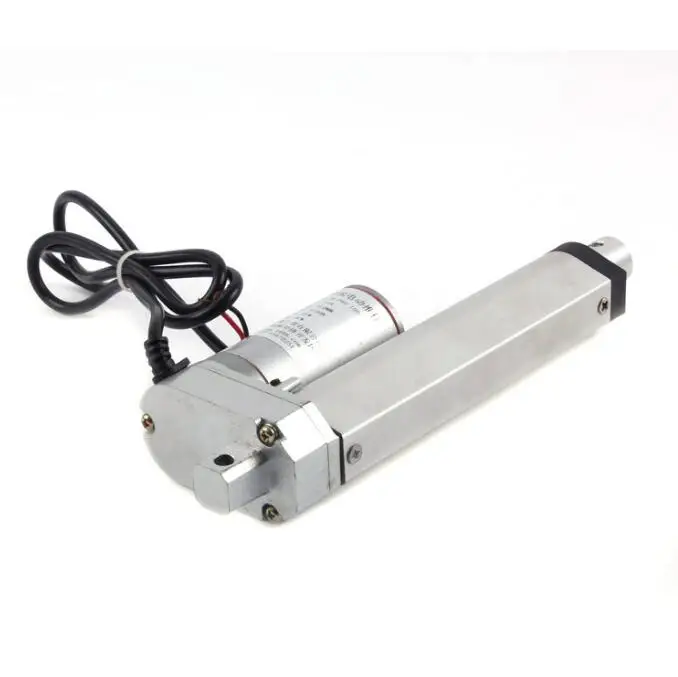

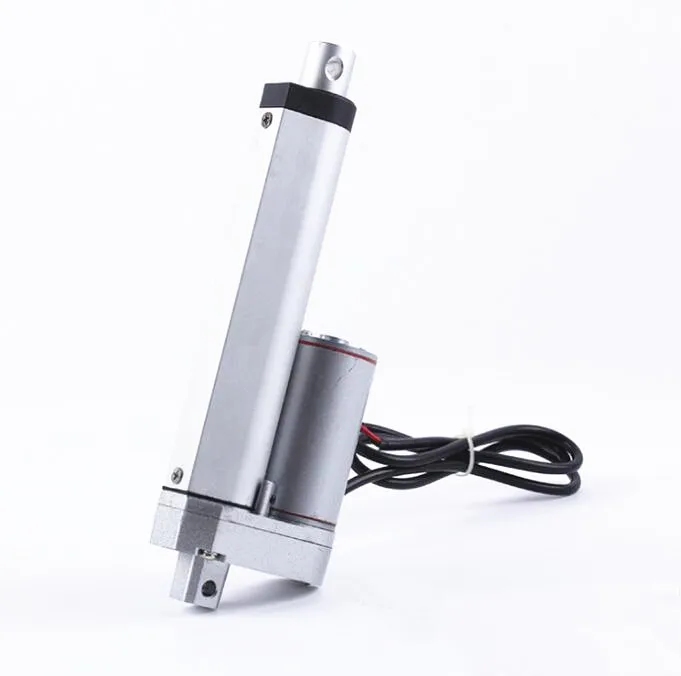

High Quality 12V Aluminum Linear Actuator Waterproof IP65 with Limit Switch
- Category: >>>
- Supplier: Changsha Igs Machinery Co. Ltd.
Share on (1600733802469):
Product Overview
Description
Product Description
High Speed Synchronized 12V 24V Electric Linear Actuator with Hall Sensor
Technical specification:
Product name: linear actuator
Voltage: 12/24/36/48 V DC
Pressure: up to 10000N
Speed range: 4-60mm / s
Stroke range: 20-1200mm

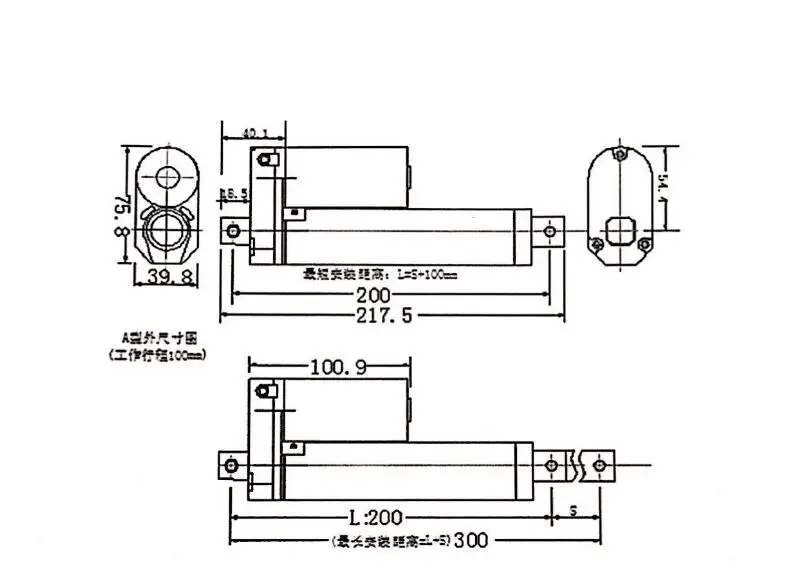

Installation size: S (stroke) + 120mm
Limit switch: built-in
Protection level: IP55
Application areas: household appliances, office furniture, medical machinery, industrial applications ...
Certificate: ROHS CE
Detailed Images
Application
Instructions for use of linear actuators:
1. The putter cannot work continuously for a long time. The working efficiency of the putter is 10% -20%. It can work continuously
for 2 minutes and rest for more than 18 minutes.
2. The built-in limit switch of the push rod automatically stops when reaching the end of the head, and stops when any power is
cut off in the middle
1. The putter cannot work continuously for a long time. The working efficiency of the putter is 10% -20%. It can work continuously
for 2 minutes and rest for more than 18 minutes.
2. The built-in limit switch of the push rod automatically stops when reaching the end of the head, and stops when any power is
cut off in the middle
