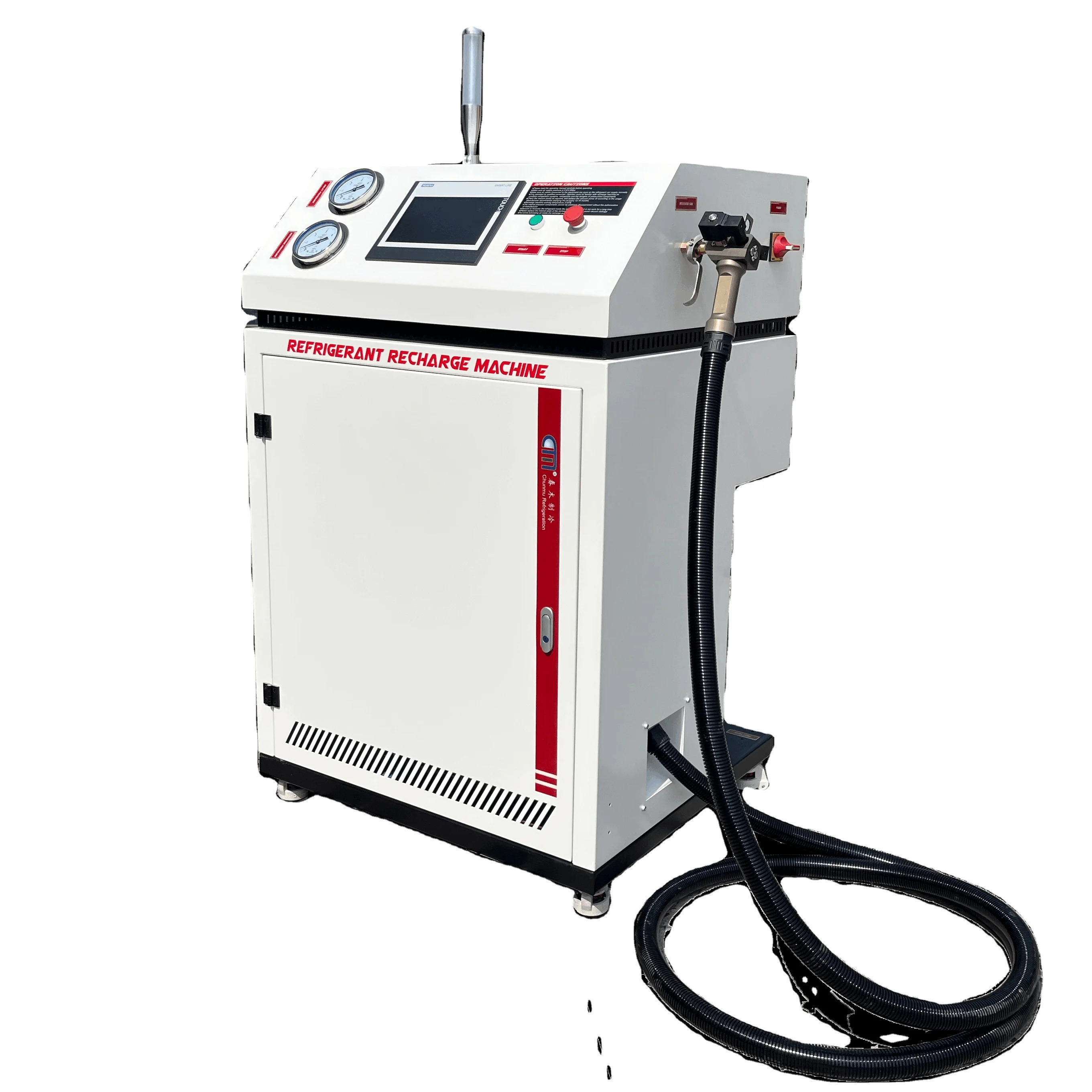

Auto Freon Gas Charging Machine Refrigerant Charging Station Air Conditioning Production

Product Overview

Description

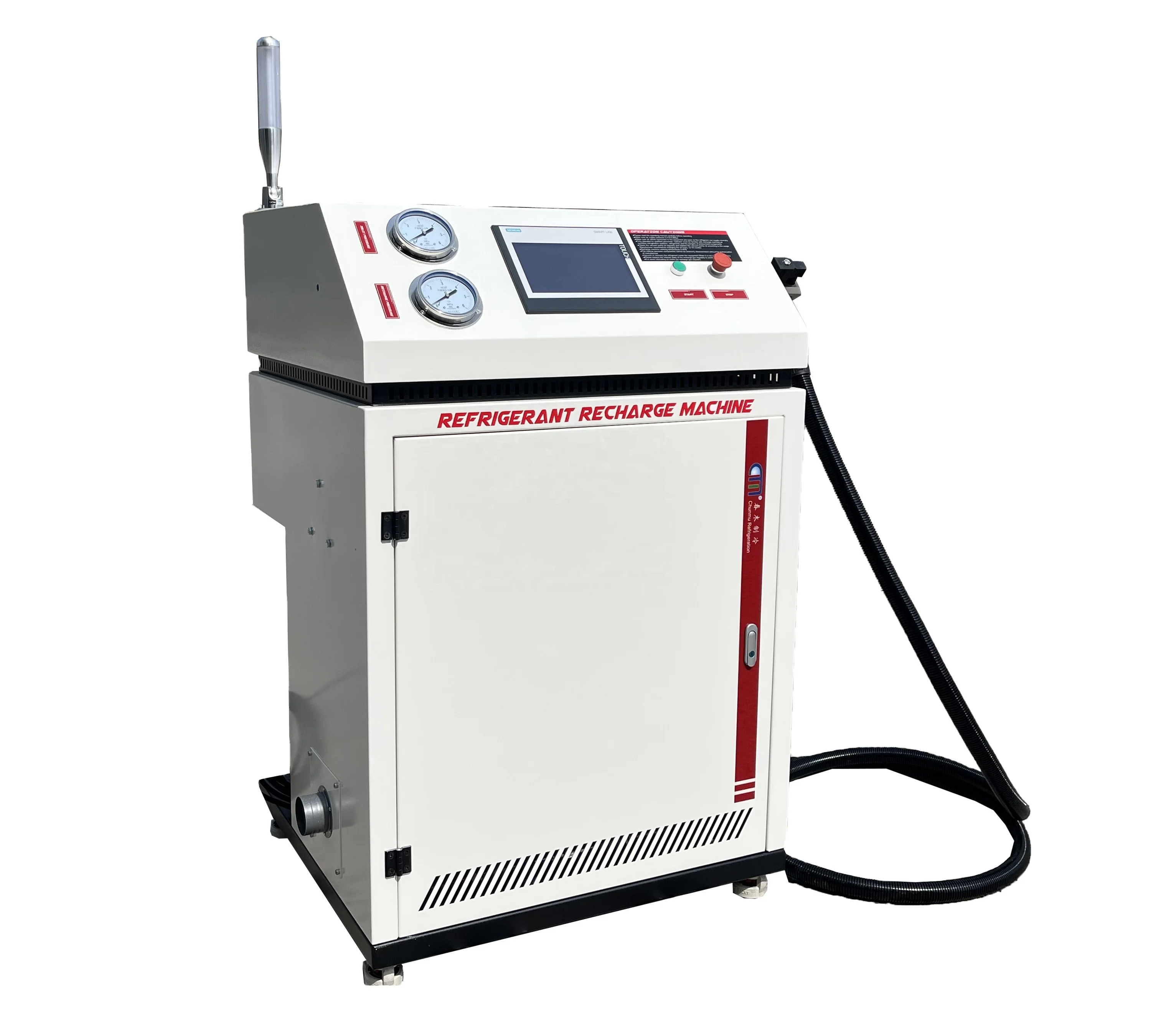

CM86 Refrigerant Charging System



CM86 production line freon filling equipment series is specially designed for refrigeration equipment production line,it's suitable for various application which includes chiller,air condition,

refrigerator or beer machine



The entire system was controller by Siemens PLC technology with full automatic operation. It featured for its high speed of charging, high accuracy. multiple function etc. CM8600 production line freon filling equipment are compatible with refrigerants of CFC,HFC,HC,etc. The production line freon filling equipment can also be customized according to your special requirements.



Features



(1) Full Automatic Control system, with the most accurate data processing capacity;

(2) Colorful touch screen, with smart control panel in both English and Chinese
(3) Suitable for various refrigerant,such as R134a, R22,R410a ,R407c,R32,R404a,R1234yf etc.
(4) Equipped with high resolution sensor flowmeter;
(5) Have the functioning of detecting vacuuming and leakage for workpiece;
(6) Efficient for improving production and charging quality;
(7) The barcode reader can be optional, save more than 40 different product items;

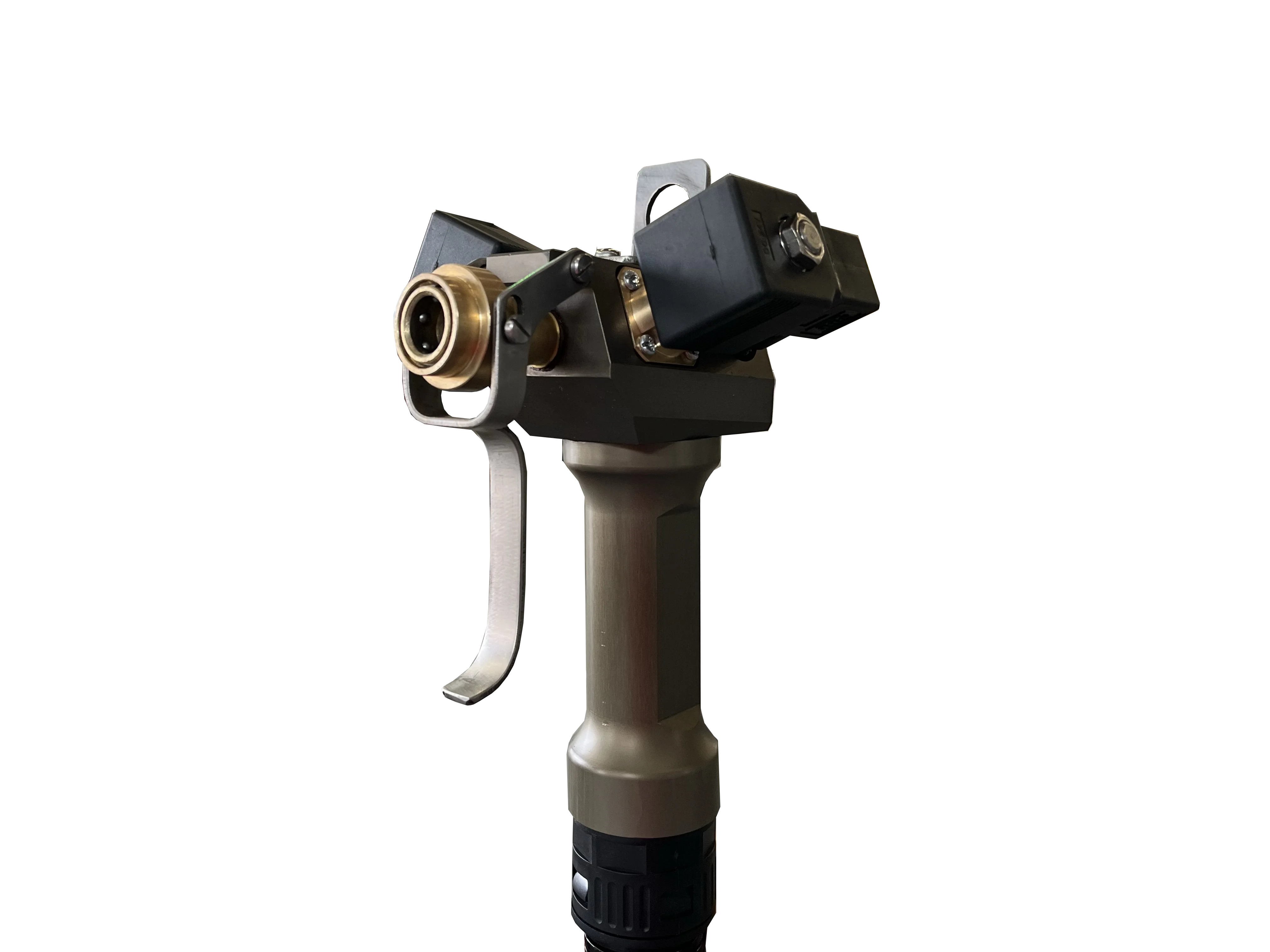

(8) Smart refrigerant charging gun to ensure the vacuuming efficiency, refilling accuracy and reliability;





Specification



Suitable Refrigerant	R134A.R404A.R22.R410A.R290 etc.
Working pressure	1.8MPa-2.8MPa
Refrigerant Charging Accuracy	±0.5%
Charging Speed	20g/s-200g/s
Vacuum Degree	≤5Pa
Charging range	0-50KG adjustable
Vacuum speed	8L/S
Pre-set channel	100
Gauge meter	Mass flow meter
Vacuum inspect	10-300Pa
Charging Gun Connection	Hansen 1/4"&3/8"
Length of filling pipe	3-10M
Power and voltage	380V 50Hz 3Ph & 220V 50Hz 1Ph
compressed air pressure	6-8Bar
Product Dimension	950W*750D*1450Hmm
Net weight	250kg





Optional Equipment

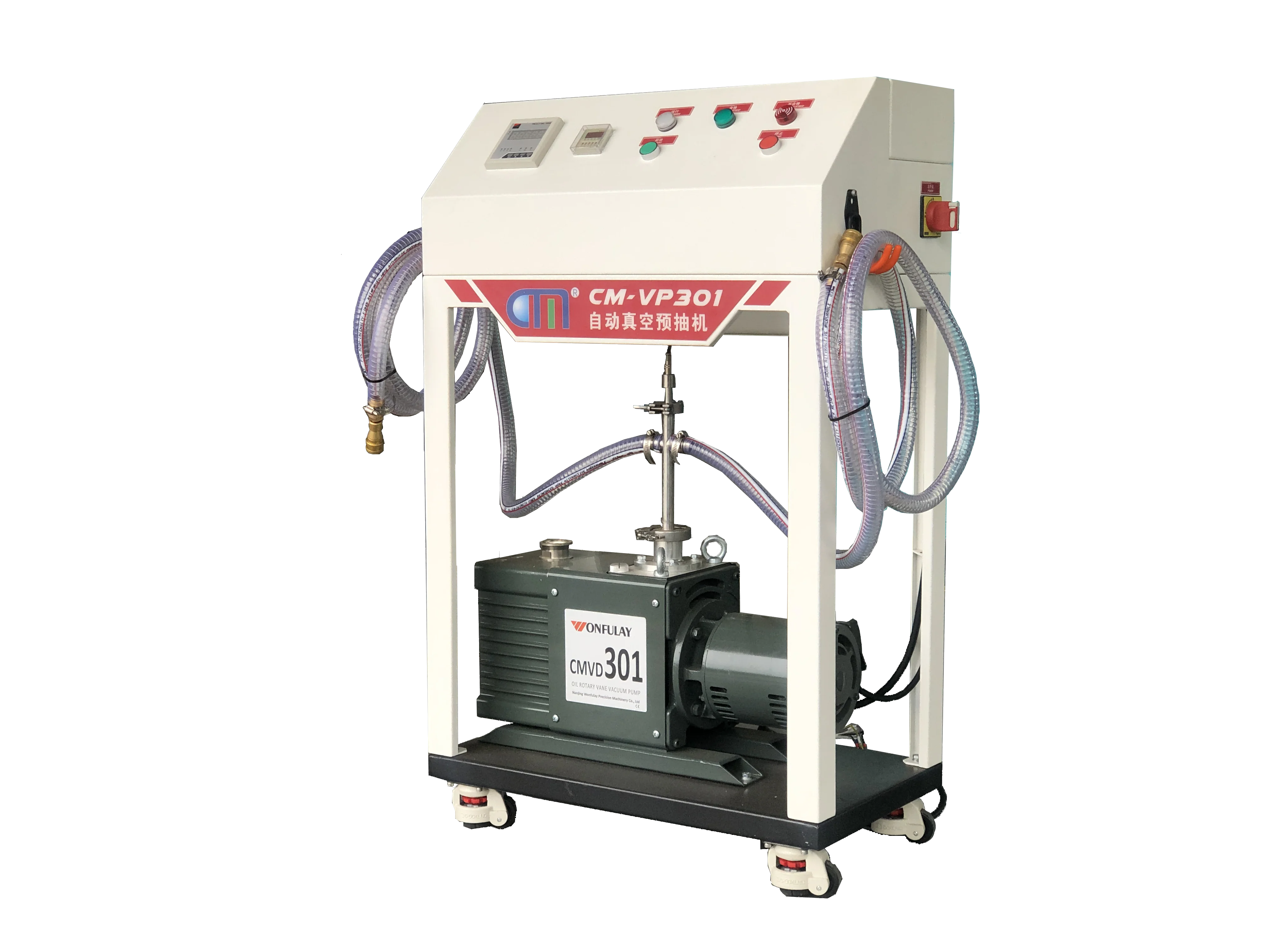

Pre-Vacuum System
