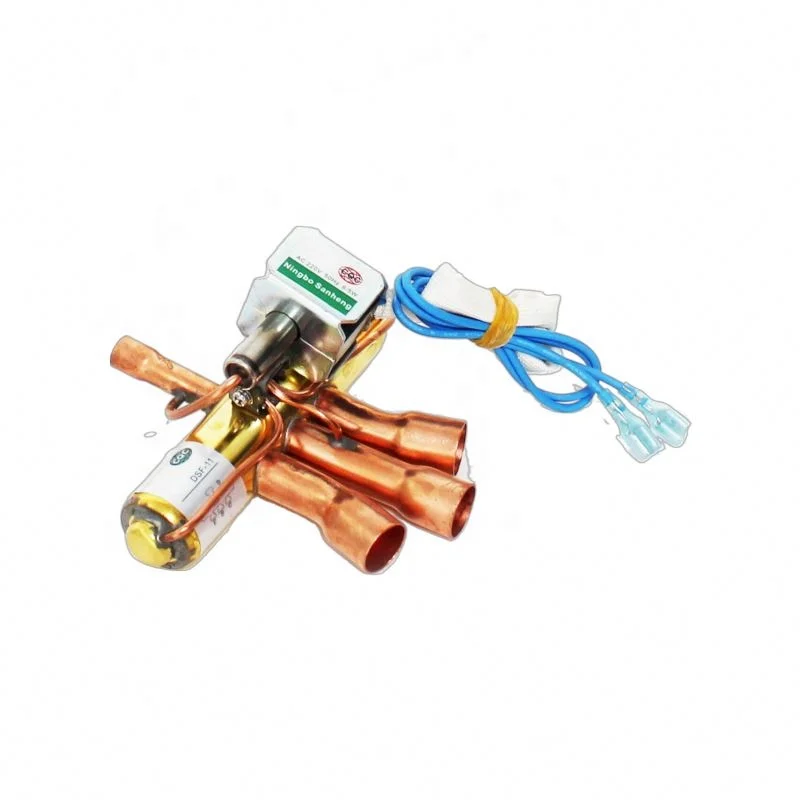

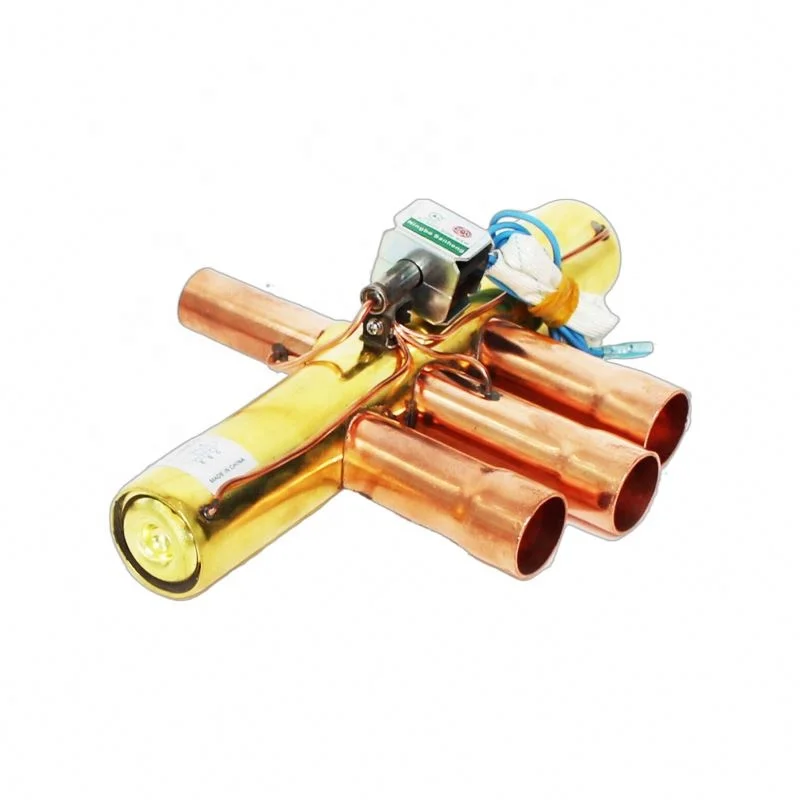

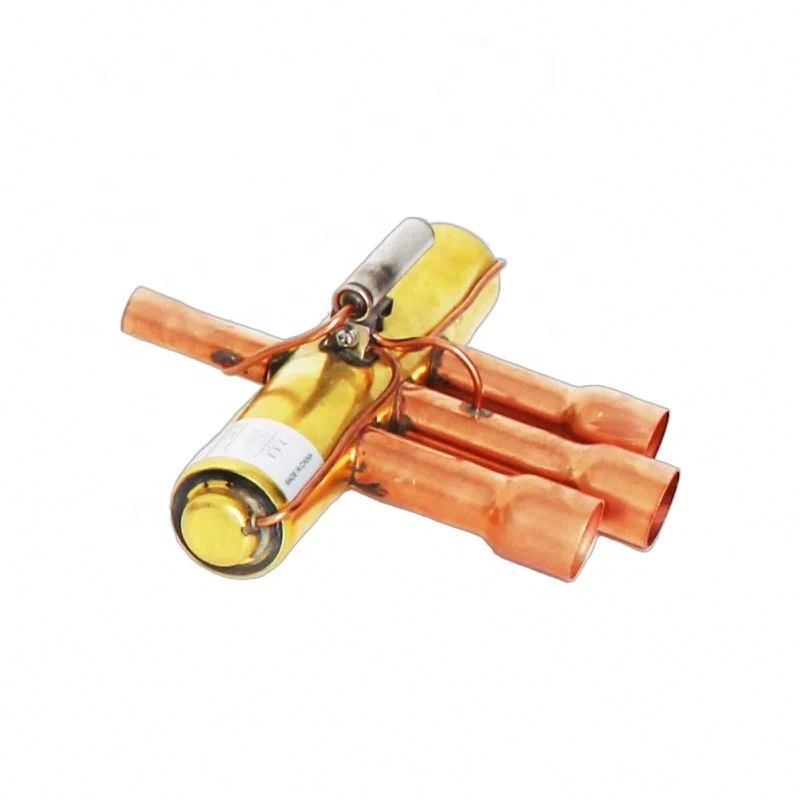

Air Conditioning 4 Way Reversing Valve Reversing Valve for Air Conditioning
- Category: >>>
- Supplier: Ningbo Sanhe Refrigeration Co. Ltd.
Share on (1600733840259):
Product Overview
Description
Max.Working Pressure | R134a,R22,R407C:3.0Mpa；R410A:4.15Mpa | ||||||||||||||||
Ambient Temperature | -20ºC～55ºC | ||||||||||||||||
Allowable Fulid Temperature | -20ºC～120ºC | ||||||||||||||||
Ambient Humidity | Less than 95%R.H. | ||||||||||||||||
Applicable Voltage | AC24V,AC100V,AC115V,AC120V,AC220V,AC240V,AC277V,DC24 | ||||||||||||||||
Allowable Coil Power And Temperature Limits | 5～8W,≤130ºC | ||||||||||||||||
Refrigerant | R22,407C,R134a,R410A | ||||||||||||||||
Model | Port Size(mm) | Max.O.P.D(MPa) | Min.O.P.D(MPa) | Nominal Capacity | Applicable(Valus for reference) | Internal leakage | Connection (ODF) | ||||||||||
R22, R407C | R410A | R22, R407C, R140A | TON | HP | L/min | Discharge | Suction | ||||||||||

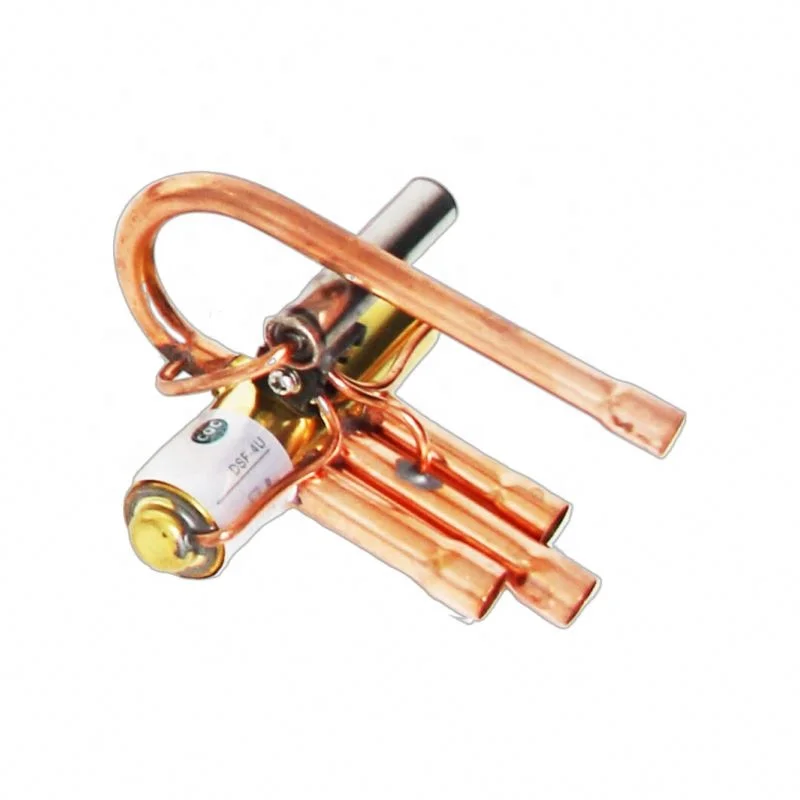

DSF-4U | 8 | 2.5 | 3.1 | 0.2 | 1 | 0.75～1.5 | ≤1.0 | ø8.0 5/16" | ø9.52 3/8" | ||||||||

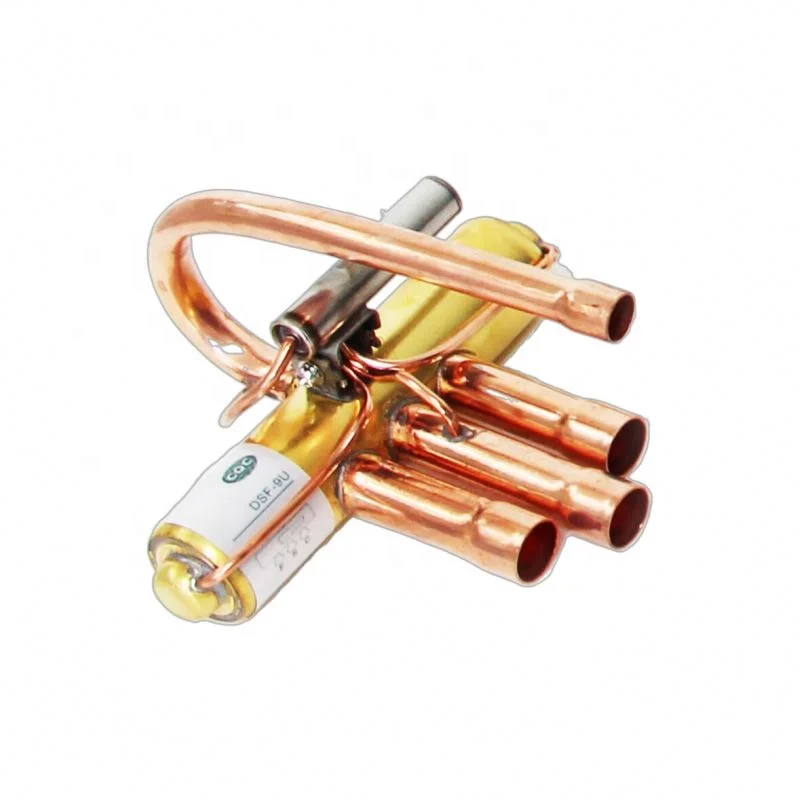

DSF-9U | 11.1 | 0.25 | 2 | 1.5～3.7；0.75～2.0 | ≤1.5 | ø9.52 3/8"；5/16" | ø12.7 1/2" | ||||||||||
DSF-11U | 11.5 | 0.3 | 2～3 | 2.5～4.2；2.0～4.0 | ≤2.0 | ø9.52 3/8" | ø15.9 5/8" | ||||||||||
DSF-11 | 11.5 | 0.3 | 2～3 | 2.5～4.2；2.0～4.0 | ≤2.0 | ø12.7 1/2" | ø15.9 5/8" | ||||||||||
DSF-20U | 15.5 | 0.34 | 4～6 | 4.0～6.0；2.0～8.0 | ≤4.0 | ø12.7 1/2" | ø19.05 3/4" | ||||||||||
DSF-20 | 15.5 | 0.34 | 4～6 | 4.0～6.0；2.0～8.0 | ≤4.0 | ø12.7 1/2" | ø22.2 7/8" | ||||||||||
DSF-34 | 20 | 0.34 | 10 | 6.5～12.0；6.0～12.0 | ≤6.0 | ø19.05 3/4" | ø22.2 7/8" | ||||||||||
DSF-45 | 26 | 0.34 | 12～15 | 15～20；8～20 | ≤8.0 | ø28.6 1-1/8" | ø35 1-3/8" | ||||||||||
