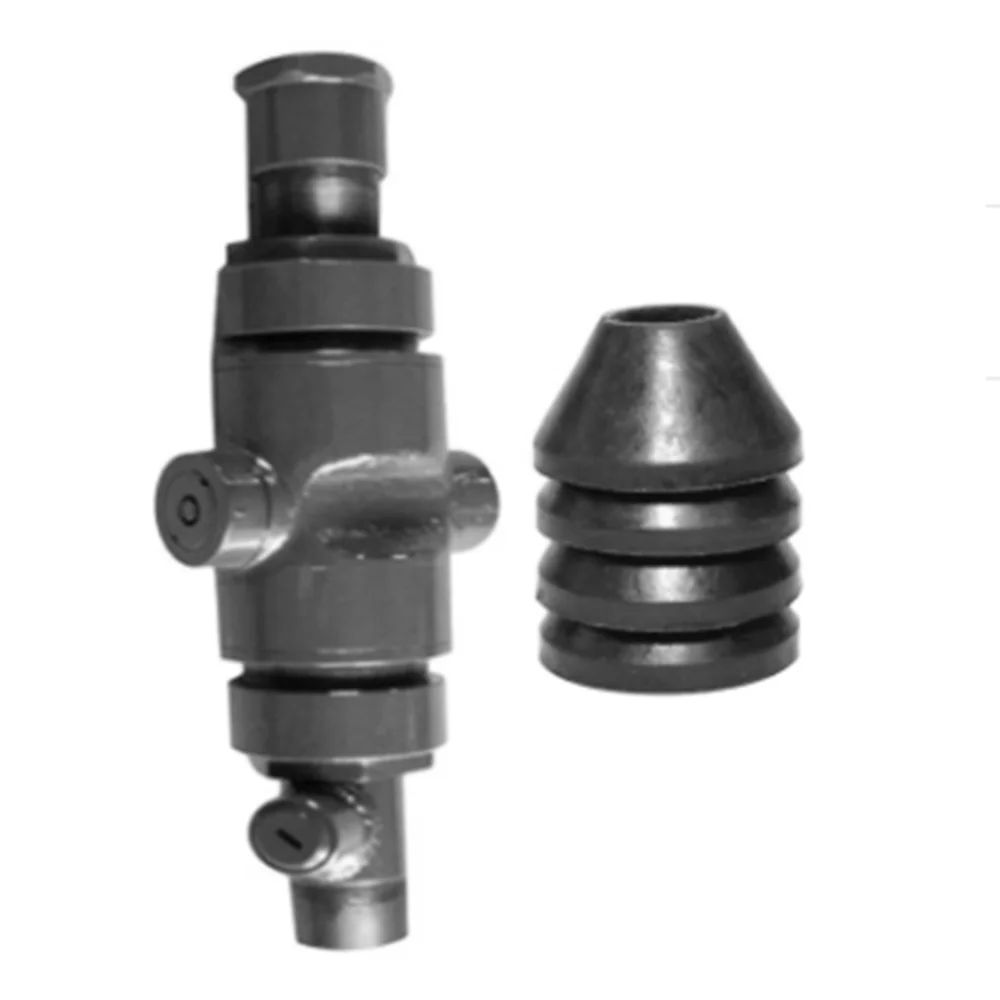

stuffing box polished sucker rod with packing

Product Overview

Description

             2020 products API 11B Oil Well Polished Sucker Rod Seal Stuffing Box



Stuffing box to be installed at Pumping Well Head and seal off the Polished Rod with cone packing and free floating lubricated upper section to assure self alignment and packing burn out, designed to seal off leakage by fluid pressure.

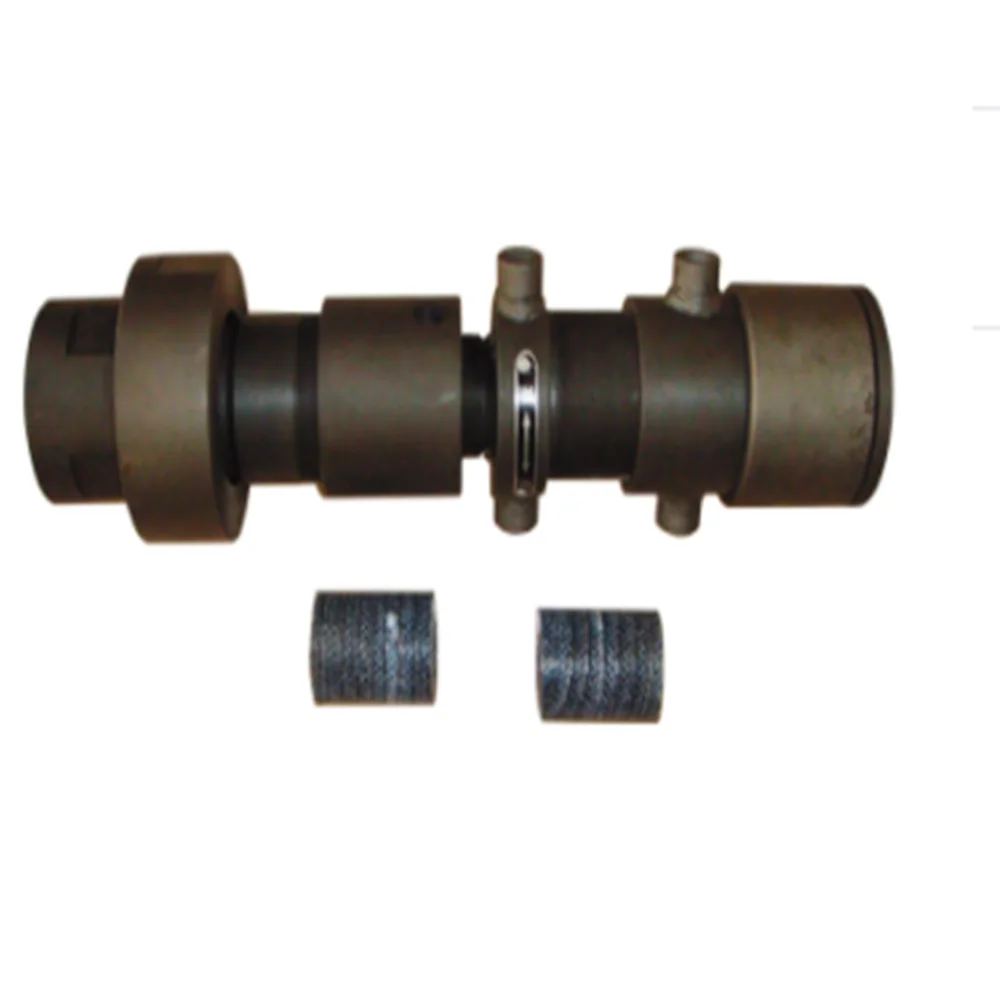

This stuffing box is available for Single Pack and Double Pack stuffing box as below, using 1045/4130 casting steel or ductile iron as per customer demand, for cap, glands, body and base, bottom are API gauged threads of tubing EUE or LP.

They are suitable for rod sizes 1", 1.1/8" , 1.1/4", 1.1/2" and 1.3/4".  Simple structure, easy installation and convenient maintenance, and they can make sure the sealing effectiveness through its single packing or double packing or even triple packing.



Main Technical Parameters:

Working Pressure	≤1500psi
Bottom Thread	1.3/4”, 2”, 2.1/2”, 3”, 3.1/2”, 4”
Bottom Connection	Box or Pin, API Tubing or Line Pipe thread.
Material	AISI1045/4130 casting steel or ductile iron
Split Cone Packing (rod sizes)	1”, 1.1/8”, 1.1/4”, 1.1/2” and 1.3/4”.
